◆ Non-latching
◆ Field selectable nuisance delay
◆ Field selectable 15 or 30 second exit delay
◆ Emergency signal input
◆ Key reset and bypass
◆ Door ajar alarm input
◆ 875 x 66 x 61.5mm
◆ Door size: for 36" and above
◆ Finish:
Silver (standard)
Red/Green/Black (optional, subject to availability or MOQ)
PBA-600LDT/PBA-860LDT Micro Switch Push Bars
◆ Non-latching
◆ Input voltage 12/24VDC
◆ Current Draw:
- Activated 600mA/12VDC; Standby 300mA/12VDC
- Activated 700mA/24VDC; Standby 400mA/24VDC
◆ Relay Rating: 1A/30VDC
◆ LED Illumination:Green & Red
◆ Time Delay: 2~50 seconds
◆ Buzzer Volume: 0~70dB
◆ Dimensions:
PBA-600LDT: 600(L)x66(W)x61.5mm(D)
PBA-860LDT: 875(L)x66(W)x61.5mm(D)
◆ Finish:
Silver (standard)
Red/Green/Black (optional, subject to availability or MOQ)

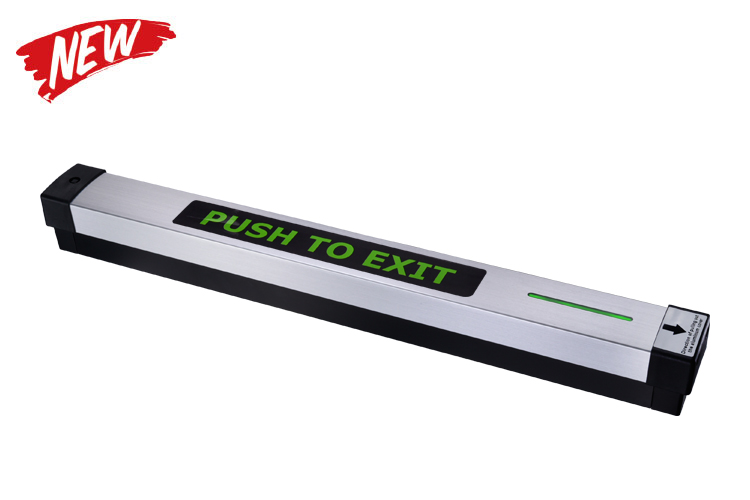

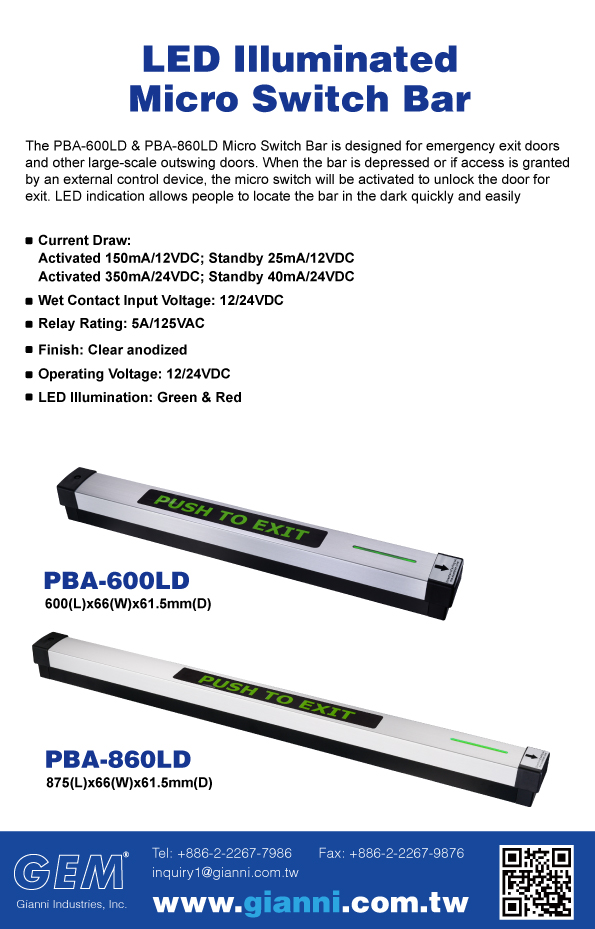

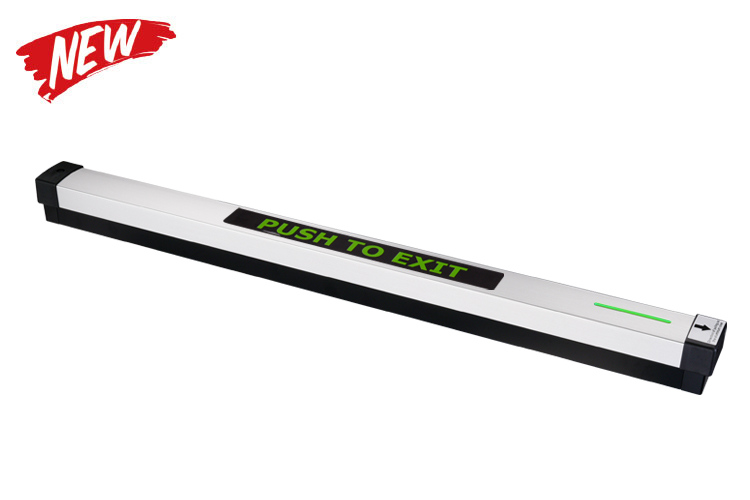

PBA-600LD/PBA-860LD Micro Switch Push Bars
◆ Non-latching
◆ Input voltage 12/24VDC
◆ Current Draw:
- Activated 150mA/12VDC; Standby 25mA/12VDC
- Activated 350mA/24VDC; Standby 40mA/24VDC
◆ Relay Rating: 5A/125VAC
◆ LED Illumination:Green & Red
◆ Dimensions:
PBA-600LD: 600(L)x66(W)x61.5mm(D)
PBA-860LD: 875(L)x66(W)x61.5mm(D)
◆ Finish:
Silver (standard)
Red/Green/Black (optional, subject to availability or MOQ)
PBA-600 Micro Switch Push Bars
Feature
◆ Non-latching
◆ Input voltage 12 or 24VDC
◆ 660 x 66 x 61.5mm
◆ Door size: for 30" and above
◆ Finish:
Silver (standard)
Red/Green/Black (optional, subject to availability or MOQ)

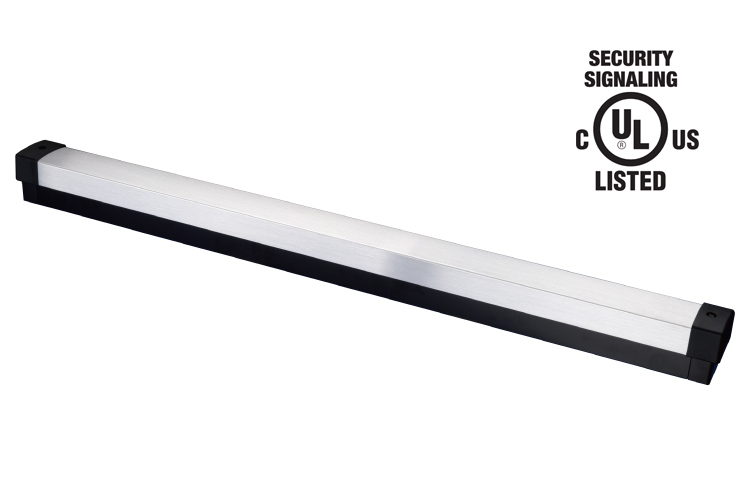

PBA-860 Micro Switch Push Bars
Feature
◆ Non-latching
◆ Input voltage 12 or 24VDC
◆ 875 x 66 x 61.5mm
◆ Door size: for 36" and above
◆ Finish:
Silver (standard)
Red/Green/Black (optional, subject to availability or MOQ)
PBA-1067DE Micro Switch Push Bars
Feature
◆ Non-latching
◆ Field selectable nuisance delay
◆ Field selectable 15 or 30 second exit delay
◆ Emergency signal input
◆ Key reset and bypass
◆ Door ajar alarm input
◆ 1067 x 66 x 61.5mm
◆ Door size: for 48" and above
◆ Finish:
Silver (standard)
Red/Green/Black (optional, subject to availability or MOQ)
