Cabinet Locks
Patents Declaration: GEM holds worldwide patents for our own design products, we reserve all copyrights, any parties who intentionally or recklessly duplicate GEM’s designs will face international lawsuits consequences.

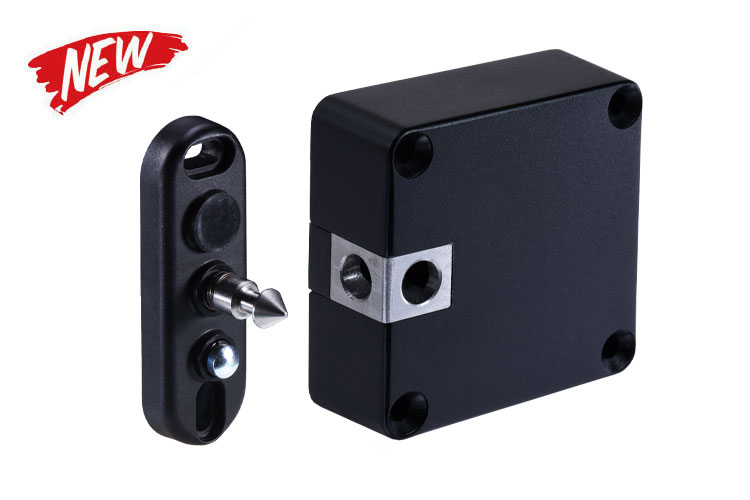

CK150 Cabinet Lock
GEM Cabinet Locks are compact and consume little energy. The CK150 Cabinet Lock is motor operated and includes lock and door status monitoring outputs.
Specification
◆ Voltage: 12~24VAC/DC
◆ Current Draw: Holding:10mA/12VDC, 10mA/24VDC; Pull in:70mA/12VDC, 70mA/24VDC
◆ Mode: Fail-secure
◆ Motor operated
◆ Spring door open release
◆ Monitoring Door status output,1/125VAC (NC/COM/NO)
◆ Relock time delay
◆ Force: Anti-pullling force 220 lbs (100Kg)
◆ Housing: Polyamide
Applications
◆ Can be fitted to drawers, filing cabinets, drug cabinets, gym lockers
◆ Various mounting positions
◆ Compatible with existing keypads or readers
◆ Can be integrated with access control system

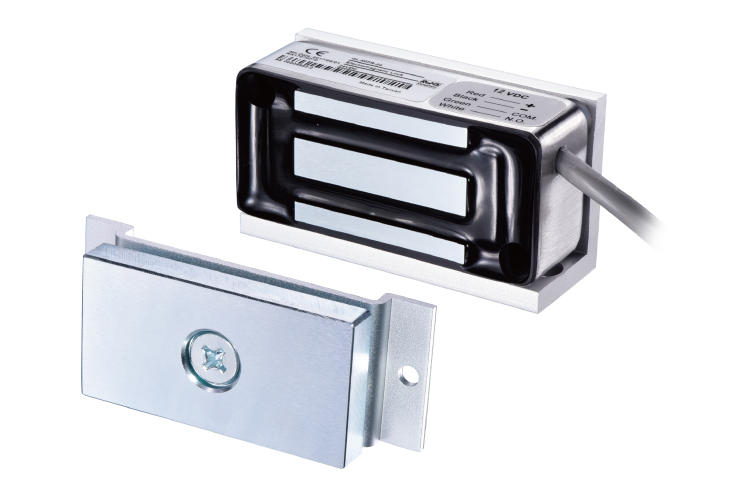

GL-80F Cabinet Lock
GEM Cabinet Locks are compact and consume little energy. The GL-80F Mini Electromagnetic Lock has a stainless steel housing and provides 80 lbs.of holding force for small access control applications.
Specification
◆ Voltage: 12 or 24VDC
◆ Mode: Fail-safe
◆ Operation: Electromagnetic mechanism
◆ Monitoring output: Bond sensor output (option), NC/COM
◆ Force: Holding force 80 lbs (36kg)
◆ Housing: Stainless steel
Applications
◆ Can be fitted to drawers, filing cabinets, drug cabinets, gym lockers
◆ Various mounting positions
◆ Compatible with existing keypads or readers
◆ Can be integrated with access control system
