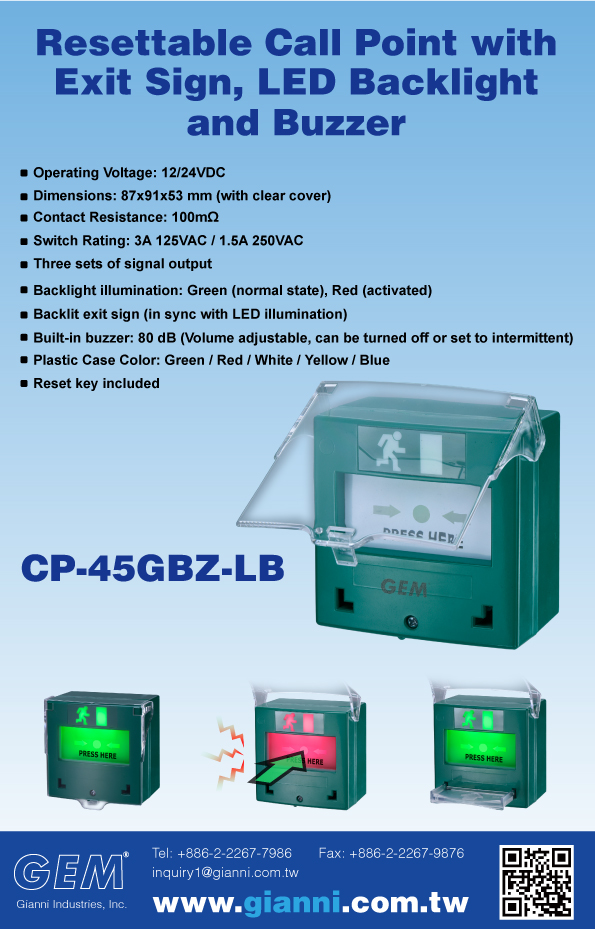

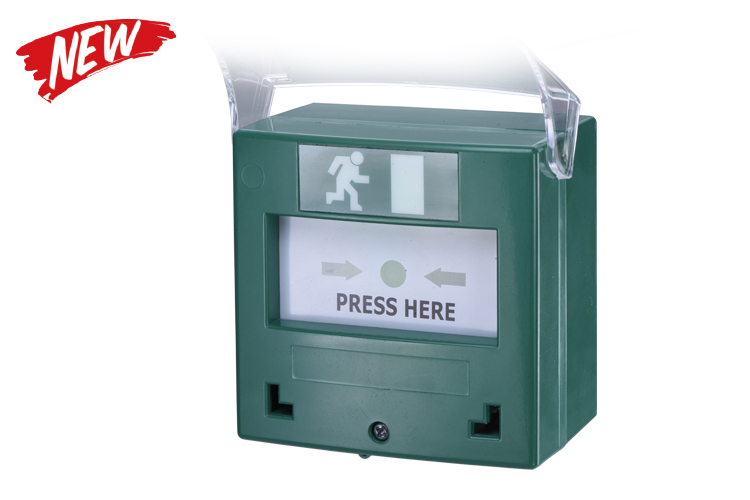

CP-45BZ-LB Call Point LED Backlight and Buzzer
The GEM The GEM CP-45 Series Resettable Call Point features a
visible exit sign with LED backlit and a reset mechanism
that avoids glass shards, making it suitable for use in high
traffic areas, such as schools, shopping malls, or commercial
buildings.
It is designed with three sets of signal output which allows it
to connect with electric locks and other accessories such as
an alarm or exit button. The call point also features backlight
illumination making it easy to identify in the dark.
The LED can be set to green or red or turned off. The buzzer
is also volume adjustable and can be turned off if not needed.
Specification
★ Operating Voltage: 12/24VDC
★ Dimensions: 87x91x53 mm (with clear cover)
★ Contact Resistance: 100mΩ
★ Switch Rating: 3A 125VAC / 1.5A 250VAC
★ Three sets of signal output
★ Backlight illumination: Green (normal state), Red (activated)
★ Backlit exit sign (in sync with LED illumination)
★ Built-in buzzer: 80 dB (Volume adjustable, can be turned off or set to intermittent)
★ Plastic Case Color: Green / Red / White / Yellow / Blue
★ Reset key included

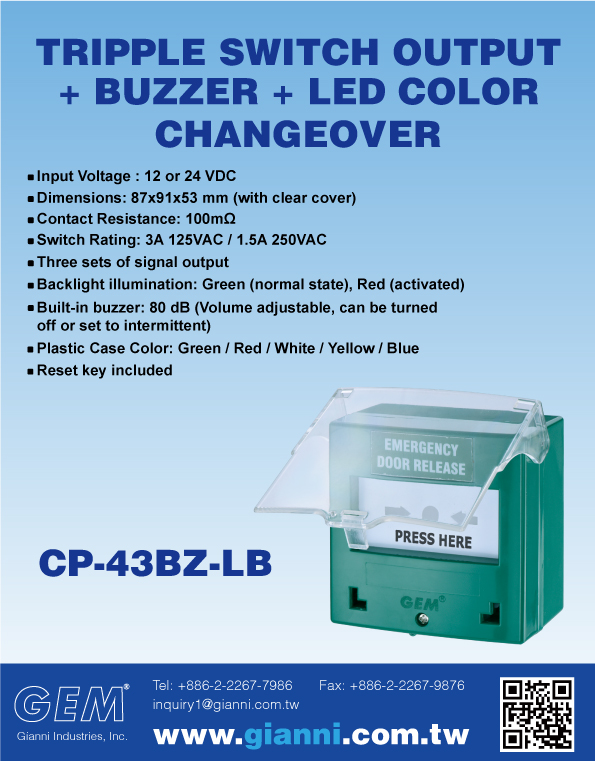

CP-43BZ-LB Call Point Buzzer & Backlight Resettable
The GEM CP-43 Series Resettable Call Point features a reset mechanism that avoids glass shards, making it
suitable for use in high traffic areas, such as schools, shopping malls, or commercial buildings.
It is designed with three sets of signal output which allows it to connect with electric locks and other accessories such as an alarm. The call point also features a built-in volume adjstable 80dB buzzer which can be set to continuous, beeping at one second
interval or turned off.
The green/red backlight illumination makes it easy to identify in the dark and the red LED can be set to continuous or flashing when the call point is activated.
Specification
★ Operating Voltage: 12/24VDC
★ Dimensions: 87x91x53 mm (with clear cover)
★ Contact Resistance: 100mΩ
★ Switch Rating: 3A 125VAC / 1.5A 250VAC
★ Three sets of signal output
★ Backlight illumination: Green (normal state), Red (activated)
★ Built-in buzzer: 80 dB (Volume adjustable, can be turned
off or set to intermittent)
★ Plastic Case Color: Green / Red / White / Yellow / Blue
★ Reset key included

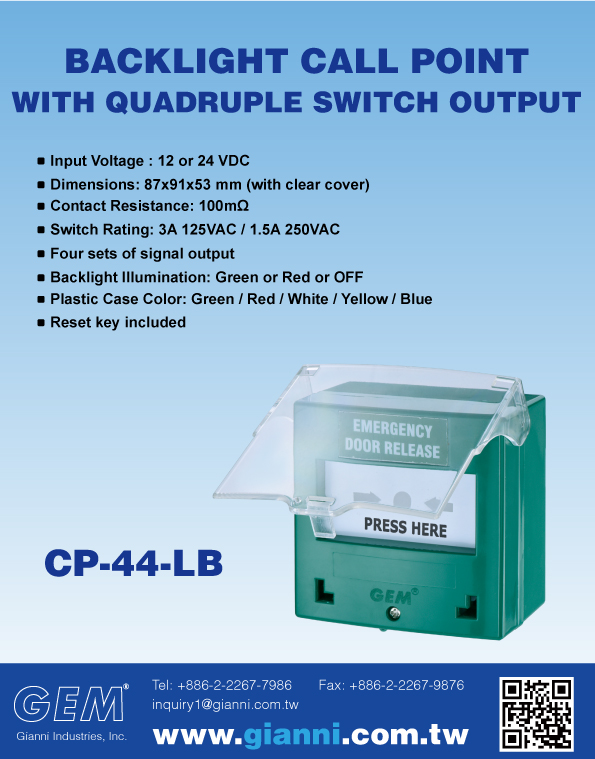

CP-44-LB Call Point Red/Green Backlight Resettable
The GEM CP-44 Series Resettable Call Point features a reset mechanism that avoids glass shards, making it
suitable for use in high traffic areas, such as schools, shopping malls, or commercial buildings.
It is designed with four sets of signal output which allows it to connect with electric locks and other accessories such as an alarm or buzzer. The call point also features
backlight illumination making it easy to identify in the dark.
The LED can be set to green or red or turned off.
Specification
★ Operating Voltage: 12/24VDC
★ Dimensions: 87x91x53 mm (with clear cover)
★ Contact Resistance: 100mΩ
★ Switch Rating: 3A 125VAC / 1.5A 250VAC
★ Four sets of signal output
★ Backlight Illumination: Green or Red or OFF
★ Plastic Case Color: Green / Red / White / Yellow / Blue
