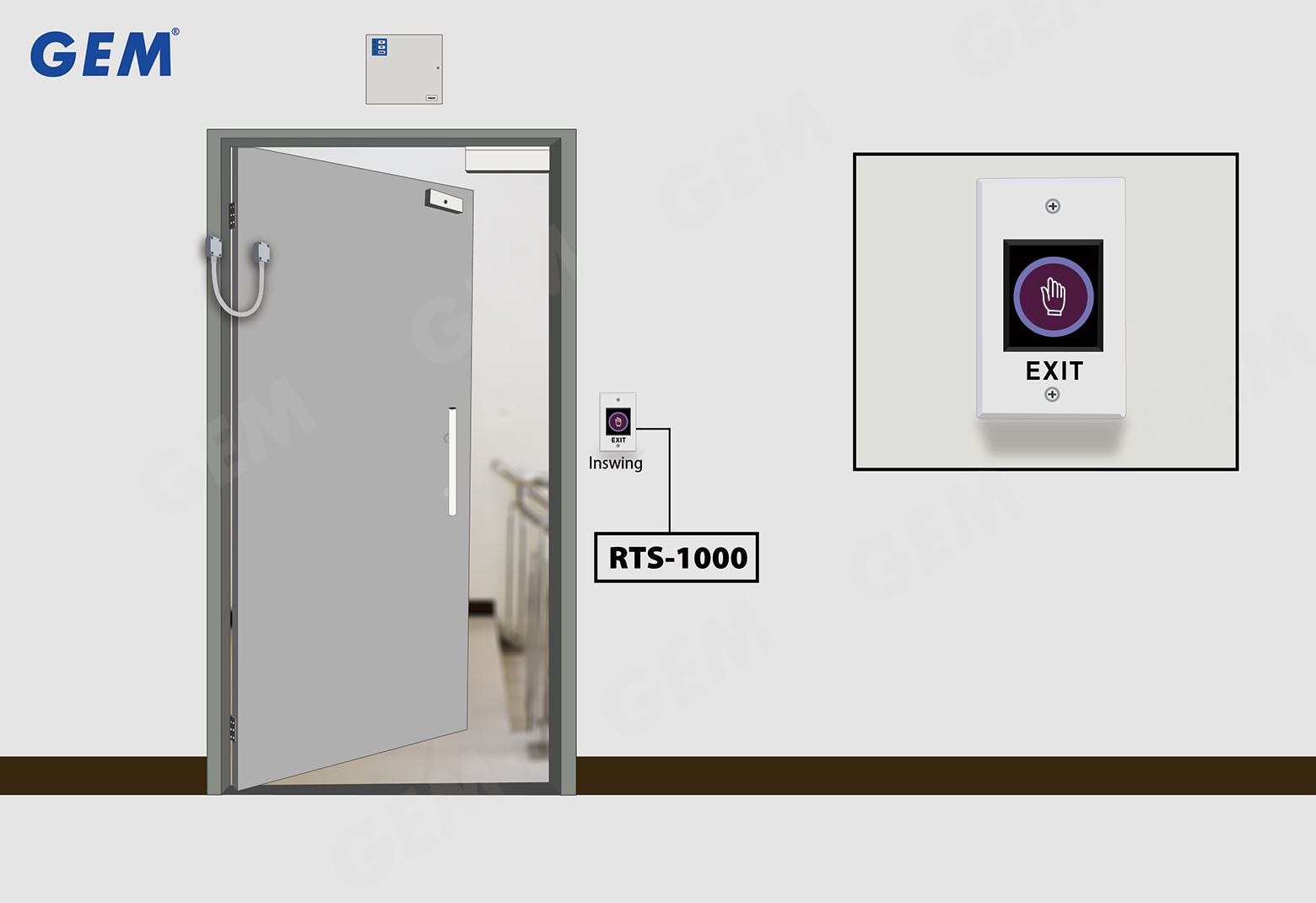

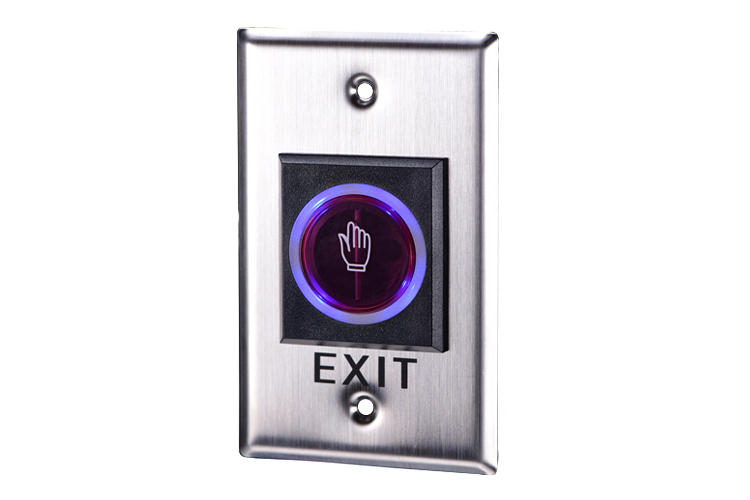

RTS-1000
Wave Sense Infrared Exit Device

Specification

◆ Operating Voltage:12/24VDC

◆ ANSI size

◆ Mortise mounted

◆ Sensor Range: 1/16"~3 15/16"(0.1~10 cm)

◆ Relay Rating: 3A/12~28VDC

◆ Blue/Green LED

◆ 4 1/2” x 2 3/4” (115 x 70mm)

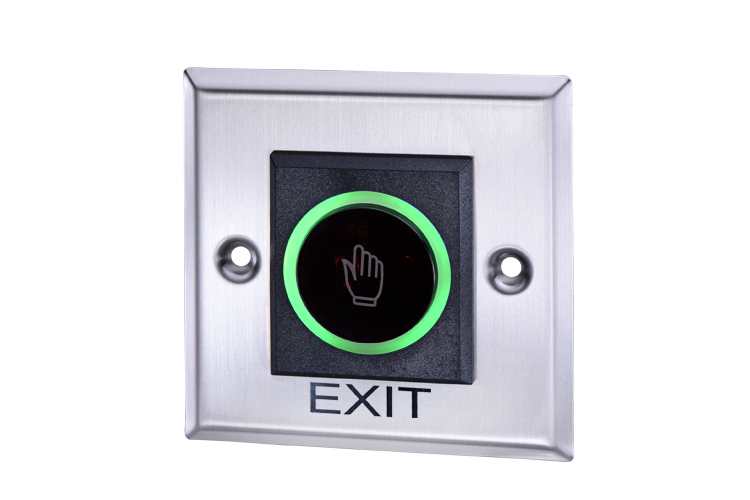

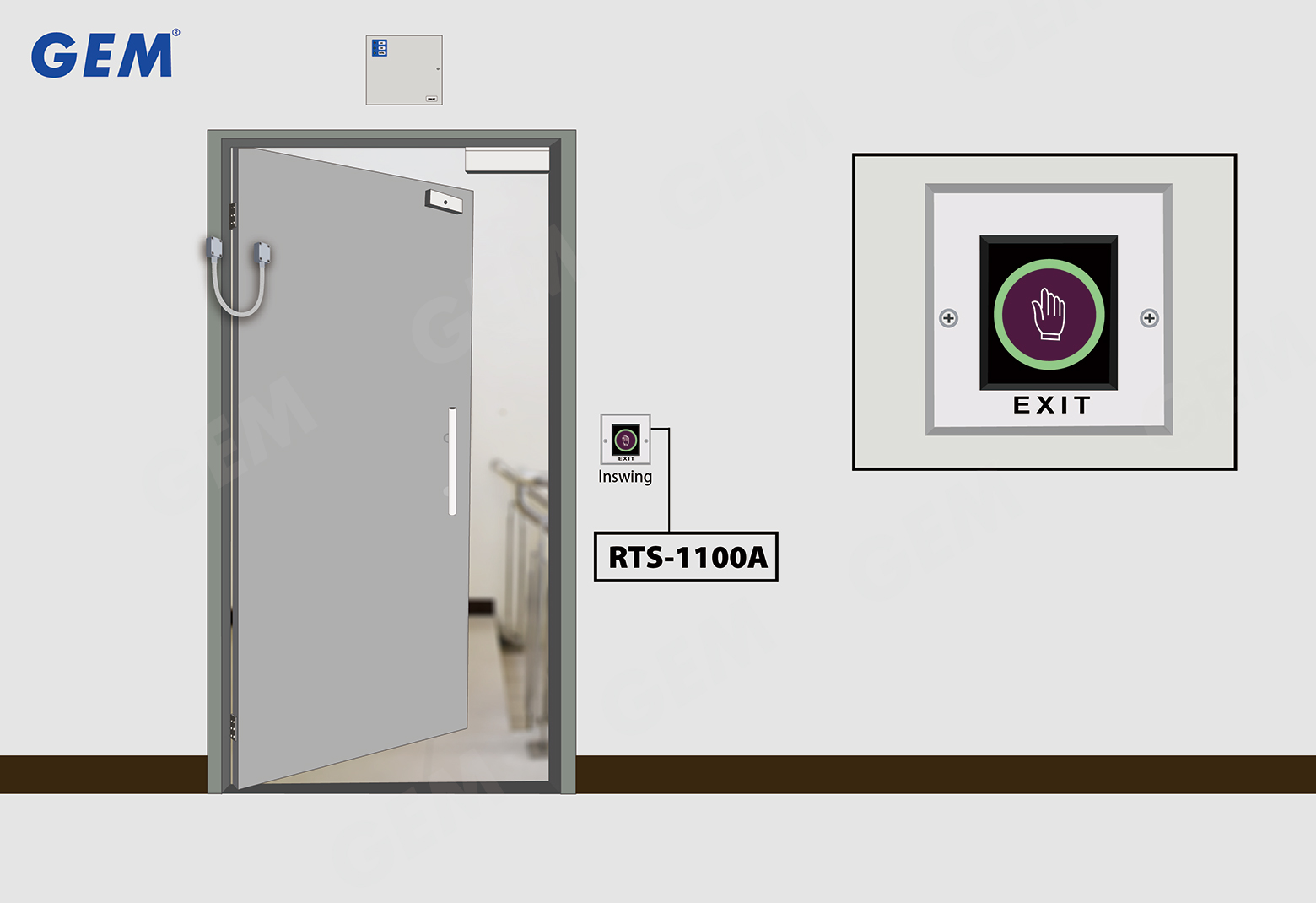

RTS-1100A Wave Sense Infrared Exit Device

Specification

◆ Operating voltage 12/24 VDC

◆ European size

◆ Mortise mounted

◆ Sensor Range: 0.1~10 cm

◆ Relay Rating: 3A/12~28VDC

◆ Blue/Green LED

◆ 86 x 86mm

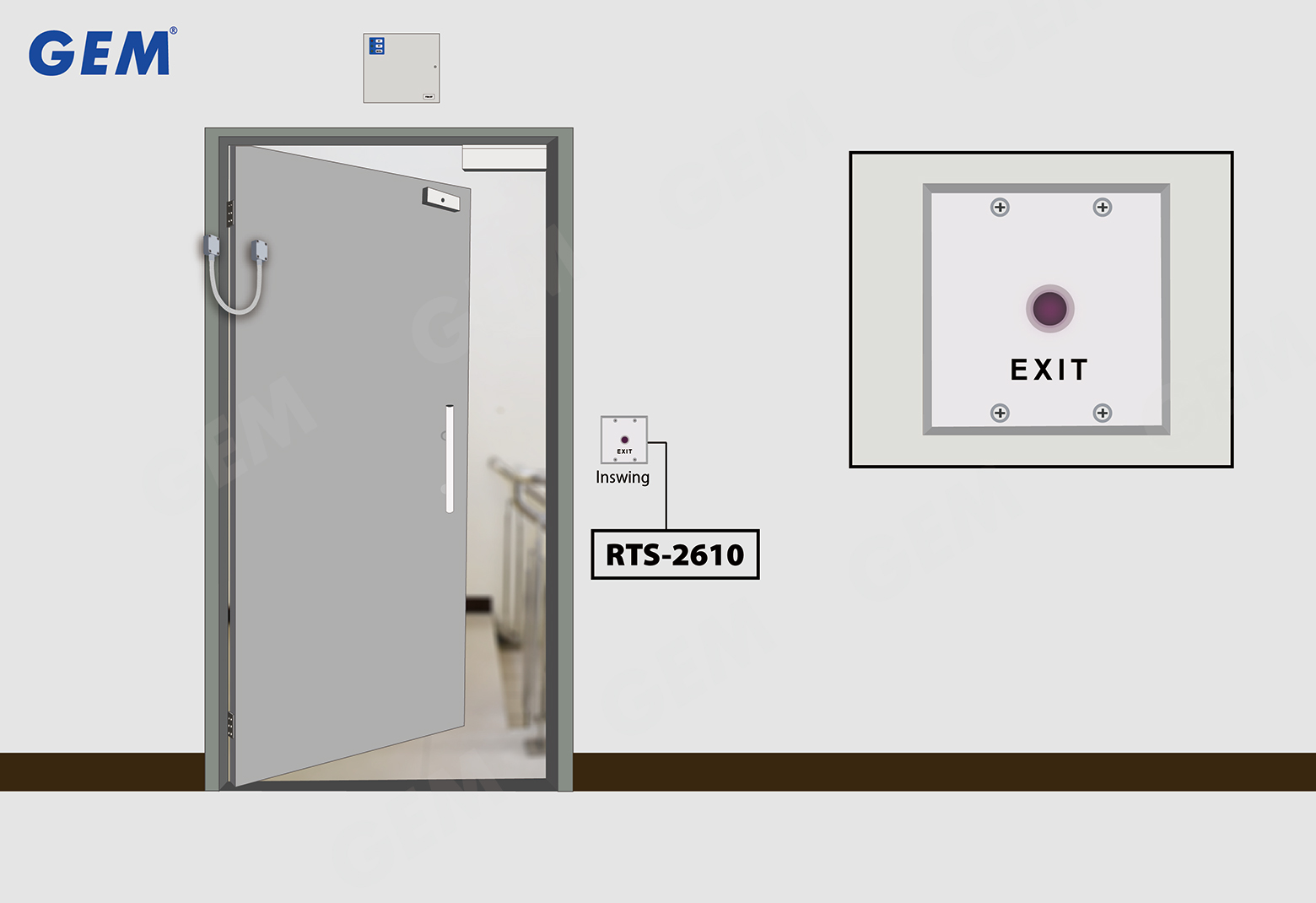

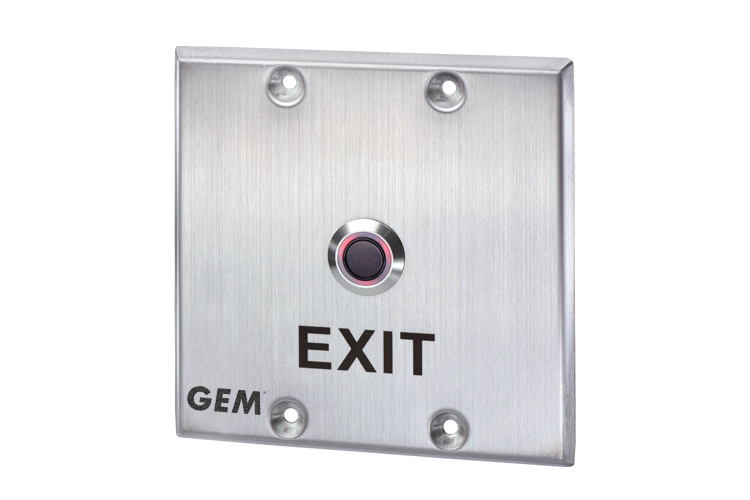

RTS-2610 Wave Sense Infrared Exit Device

Specification

◆ Input voltage 12 to 24 VDC

◆ ANSI size

◆ Mortise mounted

◆ Adjustable delay time 0.5-20 seconds

◆ Sensor range 5 5/16” (15cm)

◆ Relay rating 1A/30VDC

◆ Red/Green LED

◆ 4 9/16” x 4 9/16” (116 x 116mm)

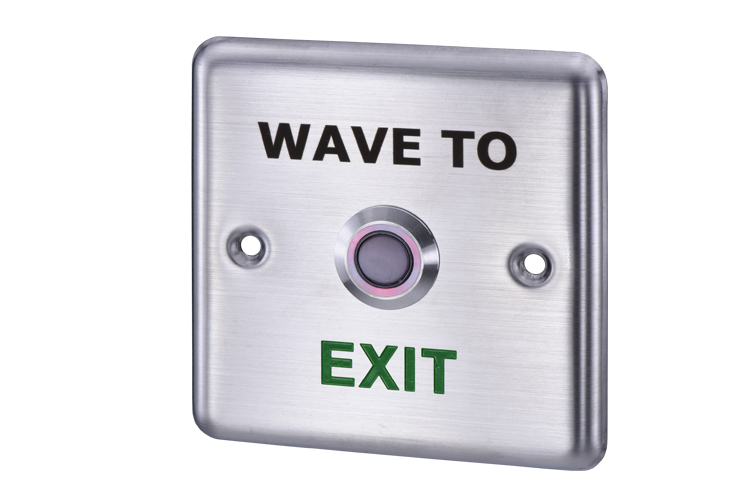

RTS-8585 Wave Sense Infrared Exit Device

Specification

◆ Input voltage 12 to 24 VDC

◆ European size

◆ Mortise/Surface mounted

◆ Adjustable delay time 0-20 seconds

◆ Sensor range 4 3/4" (120mm) max.

◆ Relay rating 1A/30VDC

◆ Red/Green LED

◆ 88 x 88mm

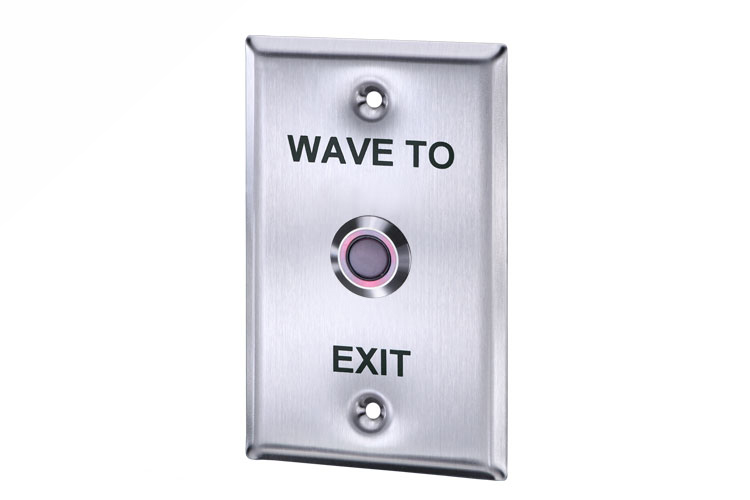

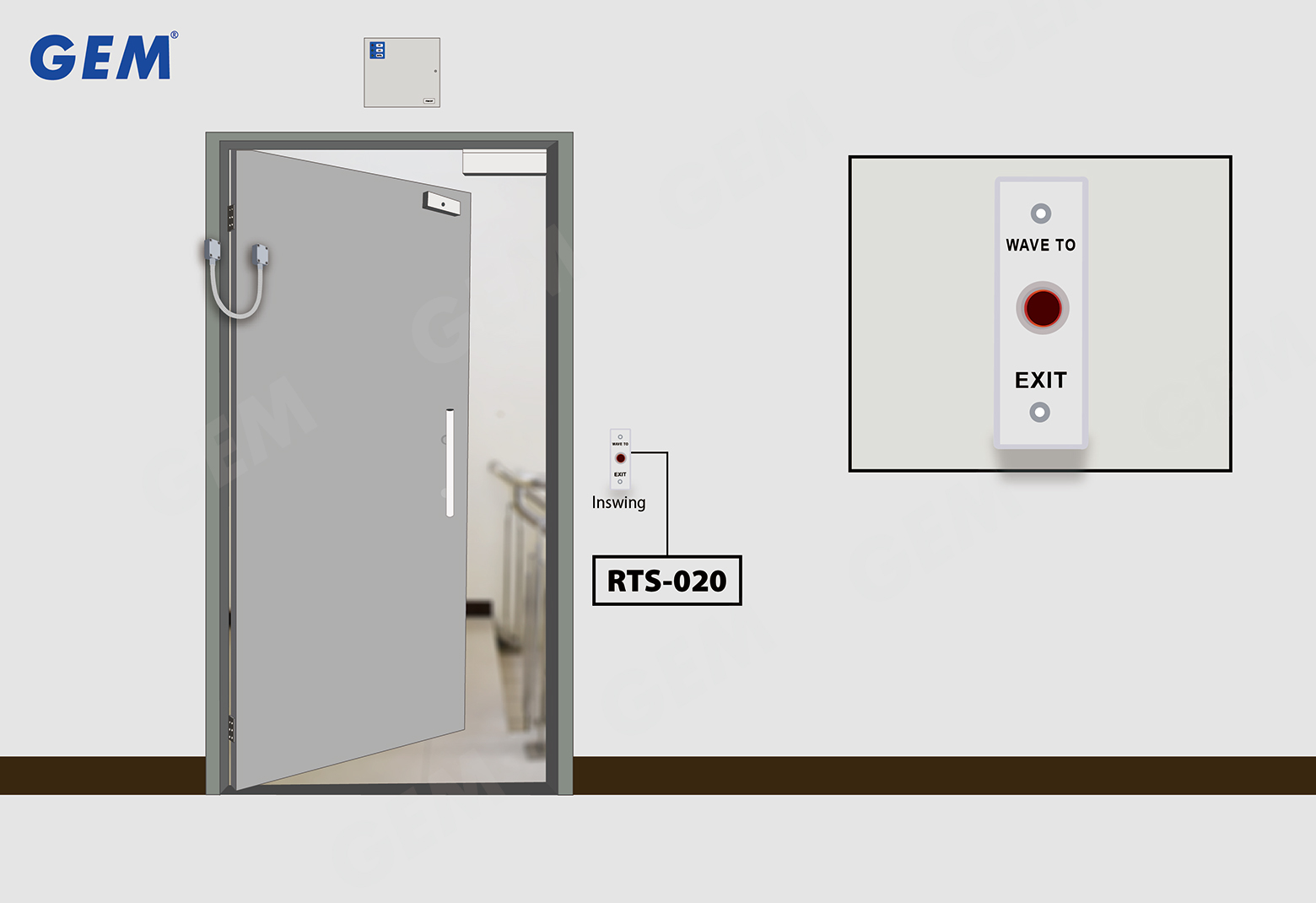

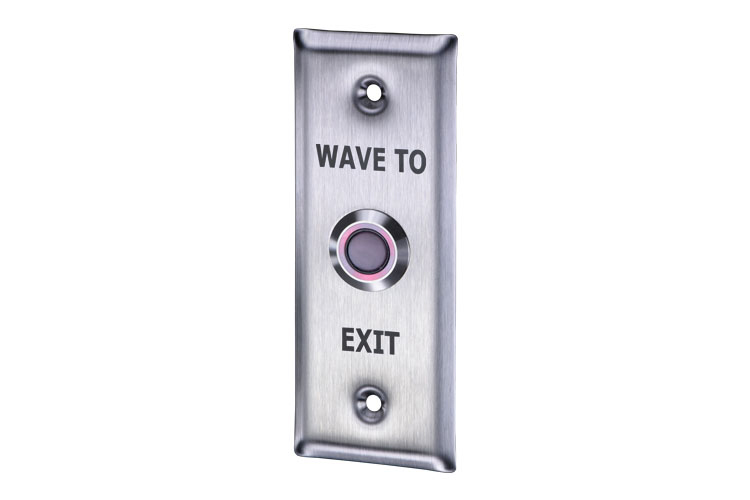

RTS-020 Wave Sense Infrared Exit Device

Specification

◆ Input voltage 12 to 24 VDC

◆ Narrow size

◆ Mortise/Surface mounted

◆ Adjustable delay time 0-20 seconds

◆ Sensor range 4 3/4" (120mm) max.

◆ Relay rating 1A/30VDC

◆ Red/Green LED

◆ 4 9/16” x 1 3/4” (116.25 x 44mm)

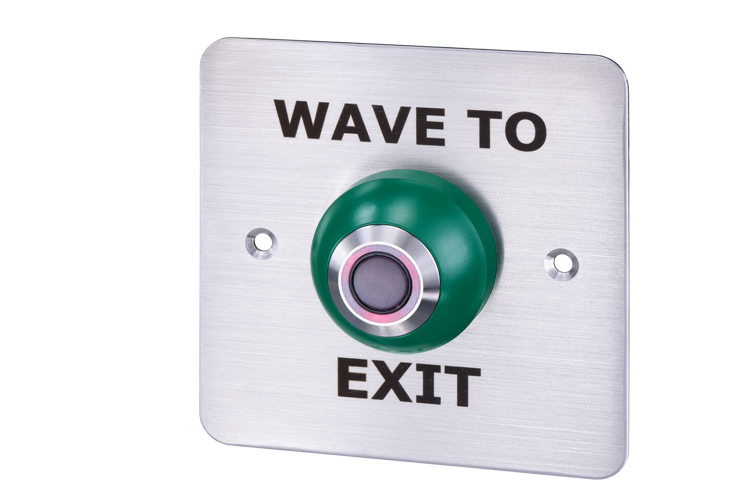

RTS-700 Wave Sense Infrared Exit Device

Specification

◆ Input voltage 12 to 24 VDC

◆ European size

◆ Mortise/Surface mounted

◆ Adjustable delay time 0-20 seconds

◆ Sensor range 4 3/4" (120mm) max.

◆ Relay rating 1A/30VDC

◆ Red/Green LED

◆ 85.5 x 85.5mm

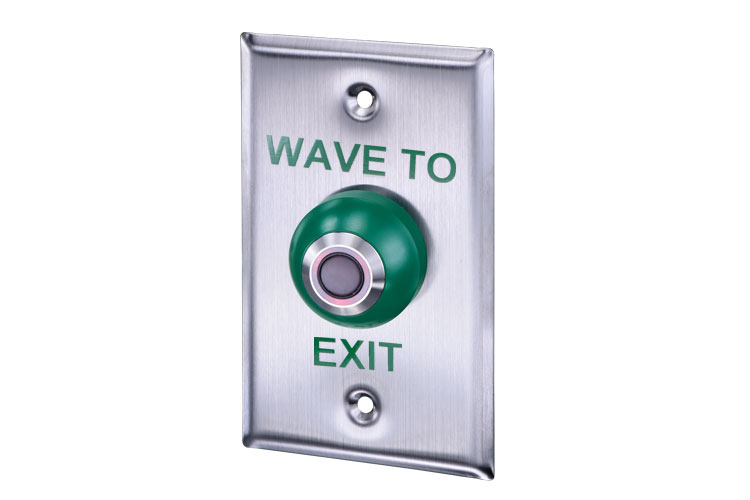

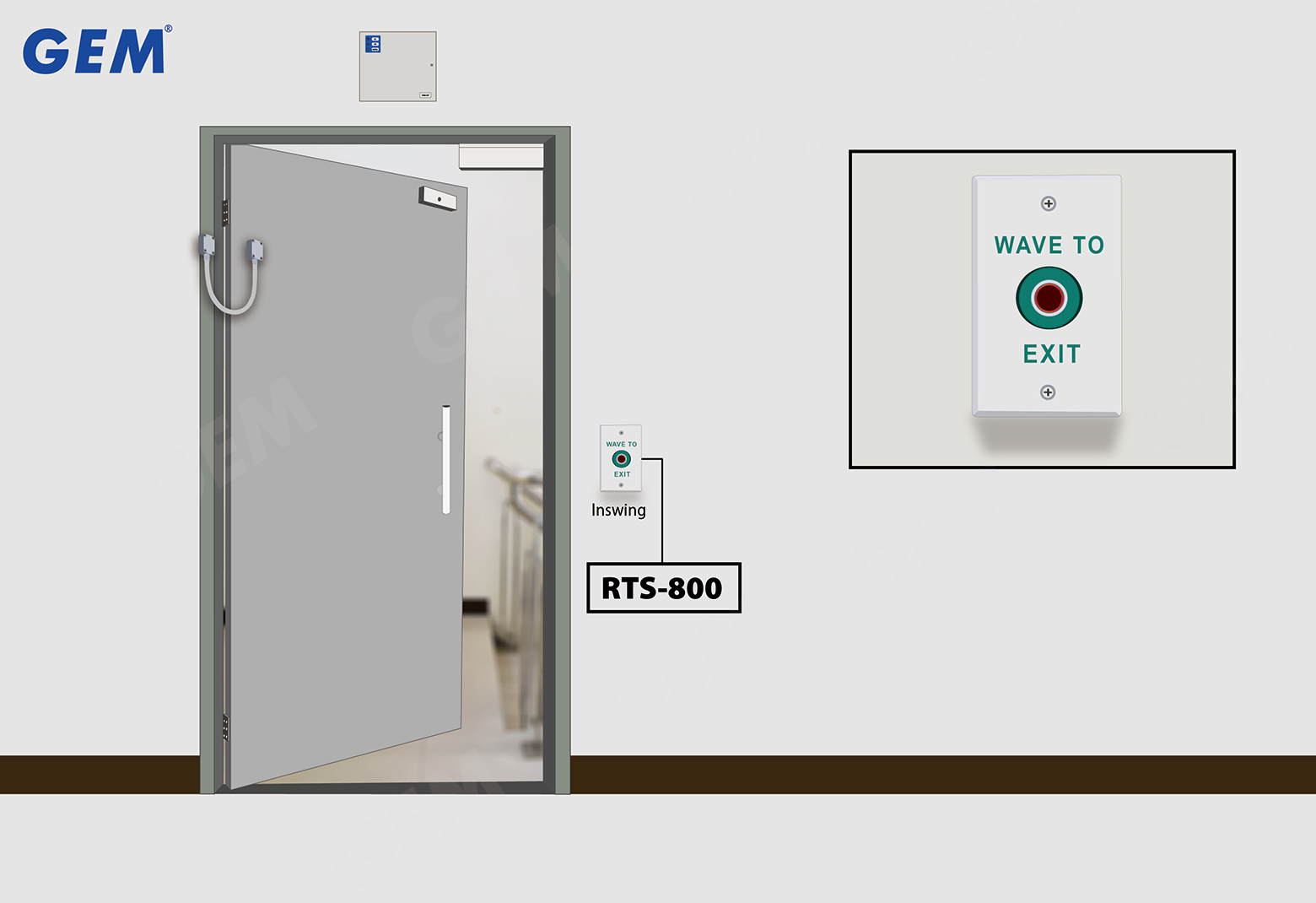

RTS-800 Wave Sense Infrared Exit Device

Specification

◆ Input voltage 12 to 24 VDC

◆ ANSI size

◆ Mortise/Surface mounted

◆ Adjustable delay time 0-20 seconds

◆ Sensor range 4 3/4" (120mm) max.

◆ Relay rating 1A/30VDC

◆ Red/Green LED

◆ 4 1/2” x 2 3/4” (114 x 69.5mm)

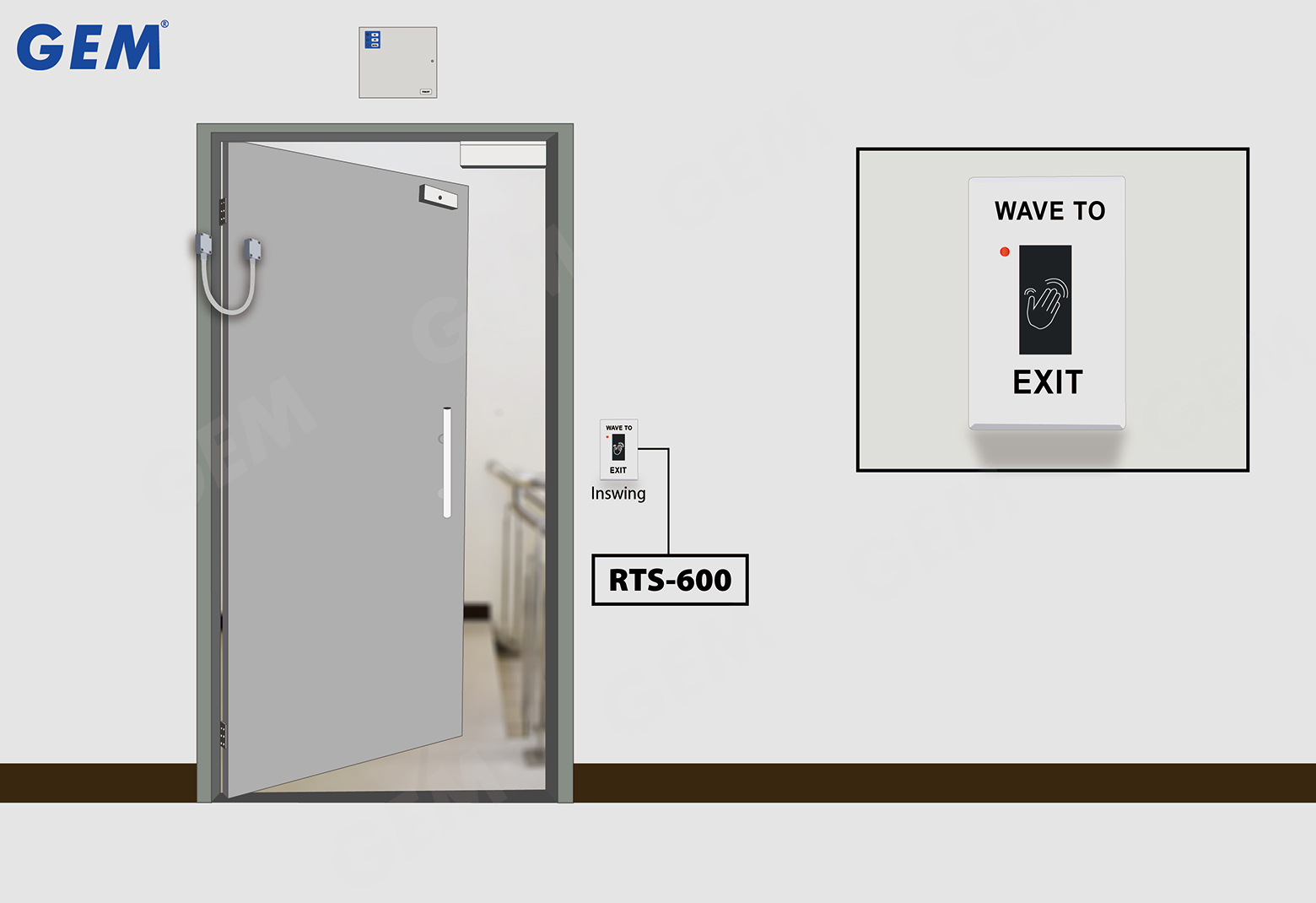

RTS-600 Series Wave Sense Infrared Exit Device

Specification

◆ Input voltage 12 to 24 VDC

◆ ANSI size

◆ RTS-600: Mortise mounted
    RTS-600-S: Surface mounted

◆ Stainless steel faceplate

◆ Emergency exit output

◆ Bi-color LED status indicator (Red/Green)

◆ Selectable time delay of 0.5/5/10/20 secs

◆ Sensor range 3 15/16" (10cm)

◆ RTS-600: 4 1/2" x 2 3/4" (114 x 70mm)
    RTS-600-S: 4 1/2" x 2 3/4" (114 x 70 x 35 mm)

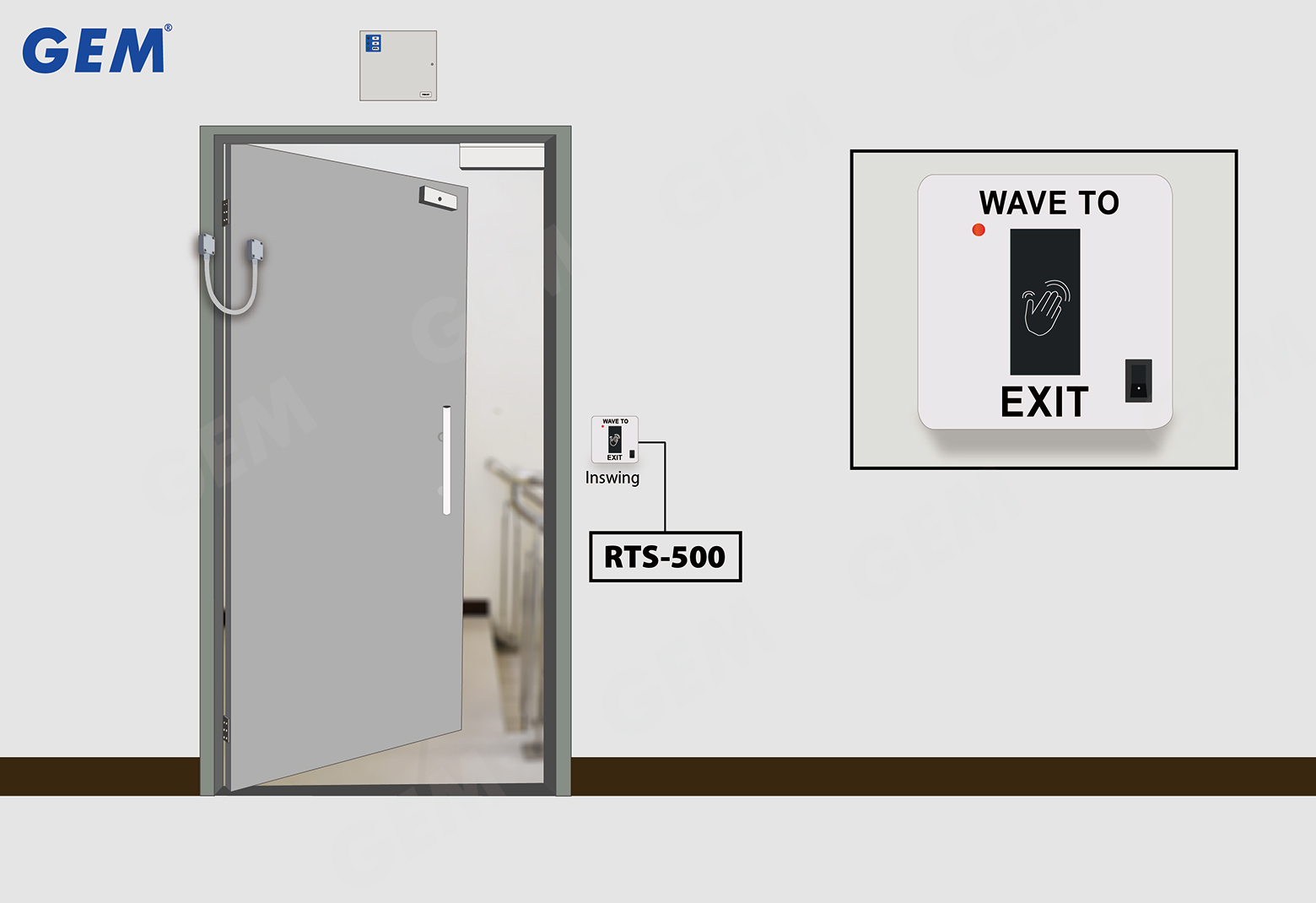

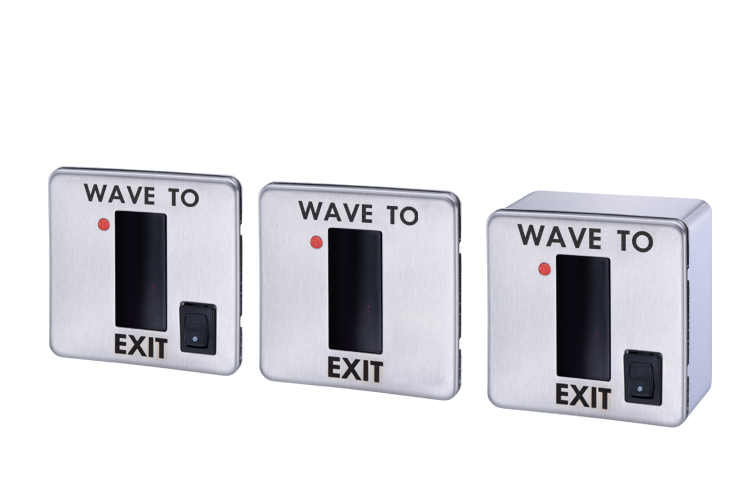

RTS-500 Series Wave Sense Infrared Exit Device

Specification

◆ Input voltage 12 to 24 VDC

◆ European size

◆ Mortise mounted

◆ Stainless steel faceplate

◆ Emergency exit button

◆ Bi-color LED status indicator (Red/Green)

◆ Selectable time delay of 0.5/5/10/20 secs

◆ Sensor range 10 cm

◆ 85.5 x 85.5 mm

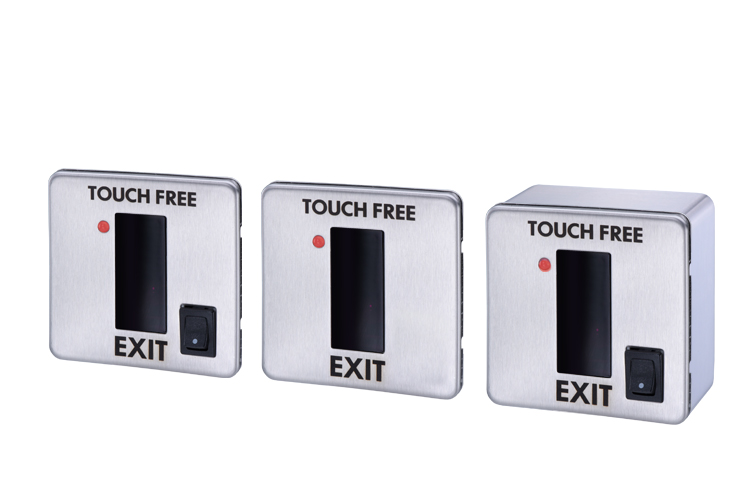

RTS-550 Series Touchless Infrared Exit Switches

Product Features

◆ Use IR technology to open doors as hand is near the sensor or simple wave of a hand

◆ Designed for the application where sanitary conditions must meet, like hospitals, clinics, labs, etc.

◆ Dual voltages 12/24VDC

◆ Dual color LED illumination

◆ Adjustable relay output time

Specification

◆ Operating Voltage:12~24VDC

◆ Current Draw:
    Pull in 20mA/12VDC; Holding 60mA/12VDC;
    Pull in 30mA/24VDC; Holding 60mA/24VDC

◆ Relay Rating: 1A/125VAC, 2A/30VDC

◆ Operating Temperature: -10~+70ºC

◆ Ambient Humidity: 5~95%

◆ Dual LED, illuminated sensor indicates status:Standby (Red), Active (Green)

◆ Emergency push button

◆ Sensor Range: 5~7 cm (Fixed)

◆ Adjustable Output Time: 1~60 seconds

◆ Faceplate Finish: Brushed stainless steel

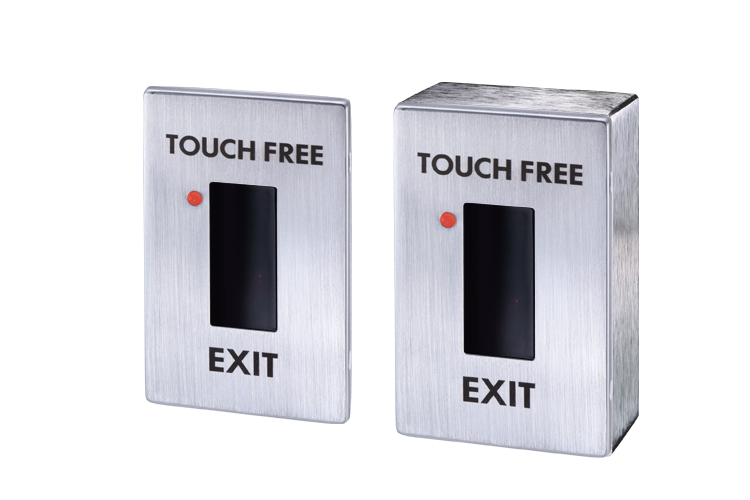

RTS-650 Series Touchless Infrared Exit Switches

Product Features

◆ Use IR technology to open doors as hand is near the sensor or simple wave of a hand

◆ Designed for the application where sanitary conditions must meet, like hospitals, clinics, labs, etc.

◆ Dual voltages 12/24VDC

◆ Dual color LED illumination

◆ Adjustable relay output time

Specification

◆ Operating Voltage:12~24VDC

◆ Current Draw:
    Pull in 20mA/12VDC; Holding 60mA/12VDC;
    Pull in 30mA/24VDC; Holding 60mA/24VDC

◆ Relay Rating: 1A/125VAC, 2A/30VDC

◆ Operating Temperature: -10~+70ºC

◆ Ambient Humidity: 5~95%

◆ Dual LED, illuminated sensor indicates status:Standby (Red), Active (Green)

◆ Sensor Range: 5~7 cm (Fixed)

◆ Adjustable Output Time: 1~60 seconds

◆ Faceplate Finish: Brushed stainless steel

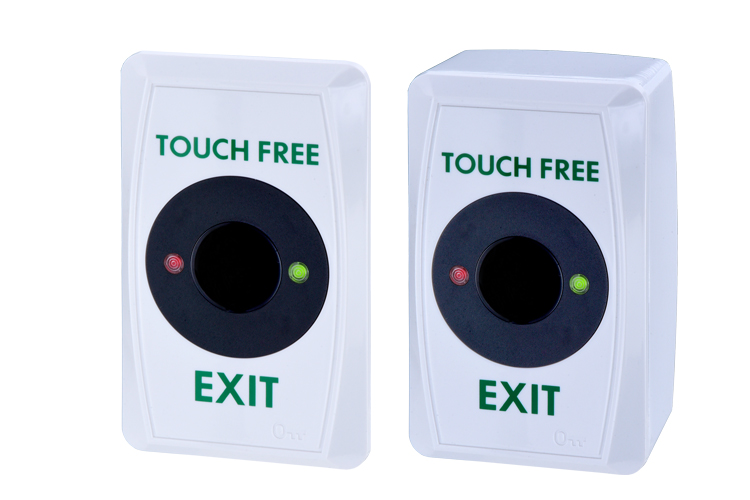

RTS-850 Series Touchless Infrared Exit Switches

Specification

◆ Operating Voltage:12~24VDC

◆ Current Draw:
    Pull in 20mA/12VDC; Holding 30mA/12VDC;
    Pull in 30mA/24VDC; Holding 40mA/24VDC

◆ Relay Rating: 1A/125VAC, 2A/30VDC

◆ Operating Temperature: -10~+70ºC

◆ Ambient Humidity: 5~95%

◆ Dual LED, illuminated sensor indicates status:Standby (Red), Active (Green)

◆ IR sense technology: Active with wave of the hand

◆ Sensor Range: 3~15 cm

◆ Adjustable Output Time: 1~60 seconds

◆ Faceplate Finish: Plastic ABS

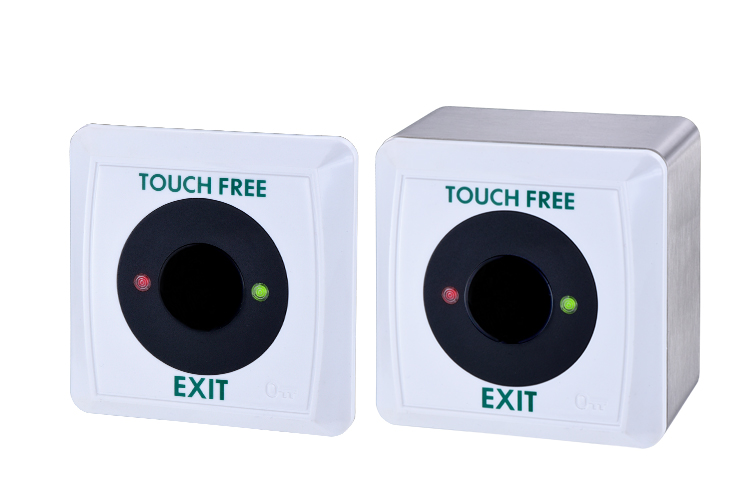

RTS-860 Series Touchless Infrared Exit Switches

Specification

◆ Operating Voltage:12~24VDC

◆ Current Draw:
    Pull in 20mA/12VDC; Holding 30mA/12VDC;
    Pull in 30mA/24VDC; Holding 40mA/24VDC

◆ Relay Rating: 1A/125VAC, 2A/30VDC

◆ Operating Temperature: -10~+70ºC

◆ Ambient Humidity: 5~95%

◆ Dual LED, illuminated sensor indicates status:Standby (Red), Active (Green)

◆ IR sense technology: Active with wave of the hand

◆ Sensor Range: 3~15 cm

◆ Adjustable Output Time: 1~60 seconds

◆ Faceplate Finish: Plastic ABS

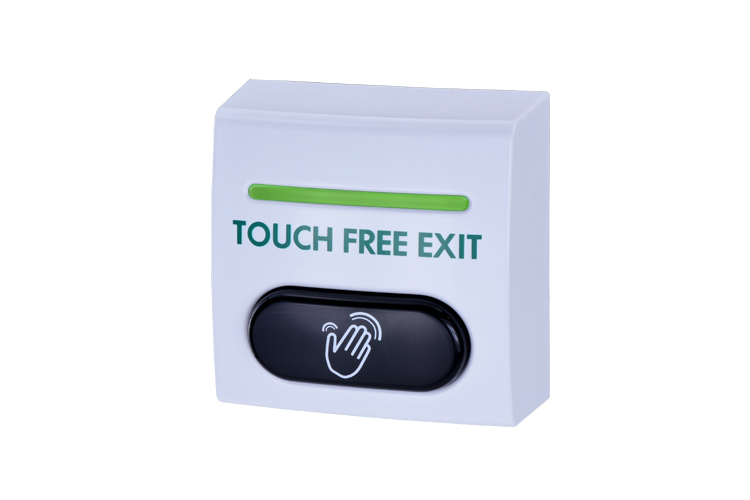

RTS-900 Series Touchless Infrared Exit Switches

Specification

◆ Operating Voltage:12~24VDC

◆ Current Draw:
    Pull in 40mA/12VDC; Holding 30mA/12VDC;
    Pull in 60mA/24VDC; Holding 40mA/24VDC

◆ Contact Rating: 1A/30VDC max.

◆ Operating Temperature: -10~+70ºC

◆ Ambient Humidity: 5~95%

◆ Dual LED, illuminated sensor indicates status:Standby (Red), Active (Green)

◆ Sensor Range: 5~7 cm (Fixed)

◆ Adjustable Output Time : 1 ~ 60 seconds((±10%)

◆ Faceplate Finish: Plastic ABS

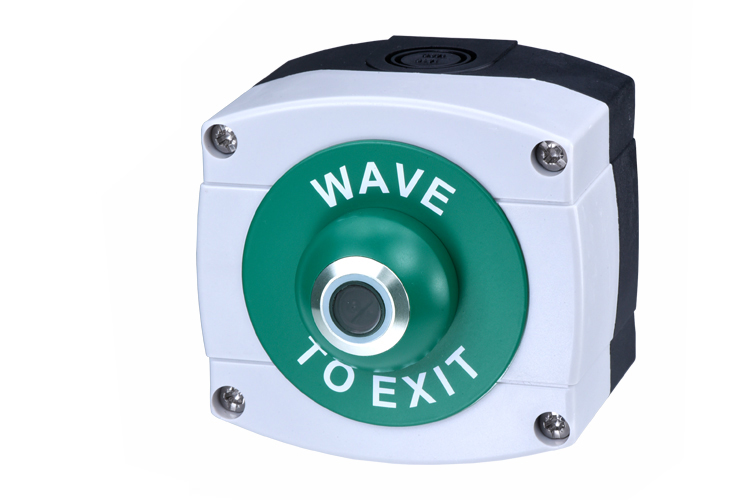

RTS-950 Weatherproof IR Sense Exit Button

The RTS-950 adopts NEMA 4X rated enclosure and ensures strength and durability in indoor and outdoor environment. In the case of negative pressure or vacuum, dust and moisture easily pass through the enclosure. The NEMA 4X rated enclosure protects the internal electronics from windblown dust and rain.

Specification

RTS-880 Series Touchless Infrared Exit Switches

Specification

◆ Operating Voltage:12~24VDC

◆ Current Draw:
    Pull in 20mA/12VDC; Holding 30mA/12VDC;
    Pull in 30mA/24VDC; Holding 40mA/24VDC

◆ Relay Rating: 1A/125VAC, 2A/30VDC

◆ Operating Temperature: -10~+70ºC

◆ Ambient Humidity: 5~95%

◆ Dual LED, illuminated sensor indicates status:Standby (Red), Active (Green)

◆ IR sense technology: Active with wave of the hand

◆ Sensor Range: 3~15 cm

◆ Adjustable Output Time: 1~60 seconds

◆ Faceplate Finish: Stainless steel

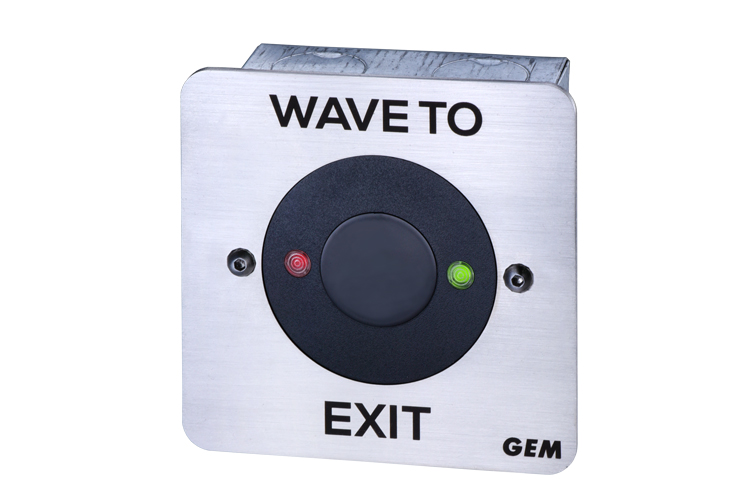

RTS-870 Series Touchless Infrared Exit Switches

Specification

◆ Operating Voltage:12~24VDC

◆ Current Draw:
    Pull in 20mA/12VDC; Holding 30mA/12VDC;
    Pull in 30mA/24VDC; Holding 40mA/24VDC

◆ Relay Rating: 1A/125VAC, 2A/30VDC

◆ Operating Temperature: -10~+70ºC

◆ Ambient Humidity: 5~95%

◆ Dual LED, illuminated sensor indicates status:Standby (Red), Active (Green)

◆ IR sense technology: Active with wave of the hand

◆ Sensor Range: 3~15 cm

◆ Adjustable Output Time: 1~60 seconds

◆ Faceplate Finish: Stainless steel

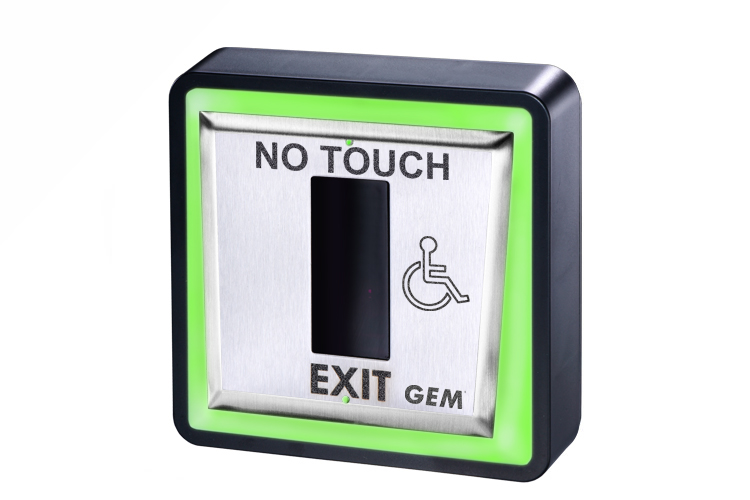

RTS-970 Wave Sense Infrared Exit Devices

Specification

◆ Operating Voltage:12~24VDC

◆ Current Draw:
    Pull in: 160mA/12VDC; Holding: 100mA/12VDC;
    Pull in: 200mA/24VDC; Holding: 130mA/24VDC

◆ Relay Rating: 1A/30VDC

◆ Operating Temperature: 32° to +120.2°F ( 0° to +49°C )

◆ Ambient Humidity: 0 to 85% Non-condensing

◆ Sensor Range: 3~15 cm (±10%)

◆ Output/Trigger Time: 1~60 seconds

RTS-970WT Wave Sense Infrared Exit Devices

Specification

◆ Operating Voltage:12~24VDC

◆ Current Draw:
    Pull in: 160mA/12VDC; Holding: 100mA/12VDC;
    Pull in: 200mA/24VDC; Holding: 130mA/24VDC

◆ Relay Rating: 1A/30VDC

◆ Operating Temperature: 32° to +120.2°F ( 0° to +49°C )

◆ Ambient Humidity: 0 to 85% Non-condensing

◆ Sensor Range: 3~15 cm (±10%)

◆ Output/Trigger Time: 1~60 seconds

◆ RF Transmitter Encryption: Hopping Codes

◆ Transmitting Distance: 50~60 meters

◆ Transmitter Frequency: 433 KHz
