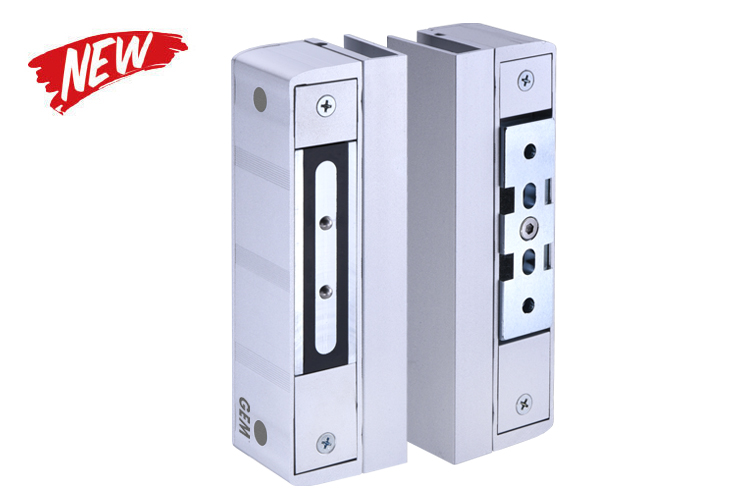

GS250VGL Shear Lock

GEM shear locks offer totally concealed mechanism and are designed for applications where the door swings up to a 180 degree. When the shear lock detects the door in the closed position, the magnet “sucks” the armature plate up and traps the armature plate in the lock frame. Generally a 2 -3 mm gap between the top of the door and the frame is optimum for the electromagnet to attract the armature plate and keep the door locked.

Standard Features

Specification

◆ Voltage: Dual 12/24VDC
◆ Current Draw: 500mA/12VDC, 250mA/24VDC
◆ Holding Force: 1200lbs
◆ Door Gap: 1/16" (2mm)
◆ Mount: Glass Door
◆ Mounting Brackets: SMB-300+UBK-182

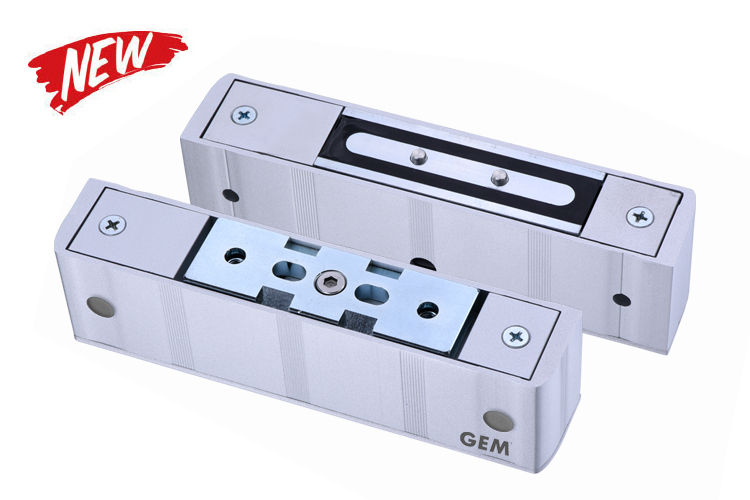

GS250S Shear Lock

GEM shear locks offer totally concealed mechanism and are designed for applications where the door swings up to a 180 degree. When the shear lock detects the door in the closed position, the magnet “sucks” the armature plate up and traps the armature plate in the lock frame. Generally a 2 -3 mm gap between the top of the door and the frame is optimum for the electromagnet to attract the armature plate and keep the door locked.

Standard Features

Specification

◆ Voltage: Dual 12/24VDC
◆ Current Draw: 500mA/12VDC, 250mA/24VDC
◆ Holding Force: 1200lbs
◆ Door Gap: 1/16" (2mm)
◆ Mount: Surface
◆ Mounting Brackets: SMB-300

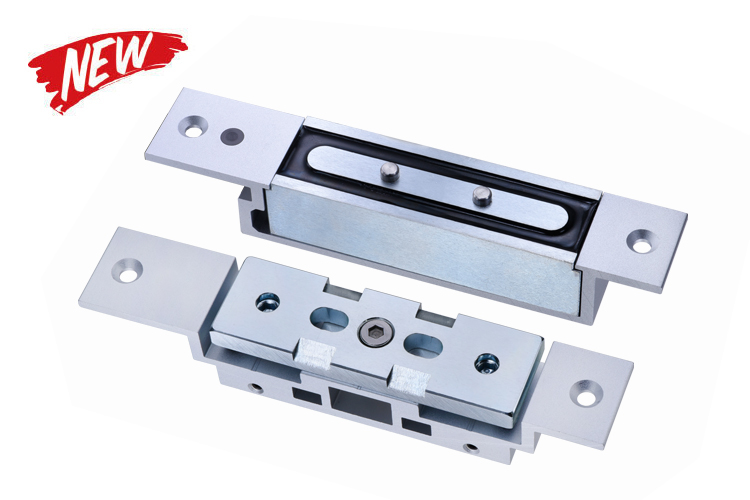

GS250MDT Shear Lock

GEM shear locks offer totally concealed mechanism and are designed for applications where the door swings up to a 180 degree. When the shear lock detects the door in the closed position, the magnet “sucks” the armature plate up and traps the armature plate in the lock frame. Generally a 2 -3 mm gap between the top of the door and the frame is optimum for the electromagnet to attract the armature plate and keep the door locked.

Standard Features

Specification

◆ Voltage: Dual 12/24VDC
◆ Current Draw: 500mA/12VDC, 250mA/24VDC
◆ Holding Force: 1200lbs
◆ Door Gap: 1/16" (2mm)
◆ Mount: Mortise

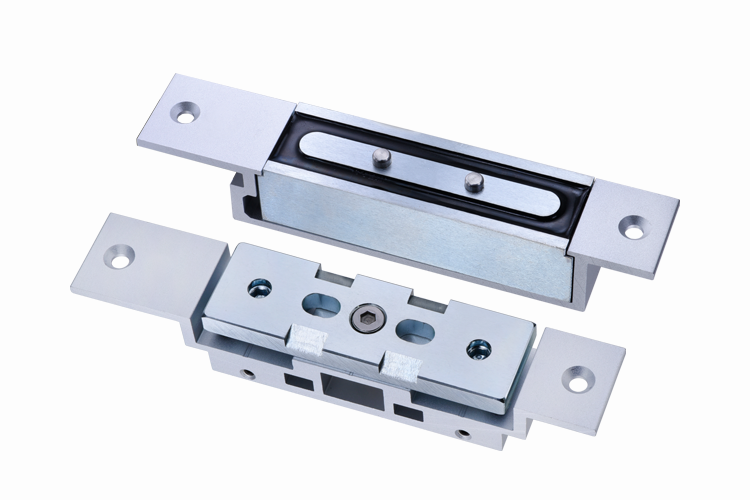

GS250 Shear Lock

GEM shear locks offer totally concealed mechanism and are designed for applications where the door swings up to a 180 degree. When the shear lock detects the door in the closed position, the magnet “sucks” the armature plate up and traps the armature plate in the lock frame. Generally a 2 -3 mm gap between the top of the door and the frame is optimum for the electromagnet to attract the armature plate and keep the door locked.

Standard Features

Specification

◆ Voltage: Dual 12/24VDC
◆ Current Draw: 500mA/12VDC, 250mA/24VDC
◆ Holding Force: 1200lbs
◆ Door Gap: 1/16" (2mm)
◆ Mount: Mortise

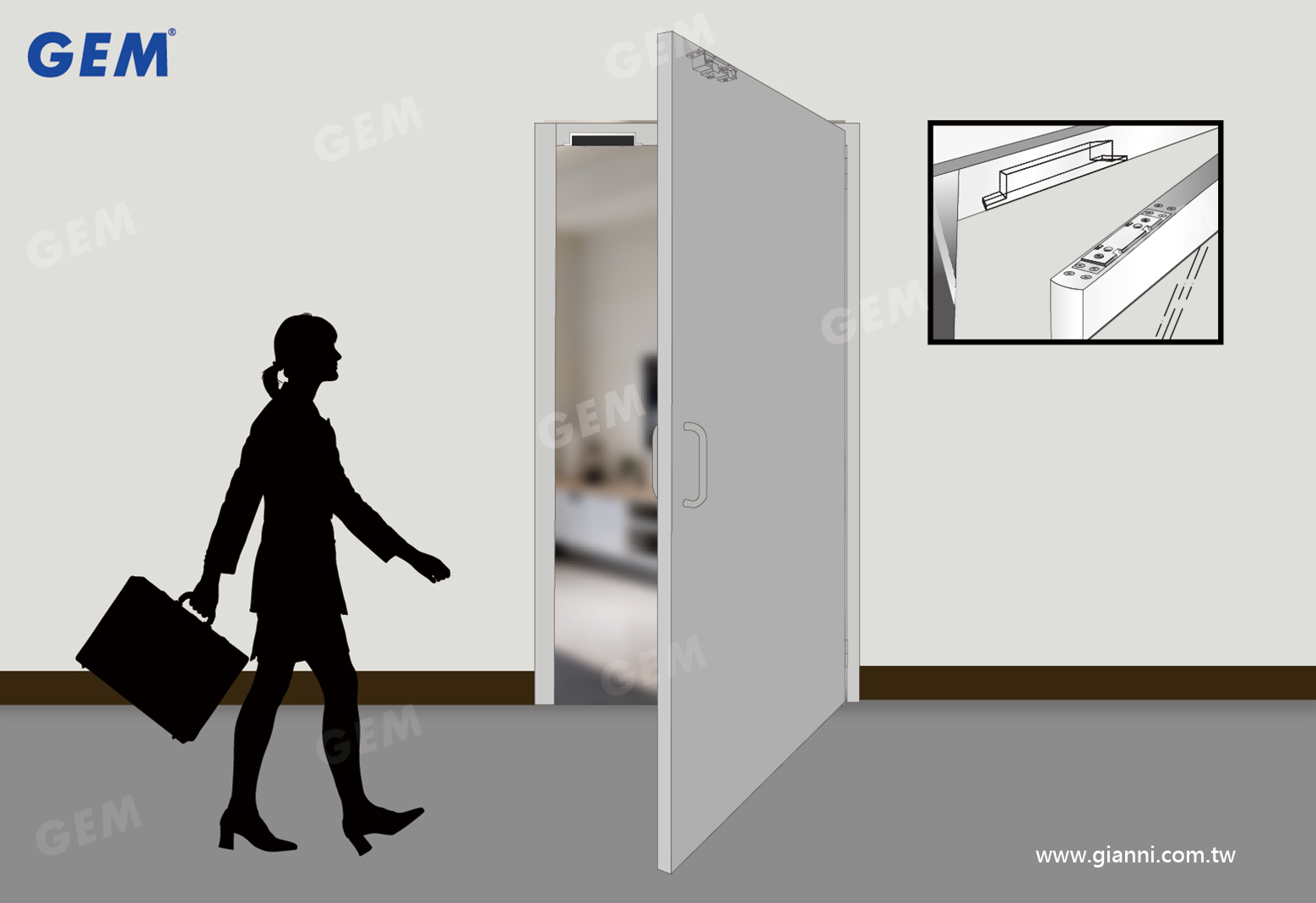

GS200 Shear Lock

GEM shear locks offer totally concealed mechanism and are designed for applications where the door swings up to a 180 degree. When the shear lock detects the door in the closed position, the magnet “sucks” the armature plate up and traps the armature plate in the lock frame. Generally a 2 -3 mm gap between the top of the door and the frame is optimum for the electromagnet to attract the armature plate and keep the door locked.

The built-in bond sensor indicates proper armature contact, and eliminates potential lock misalignment before the magnet is permitted to energize.

Standard Features

Specification

◆ Voltage: Dual 12/24VDC
◆ Holding Force: 1200lbs
◆ Door Gap: 1/16" (2mm)
◆ Mount: Mortise, Semi-Mortise, Surface
◆ Mounting Brackets: SMB-200(Optional)

Patents, Approvals, and Listings

◆ UL listed: BP9692
◆ CE : EC3D0909-02
◆ Tested to 40 minutes (no failure) in accodrance with EN1634-1:2014

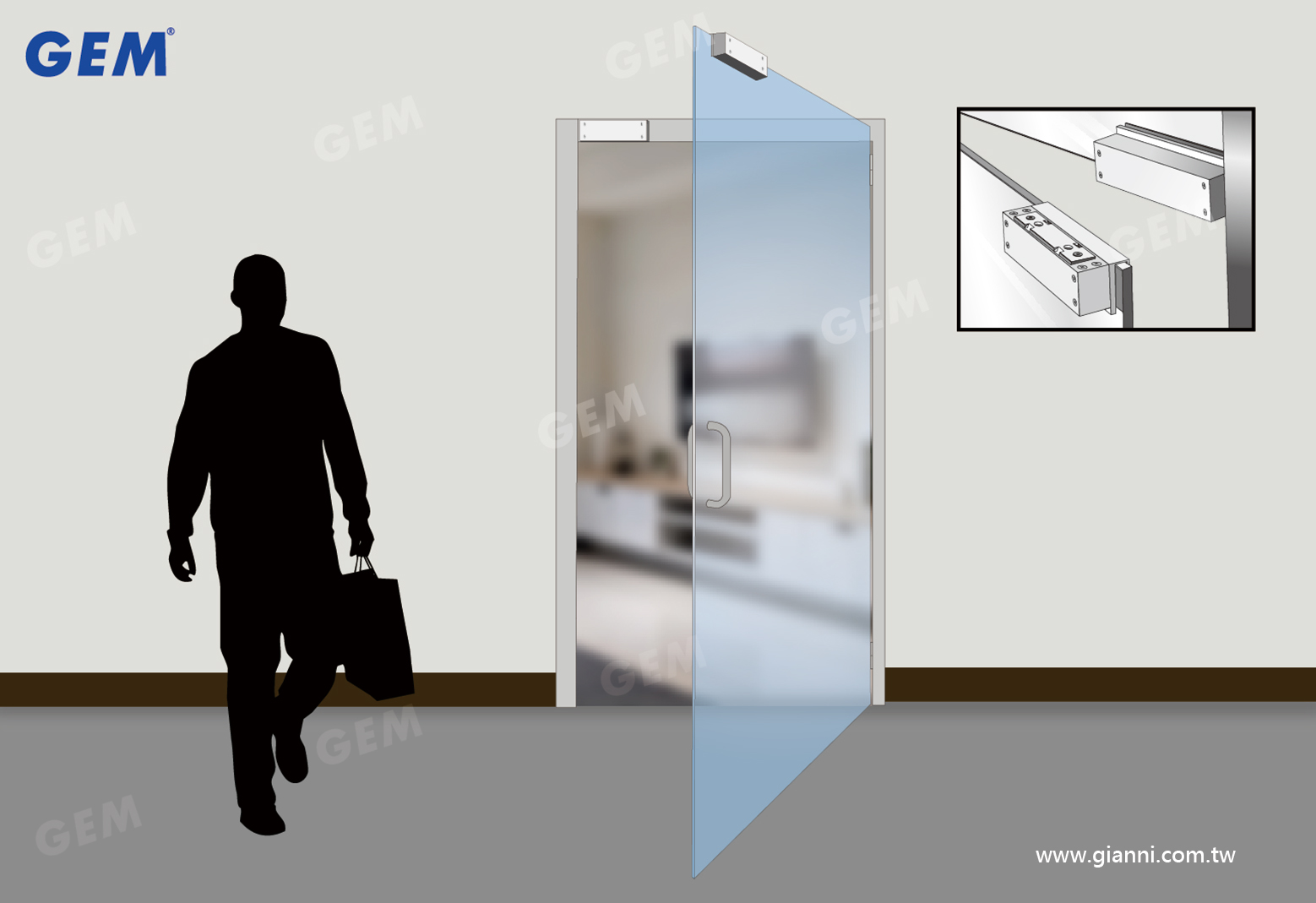

GS200VGL Shear Lock

GEM shear locks offer totally concealed mechanism and are designed for applications where the door swings up to a 180 degree. When the shear lock detects the door in the closed position, the magnet “sucks” the armature plate up and traps the armature plate in the lock frame. Generally a 2 -3 mm gap between the top of the door and the frame is optimum for the electromagnet to attract the armature plate and keep the door locked.

The built-in bond sensor indicates proper armature contact, and eliminates potential lock misalignment before the magnet is permitted to energize.

Standard Features

Specification

◆ Voltage: Dual 12/24VDC
◆ Holding Force: 1200lbs
◆ Door Gap: 1/16" (2mm)
◆ Mount: Surface
◆ Mounting Brackets: SMB-200, UBK-182

Patents, Approvals, and Listings

◆ UL listed: BP9692
◆ CE : EC3D0909-02

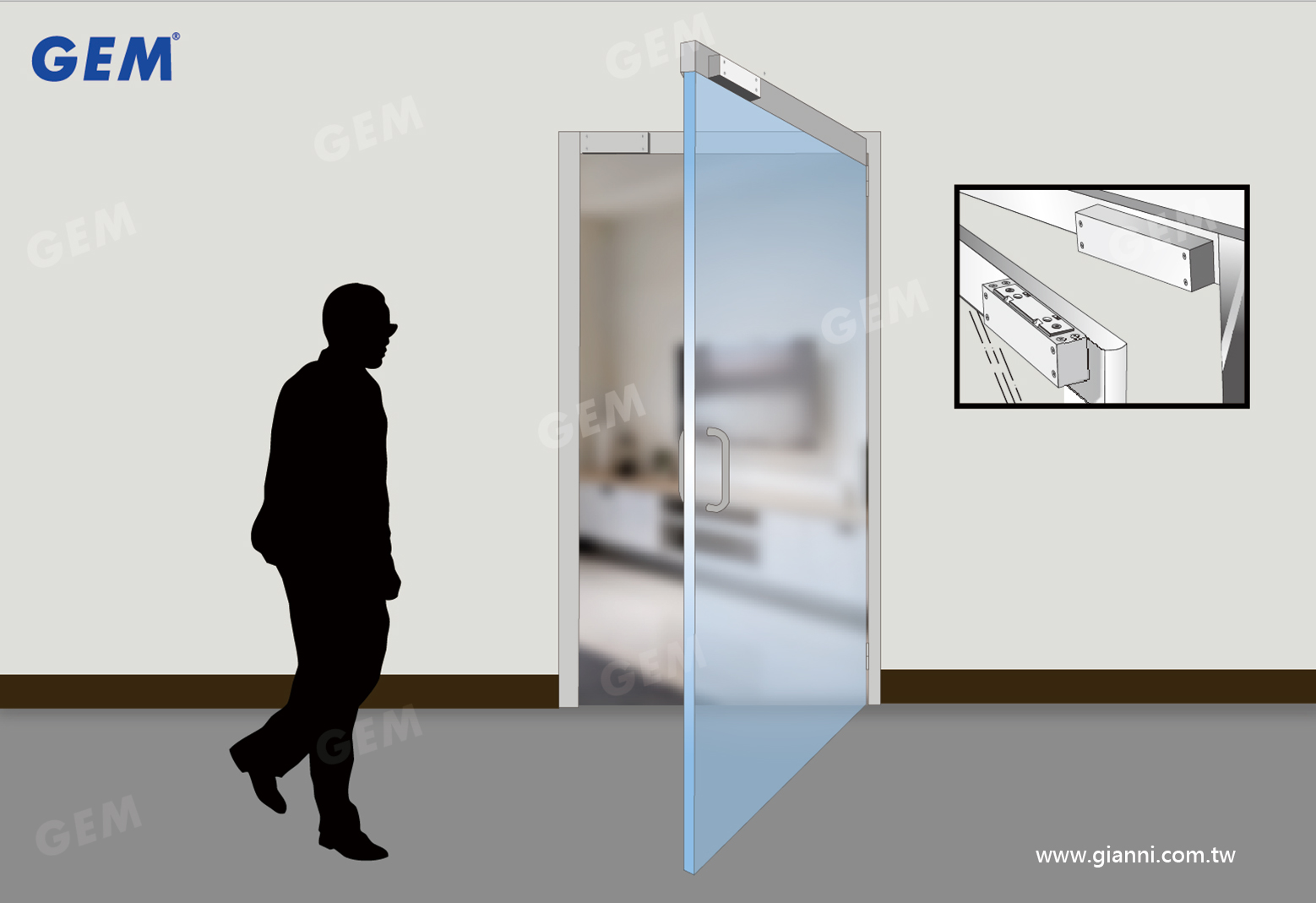

GS200S Shear Lock

GEM shear locks offer totally concealed mechanism and are designed for applications where the door swings up to a 180 degree. When the shear lock detects the door in the closed position, the magnet “sucks” the armature plate up and traps the armature plate in the lock frame. Generally a 2 -3 mm gap between the top of the door and the frame is optimum for the electromagnet to attract the armature plate and keep the door locked.

The built-in bond sensor indicates proper armature contact, and eliminates potential lock misalignment before the magnet is permitted to energize.

Standard Features

Specification

◆ Voltage: Dual 12/24VDC
◆ Holding Force: 1200lbs
◆ Door Gap: 1/16" (2mm)
◆ Mount: Surface
◆ Mounting Brackets: SMB-200

Patents, Approvals, and Listings

◆ UL listed: BP9692
◆ CE : EC3D0909-02

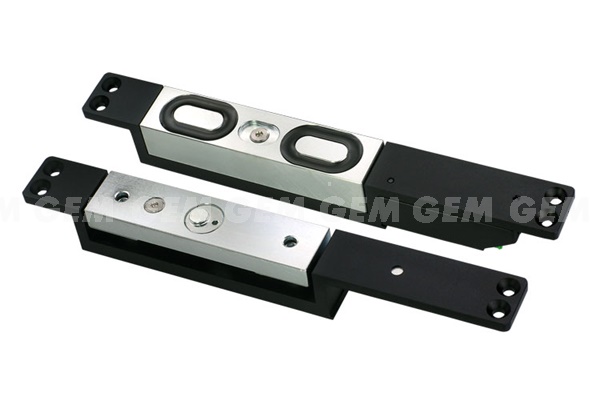

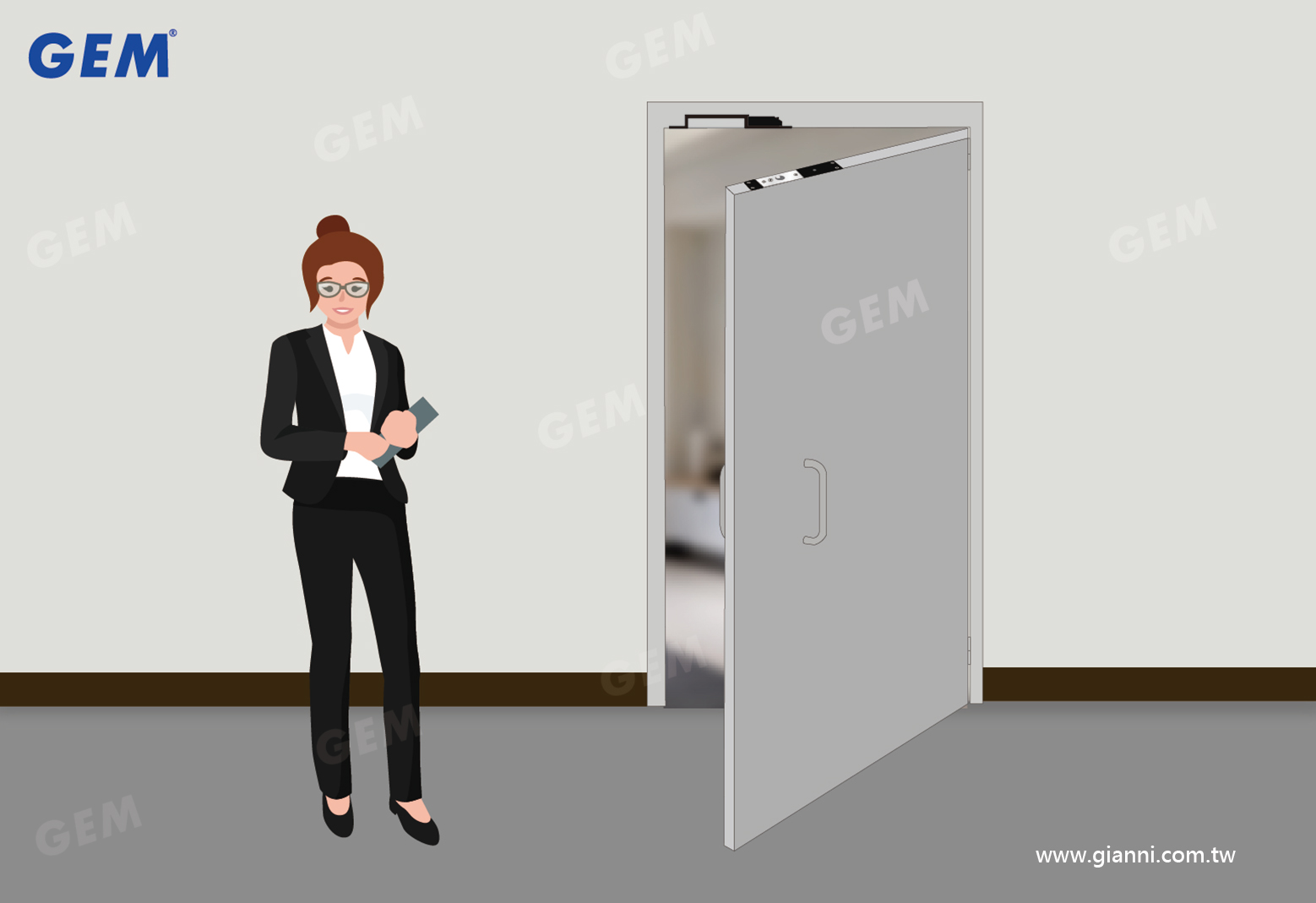

GS705-30/35/35TD Shear Lock

GEM shear locks offer totally concealed mechanism and are designed for applications where the door swings up to a 180 degree. When the shear lock detects the door in the closed position, the magnet “sucks” the armature plate up and traps the armature plate in the lock frame. Generally a 2 -3 mm gap between the top of the door and the frame is optimum for the electromagnet to attract the armature plate and keep the door locked.

The built-in bond sensor indicates proper armature contact, and eliminates potential lock misalignment before the magnet is permitted to energize.

Standard Features

Specification

◆ Voltage: 12 to 24VDC
◆ Bond Sensor
◆ Holding Force:
- GS705-30: 2000 lbs
- GS705-35/35TD: 2200 lbs
◆ Relock Time Delay: 1~6 sec. (Default 3 sec.)
◆ Door Gap: 1/8" (3mm)
◆ Mount:
- GS705-30: Mortise
- GS705-35/35TD: Surface, Mortise, Semi-Mortise
◆ Mounting Brackets: GS705-35/35TD: SMB-001 (Optional)

Patents, Approvals, and Listings

◆ CE : EC3D0909-02

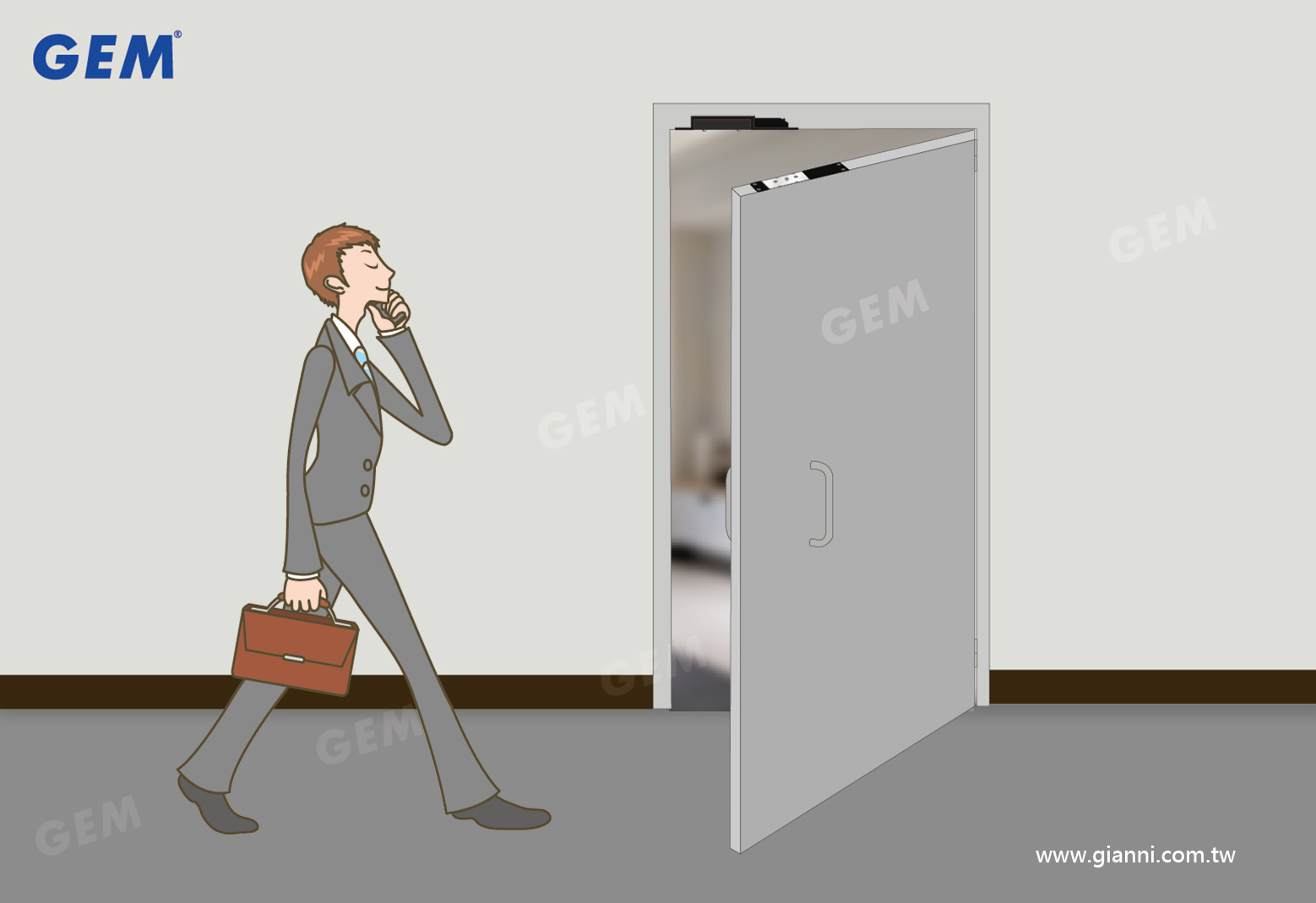

GS705N-30 Shear Lock

GEM shear locks offer totally concealed mechanism and are designed for applications where the door swings up to a 180 degree. When the shear lock detects the door in the closed position, the magnet “sucks” the armature plate up and traps the armature plate in the lock frame. Generally a 2 -3 mm gap between the top of the door and the frame is optimum for the electromagnet to attract the armature plate and keep the door locked.

The built-in bond sensor indicates proper armature contact, and eliminates potential lock misalignment before the magnet is permitted to energize.

Standard Features

Specification

◆ Voltage: Dual 12/24 VDC
◆ Bond Sensor
◆ Holding Force: 1200 lbs
◆ Door Gap: 1/6" (2mm)
◆ Mount: Mortise

Patents, Approvals, and Listings

◆ CE : EC3D0909-02
