Electric Strikes
Patents Declaration: GEM holds worldwide patents for our own design products, we reserve all copyrights, any parties who intentionally or recklessly duplicate GEM’s designs will face international lawsuits consequences.
GK140/145 Series
GK200/250

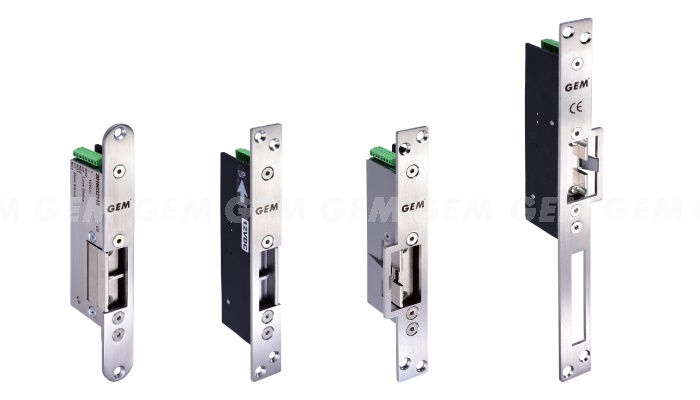

GK231/233/236 Series

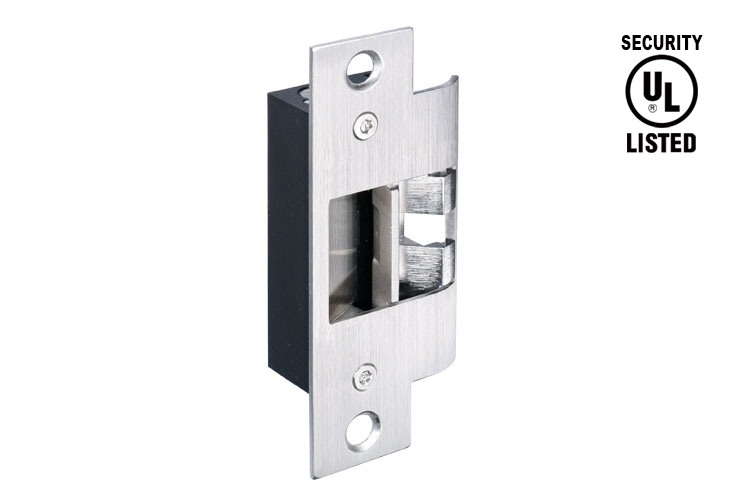

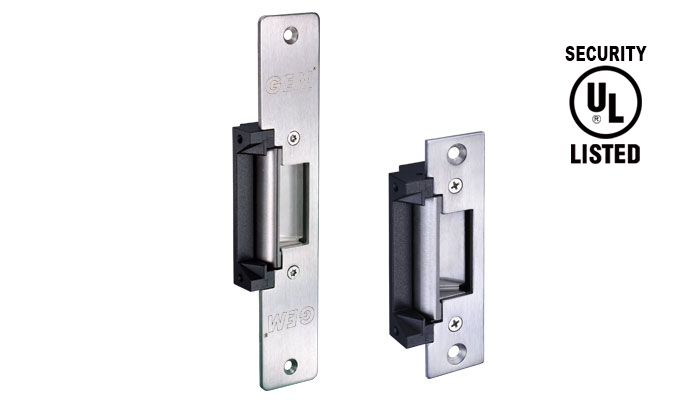

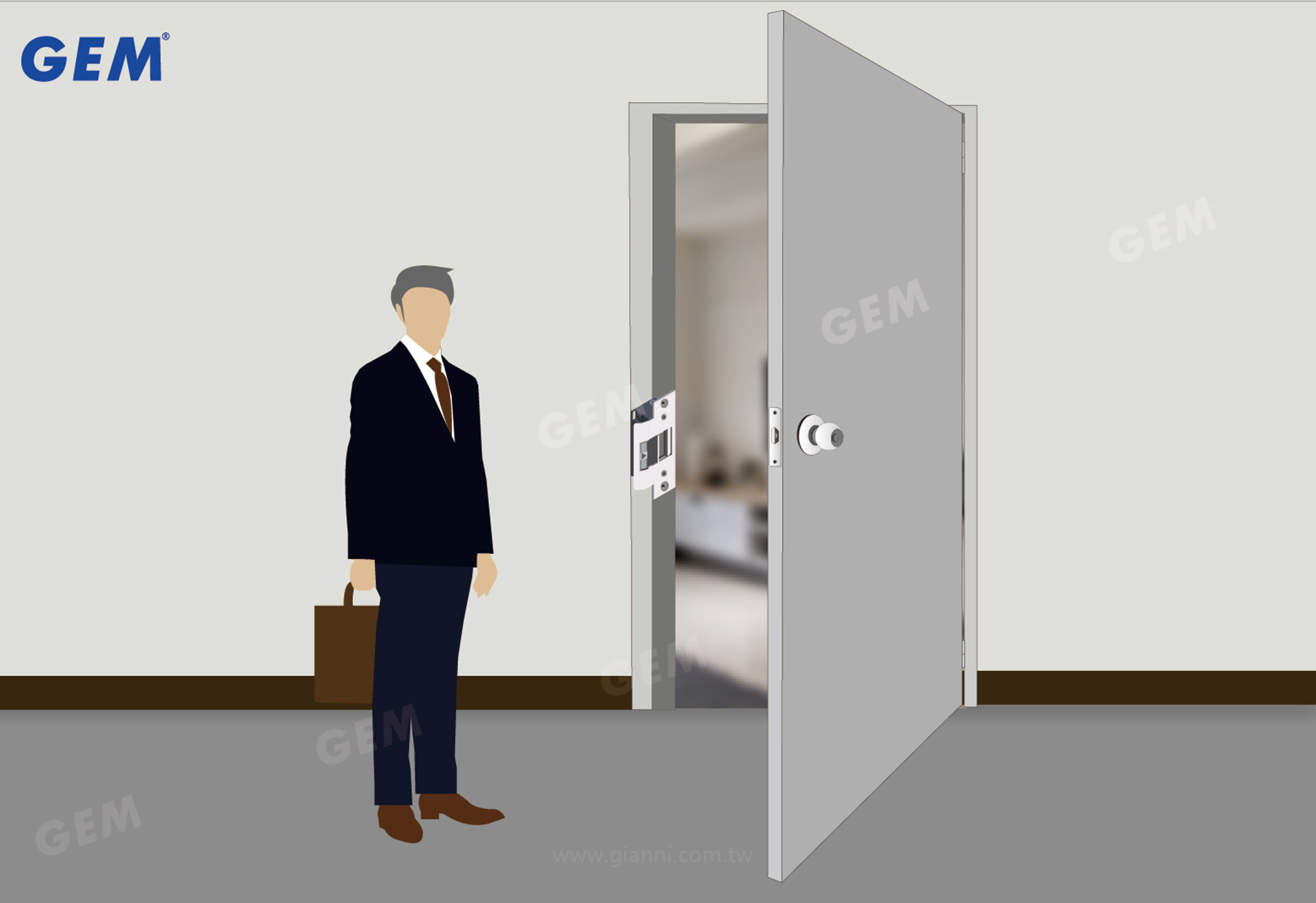

GK460 Series Electric Strikes
The GK460 series ANSI electric strikes are designed for use with cylindrical locksets and can be installed in metal and wood door frames. The special keeper ramp allows the latchbolt to enter or exit from the strike cavity without frame cutting. The strikes can be configured to fail-safe or fail-secure on site.
Standard Features
★ No frame cutting is required - Special ramp design allows the latchbolt to exit from an unmodified frame
★ Non-handed fully reversible
★ Field reversible fail-safe or fail-secure
★ Static strength 1,500 lbs (680Kg)
★ Dynamic strength 70 ft-lbs
★ Endurance 250,000 cycles UL tested, 1,000,000 cycles factory tested
★ Brushed stainless steel (US32D) finish
Optional Feaures
★ Latch monitor
Patents, Approvals, and Listings
★ UL 1034 burglary resistant listed: BP10269
★ UL 294 Access Control System listed: BP10269
Specification
★ Voltage: dual 12/24 VDC
★ Latch Throw: 9/16" (15mm)
★ Optional Latch Monitor
★ Special ramp design
★ Reversible Fail-safe or Fail-secure
★ Frame: GK460 (Hollow metal), GK461 (Wood)
★ Body construction: Zinc alloy

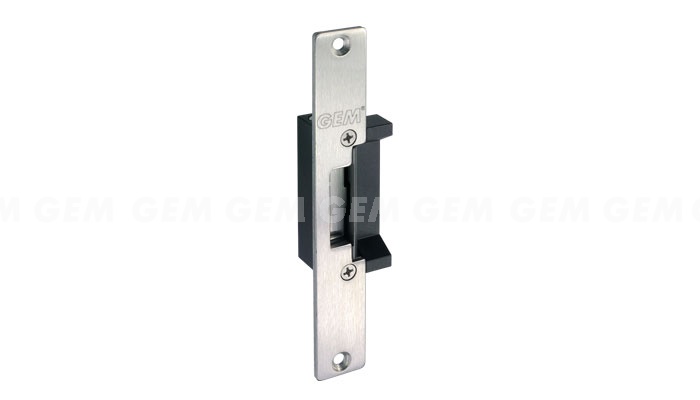

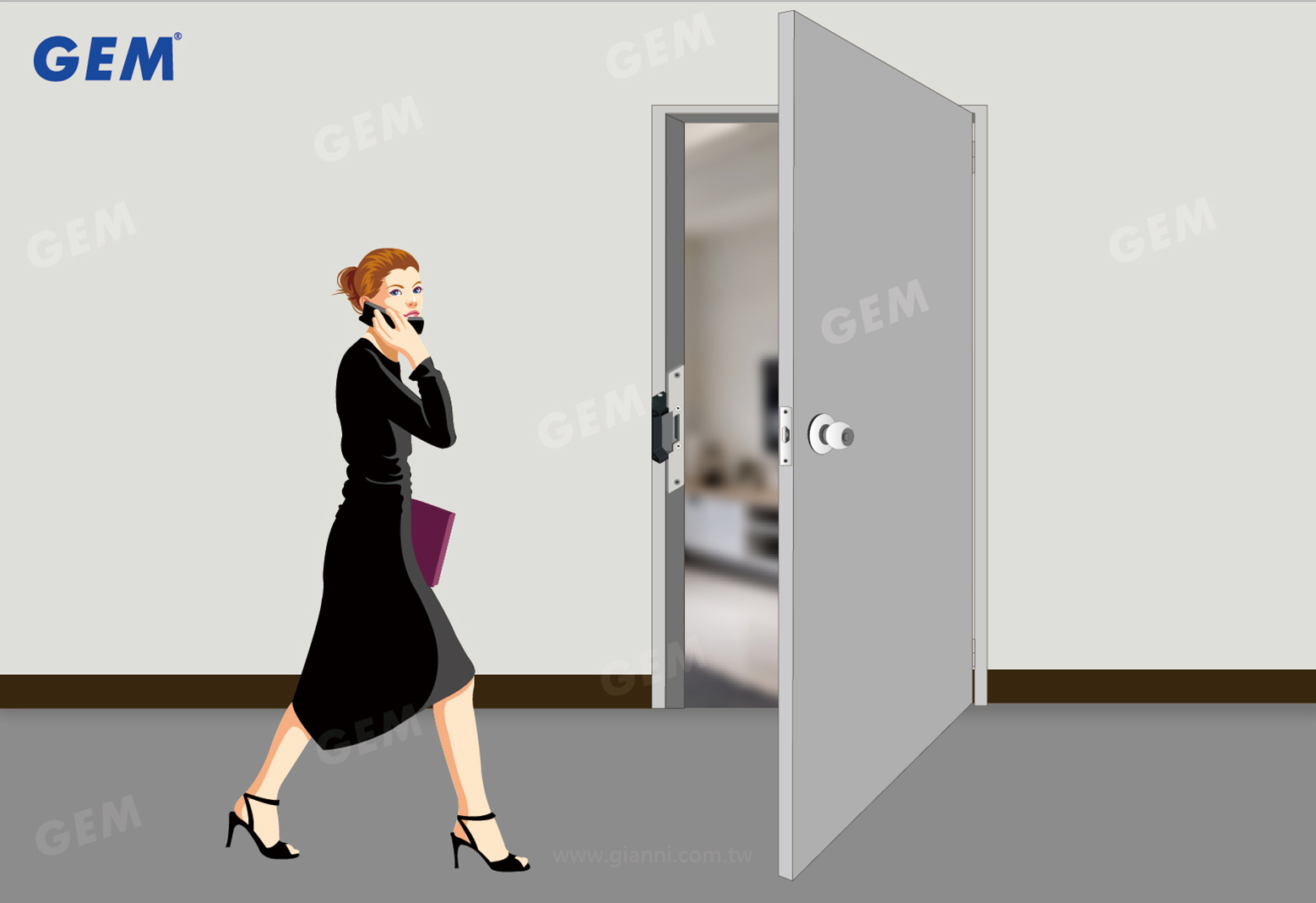

GK600 Series Electric Strikes
The GK600 series electric strike is designed for use with European mortise locks. It can be installed in metal and wood door frames and is field reversible for fail-safe or fail-secure operation. Available with 3 models with different types of faceplates for various applications.
Standard Features
★ 12 or 24 VDC
★ Accommodates 10 mm latchbolt
★ Field reversible fail-safe or fail-secure
★ Brushed stainless steel finish
★ Zinc alloy construction
★ Non-handed fully reversible
★ Endurance 1,000,000 cycles

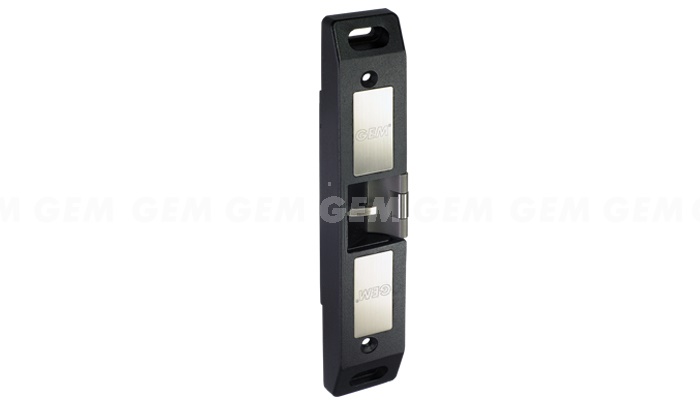

GK1100 Series Electric Strikes
The GK1100 series electric rim strike is surface mounted and designed for use with rim exit devices. It is field reversible for fail-safe or fail-secure operation.
Standard Features
◆ Anti-friction roller keeper for smooth operation and longer life
◆ Horizontal adjustment
◆ Non-handed fully reversible
◆ Accommodates 11/16” (17mm) latchbolt
◆ Surface mounted
◆ Zinc alloy body construction in black finish
◆ Endurance 1,000,000 cycles
Specification
◆ 12 to 28 VAC/VDC
◆ Latch monitor, Lock monitor (GK1100 only)
◆ Field reversible fail-safe or fail-secure
◆ Static strength 1,500 lbs (680Kg)

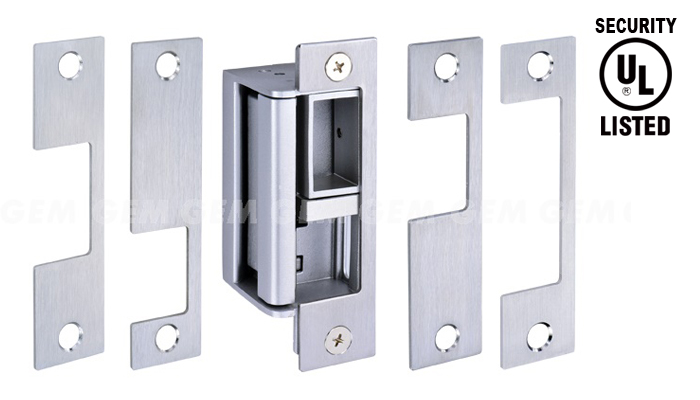

GK1300 Series Electric Strikes
The GK1300/1350 series ANSI electric strike is designed for use with heavy duty mortise locksets and cylindrical locksets. It comes with five different faceplates and can be easily installed in aluminum, metal or wood door frames. An optional plug-in latch monitor is also available and can be easily added in the field.
Standard Features
◆ Vertical adjustments allow for alignment with a wide variety of mortise locks with offset latches
◆ Sliding keeper shim design for up to 1/8” (3mm) adjustment for misaligned frames
◆ Accommodates deadbolts up to 1”
◆ Field reversible for fail-safe or fail-secure
◆ Non-handed design fits either right or left handed doors
◆ Includes 5 brushed stainless steel faceplates (US32D)
◆ Endurance rating 250,000 cycles UL tested, 1,000,000 cycles factory tested
Patents, Approvals, and Listings
◆ UL 1034 burglary resistant listed : BP10269
◆ UL 294 Access Control System listed: BP10269
Specification
◆ 12, 24, or dual 12/24 VDC
◆ Latch Throw: 1" (25mm)
◆ Optional Plug-in Latch Monitor (SW1300)
◆ Static Strength:
- GK1300: 1000 lbs
- GK1350/1350-ST: 1500 lbs
◆ Dynamic Strength:
- GK1300: 33ft-lbs
- GK1350/1350-ST: 70ft-lbs
◆ Body Construction:
- GK1300/1350-ST: Stainless steel
- GK1350: Zinc alloy

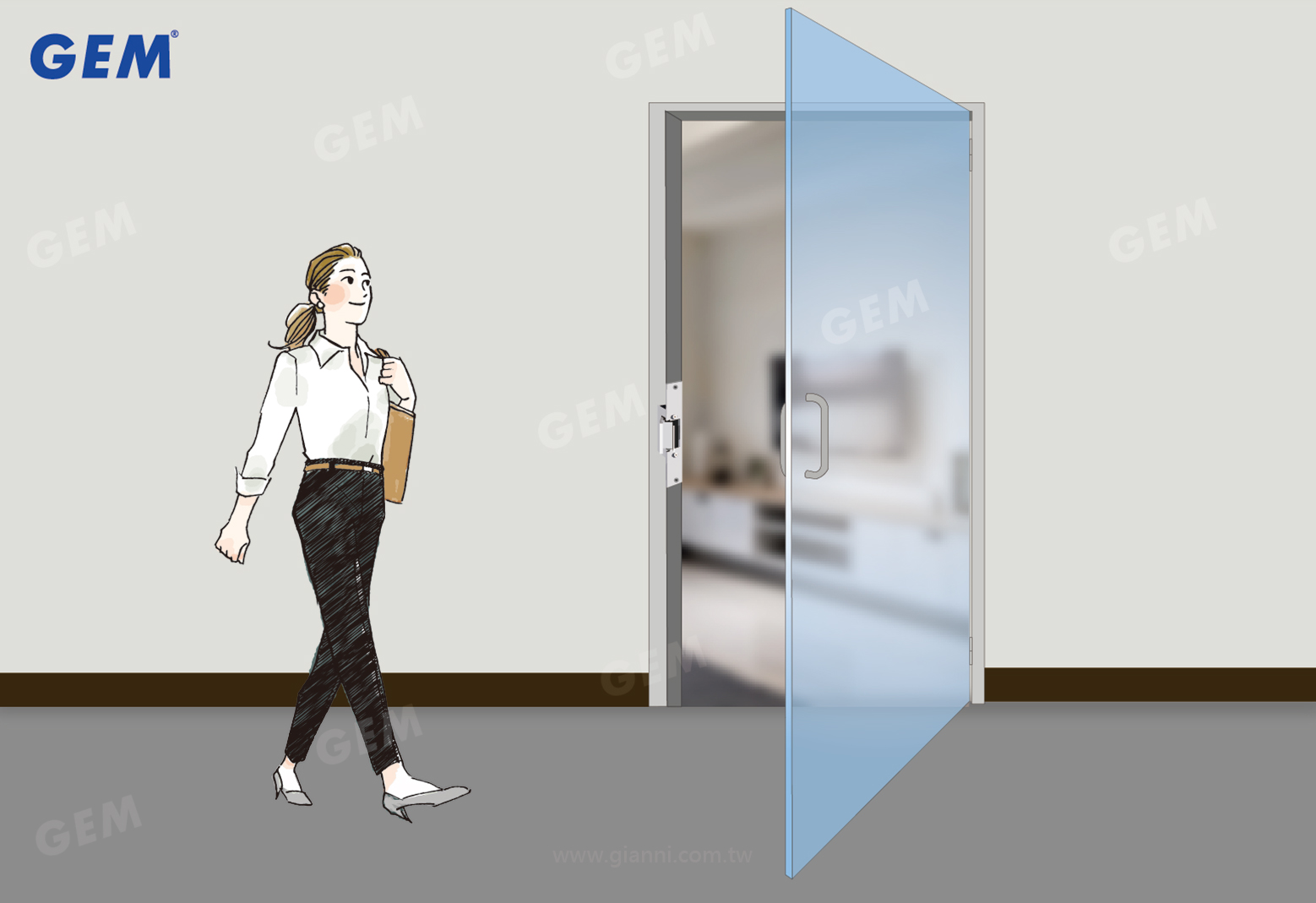

GK1480 Series Electric Strikes
The GK1480 series electric strike is designed for use on full glass doors. It is reversible for right or left handed doors and can be installed at the top and side of the door.
Standard Features
◆ Easy installation
◆ 12 or 24 VDC
◆ Non-handed
◆ Fail-safe (For GK1480) or Fail-secure (For GK1481)
◆ For 10 mm or 12mm thick glass doors
◆ Includes black shims for 10mm thick glass door application
◆ Brushed stainless steel (US32D) finish
◆ Zinc alloy construction
◆ Horizontal faceplate adjustment compensates for misalignment

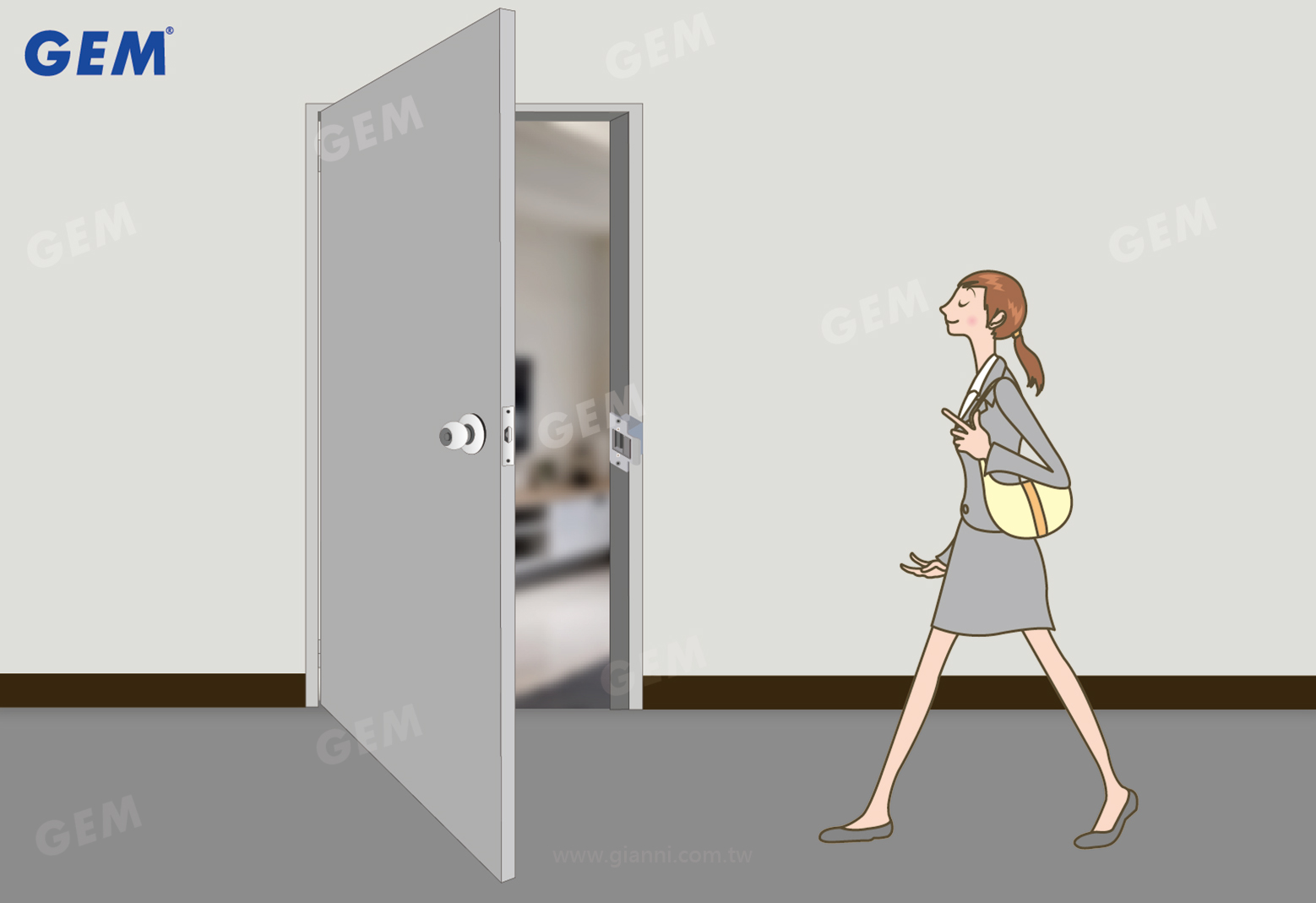

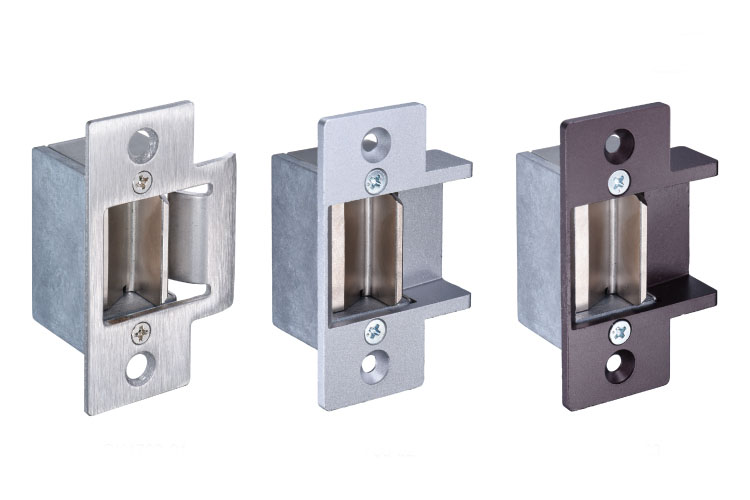

GK1700 Series Electric Strikes
The GK1700 series electric strike is extremely small and suitable for any type of door frame. Compact design allows the strike to easily fit in any tight or difficult installation.
Standard Features
◆ Quick and easy installation
◆ Non-handed
◆ Fail-secure
◆ Accommodates 1/2" (13mm) latchbolt
◆ Works with cylindrical locksets or GEM LS-2200 door latch
◆ 12 or 24 VDC, 3 to 6 VDC or 8 to 16 VAC
◆ Endurance 250,000 cycles
◆ Static strength 1,000 lbs (454 kg)
◆ Zinc alloy construction
◆ Available with 3 finishes: Brushed stainless steel (US32D), Silver,US40 Duranodic (Dark Bronze)

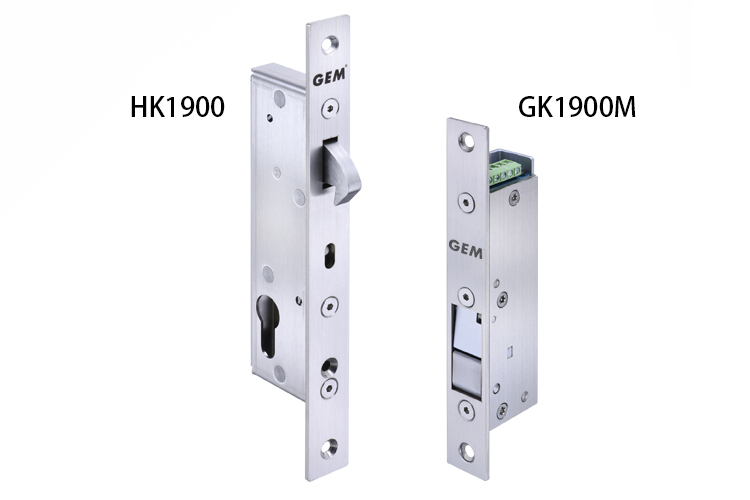

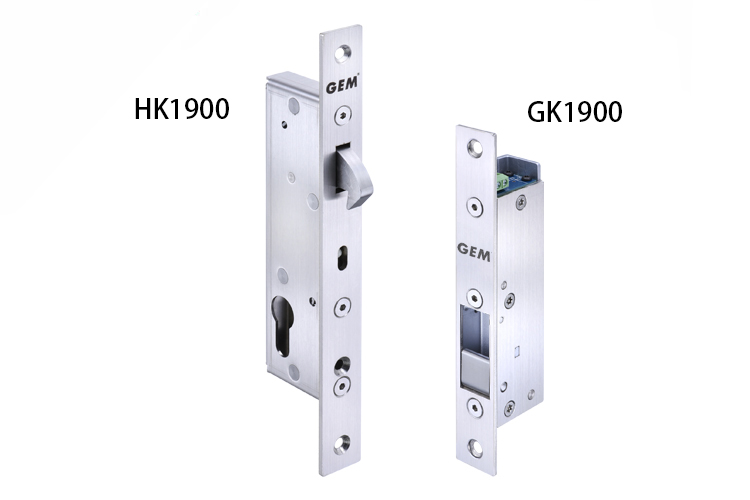

GK1900 Series Electric Strikes
The GK1900 series electric strike is designed for use with hook bolt locks with a thumb turn or key cylinder. It has 250 lbs of preload release capability that allows smooth operation under door preload conditions. Suitable for sliding doors.
Standard Features
◆ Non-handed
◆ Fail-secure
◆ Zinc alloy body
◆ Easy-to-connect terminal block
◆ Optional latch / door status monitor
Specifications
◆ Operating voltage: 12/24 VDC
◆ Cavity Depth: 5/8” (15.5mm)
◆ Keeper width: 3/4” (19mm)
◆ Endurance: Over 250,000 cycles
◆ Static strength: 700 lbs
◆ Preload: Up to 100 lbs of preload
