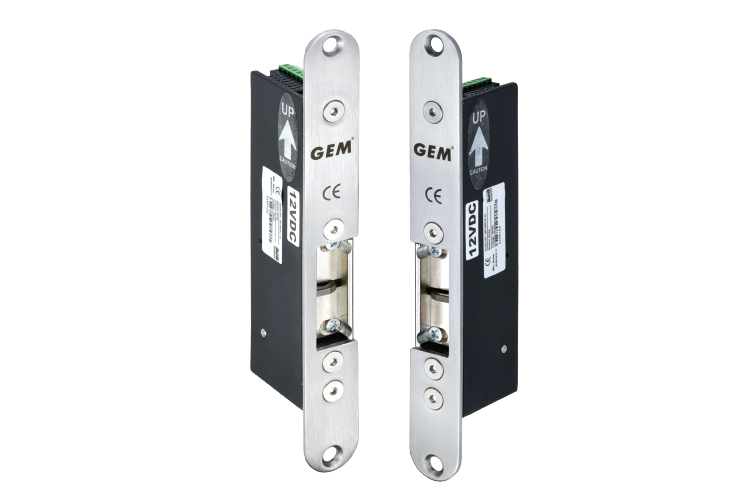

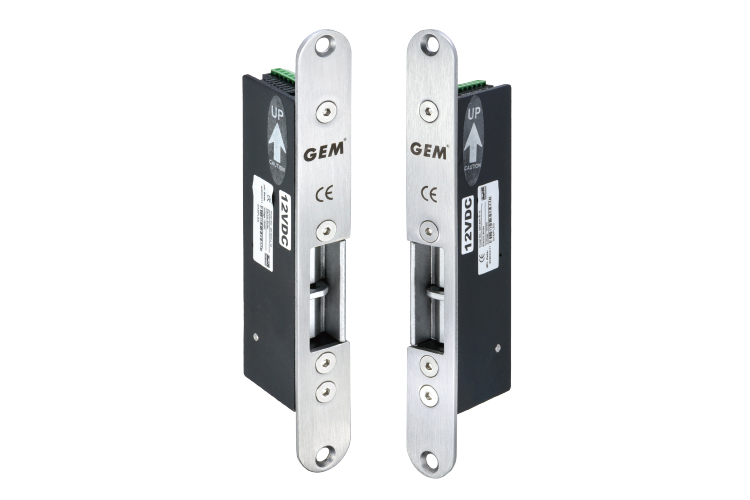

GK140 Electric Strike
The GK140/145 series European electric strike has a robust stainless steel construction and preload release function. It is designed for use on right/left hand doors and supplied with a reversible faceplate that accommodates more applications.
Standard Features
◆ Stainless steel construction
◆ Static Strength: 1,200 lbs (GK140 Series) 1,000 lbs (GK145 Series)
◆ Up to 200 lbs (91Kg) of preload
◆ Fail-secure
◆ Handed (For strike body)
◆ Endurance over 250,000 cycles
◆ Works with cylindrical locksets or European mortise latches
◆ Optional latch / door status monitor
◆ Adjustable keeper (For GK145 only)
◆ Easy-to-connect terminal block
Preload
The GK140/145 opens electrically with up to 200 lbs.(91Kg) of preload applied to the keeper. Door preload is a common condition caused by air-conditioning pressure,
warped doors, or heavy weatherstripping. A serious preload condition causes the electric strike to malfunction.
Non-Handed Faceplate (Included)
◆ Reversible for right or left handed installation
◆ Stainless steel finish, 25 mm wide for narrow stile doors
◆ Round or square corner option
Specification
◆ Voltge: 12 or 24VDC
◆ Latch Throw: 15mm
◆ Preload 200lbs
◆ Mode: Fail-secure
◆ Plug-in Terminal Block
