The GK800 series electric strike provides different models to accommodate various applications and locksets.
It includes an optional latch monitor and is field reversible for fail-safe or fail-secure operation.
The GK800 is compatible with European latches and cylindrical locks.
Standard Features
★ Brushed stainless steel finish
★ Endurance 1,000,000 cycles
★ Field reversible fail-safe or fail-secure
★ Non-handed fully reversible
★ tatic strength 800 lbs (363Kg)
★ Zinc alloy construction
★ Stainless steel keeper for enhanced security
Specification
★ Voltage: Dual 12/24VDC
★ Latch Throw: 12mm
★ Field reversible Fail-safe or Fail-secure
★ Finish: Brushed stainless steel
Optional Feature
★ Latch monitor

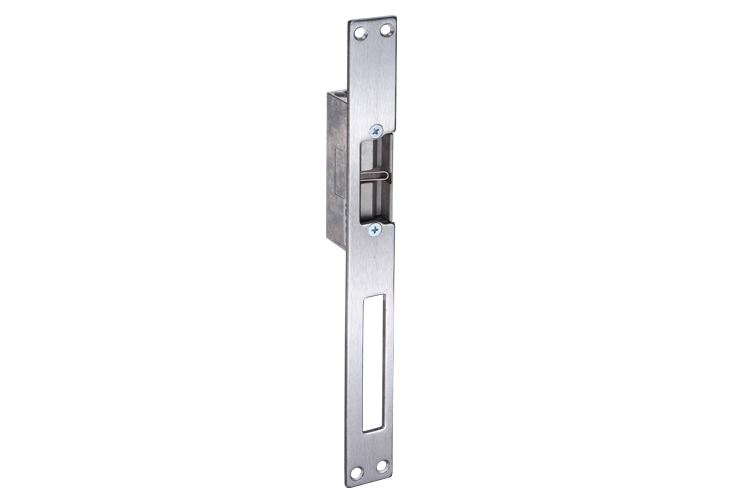

GK810 Electric Strike
The GK800 series electric strike provides different models to accommodate various applications and locksets.
It includes an optional latch monitor and is field reversible for fail-safe or fail-secure operation.
The GK810 is designed for use with European mortise locks .
Standard Features
★ Brushed stainless steel finish
★ Endurance 1,000,000 cycles
★ Field reversible fail-safe or fail-secure
★ Non-handed fully reversible
★ tatic strength 800 lbs (363Kg)
★ Zinc alloy construction
★ Stainless steel keeper for enhanced security
Specification
★ Voltage: Dual 12/24VDC
★ Latch Throw: 12mm
★ Field reversible Fail-safe or Fail-secure
★ Finish: Brushed stainless steel
Optional Feature
★ Latch monitor

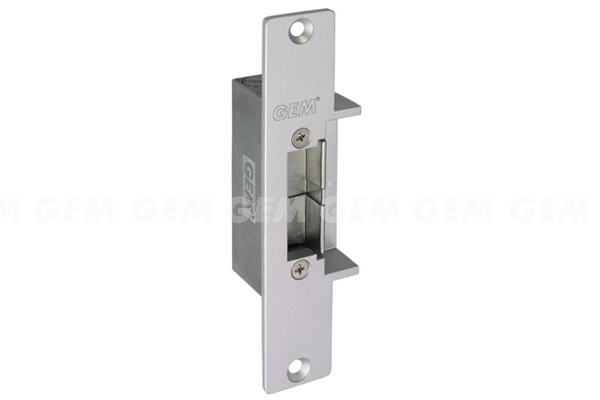

GK850 Electric Strike
The GK800 series electric strike provides different models to accommodate various applications and locksets.
It includes an optional latch monitor and is field reversible for fail-safe or fail-secure operation.
The GK850 is suitable for use with ANSI/Euro locks for universal range applicability.
Standard Features
★ Brushed stainless steel finish
★ Endurance 1,000,000 cycles
★ Field reversible fail-safe or fail-secure
★ Non-handed fully reversible
★ tatic strength 800 lbs (363Kg)
★ Zinc alloy construction
★ Stainless steel keeper for enhanced security
Specification
★ Voltage: Dual 12/24VDC
★ Latch Throw: 15mm
★ Field reversible fail-safe or fail-secure
★ Finish: Silver
Optional Feature
★ Latch monitor

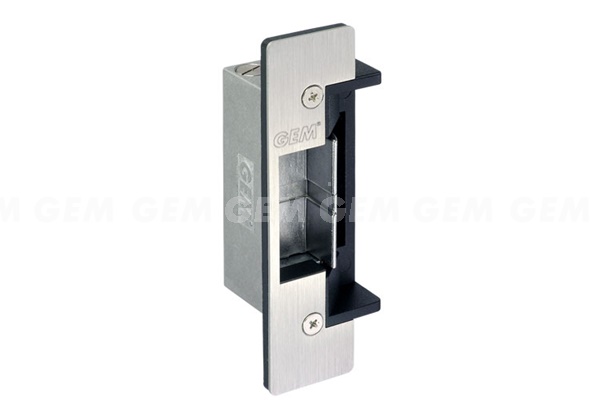

GK880 Electric Strike
The GK800 series electric strike provides different models to accommodate various applications and locksets.
It includes an optional latch monitor and is field reversible for fail-safe or fail-secure operation.
The GK880 includes ANSI faceplate for cylindrical/mortise locksets.
