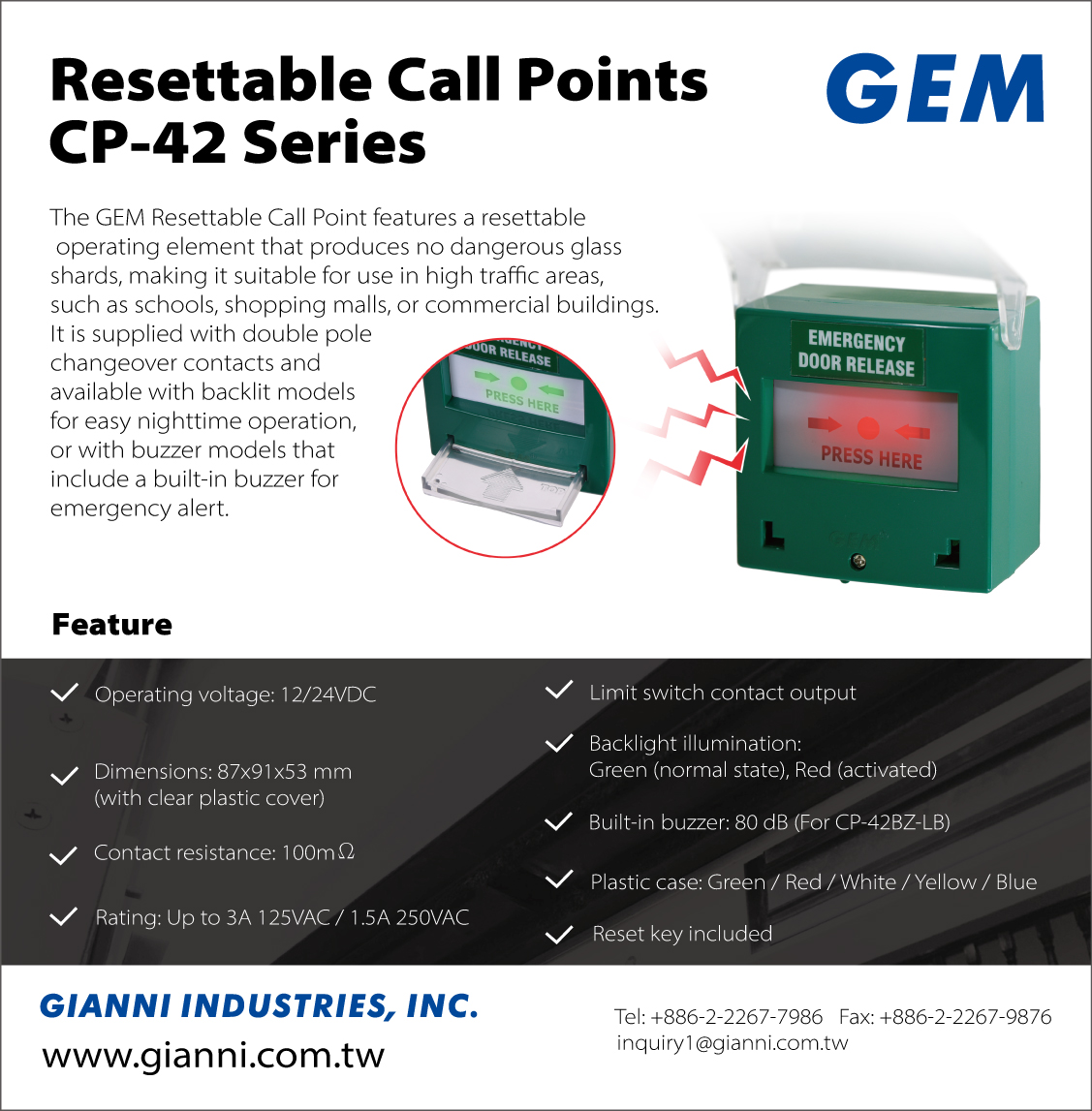

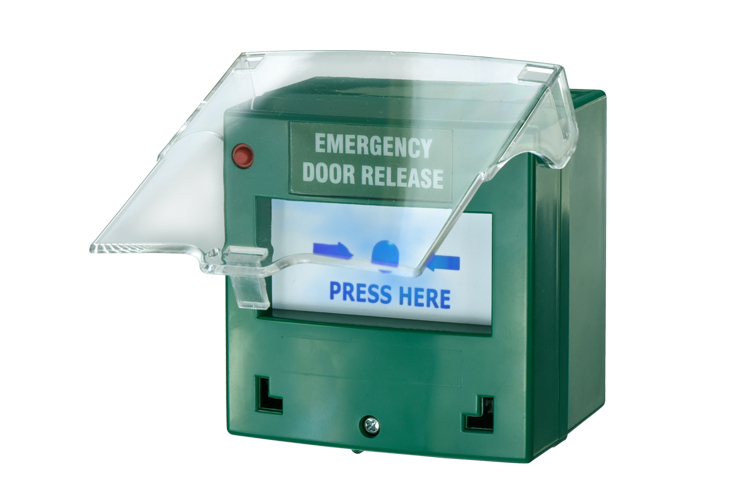

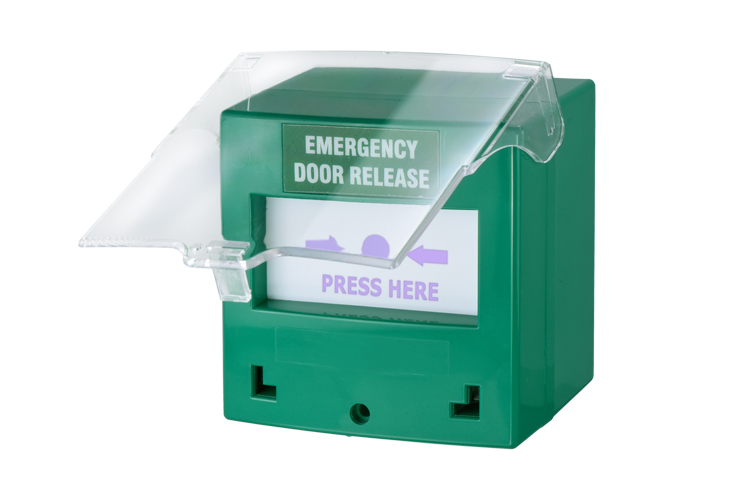

CP-42GBZ-LB-ALM Call Point

The GEM Resettable Call Point features a resettable operating element that produces no dangerous glass shards, making it suitable for use in high traffic areas, such as schools, shopping malls, or commercial buildings. It is supplied with double pole changeover contacts and available with backlit models for easy nighttime operation, or with buzzer models that include a built-in buzzer for emergency alert.

Standard Features & Specifications

◆ Operating voltage: 12/24VDC

◆ Dimensions: 87x91x53 mm (with clear plastic cover)

◆ Contact resistance: 100mΩ

◆ Rating: Up to 3A 125VAC / 1.5A 250VAC

◆ Limit switch contact output

◆ Backlight illumination: Green (normal state), Red (activated)

◆ Built-in buzzer: 85 dB (For CP-42BZ-LB-ALM)

◆ Plastic case: Green / Red / White / Yellow / Blue

◆ Reset key included

◆ Alarm output
