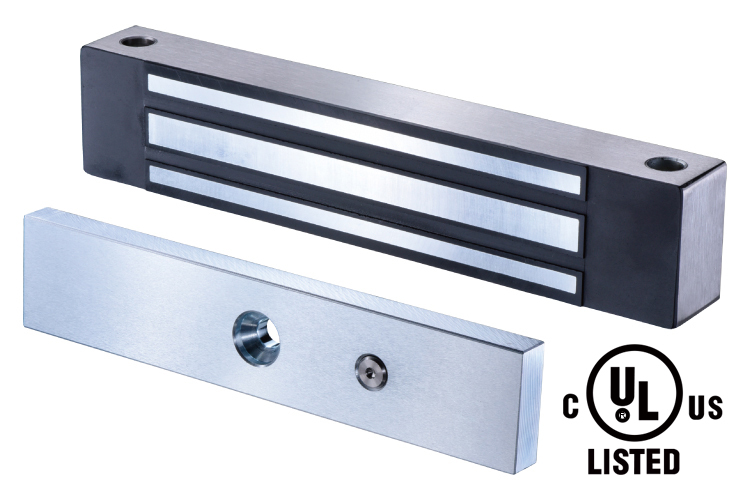

N10001ST Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 600lbs

◆ Voltage: 12, 24 or dual 12/24 VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-N10001ST
- Inswing Door: LZ-N10001ST
- Glass Door: UBK-013

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Standard Options

◆ Built-in bond sensor

Patents, Approvals, and Listings

◆ UL 10B/10C Positive Pressure Fire Test of Door Assemblies

◆ CE: EC671705-01

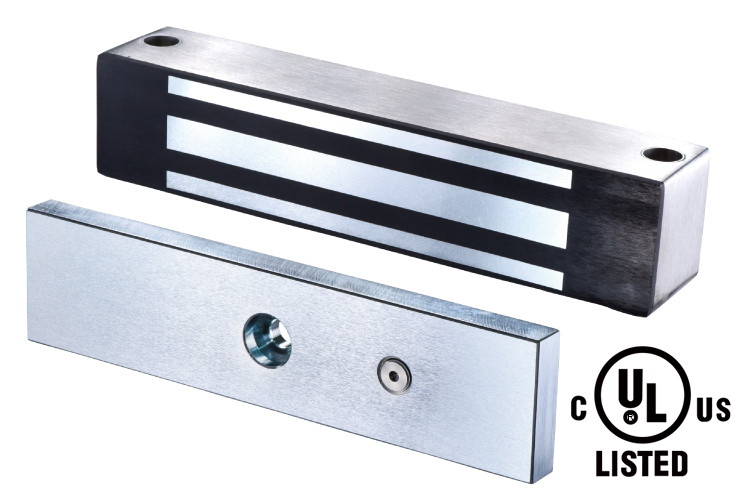

GL600-S Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 600lbs

◆ Voltage: 12, 24 or dual 12/24 VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-GL600-AL, L-GL600
- Inswing Door: LZ-GL600
- Glass Door: UBK-013

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Patents, Approvals, and Listings

◆ UL 1034 & 294 listed: SA44784

◆ UL 10B/10C Positive Pressure Fire Test of Door Assemblies

◆ CE: EC671705-01

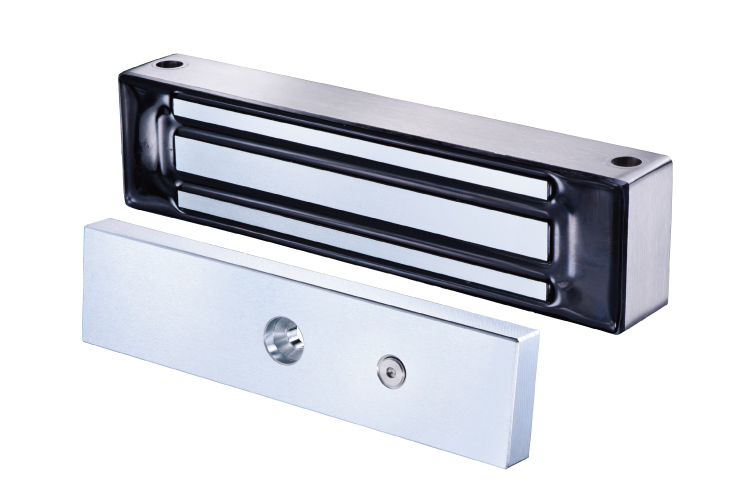

10006S Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 800lbs

◆ Voltage: 12, 24 or dual 12/24 VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-400
- Inswing Door: LZ-400N
- Glass Door: UBK-013

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Standard Options

◆ Built-in bond sensor

Patents, Approvals, and Listings

◆ CE: EC671705-01

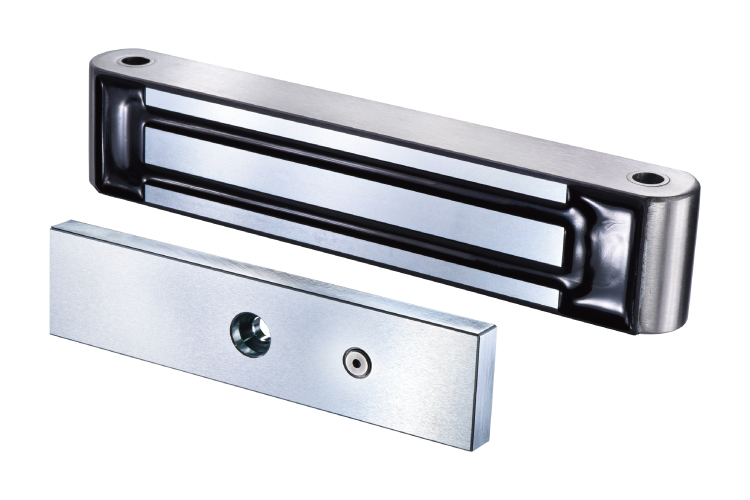

EM-750 Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 800lbs

◆ Voltage: 12, 24 or dual 12/24 VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-750
- Inswing Door: LZ-750
- Glass Door: UBK-013

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Standard Options

◆ Built-in bond sensor

◆ CE: EC671705-01

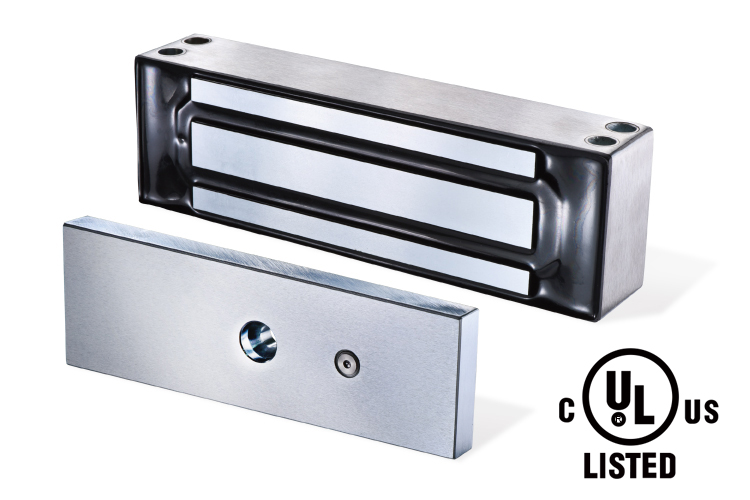

10010ST Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 1200lbs

◆ Voltage: 12, 24 or dual 12/24 VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-600
- Inswing Door: LZ-600N

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Patents, Approvals, and Listings

◆ UL 10B/10C Positive Pressure Fire Test of Door Assemblies

◆ CE: EC671705-01

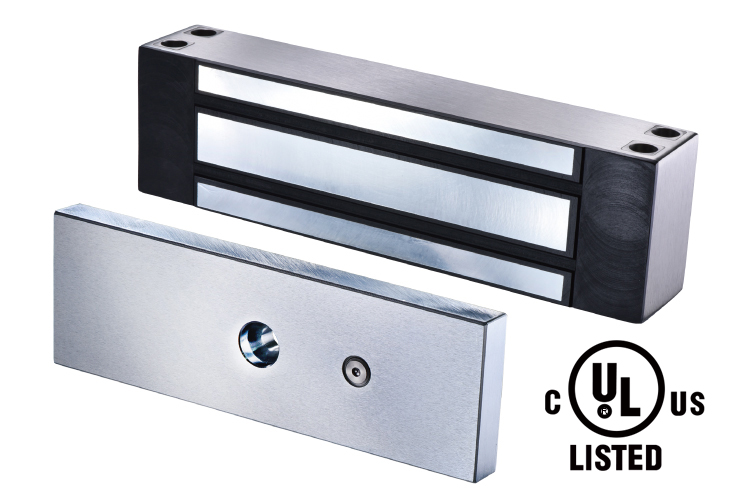

N10010ST Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 1200lbs

◆ Voltage: 12, 24 or dual 12/24 VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-N10010ST
- Inswing Door: LZ-N10010ST

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Standard Options

◆ Built-in bond sensor

Patents, Approvals, and Listings

◆ UL 10B/10C Positive Pressure Fire Test of Door Assemblies

◆ CE: EC671705-01

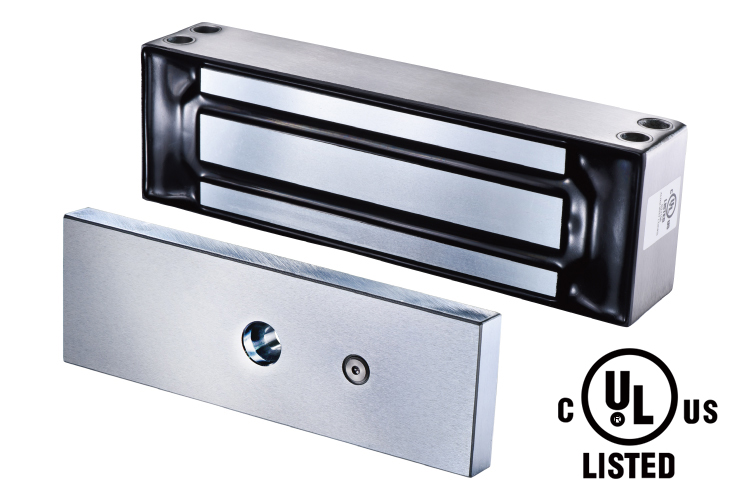

GL-1200S Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 1200lbs

◆ Voltage: 12, 24 or dual 12/24 VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-600
- Inswing Door: LZ-600N

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Standard Options

◆ Built-in bond sensor

Patents, Approvals, and Listings

◆ UL 1034 & 294 listed: SA44784

◆ UL 10B/10C Positive Pressure Fire Test of Door Assemblies

◆ CE: EC671705-01

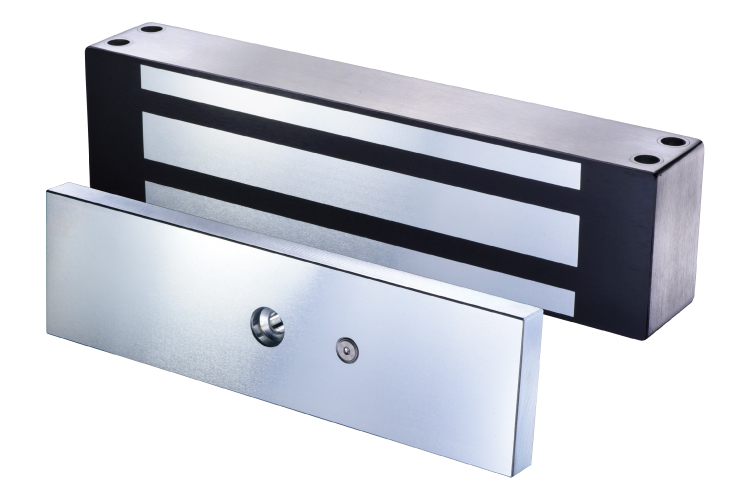

GL-1800S Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 1200lbs

◆ Voltage: Dual 12/24 VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-GL1800
- Inswing Door: LZ-GL1800

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Standard Options

◆ Built-in bond sensor

Patents, Approvals, and Listings

◆ CE: EC671705-01

GL-80F Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 80lbs

◆ Voltage: 12 or 24 VDC, dual 12/24VDC

◆ Current Draw: 120mA/12VDC, 60mA/24VDC

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Patents, Approvals, and Listings

◆ CE: EC671705-01

◆ GL-80FR Series tested and passed IEC 60079 Explosive Atmosphere Standards (IEC 60079-0:2017, IEC 60079-18:2014, IEC 60079-31:2022)

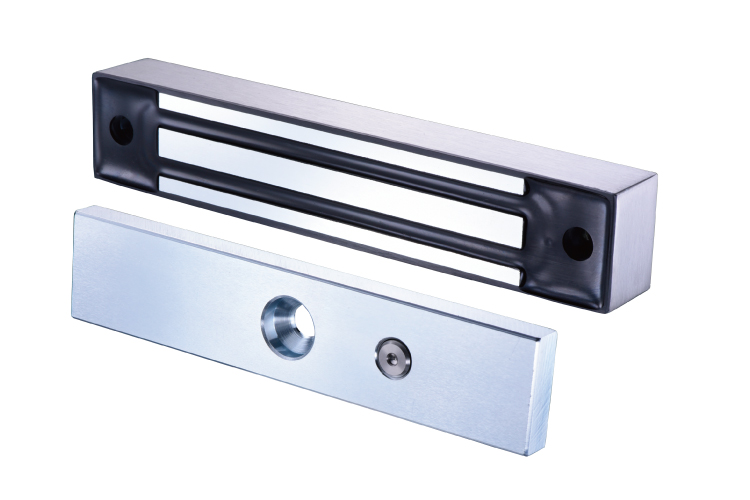

10003F Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 300lbs

◆ Voltage: 12 or 24 VDC

◆ Optional Brackets:
- Inswing Door: Z-150
- Glass Door: GLZ-150-10, GLZ-150-12

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Patents, Approvals, and Listings

◆ CE: EC671705-01

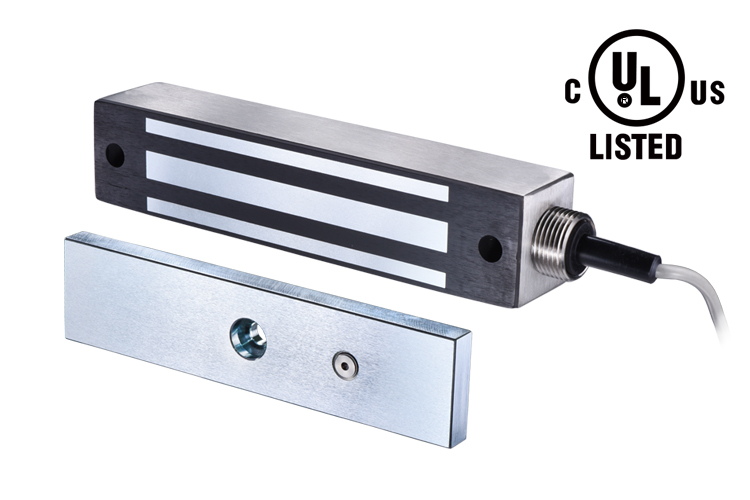

GL600-F Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 600lbs

◆ Voltage: 12, 24 or dual 12/24 VDC

◆ Optional Brackets:
- Inswing Door: Z-GL600

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Standard Options

◆ Built-in bond sensor

Patents, Approvals, and Listings

◆ UL 10B/10C Positive Pressure Fire Test of Door Assemblies

◆ CE: EC671705-01

GL850 Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 800lbs

◆ Voltage: 12, 24 or dual 12/24 VDC

◆ Optional Brackets:
- Inswing Door: Z-300N

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Standard Options

◆ Built-in bond sensor

Patents, Approvals, and Listings

◆ CE: EC671705-01

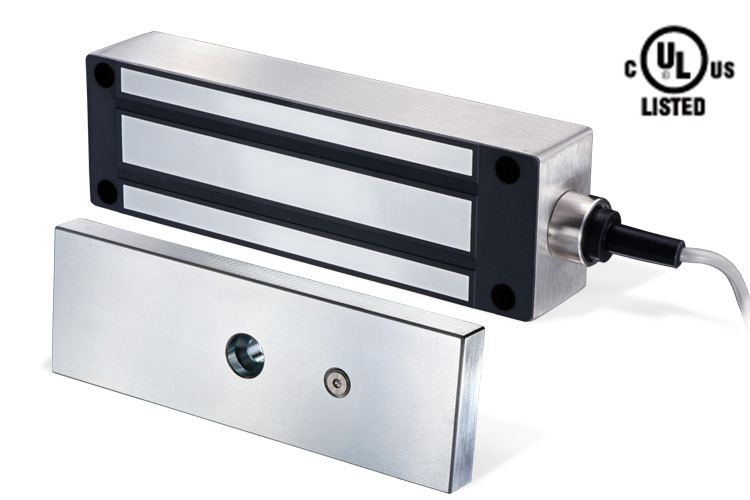

GL-1200F Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 1200lbs

◆ Voltage: 12, 24 or dual 12/24 VDC

◆ Optional Brackets:
- Inswing Door: Z-500N
- Sliding Door: L-1200

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Patents, Approvals, and Listings

◆ UL 10B/10C Positive Pressure Fire Test of Door Assemblies

◆ CE: EC671705-01

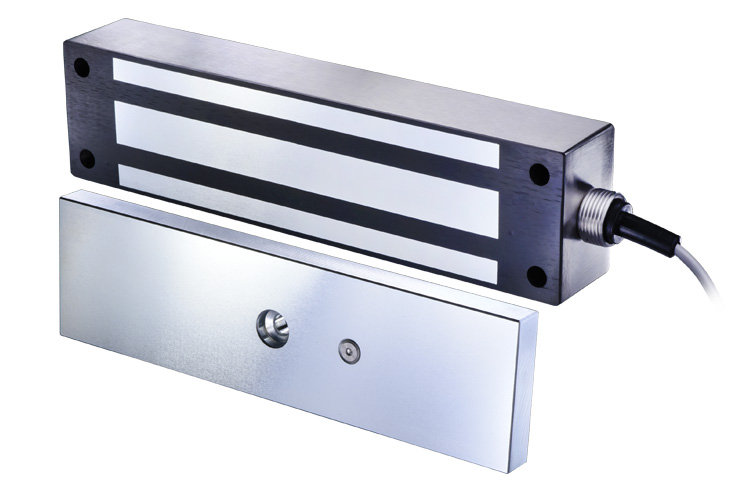

GL-1800F-IOTB Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 1800lbs

◆ Voltage: Dual 12/24 VDC

◆ Optional Brackets:
- Inswing Door: Z-GL1800

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Patents, Approvals, and Listings

◆ CE: EC671705-01

GL-1800FM-IOTB-12 Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 1800lbs

◆ Voltage: 12 VDC

◆ Optional Brackets:
- Inswing Door: Z-GL1800

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Standard Options

◆ Built-in bond sensor

Patents, Approvals, and Listings

◆ CE: EC671705-01

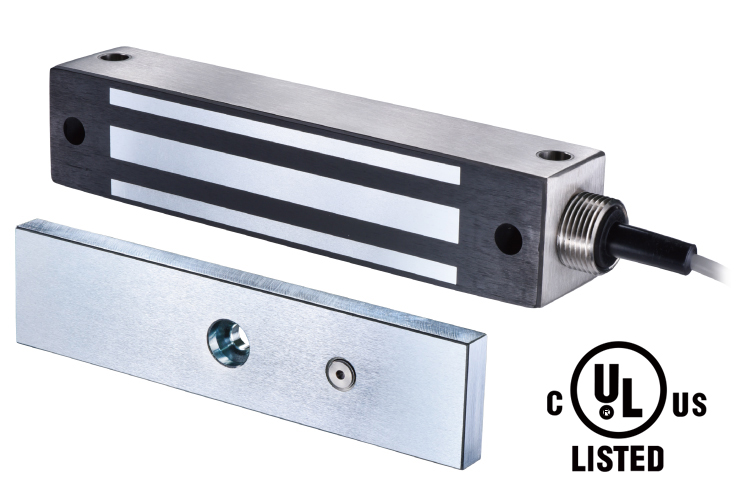

GL600-FS-IOTB Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 600lbs

◆ Voltage: 12, 24, or dual 12/24 VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-GL600-AL, L-GL600
- Inswing Door: Z-GL600, LZ-GL600
- Sliding Door: L-GL600-F-AL

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Standard Options

◆ Built-in bond sensor

Patents, Approvals, and Listings

◆ UL 10B/10C Positive Pressure Fire Test of Door Assemblies

◆ CE: EC671705-01

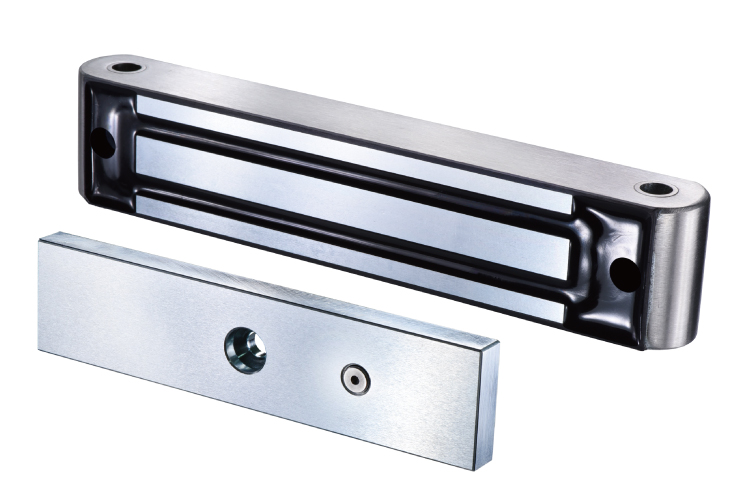

EM-750-2 Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 800lbs

◆ Voltage: 12, 24, or dual 12/24 VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-750
- Inswing Door: Z-300N
- Glass Door: UBK-013

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Patents, Approvals, and Listings

◆ CE: EC671705-01

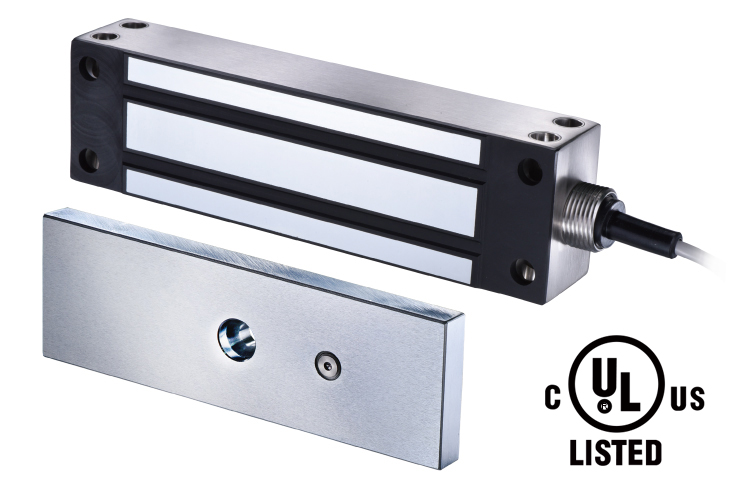

GL1200-FS-IOTB Electromagnetic Lock

The GEM family of Weatherproof series electromagnetic locks are specifically designed for high profile openings that require less obtrusive surface mount lock with aesthetically superior appearance. All of them have a stainless steel housing and are sealed with firerated epoxy for weatherproof operation. They are available for surface and face mount installations with a wide range of brackets for an easy installation on any kind of doors and door frames.

The smallest GL-80F series is specially designed for closets, cabinets, drawers or lockers applications for security and ease of life.

Specification

◆ Holding Force: 1200lbs

◆ Voltage: 12, 24, or dual 12/24 VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-GL1200FS-IOTB
- Inswing Door: Z-500N, LZ-GL1200FS-IOTB
- Sliding Door: L-GL1200FS-IOTB

Standard Features

◆ Weatherproof, stainless steel housing

◆ MOV prevents spike and surge current

◆ No residual magnetism

◆ For indoor/outdoor security

Standard Options

◆ Built-in bond sensor

Patents, Approvals, and Listings

◆ UL 10B/10C Positive Pressure Fire Test of Door Assemblies

◆ CE: EC671705-01
