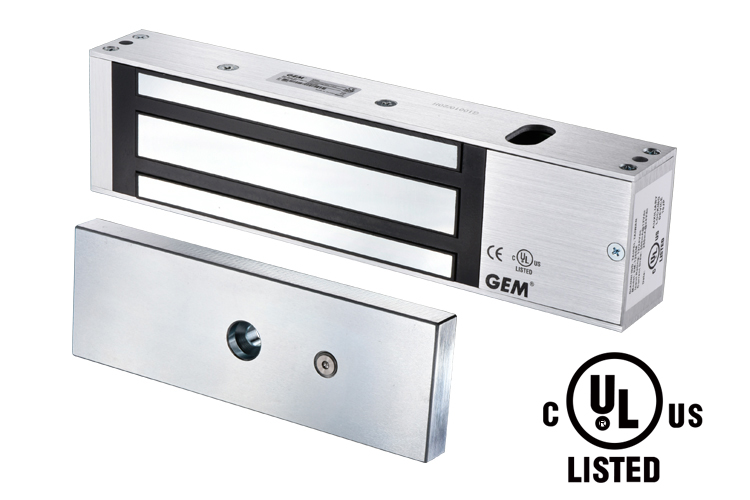

10010 Electromagnetic Lock

The family of Indoor Standard Series electromagnetic locks are certified to UL 1034, UL 294, UL 864 meet standard safety and security requirement.

Specification

◆ Operating Voltage: 12/24 VDC

◆ Current Draw: 500mA/12VDC, 250mA/24VDC

◆ Holding Force: Up to 1200 lbs (545 Kg)

◆ Special finishes for magnet and armature plate: Zinc plated

Standard Features

◆ High reliability

◆ Holding Force: Up to 1200 lbs (1000 lbs UL listed)

◆ Anodized aluminum casing

◆ MOV provides spike and surge protection

◆ Dual voltage 12 or 24 VDC (selectable)

◆ No residual magnetism

Patents, Approvals, and Listings

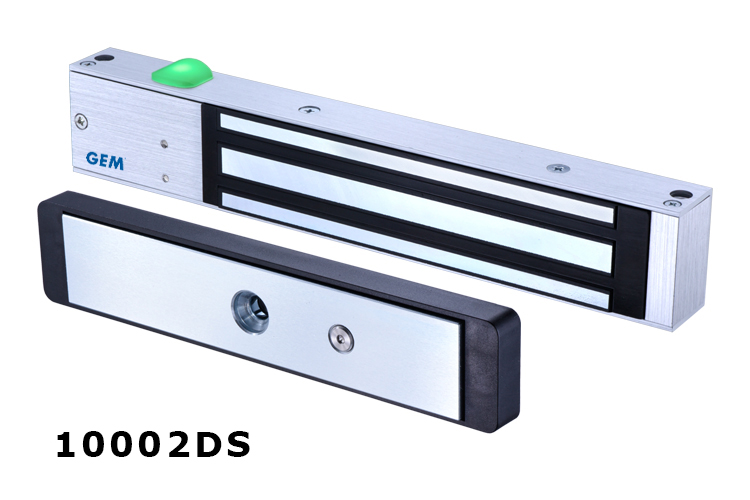

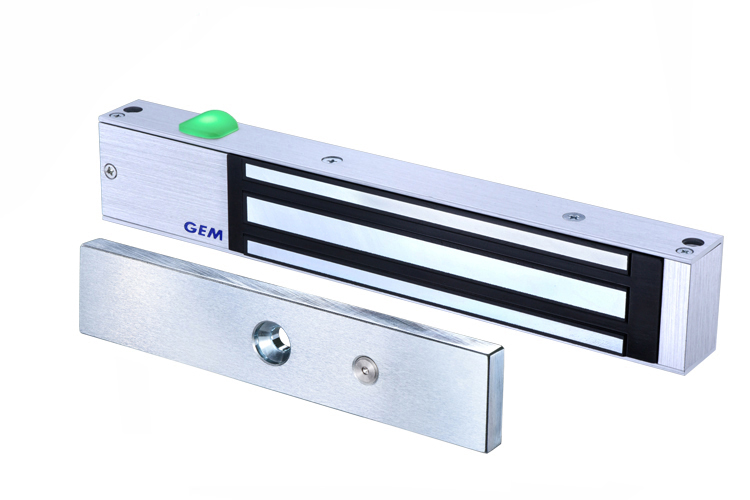

10002 Electromagnetic Lock

10002 are designed for surface mount on outswing doors. The maglocks can be configured to mount on inswing and glass doors with optional LZ and U shaped brackets.

Specification

◆ Operating Voltage: 12/24 VDC

◆ Current Draw: 500mA/12VDC, 250mA/24VDC

◆ Holding Force: Up to 600 lbs (272 Kg)

◆ Special finishes for magnet and armature plate: Zinc plated

Standard Features

◆ High reliability

◆ Anodized aluminum casing

◆ MOV provides spike and surge protection

◆ Anti-Residual magnetism function

◆ Bond sensor output & Bi-color LED

Standard Options

◆ DS: Door status sensor

Patents, Approvals, and Listings

★ UL 294 listed Certification

10020 Electromagnetic Lock

The 10020 are a high quality and safety range of standard fail-safe electromagnet locks that are simply and work well in order to effectively secure doors .These locks are recommended for applications which require higher levels of access control and are suitable for fire doors and emergency exit doors.

The 10020 are designed for single doors and are suitable for outswing applications. Installation on inswing door , narrow-style frames requires the use of additional brackets . With the accessories provided , the locks can be used on wooden , and even metal door.

Specification

◆ Operating Voltage: 12/24 VDC

◆ Current Draw: 500mA/12VDC, 250mA/24VDC

◆ Holding Force: Up to 1200 lbs (545 Kg)

◆ Special finishes for magnet and armature plate: Zinc plated

Standard Features

◆ High reliability

◆ Anodized aluminum casing

◆ MOV provides spike and surge protection

◆ Anti-Residual magnetism function

◆ Bond sensor output & Bi-color LED

Standard Options

◆ DS: Door status sensor

Patents, Approvals, and Listings

★ UL 294 listed Certification

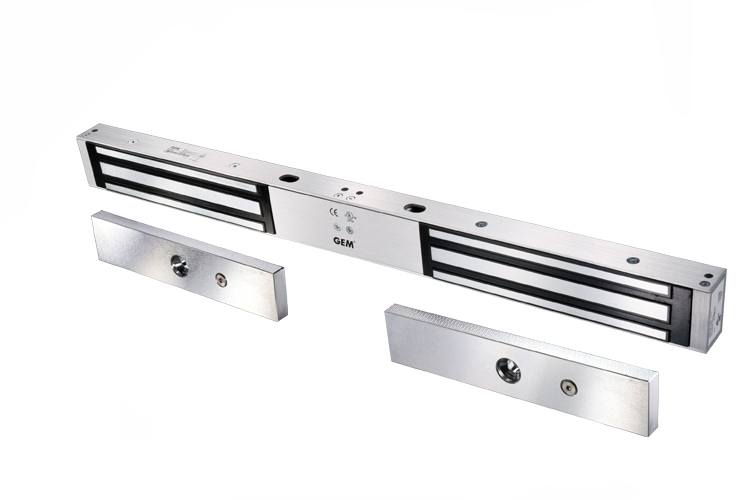

10004 Electromagnetic Lock

The new certifications reaffirm our pursue and standards when it comes to quality and safety across our products. These locks are recommended for applications which require higher levels of access control or connection to fire alarm systems.

Specification

◆ Operating Voltage: 12/24 VDC

◆ Current Draw: 500mA/12VDC, 250mA/24VDC

◆ Holding Force: 600 lbs

Standard Features

◆ High reliability

◆ Anodized aluminum casing

◆ MOV provides spike and surge protection

◆ Anti-Residual magnetism function

◆ Dual voltage 12/24 VDC field selectable

Patents, Approvals, and Listings

★ UL 294 listed Certification

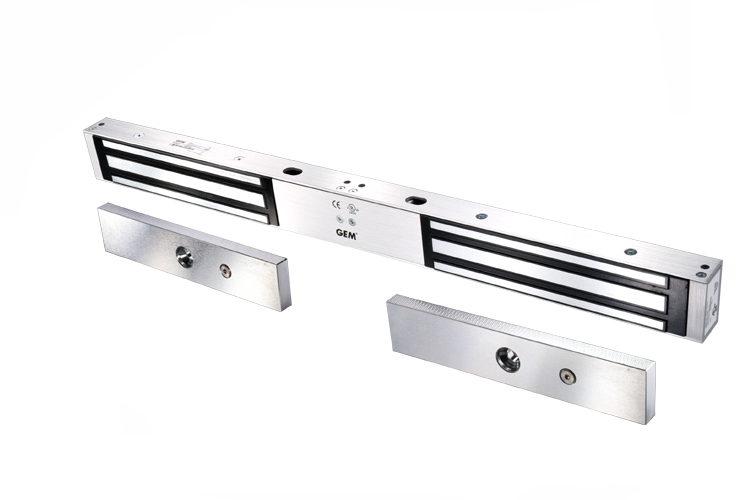

10005 Electromagnetic Lock

The new certifications reaffirm our pursue and standards when it comes to quality and safety across our products. These locks are recommended for applications which require higher levels of access control or connection to fire alarm systems.

Specification

◆ Operating Voltage: 12/24 VDC

◆ Current Draw: 500mA/12VDC, 250mA/24VDC

◆ Holding Force: 600 lbs

Standard Features

◆ High reliability

◆ Anodized aluminum casing

◆ MOV provides spike and surge protection

◆ Anti-Residual magnetism function

◆ Dual voltage 12/24 VDC field selectable

Standard Options

◆ Bond sensor output & Bi-color LED (for locked/unlocked status)

◆ Door status sensor (for open/closed status)

◆ Relock time delay (1-80 seconds)

Patents, Approvals, and Listings

★ UL 294 listed Certification

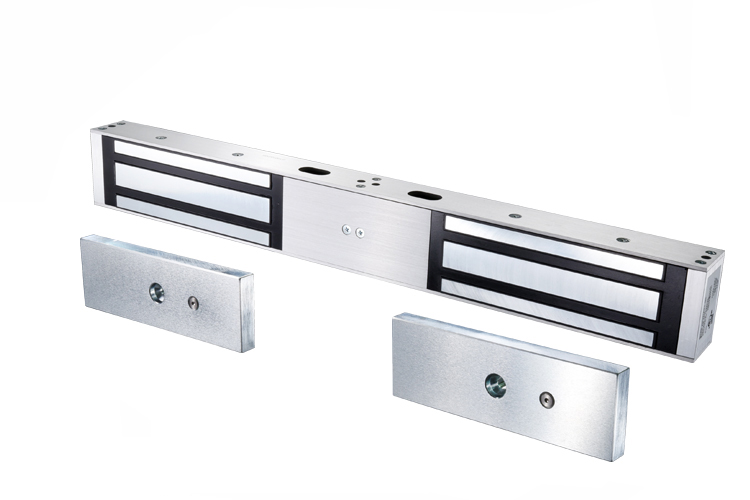

10040-254 Electromagnetic Lock

The new certifications reaffirm our pursue and standards when it comes to quality and safety across our products. These locks are recommended for applications which require higher levels of access control or connection to fire alarm systems.

Specification

◆ Operating Voltage: 12/24 VDC

◆ Current Draw: 500mA/12VDC, 270mA/24VDC

◆ Holding Force: 1200 lbs

Standard Features

◆ High reliability

◆ Anodized aluminum casing

◆ MOV provides spike and surge protection

◆ Anti-Residual magnetism function

◆ Dual voltage 12/24 VDC field selectable

Standard Options

◆ Bond sensor output & Bi-color LED (for locked/unlocked status)

◆ Door status sensor (for open/closed status)

◆ Relock time delay (1-80 seconds)

Patents, Approvals, and Listings

★ UL 294 listed Certification

10060-254 Electromagnetic Lock

The new certifications reaffirm our pursue and standards when it comes to quality and safety across our products. These locks are recommended for applications which require higher levels of access control or connection to fire alarm systems.

Specification

◆ Operating Voltage: 12/24 VDC

◆ Current Draw: 500mA/12VDC, 250mA/24VDC

◆ Holding Force: 1200 lbs

Standard Features

◆ High reliability

◆ Anodized aluminum casing

◆ MOV provides spike and surge protection

◆ Anti-Residual magnetism function

◆ Dual voltage 12/24 VDC field selectable

Patents, Approvals, and Listings

★ UL 294 listed Certification
