GK200/250 Series

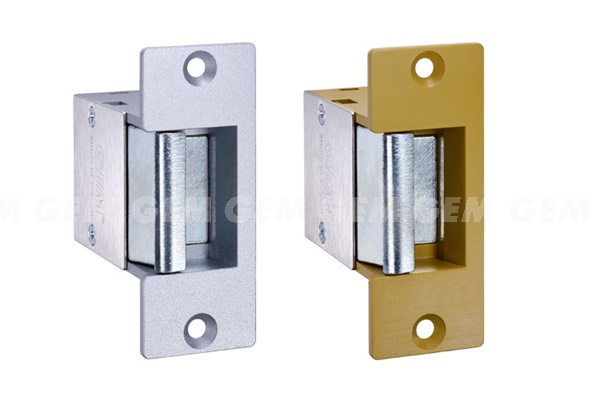

GK200 Electric Strike
The GK200/250 series electric strike is designed for use with cylindrical locksets. It is reversible for right or left handed doors and ideal for gates or semi-outdoor applications.
Standard Features
◆ Static strength 1,000 lbs (454Kg)
◆ Fail-secure or Fail-safe
◆ Non-handed fully reversible
◆ Endurance 250, 000 cycles
◆ For inswing doors
◆ Uses with bored cylindrical locksets or GEM LS-2200 door latch
Specification
◆ Voltage: 8~16VAC or 3-6VDC 12/24VAC/VDC
◆ Latch Thorw: 9/16" (15mm)
◆ Mode: Fail-secure
◆ Water drainage function
◆ Locksets: Cylindrical, GEM LS-2200 door latch
◆ Finish: Silver, Brass

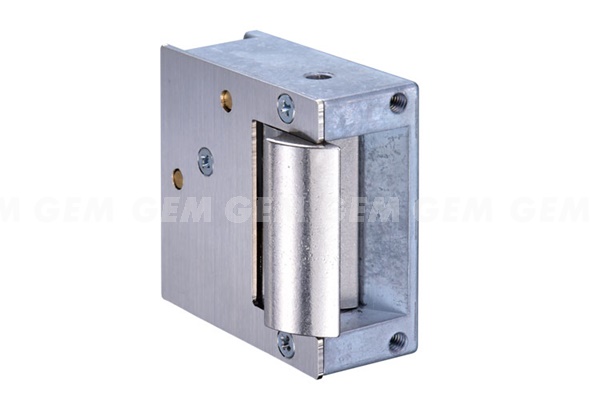

GK250/255 Electric Strike
The GK200/250 series electric strike is designed for use with cylindrical locksets. It is reversible for right or left handed doors and ideal for gates or semi-outdoor applications.
Standard Features
◆ Static strength 1,000 lbs (454Kg)
◆ Fail-secure or Fail-safe
◆ Non-handed fully reversible
◆ Endurance 250, 000 cycles
◆ For inswing doors
◆ Uses with bored cylindrical locksets or GEM LS-2200 door latch
Specification
◆ Voltage: 8~16VAC or 3-6VDC 12/24VAC/VDC
◆ Latch Thorw: 1/2" (13mm)
◆ Mode: Fail-secure or Fail-safe
◆ Water drainage function
◆ Locksets: Cylindrical, GEM LS-2200 door latch
◆ Finish: Brushed Stainless Steel (US32D)
