GK1800 Series

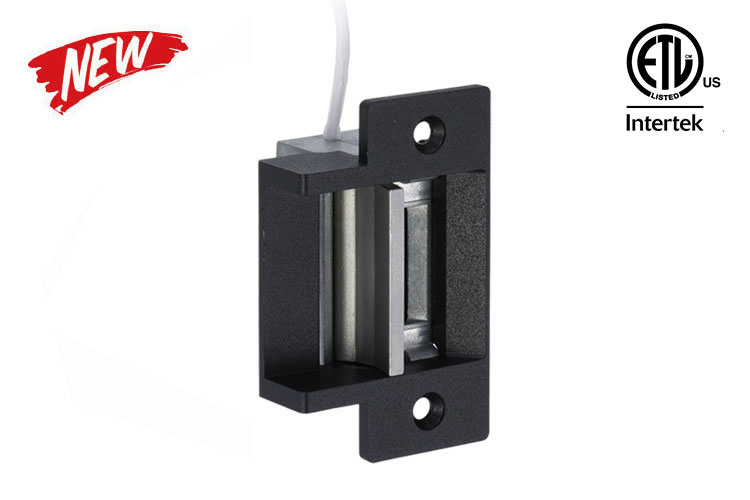

GK1810 Electric Strike
The GK1800 series electric strikes are designed for installation on wood or hollow metal jambs/frames for access control of cylindrical/mortise/rim type locksets. Featuring a compact body and low-profile 1/2” depth, the GK1800 series is available with different styles of faceplates for a wide range of pplications.
Standard Features
◆ For Cylindrical Locksets
◆ Accommodates cylindrical type locksets and door latches (GEM LS series or tubular latches)
◆ Compact size for tight or difficult installations
◆ Black powder coated finish on zinc alloy faceplate
◆ Easy installation
◆ Non-handed
Specification
◆ Operating Voltage: 12VDC, 24VDC, 12/24VDC
◆ For 1/2”(13mm) latch to 5/8"(16mm) latch (with 1/8"(3mm) door gap)
◆ Static strength 500 lbs (226Kg) UL Witneess test: 700 lbs
◆ Dynamic strength 50 ft-lbs
◆ Endurance 1,000,000 cycles
◆ Includes keeper shims for horizontal adjustment
Patents, Approvals, and Listings
◆ ETL UL1034 & UL294

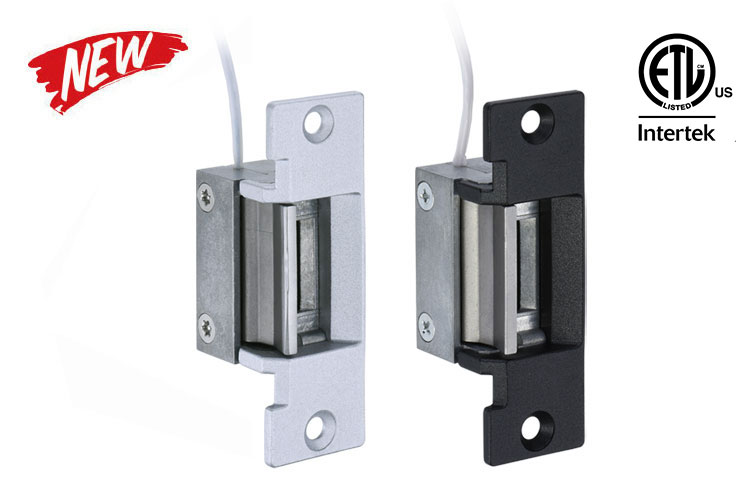

GK1820 Electric Strike
The GK1800 series electric strikes are designed for installation on wood or hollow metal jambs/frames for access control of cylindrical/mortise/rim type locksets. Featuring a compact body and low-profile 1/2” depth, the GK1800 series is available with different styles of faceplates for a wide range of pplications.
Standard Features
◆ For Cylindrical or Mortise Locksets
◆ Accommodates cylindrical or mortise* type locksets and door latches
(GEM LS series or tubular latches)
◆ Silver powder coated finish on stainless steel faceplates
◆ 2 Faceplate sizes available (specify model when ordering)
◆ Easy installation
◆ Non-handed
Specification
◆ Operating Voltage: 12VDC, 24VDC, 12/24VDC
◆ For 1/2”(13mm) latch to 5/8"(16mm) latch (with 1/8"(3mm) door gap)
◆ Static strength 500 lbs (226Kg) UL Witneess test: 700 lbs
◆ Dynamic strength 50 ft-lbs
◆ Endurance 1,000,000 cycles
◆ Includes keeper shims for horizontal adjustment
Patents, Approvals, and Listings
◆ ETL UL1034 & UL294

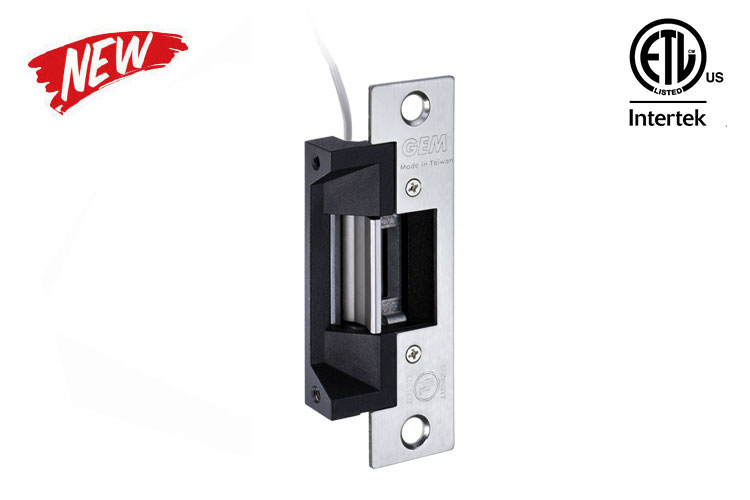

GK1830A/GK1830AM Electric Strike
The GK1800 series electric strikes are designed for installation on wood or hollow metal jambs/frames for access control of cylindrical/mortise/rim type locksets. Featuring a compact body and low-profile 1/2” depth, the GK1800 series is available with different styles of faceplates for a wide range of pplications.
Standard Features
◆ For Cylindrical or Mortise Locksets
◆ Accommodates cylindrical or mortise* type locksets and door latches
(GEM LS series or tubular latches)
◆ Brushed stainless steel faceplates
◆ Constructed of strike body and faceplate assembly (including faceplate and holder/lip bracket)
◆ Easy installation
◆ Non-handed
Specification
◆ Operating Voltage: 12VDC, 24VDC, 12/24VDC
◆ For 1/2”(13mm) latch to 5/8"(16mm) latch (with 1/8"(3mm) door gap)
◆ Static strength 500 lbs (226Kg) UL Witneess test: 700 lbs
◆ Dynamic strength 50 ft-lbs
◆ Endurance 1,000,000 cycles
◆ Includes keeper shims for horizontal adjustment
Patents, Approvals, and Listings
◆ ETL UL1034 & UL294

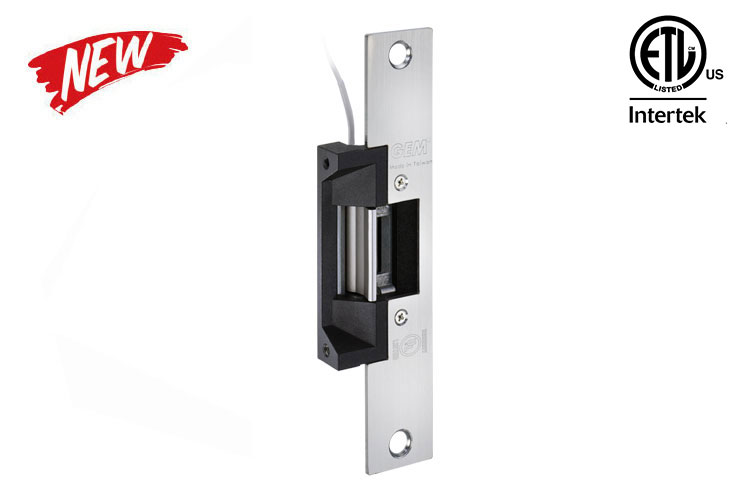

GK1830B/GK1830BM Electric Strike
The GK1800 series electric strikes are designed for installation on wood or hollow metal jambs/frames for access control of cylindrical/mortise/rim type locksets. Featuring a compact body and low-profile 1/2” depth, the GK1800 series is available with different styles of faceplates for a wide range of pplications.
Standard Features
◆ For Cylindrical or Mortise Locksets
◆ Accommodates cylindrical or mortise* type locksets and door latches
(GEM LS series or tubular latches)
◆ Brushed stainless steel faceplates
◆ Constructed of strike body and faceplate assembly (including faceplate and holder/lip bracket)
◆ Easy installation
◆ Non-handed
Specification
◆ Operating Voltage: 12VDC, 24VDC, 12/24VDC
◆ For 1/2”(13mm) latch to 5/8"(16mm) latch (with 1/8"(3mm) door gap)
◆ Static strength 500 lbs (226Kg) UL Witneess test: 700 lbs
◆ Dynamic strength 50 ft-lbs
◆ Endurance 1,000,000 cycles
◆ Includes keeper shims for horizontal adjustment
Patents, Approvals, and Listings
◆ ETL UL1034 & UL294

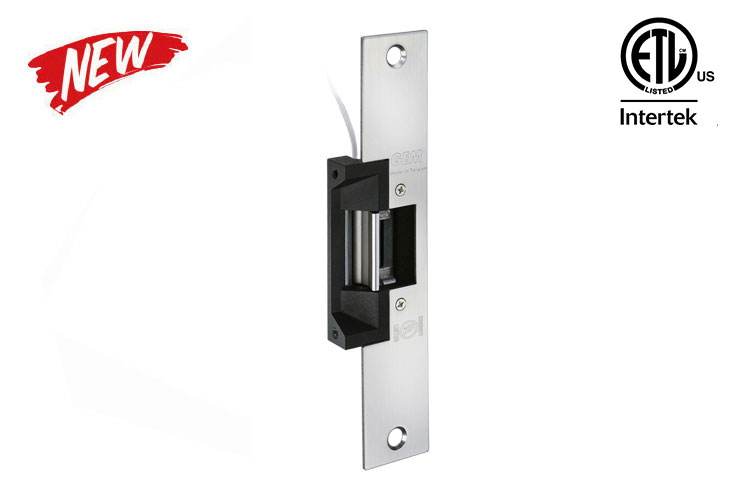

GK1830C/GK1830CM Electric Strike
The GK1800 series electric strikes are designed for installation on wood or hollow metal jambs/frames for access control of cylindrical/mortise/rim type locksets. Featuring a compact body and low-profile 1/2” depth, the GK1800 series is available with different styles of faceplates for a wide range of pplications.
Standard Features
◆ For Cylindrical or Mortise Locksets
◆ Accommodates cylindrical or mortise* type locksets and door latches
(GEM LS series or tubular latches)
◆ Brushed stainless steel faceplates
◆ Constructed of strike body and faceplate assembly (including faceplate and holder/lip bracket)
◆ Easy installation
◆ Non-handed
Specification
◆ Operating Voltage: 12VDC, 24VDC, 12/24VDC
◆ For 1/2”(13mm) latch to 5/8"(16mm) latch (with 1/8"(3mm) door gap)
◆ Static strength 500 lbs (226Kg) UL Witneess test: 700 lbs
◆ Dynamic strength 50 ft-lbs
◆ Endurance 1,000,000 cycles
◆ Includes keeper shims for horizontal adjustment
Patents, Approvals, and Listings
◆ ETL UL1034 & UL294

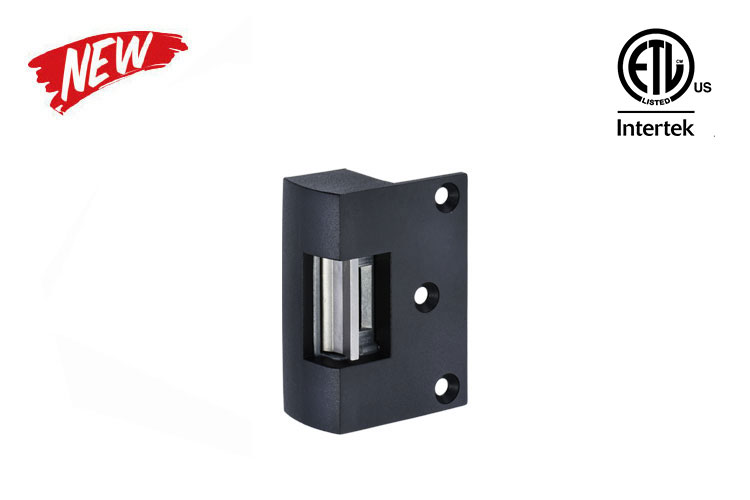

GK1840 Electric Strike
The GK1800 series electric strikes are designed for installation on wood or hollow metal jambs/frames for access control of cylindrical/mortise/rim type locksets. Featuring a compact body and low-profile 1/2” depth, the GK1800 series is available with different styles of faceplates for a wide range of pplications.
Standard Features
◆ For Rim Nightlatches
◆ Surface mounted strike designed for use with rim type nightlatches
◆ Black powder coated finish on stainless steel housing
◆ Easy installation
◆ Non-handed
Specification
◆ Operating Voltage: 12VDC, 24VDC, 12/24VDC
◆ For 1/2”(13mm) latch to 5/8"(16mm) latch (with 1/8"(3mm) door gap)
◆ Static strength 500 lbs (226Kg) UL Witneess test: 700 lbs
◆ Dynamic strength 50 ft-lbs
◆ Endurance 1,000,000 cycles
◆ Includes keeper shims for horizontal adjustment
Patents, Approvals, and Listings
◆ ETL UL1034 & UL294

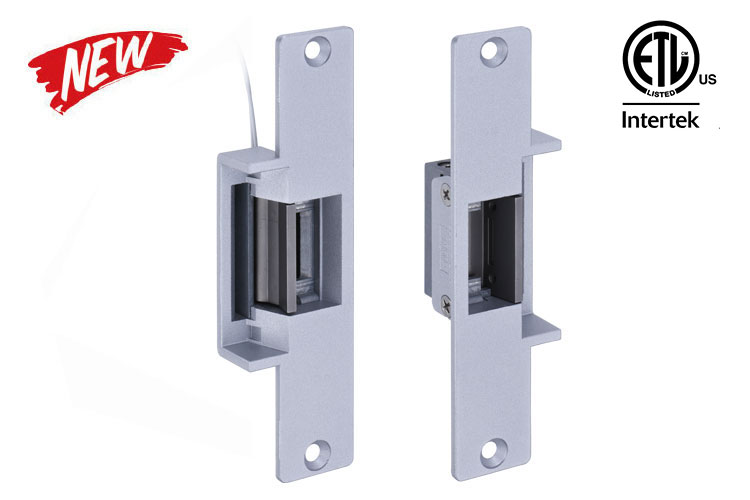

GK1850 Electric Strike
The GK1800 series electric strikes are designed for installation on wood or hollow metal jambs/frames for access control of cylindrical/mortise/rim type locksets. Featuring a compact body and low-profile 1/2” depth, the GK1800 series is available with different styles of faceplates for a wide range of pplications.
Standard Features
◆ Accommodates cylindrical type locksets and door latches (GEM LS series or tubular latches)
◆ Silver powder coated finish on zinc alloy faceplate
◆ Easy installation
◆ Non-handed
Specification
◆ Operating Voltage: 12VDC, 24VDC, 12/24VDC
◆ For 1/2”(13mm) latch to 5/8"(16mm) latch (with 1/8"(3mm) door gap)
◆ Static strength 500 lbs (226Kg) UL Witneess test: 700 lbs
◆ Dynamic strength 50 ft-lbs
◆ Endurance 1,000,000 cycles
◆ Includes keeper shims for horizontal adjustment
Patents, Approvals, and Listings
◆ ETL UL1034 & UL294

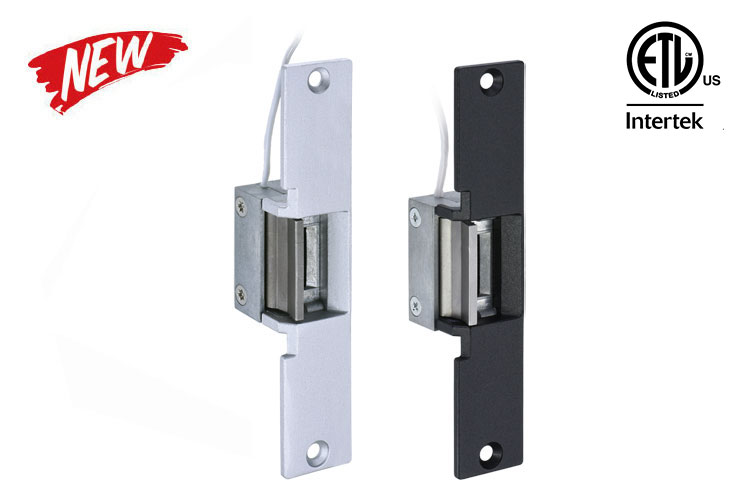

GK1860 Electric Strike
The GK1800 series electric strikes are designed for installation on wood or hollow metal jambs/frames for access control of cylindrical/mortise/rim type locksets. Featuring a compact body and low-profile 1/2” depth, the GK1800 series is available with different styles of faceplates for a wide range of pplications.
Standard Features
◆ For Cylindrical or Mortise Locksets
◆ Accommodates cylindrical or mortise* type locksets and door latches
(GEM LS series or tubular latches)
◆ Silver powder coated finish on stainless steel faceplates
◆ 2 Faceplate sizes available (specify model when ordering)
◆ Easy installation
◆ Non-handed
Specification
◆ Operating Voltage: 12VDC, 24VDC, 12/24VDC
◆ For 1/2”(13mm) latch to 5/8"(16mm) latch (with 1/8"(3mm) door gap)
◆ Static strength 500 lbs (226Kg) UL Witneess test: 700 lbs
◆ Dynamic strength 50 ft-lbs
◆ Endurance 1,000,000 cycles
◆ Includes keeper shims for horizontal adjustment
Patents, Approvals, and Listings
◆ ETL UL1034 & UL294

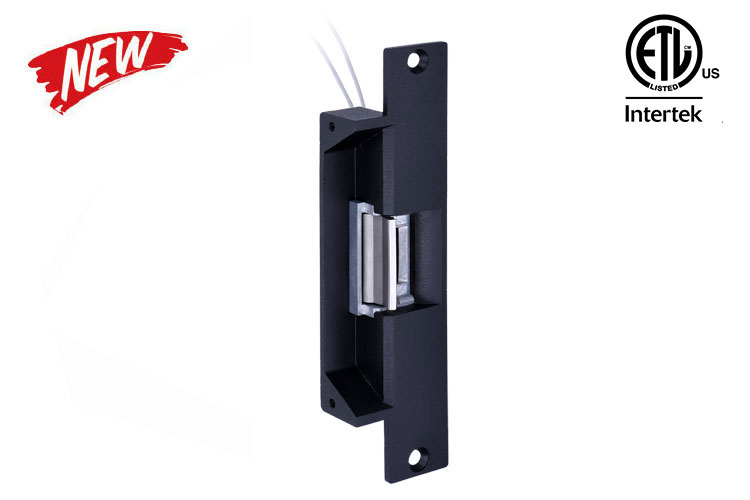

GK1870 Electric Strike
The GK1800 series electric strikes are designed for installation on wood or hollow metal jambs/frames for access control of cylindrical/mortise/rim type locksets. Featuring a compact body and low-profile 1/2” depth, the GK1800 series is available with different styles of faceplates for a wide range of pplications.
Standard Features
◆ For Cylindrical or Mortise Locksets
◆ Accommodates cylindrical or *mortise type locksets and door latches
(GEM LS series or tubular latches)
◆ Black powder coated finish on stainless steel faceplate
◆ Pre-drilled with lip extension holes
◆ Easy installation
◆ Non-handed
Specification
◆ Operating Voltage: 12VDC, 24VDC, 12/24VDC
◆ For 1/2”(13mm) latch to 5/8"(16mm) latch (with 1/8"(3mm) door gap)
◆ Static strength 500 lbs (226Kg) UL Witneess test: 700 lbs
◆ Dynamic strength 50 ft-lbs
◆ Endurance 1,000,000 cycles
◆ Includes keeper shims for horizontal adjustment
Patents, Approvals, and Listings
◆ ETL UL1034 & UL294

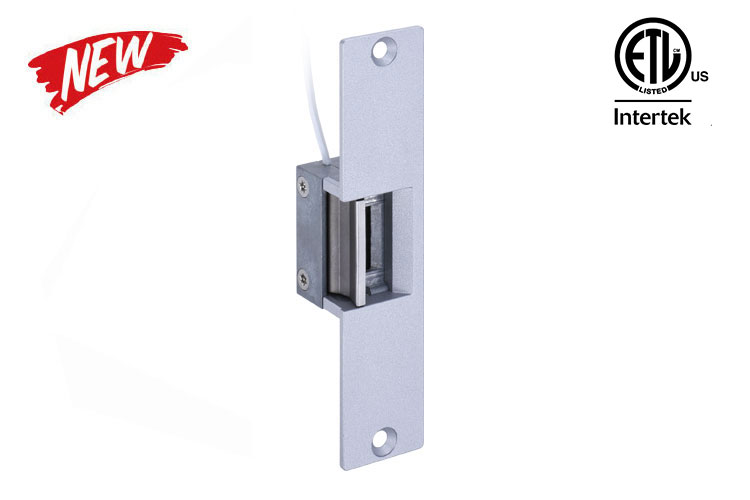

GK1880 Electric Strike
The GK1800 series electric strikes are designed for installation on wood or hollow metal jambs/frames for access control of cylindrical/mortise/rim type locksets. Featuring a compact body and low-profile 1/2” depth, the GK1800 series is available with different styles of faceplates for a wide range of pplications.
Standard Features
◆ Accommodates cylindrical type locksets and door latches (GEM LS series or tubular latches)
◆ Silver powder coated finish on zinc alloy faceplate
◆ Easy installation
◆ Non-handed
Specification
◆ Operating Voltage: 12VDC, 24VDC, 12/24VDC
◆ For 1/2”(13mm) latch to 5/8"(16mm) latch (with 1/8"(3mm) door gap)
◆ Static strength 500 lbs (226Kg) UL Witneess test: 700 lbs
◆ Dynamic strength 50 ft-lbs
◆ Endurance 1,000,000 cycles
◆ Includes keeper shims for horizontal adjustment
Patents, Approvals, and Listings
◆ ETL UL1034 & UL294

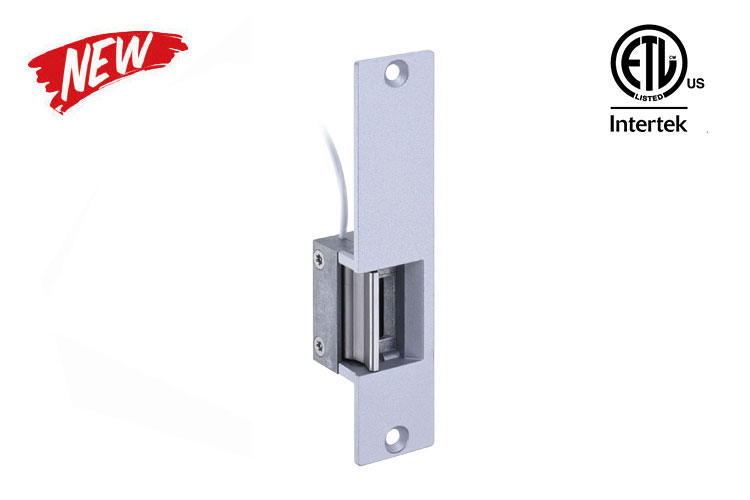

GK1885 Electric Strike
The GK1800 series electric strikes are designed for installation on wood or hollow metal jambs/frames for access control of cylindrical/mortise/rim type locksets. Featuring a compact body and low-profile 1/2” depth, the GK1800 series is available with different styles of faceplates for a wide range of pplications.
Standard Features
◆ Accommodates cylindrical type locksets and door latches (GEM LS series or tubular latch
◆ Silver powder coated finish on zinc alloy faceplate
◆ Easy installation
◆ Non-handed
Specification
◆ Operating Voltage: 12VDC, 24VDC, 12/24VDC
◆ For 1/2”(13mm) latch to 5/8"(16mm) latch (with 1/8"(3mm) door gap)
◆ Static strength 500 lbs (226Kg) UL Witneess test: 700 lbs
◆ Dynamic strength 50 ft-lbs
◆ Endurance 1,000,000 cycles
◆ Includes keeper shims for horizontal adjustment
Patents, Approvals, and Listings
◆ ETL UL1034 & UL294
