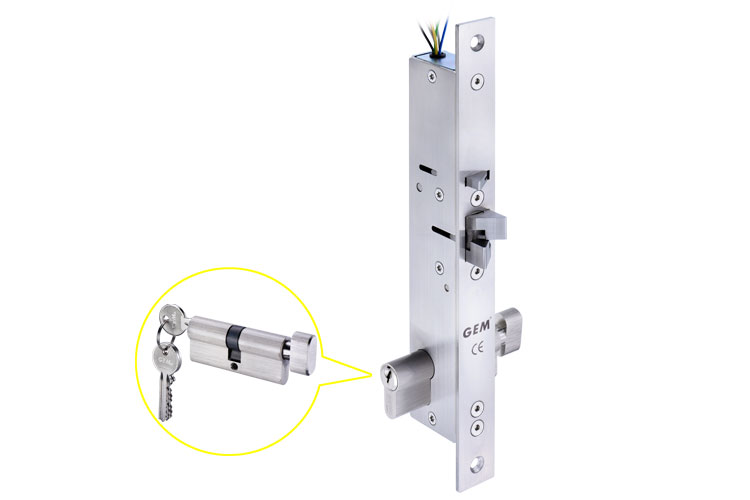

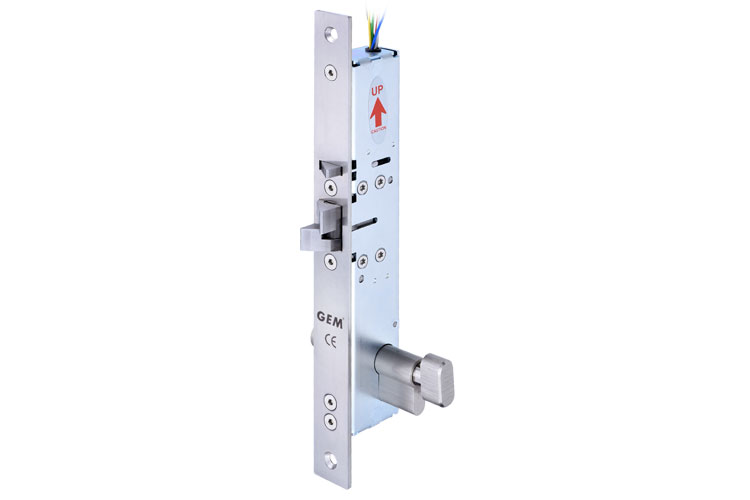

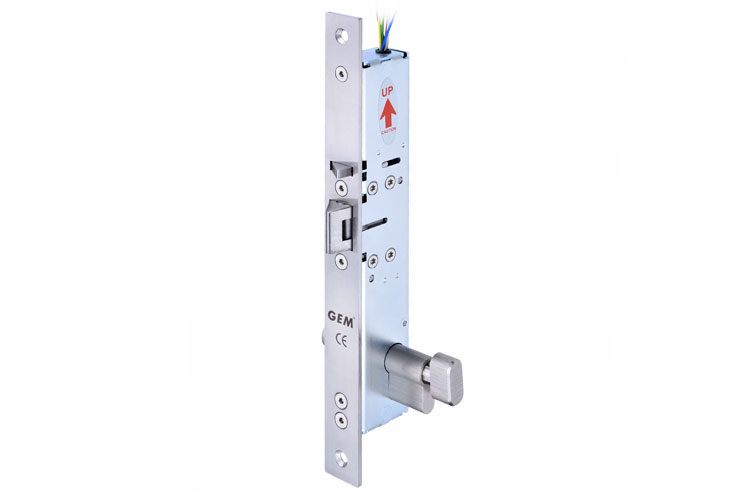

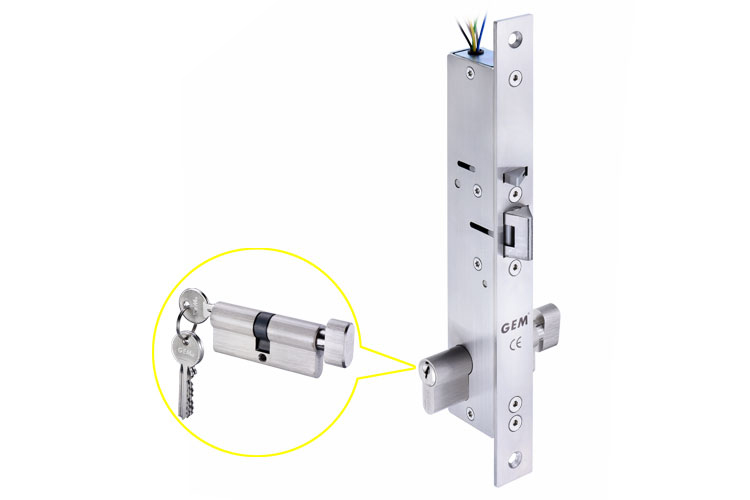

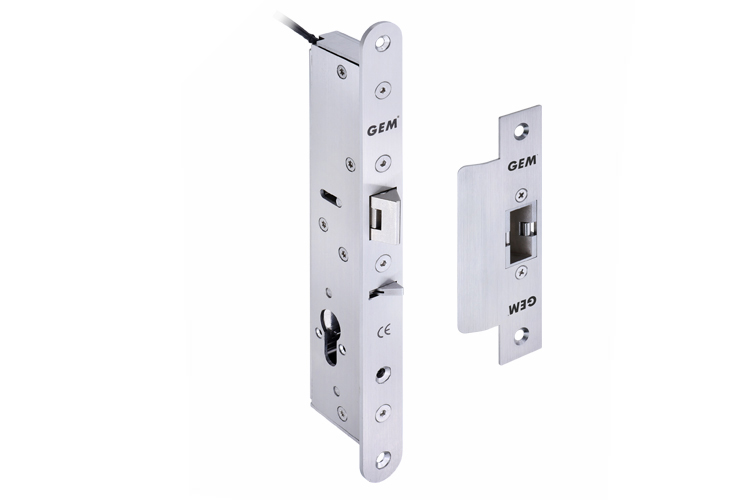

ML-650M-30 Electric Lock

The ML-650 series electric locks are high performance locks for single/double action swing doors and provide mechanical override for enhanced security in case of power failure.

Preload

The ML-650 series has a robust stainless steel construction and is designed with its high preload release capability. It opens electrically with up to 300 lbs of preload that allows smooth operation under varying loads on the doors and overcomes door preload problems, such as air-conditioning pressure, warped doors, or heavy weather stripping seals.

Specification

◆ Operating Voltage: 12~24VDC

◆ Current Draw: 600mA / 12VDC, 300mA / 24VDC

◆ Latch Status Output: 1A/125VAC

◆ Endurance Rating: 250,000 cycles (Factory tested)

◆ Preload: 300 lbs of pressure strength

◆ Backset: 30 mm

Standard Features

◆ For single/double action swing doors

◆ For narrow frames (25 mm wide faceplate)

◆ Brushed stainless steel construction

◆ Fail-secure operation

◆ For vertical installation only

◆ Door/Latch monitor

◆ Mechanical override (cylinder & key not included)

◆ 2 Strike plate options for each type of bolt

Optional Accessories

◆ Euro-Profile Cylinder & Key: ECY-72

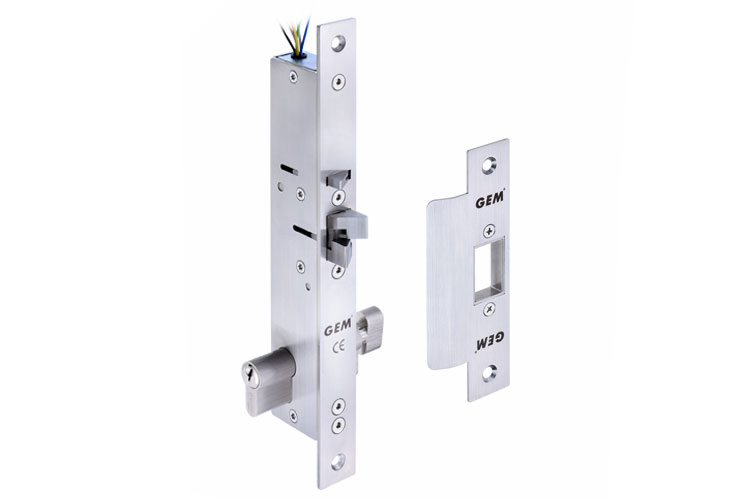

ML-605M-30/ML-605M-35
Electro-Mechanical Lock

The ML-605M-30/ML-605M-35 electric lock is a high performance lock designed for single action swing doors. Featuring a double action latchbolt and left/right side adjustable deadlatch tip, the ML-605M-30/ML-605M-35 allows deadlocking automatically when the door is closed to be secured for ease of use and convenience. The ML-605M-30/ML-605M-35 can be controlled by card readers/keypads and connected to automatic swing door operators for an integraed access control solution.

Specification

◆ Operating Voltage: 12~24VAC/DC

◆ Current Draw: 250mA/12VDC; 150mA/24VDC

◆ Lock Status Output: 3A/125VAC

◆ Endurance Rating: 250,000 cycles (Factory tested)

◆ Backset: 30 mm (ML-605M-30), 35 mm(ML-605M-35)

Standard Features

◆ For single action swing doors

◆ For narrow frames

◆ Non-handed (Double action latchbolt and deadlatch direction auto changeable )

◆ Brushed stainless steel construction

◆ Fail-safe /Fail-secure reversible

◆ Lock monitor

Optional Accessories

◆ Euro-Profile Cylinder & Key: ECY-72

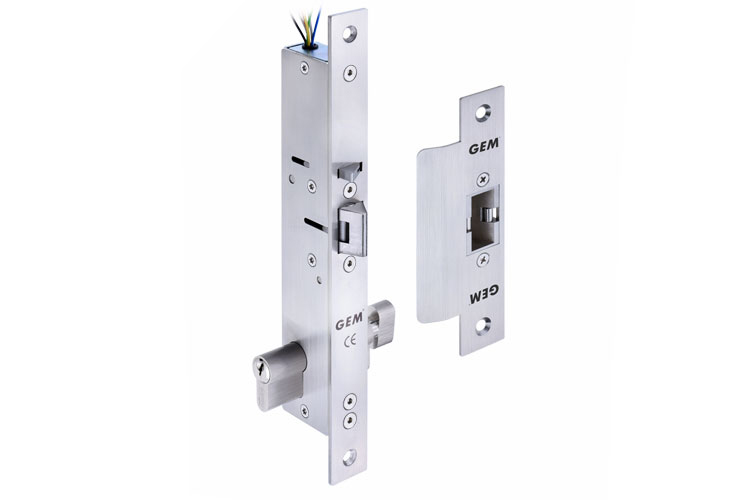

ML-655M-30/ML-655M-35
Electro-Mechanical Lock

The ML-655M-30/ML-655M-35 electric lock is a high performance lock designed for single action swing doors. Featuring a double action latchbolt and left/right side adjustable deadlatch tip, the ML-655M-30/ML-655M-35 allows deadlocking automatically when the door is closed to be secured for ease of use and convenience. The ML-605M-30/ML-605M-35 can be controlled by card readers/keypads and connected to automatic swing door operators for an integraed access control solution.

Specification

◆ Operating Voltage: 12~24VAC/DC

◆ Current Draw: 250mA/12VDC; 150mA/24VDC

◆ Lock Status Output: 3A/125VAC

◆ Endurance Rating: 250,000 cycles (Factory tested)

◆ Backset: 30 mm (ML-655M-30), 35 mm (ML-655M-35)

Standard Features

◆ For single action swing doors (applicable to double action doors)

◆ For narrow frames

◆ Non-handed (Double action latchbolt and deadlatch direction auto changeable )

◆ Brushed stainless steel construction

◆ Fail-safe /Fail-secure reversible

◆ Lock monitor

Optional Accessories

◆ Euro-Profile Cylinder & Key: ECY-72
