The GEM family of European electric locks are high performance locks for double swing doors. The ML-300-
SW comes with a key cylinder as an option, and also the bolt deadlocks automatically when the door is closed to be secured.
Features
◆ For double swing doors
◆ For narrow frames
◆ Brushed stainless steel faceplate
◆ Optional key/thumbturn override
Specification
◆ Voltage: 12 to 24 VDC/AC
◆ Lock Monitor (For ML-300-SW)
◆ Installation Direction: Vertical
◆ Reversible Fail-Safe or Fail-Secure

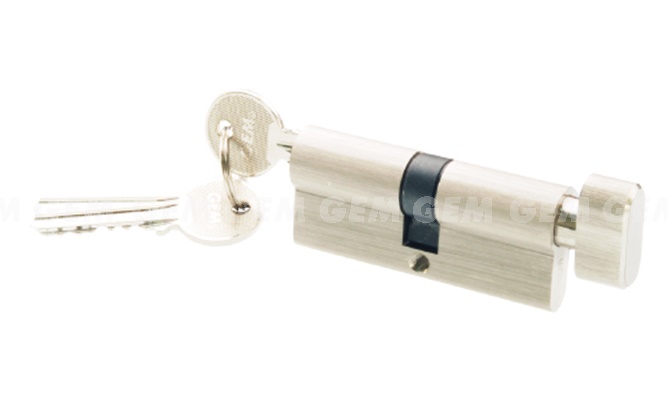

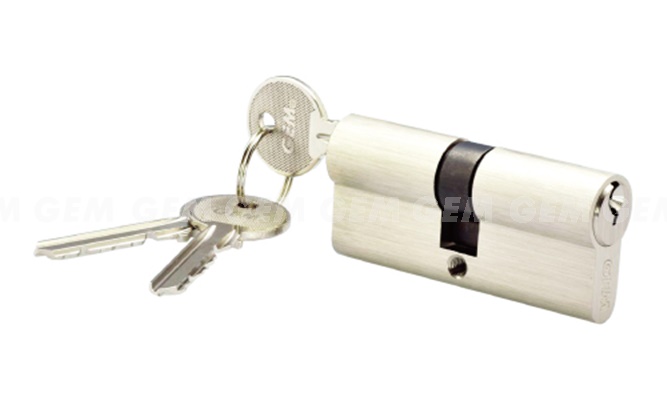

◆ Optional Accessory: Cylinder Key
Patents, Approvals, and Listings
◆ Patented in China
◆ Patented in US

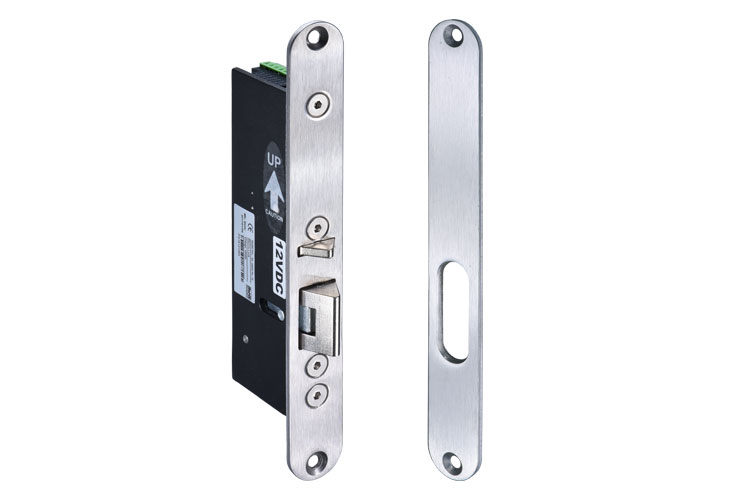

ML-350M/ML-360M Electric Lock
The GEM family of European electric locks are high performance locks for double swing doors.
Preload
The ML-350M/360M Series has a robust stainless steel construction and is designed with its high preload release
capability. It opens electrically with up to 500lbs of preload that allows smooth operation under varying loads on the doors and overcomes door preload problems, such as air-conditioning pressure, warped doors, or heavy weather stripping seals.
Features
◆ For double swing doors
◆ For narrow frames
◆ Brushed stainless steel faceplate
◆ Lock and latch monitor (For ML-350M/360M series)
Specification
◆ Voltage: 12/24VDC, 24/48VDC
◆ Current Draw: 280mA/12VDC, 140mA/24VDC, 75mA/48VDC
◆ Installation Direction: Horizontal or Vertical
◆ Fail-Safe
◆ Pre-Load (Side Load) 500 lbs
Patents, Approvals, and Listings
◆ CE: EC451107 (1224V)
◆ CE: EC451108 (2448V)
◆ Fire resistance tested to BS EN 1634-1: 2014 and BS EN 1363-1: 2012
◆ Performance tested to EN14846: 3Y5-0G101

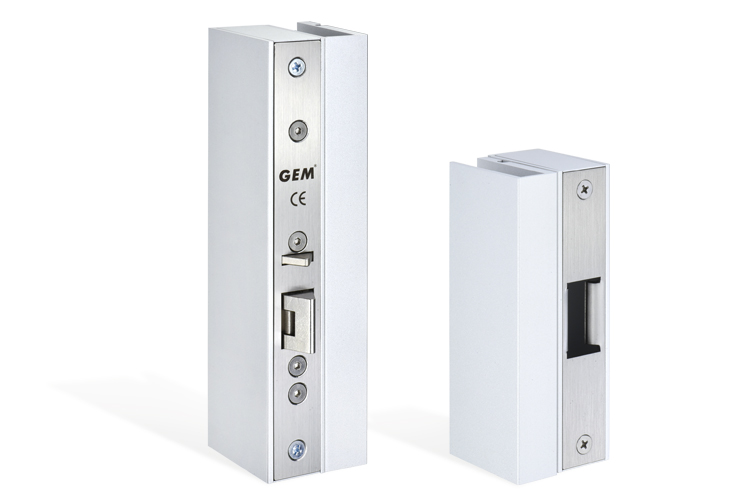

ML-350MVGL Electric Lock
The GEM family of European electric locks are high performance locks for double swing doors.
Preload
The ML-350M/360M Series has a robust stainless steel construction and is designed with its high preload release
capability. It opens electrically with up to 500lbs of preload that allows smooth operation under varying loads on the doors and overcomes door preload problems, such as air-conditioning pressure, warped doors, or heavy weather stripping seals.
Features
◆ For double swing doors
◆ For narrow frames
◆ Brushed stainless steel faceplate
◆ Lock and latch monitor (For ML-350M/360M series)
Specification
◆ Voltage: 12/24VDC, 24/48VDC
◆ Current Draw: 280mA/12VDC, 140mA/24VDC, 75mA/48VDC
