ABD-110

ABD-110

Multi-Function Timer

◆ Designed for timed unlocking of electrified locks

◆ Adjustable time from 1 to 60 seconds or 10 to 600 seconds

◆ Can be operated in latched or timed mode

◆ Easy to program and install

◆ Red LED indicates triggering activation

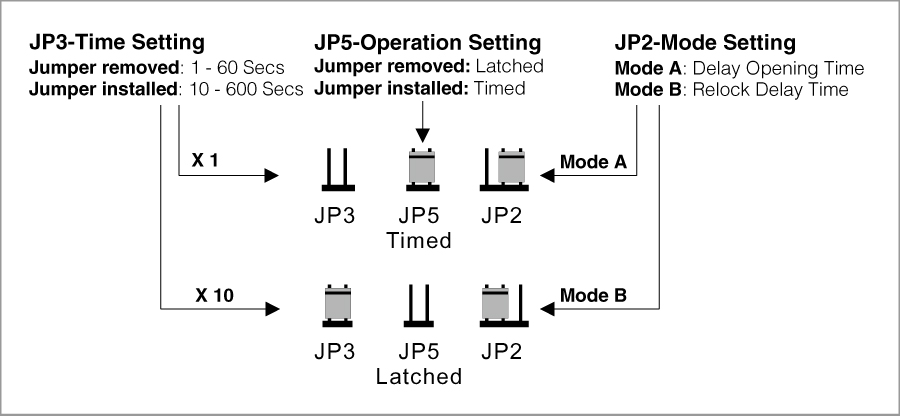

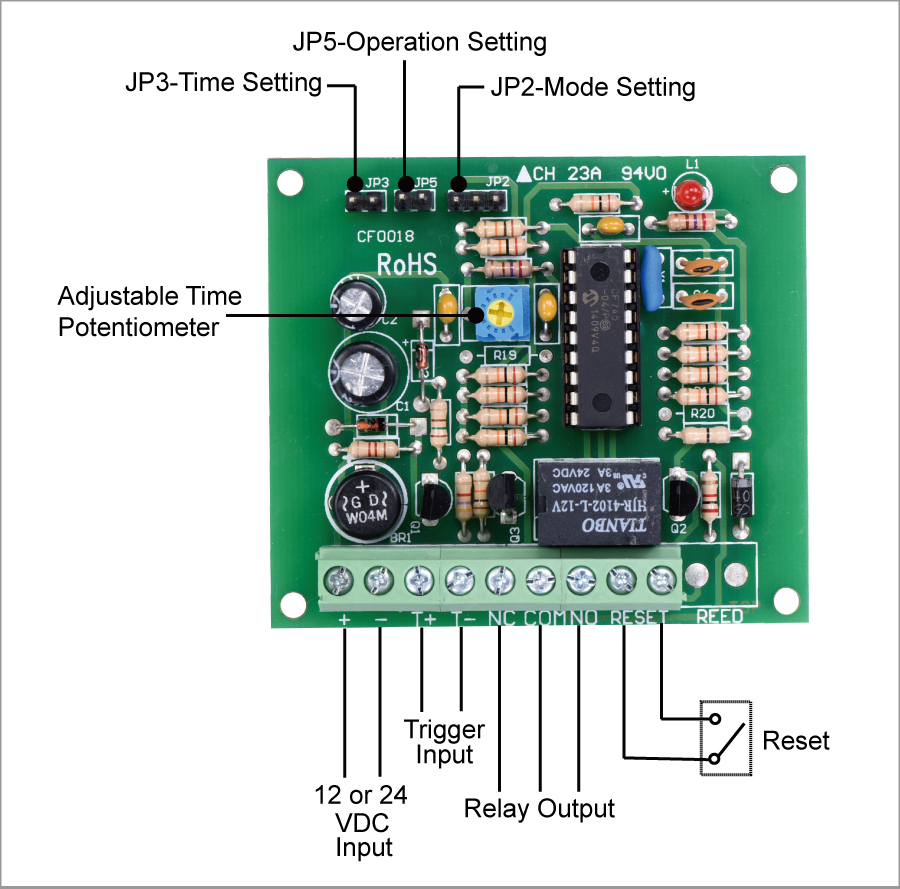

◆ Jumper selects time, mode, and operation settings

◆ Easy reset function

Specifications

Relay Output:	3A/120VAC or 3A/24VDC
Input Voltage:	12 or 24 VDC
