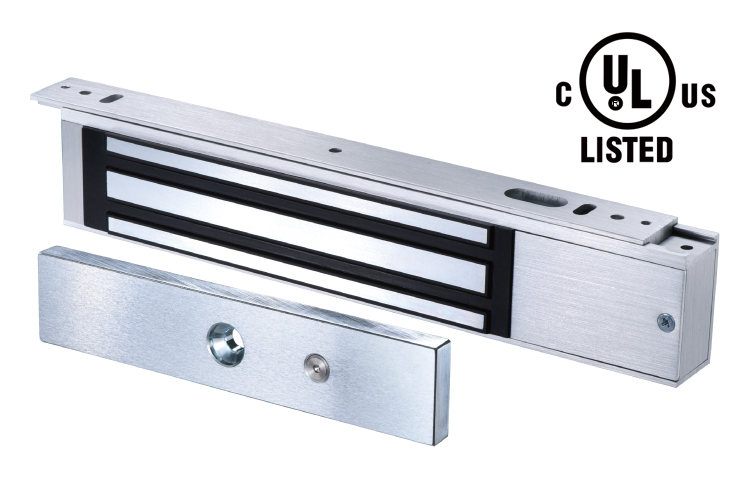

EM-NH300 Electromagnetic Lock

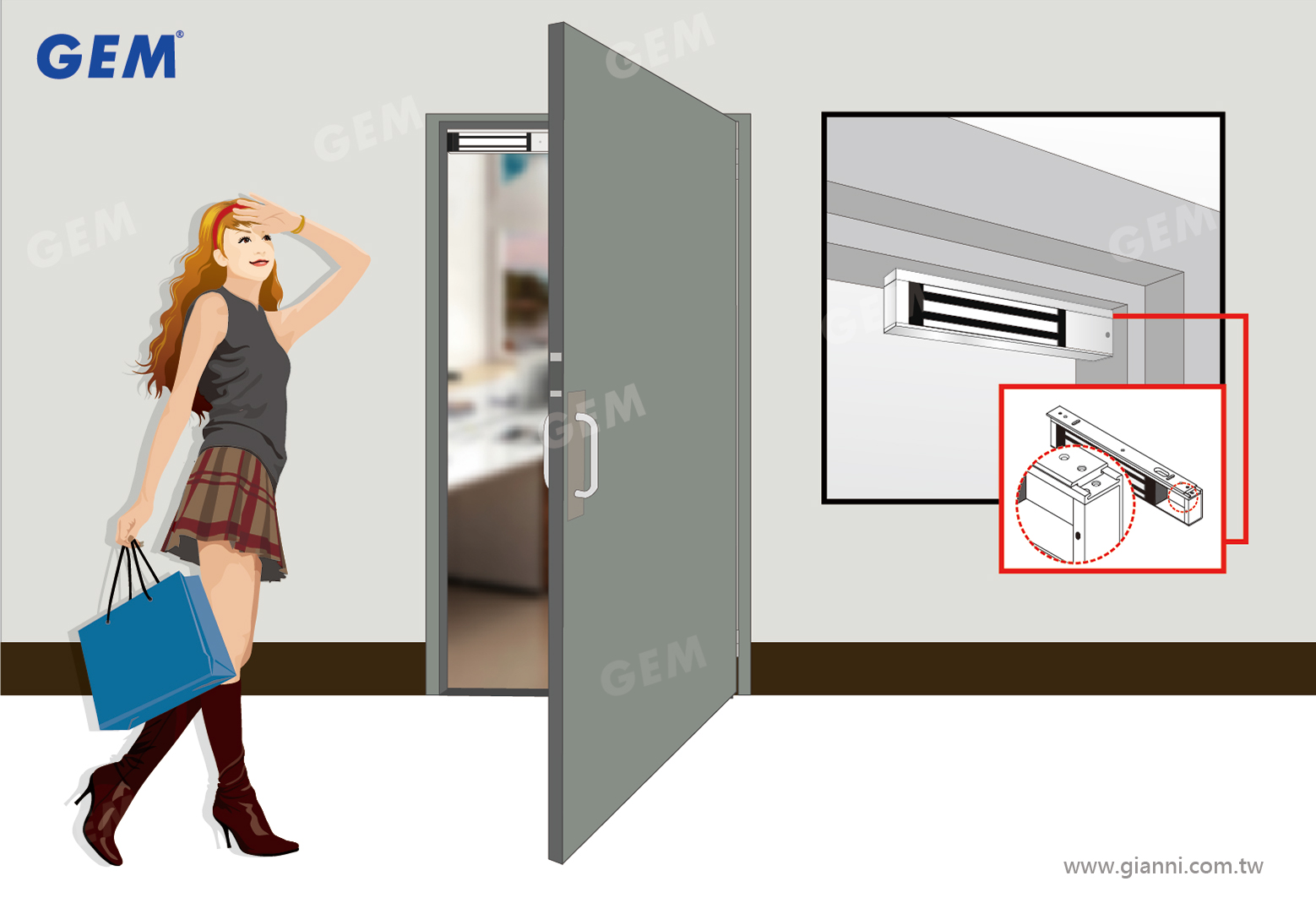

The NH series electromagnetic locks feature a slide-in mounting plate design that
simplifies the installation process and firmly secures the magnet. They are available for
surface mount installations with a wide range of auxiliary mounting brackets allowing an
easy installation on any kind of doors and door frames.
Specifications
◆ Holding Force: 600lbs
◆ Voltage: Field selectable 12/24VDC
◆ Aluminum anodized housing
◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-NH300, L-NH300AU
- Inswing Door: LZ-NH300N, LZ-NH300NAU
- Glass Door: UBK-013 Series, UBK-600N Series
Standard Features
◆ Slide-in mounting plate design for easy and secure installation
◆ MOV prevents spike and surge current
◆ Aluminum anodized casing (US28)
Standard Options

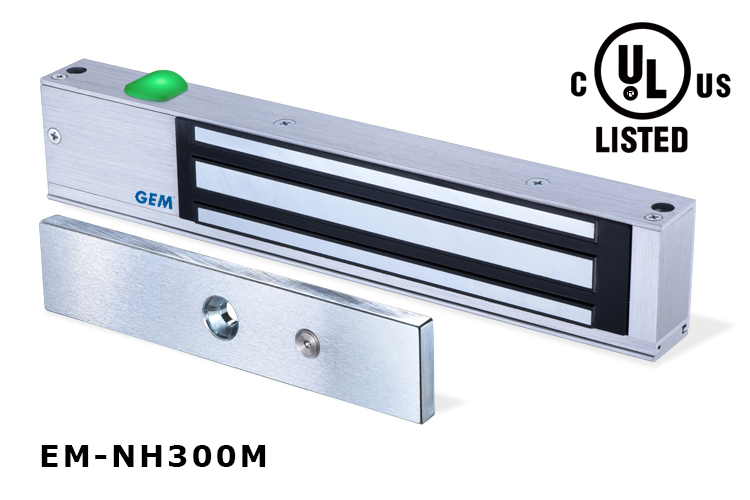

◆ M (Bond sensor & Bi-color status LED indicator)

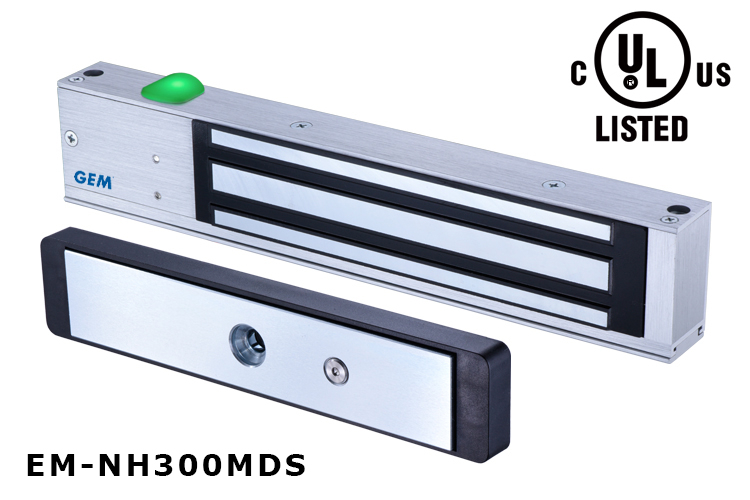

◆ DS (Bond sensor & Bi-color status LED indicator)
◆ TD (Relock time delay)Bi-color status LED indicator
Patents, Approvals, and Listings
◆ UL 10B/10C Positive Pressure Fire Test of Door Assemblies
◆ CE: EC3D0908-02
