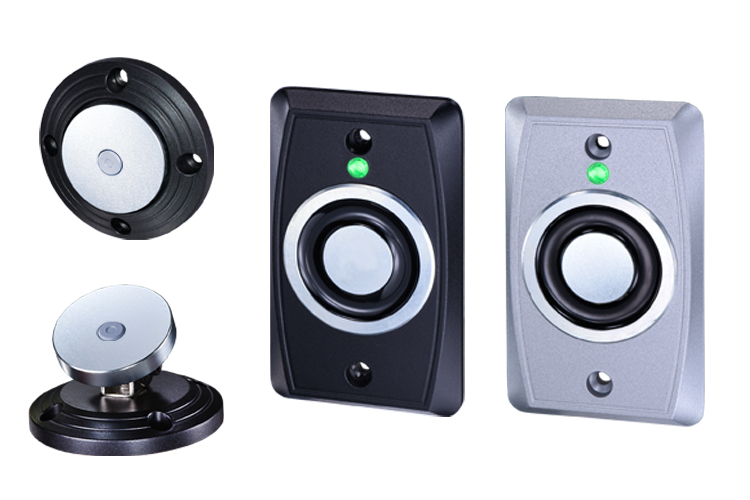

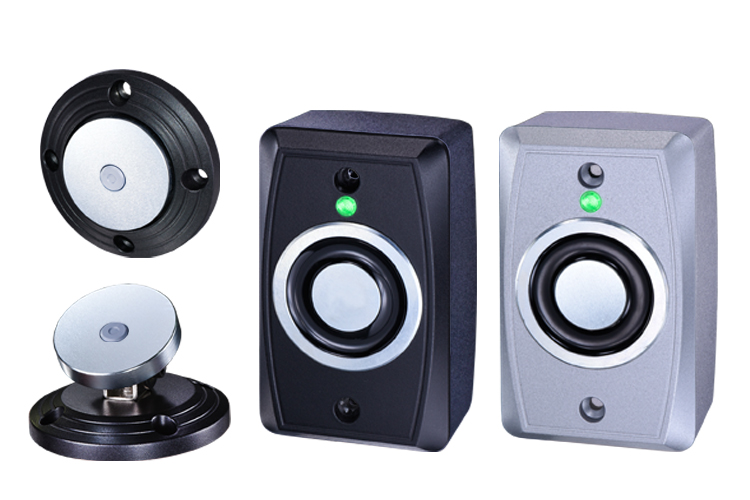

GD950 Door Holders

High Security, Surface Wall Mount

◆ Voltages: 12~24 VDC
◆ Current Draw: 130mA/12VDC, 80mA/24VDC
◆ Holding Force: Up to 80 lbs
◆ Anti-residual statement
◆ Aluminium Faceplate
◆ For ANSI single-gang electric box(excluded)
◆ Bond sensor output
◆ LED Indicator
◆ Flush Mount

GD900F Door Holders

Floor Mount

◆ 24 VAC/DC (special order 12VAC/DC)
◆ 80 lbs holding force
◆ Manual release button
◆ Black finish
◆ Swivel armature plate

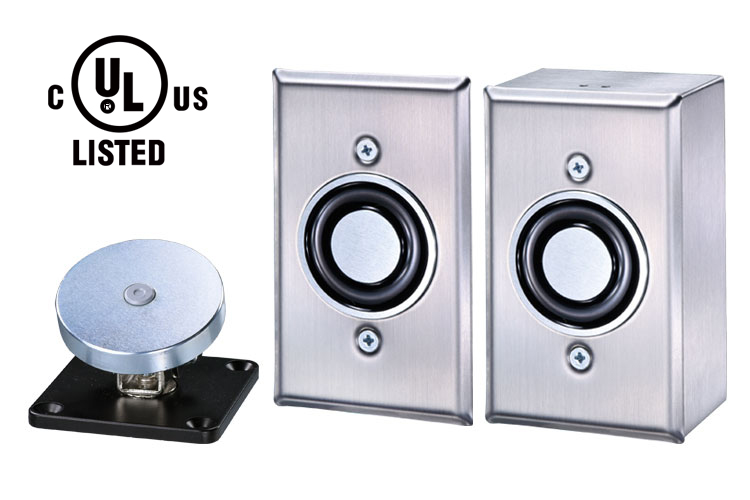

GD900W/GD900WS Door Holders

Surface/Flush Wall Mount

◆ 24 VAC/DC (special order 12VAC/DC)
◆ 80 lbs holding force
◆ Stainless steel finish
◆ Swivel armature plate
◆ Mounting:
- Flush Wall Mount (GD900W)
- Surface Wall Mount (GD900WS)

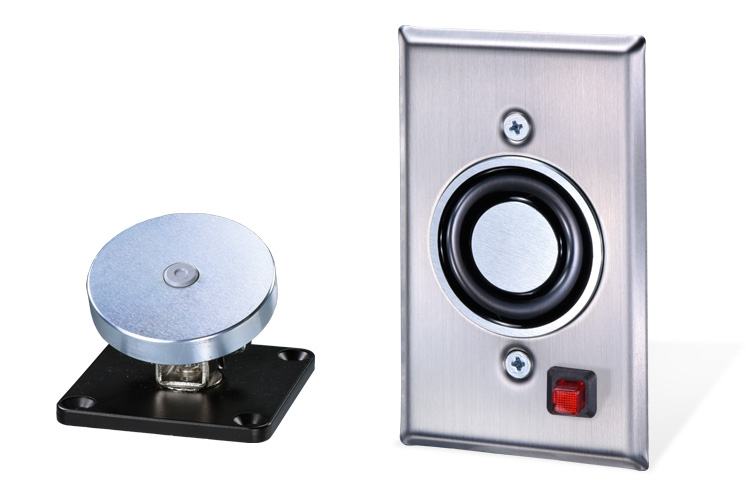

GD900WE Door Holders

Surface/Flush Wall Mount

◆ 24 VDC (special order 12VDC)
◆ 80 lbs holding force
◆ LED release button
◆ Optional back box available
◆ Stainless steel finish
◆ Swivel armature plate

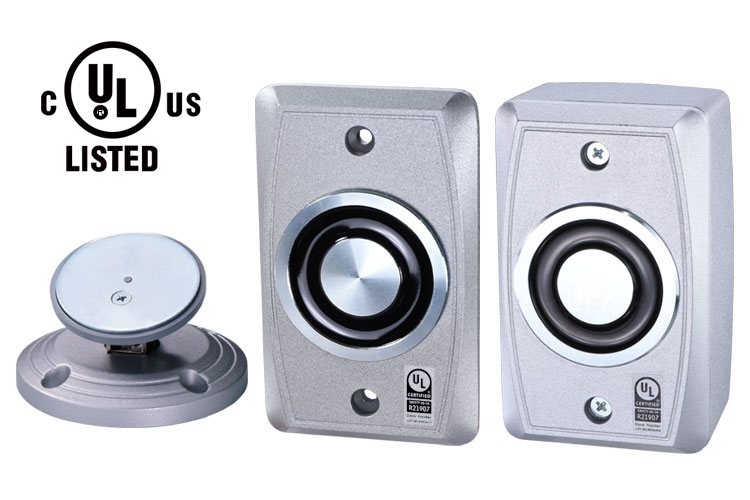

GD970/GD970S Door Holders

Surface/Flush Wall Mount

◆ Voltages:
   - Dual voltage 12/24 VDC for 32.9 lbs
   - 110 to 220 VAC for 38.8 lbs
◆ Aluminum alloy finish
◆ Swivel armature plate
◆ Mounting:
   - Flush Wall Mount (GD970)
   - Surface Wall Mount (GD970S)

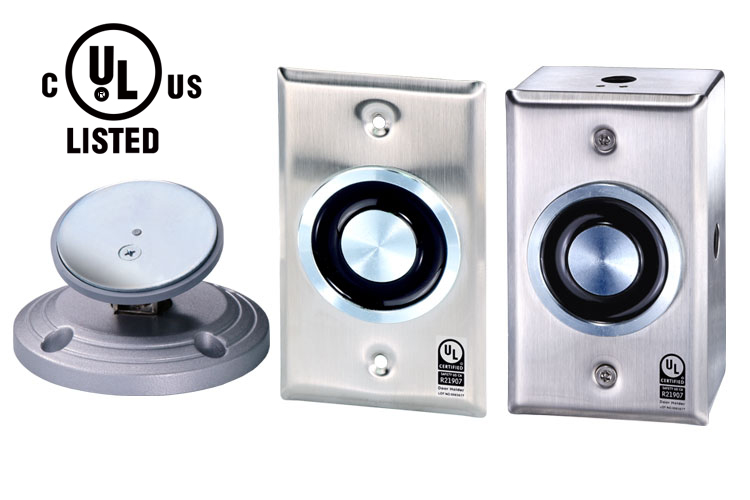

GD990/GD990S Door Holders

Surface/Flush Wall Mount

◆ Voltages:
   - Dual voltage 12/24 VDC for 32.9 lbs
   - 110 to 220 VAC for 38.8 lbs
◆ Stainless steel finish
◆ Swivel armature plate

◆ Mounting:
   - Flush Wall Mount (GD990)
   - Surface Wall Mount (GD990S)
