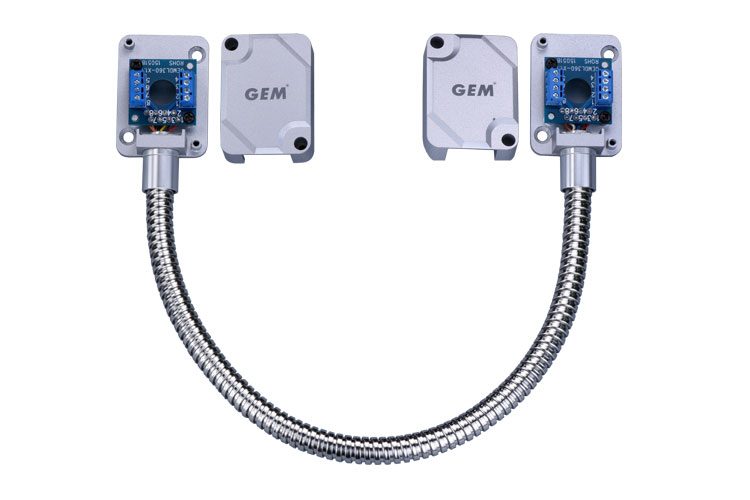

DL-360TB Door Loops
Surface Mount Armored Door Loop with Terminal Boards
◆ Voltage rating 2A/12VDC
◆ 8-condutor@24 gauge
◆ Stainless steel armored flex cable conduit
◆ Aluminum end boxes with removable cover
◆ Finishes: Silver, US40 duranodic finish
◆ Detachable terminal block connectors
◆ Dimensions:
20” (end to end length), 15” (cable length)
◆ Inside door loop diameter: 3/8” (9mm)
◆ Outside door loop diameter: 1/2” (12.5mm)
DL-417ST-TB Door Loops
Mortise Mount Door Loop with Terminal Boards (For Metal Frames)
◆ 8-condutor@24 gauge
◆ Stainless steel flex conduit & case
◆ Square mounting tabs for easy recessed installation
◆ Detachable terminal block connectors
◆ Dimensions:
12 5/8” L x 15/16”W x 2 1/6” D
(320L x 24.5W x 53D mm)
◆ Inside door loop diameter: 3/8” (10mm)
◆ Outside door loop diameter: 9/16” (14.5mm)
DL-500-TB Door Loops
Mortise Mount Door Loop with Terminal Boards (For Wood Frames)
◆ 8-condutor@24 gauge
◆ Ivory zinc alloy case
◆ Stainless steel flex conduit
◆ Rounded mounting tabs for easier installation
◆ Detachable terminal block connectors
◆ Dimensions:
12 5/8” L x 15/16”W x 2 3/16” D
(320L x 24.5W x 55D mm)
◆ Inside door loop diameter: 3/8” (9mm)
◆ Outside door loop diameter: 9/16” (14mm)
