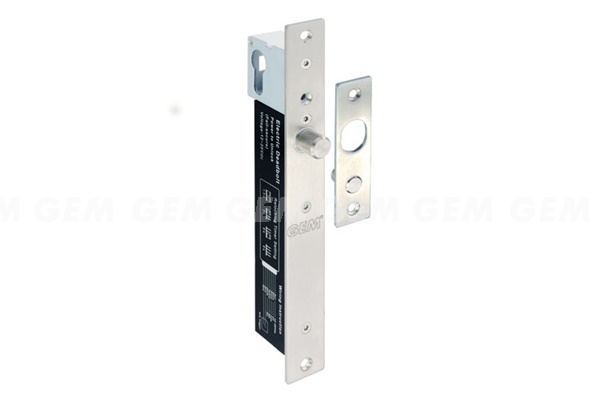

EB260-N Electric Dropbolts

The Fail-secure series electric dropbolt is designed for use on single action doors. With a Euro-profile cylinder, the Fail-Secure series can even be operated manually in case of power failure.

Standard Features

Optional Features

◆ Mechanical key/thumbturn override
◆ Built-in bolt status sensor indicates bolt locked/unlocked

Specification

◆ Voltage: 12 to 28 VDC
◆ Current Draw: 1.2A/12VDC
◆ Backset: 35mm
◆ Finish: SS

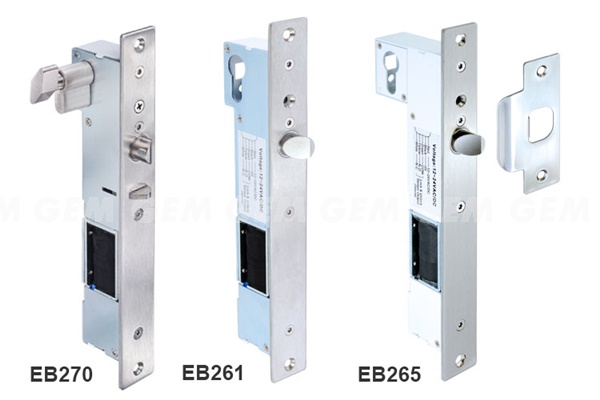

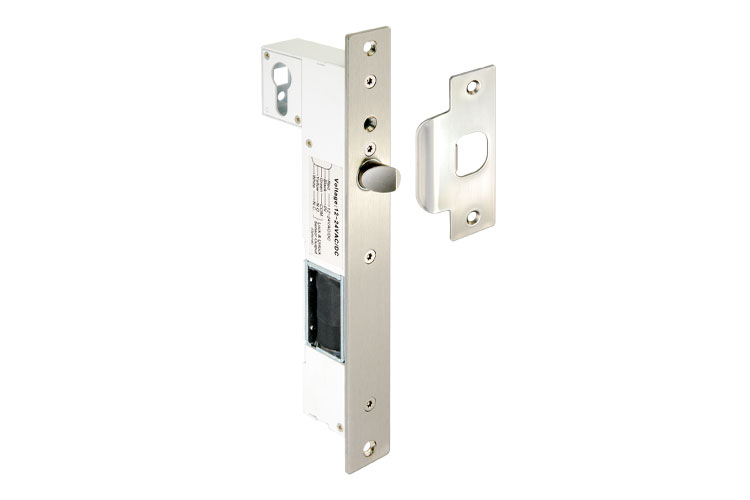

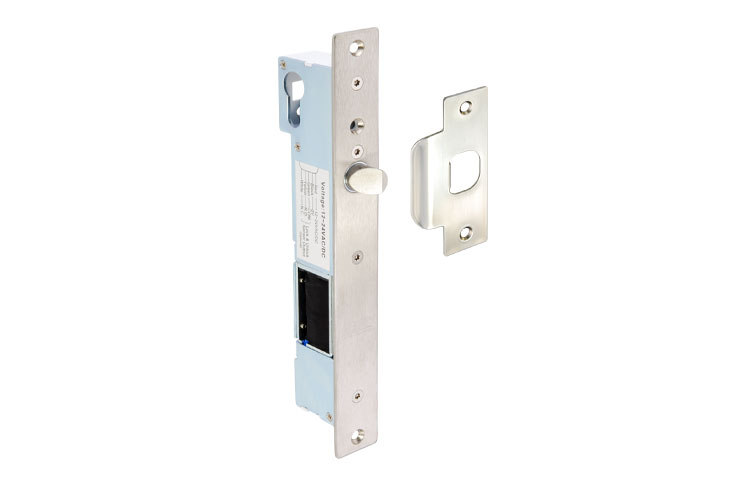

EB261/EB265/EB270 Electric Dropbolts

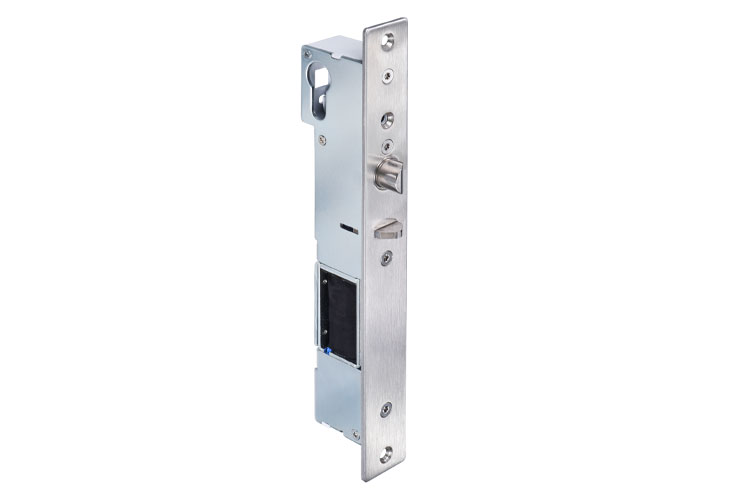

The Fail-secure series electric dropbolt is designed for use on single action doors. With a Euro-profile cylinder, the Fail-Secure series can even be operated manually in case of power failure. The EB261/265/270 series features a beveled, reversible latchbolt that allows the handing to be changed in seconds. The EB270 is also designed with a deadlatch to prevent the latchbolt from being forced back with a knife or card when the door is closed.

Standard Features
