BlueSwitch

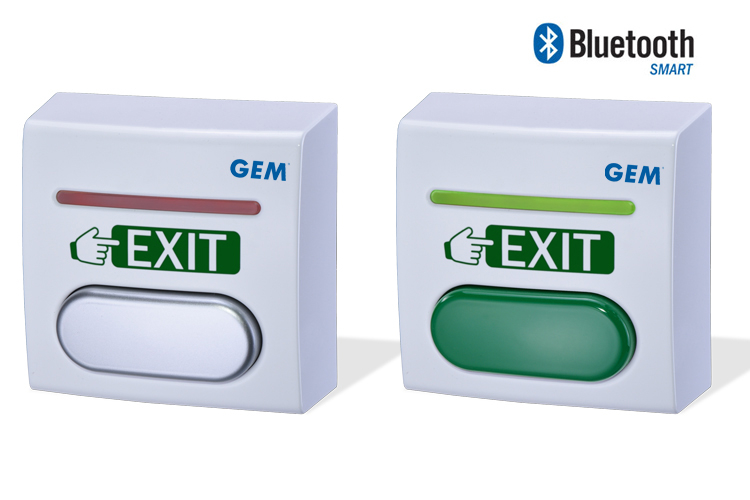

PBT-1000BT BlueSwitch
The BlueSwitch PBT‐1000BT is ideal for request‐to‐exit applications to release electromagnetic locks or electric strikes in conjunction with Bluetooth access control systems. Designed with aesthetic appearance for a variety of applications. It operates with 12 to 24 VDC and is enclosed on robust plastic housing.

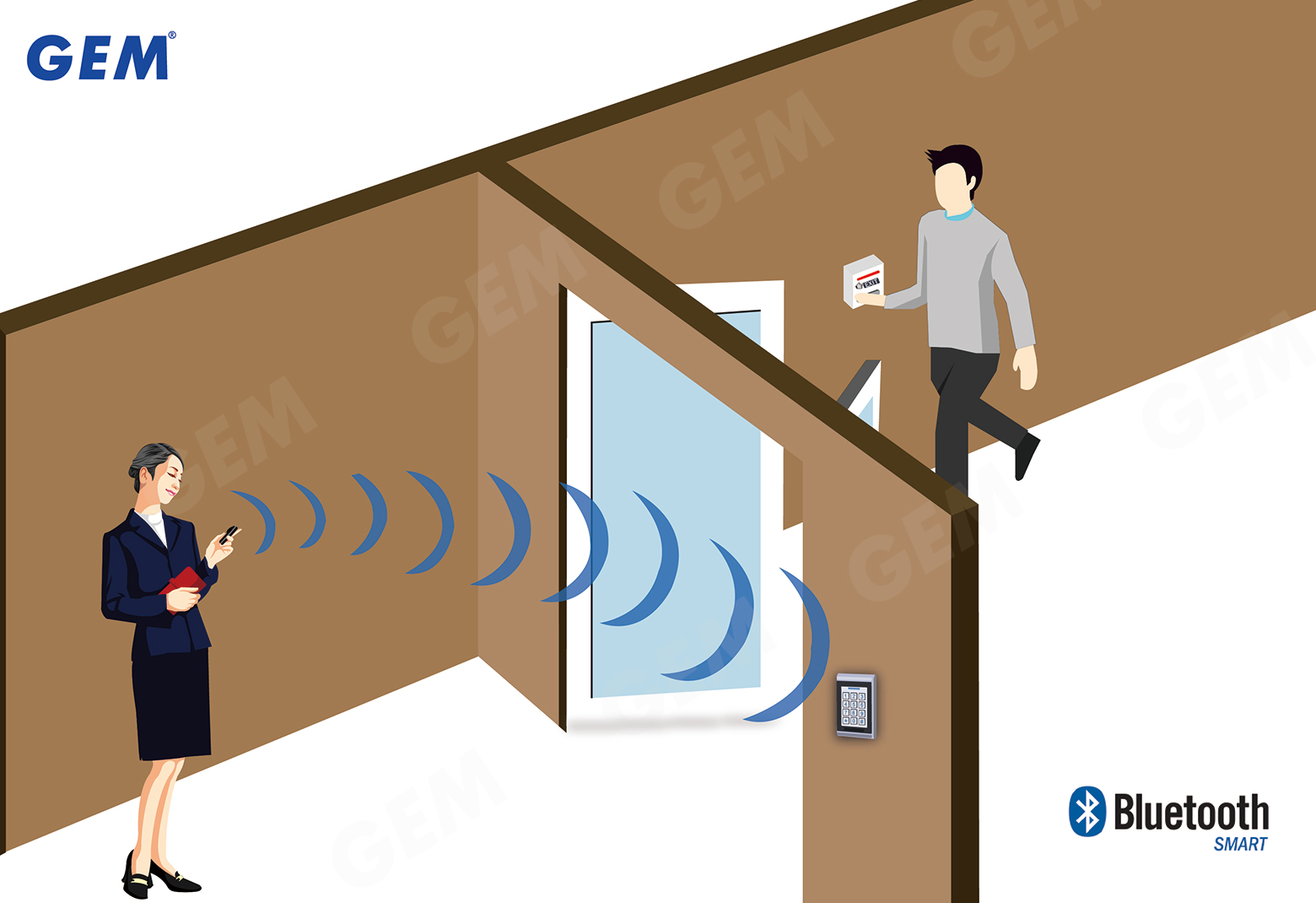

Download BlueSwitch app to open your doors with a simple touch or remotely with Auto unlock function enabled. Manage with your Smartphone by adding and removing access rights or check entry
audits, all your management needs in the palm of your hand!
Features
◆ Programmed and controlled by Bluetooth smartphones
◆ 1 Administrator and 1000 Users
◆ User Management: Add / Delete/ View user data, Grant user access for specific dates or time periods, and change user passcode
◆ LED & Audible indicators
Specifications
◆ Operating Voltage: 12 to 24 VDC
◆ Bluetooth Module: BLE 4.2 Bluetooth Low Energy
◆ Current Draw:
- Standby current: 30~50 mA@12 VDC, 0~10 mA@24 VDC
- Working current: 90 mA~1A@12 VDC, 70~80 mA@24 VDC
◆ Relay Contacts: NO/COM/NC
◆ Bluetooth Operating Distance: Up to 50 meters (164 ft) without blocking or concrete wall/door frames
◆ Smartphone Compatibility: Android 5.0 and up, iOS 9.0 and up
◆ Working Temperature: ‐20 °C ~ +70 °C
◆ Dimension: 86mm X 86mm X 38mm (3 3/8” X 3 3/8” X 1 1/2”)
◆ Finish: Robust Plastic

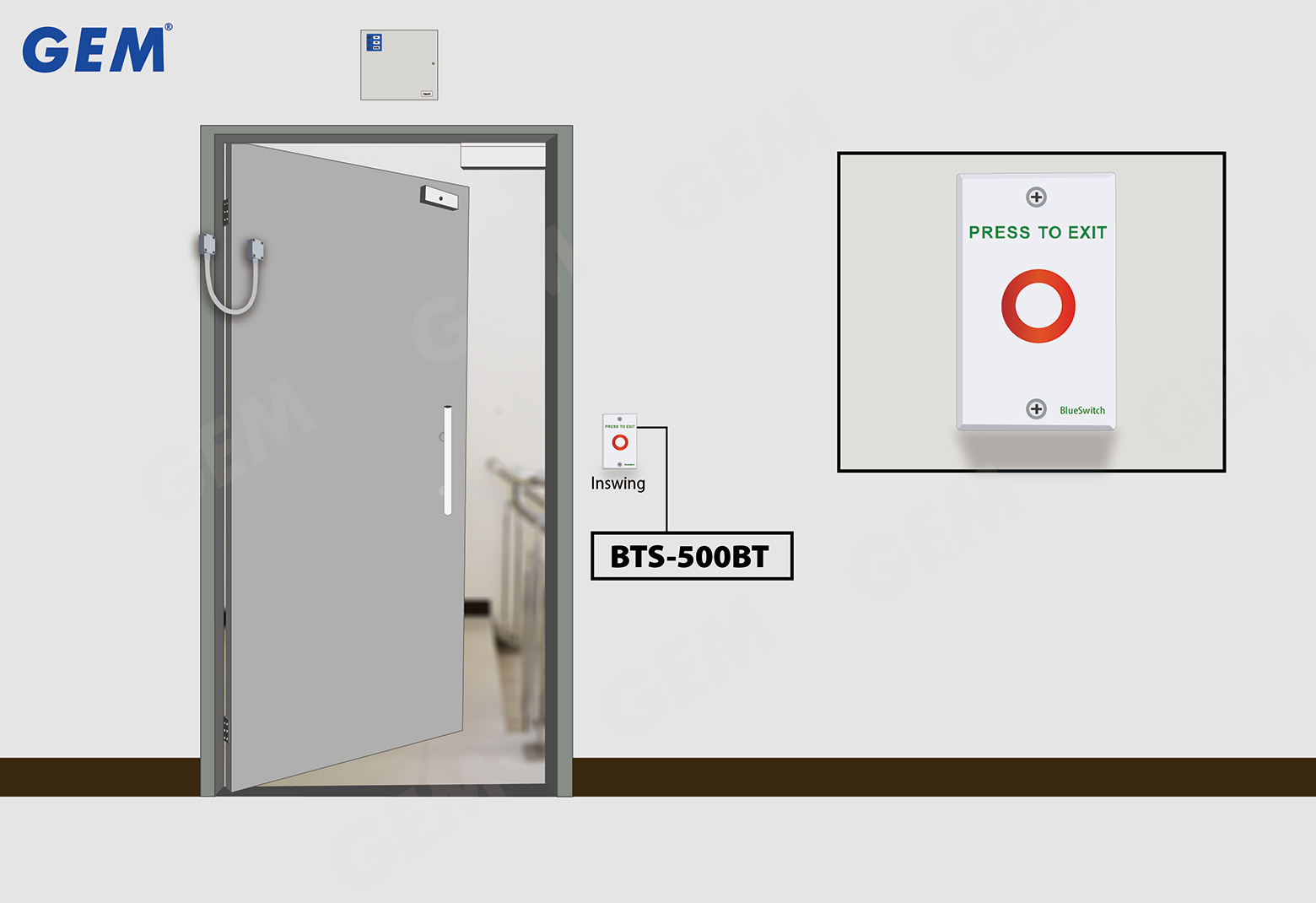

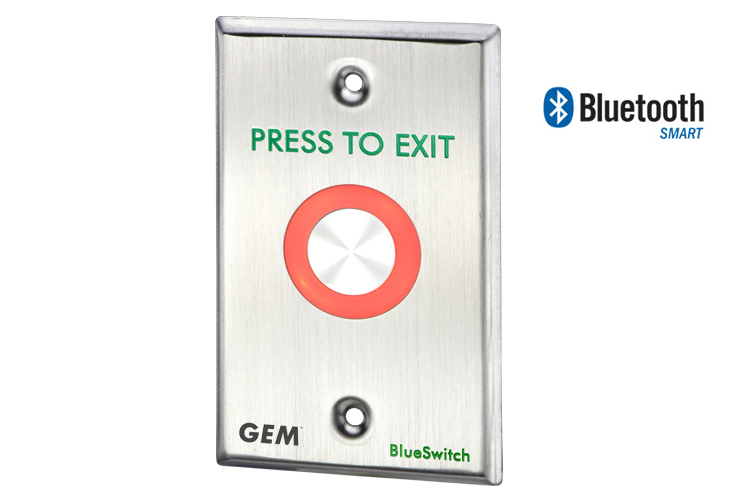

BTS-500BT BlueSwitch
Features
◆ 1 Administrator & 1000 Users
◆ Provides Bluetooth smartphone or push button unlocking
◆ Anti-tailgate
◆ LED & Audible indicator
◆ User Management
1. Add/Delete/View user data
2. Grant user access for specific dates or time periods
3. Change user passcode
4. Up to 1,000 audit trails
◆ 3 Locking options: Door Relock Time, Door Always Unlocked, Door Always Locked
Specifications
◆ Operating Voltage: 12~24VDC
◆ Current Draw: 40mA/12VDC; 20mA/24VDC
◆ Relay Contacts: NC/COM/NO
◆ Contact Rating: 5A/30VDC; 5A/250VAC
◆ Relock Time: 1~1800 seconds (adjustable on APP)
◆ Indicator Light: Standby : Solid Red, Active : Solid Green
◆ Temperature: -20~+70°C
◆ Bluetooth Module: BLE 4.2
◆ Auto Proximity Range: 0~20 meters (adjustable)

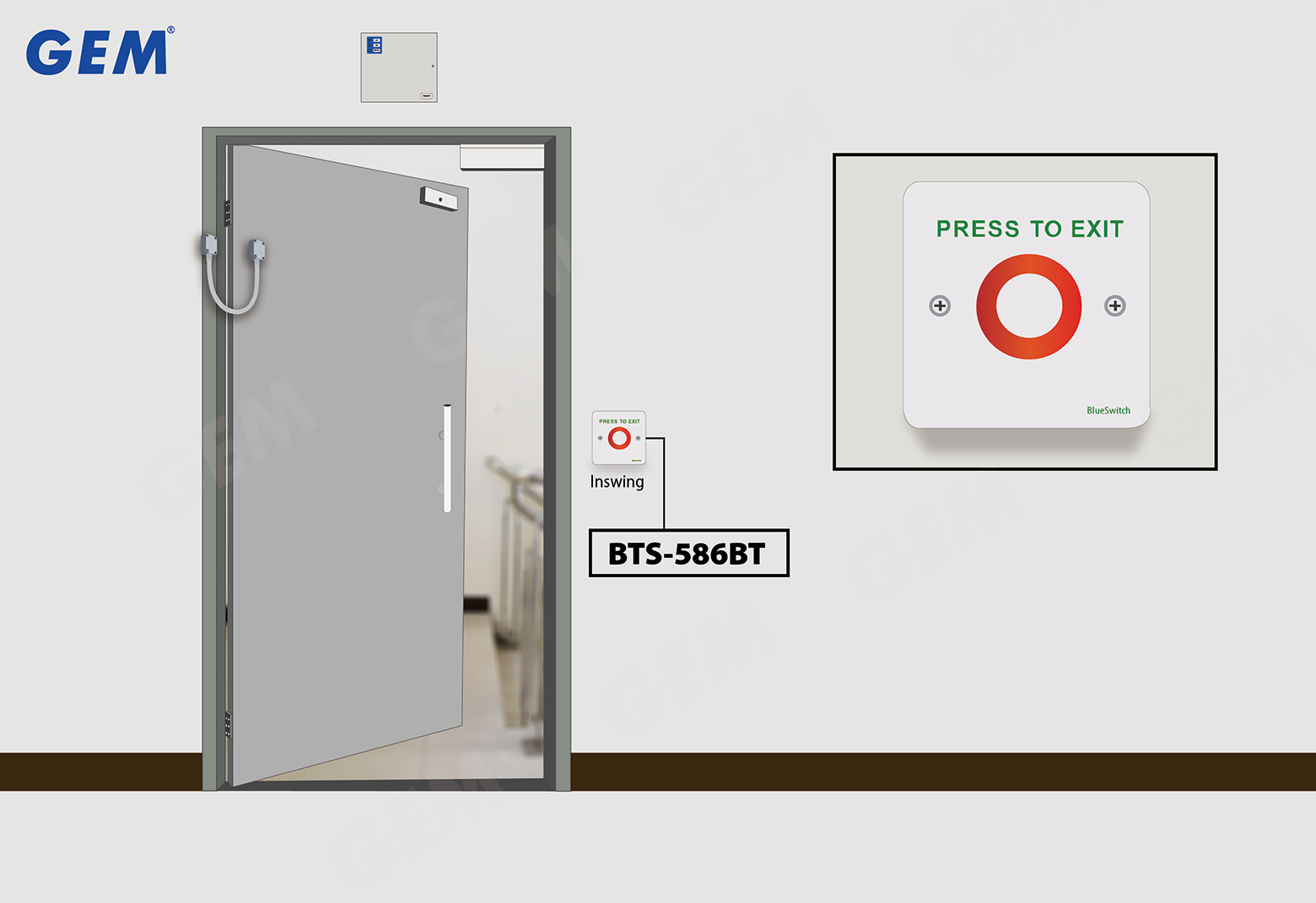

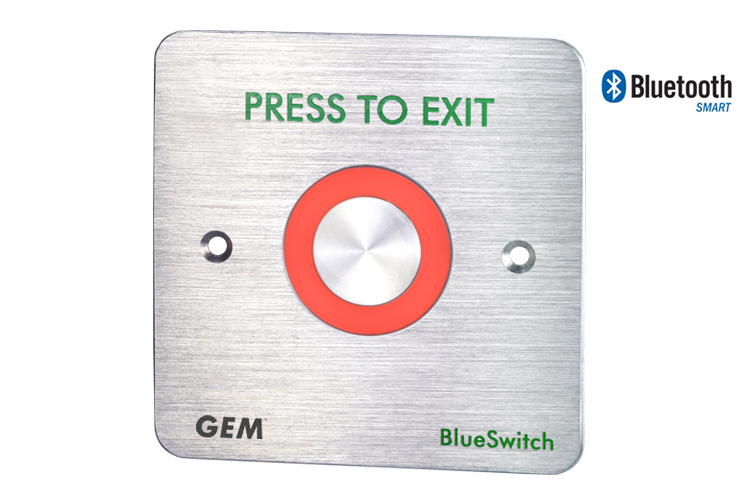

BTS-586BT BlueSwitch
Features
◆ 1 Administrator & 1000 Users
◆ Provides Bluetooth smartphone or push button unlocking
◆ Anti-tailgate
◆ LED & Audible indicator
◆ User Management
1. Add/Delete/View user data
2. Grant user access for specific dates or time periods
3. Change user passcode
4. Up to 1,000 audit trails
◆ 3 Locking options: Door Relock Time, Door Always Unlocked, Door Always Locked
Specifications
◆ Operating Voltage: 12~24VDC
◆ Current Draw: 40mA/12VDC; 20mA/24VDC
◆ Relay Contacts: NC/COM/NO
◆ Contact Rating: 5A/30VDC; 5A/250VAC
◆ Relock Time: 1~1800 seconds (adjustable on APP)
◆ Indicator Light: Standby: Solid Red, Active: Solid Green
◆ Temperature: -20~+70°C
◆ Bluetooth Module: BLE 4.2
◆ Auto Proximity Range: 0~20 meters (adjustable)
