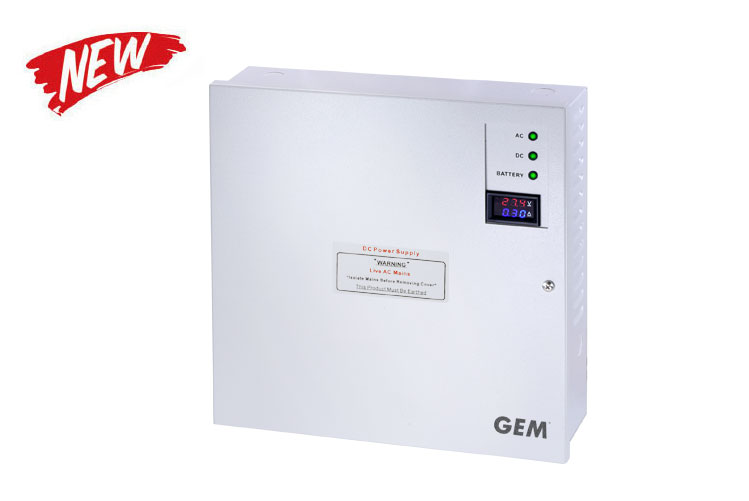

PSB5A-230-12NVM / PSB5A-230-24NVM
Power Supplies

PSB series linear power supplies is specifically designed to support electric locks and access control power system. PSB series have a toroidal transformer that reduces power loss, with 80% power conversion rate.

Protection

◆ Low battery threshold

◆ DC short circuit

◆ Battery anti-reverse polarity

◆ AC & DC overcurrent

◆ DC thermal overload

Standard Features

◆ Filtered & regulated DC output

◆ Sealed lead acid battery charging capability to achieve uninterrupted power supply (battery excluded, maximum battery size : 12 VDC / 7AH)

◆ Battery stop charging when fully charged

◆ LED indicators (For AC/DC/Battery status)

◆ 3 contact ports (two for locks, one for backup battery)

Specifications

◆ Input Voltage: 220-240 VAC

◆ Output Voltage:
    PSB5A-230-12NVM:5A/13.8 VDC
    PSB5A-230-24NVM:5A/27.6 VDC

◆ Dimensions:320 x 330x 86mm

◆ Contact Ports: 3

◆ Low Battery Threshold:
    PSB5A-230-12NVM:9-10.5 VDC
    PSB5A-230-24NVM:19-21.5 VDC

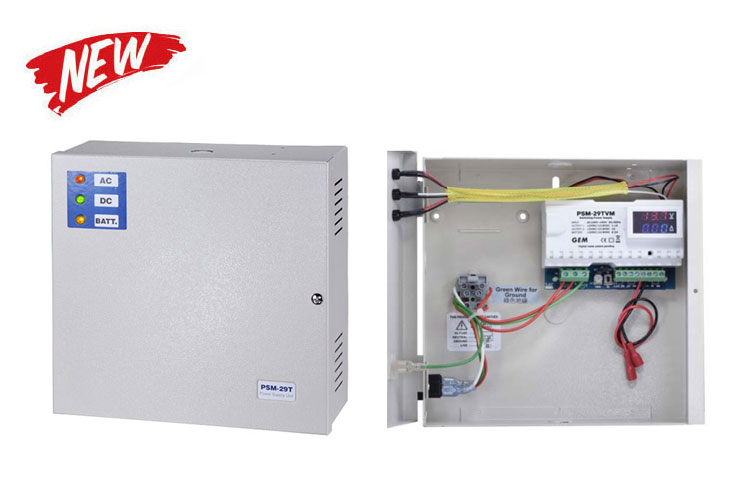

PSM-29TVM Power Supplies

PSM-29TVM is ideal for use with a wide range of access control devices, such as electric locks, door operators, electric strikes, electromagnetic locks or keypad readers.

PSM-29TVM metal enclosure provides protection, capable to hold backup rechargeable battery from power failure. There are external 3 LED indicators to show I/O power and battery status.

Standard Features

◆ 2 independent outputs for electric lock and Keypad controller

◆ Request to Exit (REX) input for a quick egress

◆ A switch to control fail-safe / fail-secure lock

◆ Battery protection: over-discharge, short-circuit, anti-reverse polarity

Specifications

◆ Input Voltage: 100-240VAC, 50/60Hz

◆ Output 1: 12V/13.8V 1.1A Max.

◆ Output 2: 12V/13.8V 1A Max

◆ Battery Charger: 12V/13.8V 0.3A Max

◆ Timer: 0~45 Sec

◆ Dimensions:216 x 226 x 80mm

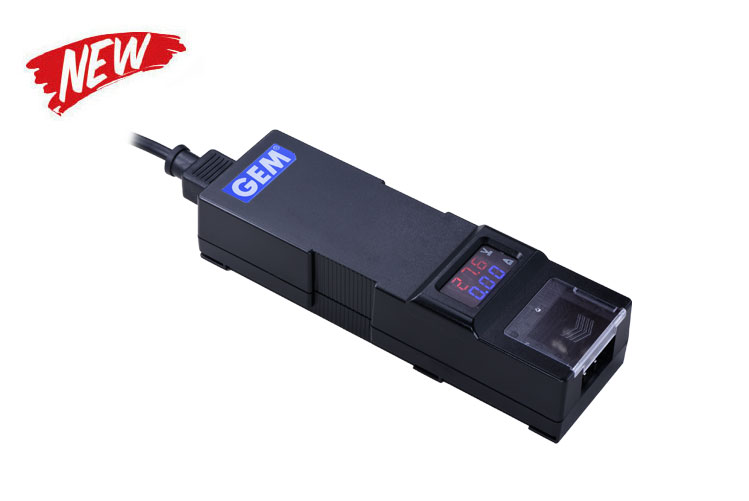

PSM1.5A-27.6-VM
Digital Display Switching Adapter

New Design Switching Adapter is ideal for use with access control devices, electric locks and power backup solutions. Integrated with battery enclosure, smartly adjust dual outputs externally. Provide a stable, safe, convenient all-in-one power solution.

Standard Features

◆ Auto Power Switching: Power supply switches to battery power in case of municipal power failures

◆ Real-time Digital Display: Displays output voltage, current loading, makes easy maintenance and monitoring

◆ Built-in Protection Mechanism:
    OVP (Over-Voltage Protection)
    OCP (Over-Current Protection)
    OLP (Over-Load Protection)
    ODP (Over-Discharge Protection)
    SCP (Short-Circuit Protection)
    Battery anti-reverse polarity

◆ Dual Terminal Outputs: For electric lock, controller, alarm connections

Applications

◆ Access control system

◆ Electric locks / Maglocks

◆ UPS / Security / Alarm Surveillance / Communications

◆ Low-voltage systems

Specifications

◆ Input Voltage: AC100-240 VAC, 50-60Hz,1.5A

◆ Output 1: DC27.6V / 1.5A, 41.4W Max. (35°C) DC27.6V / 0.75A (55°C) *both terminal outputs

◆ Output 2: Charger: Charger: DC27.6V / 0.3A Max

◆ Battery Type: 12V/5Ah lead acid battery x 2

◆ Dimensions:190 x 60 x 43mm

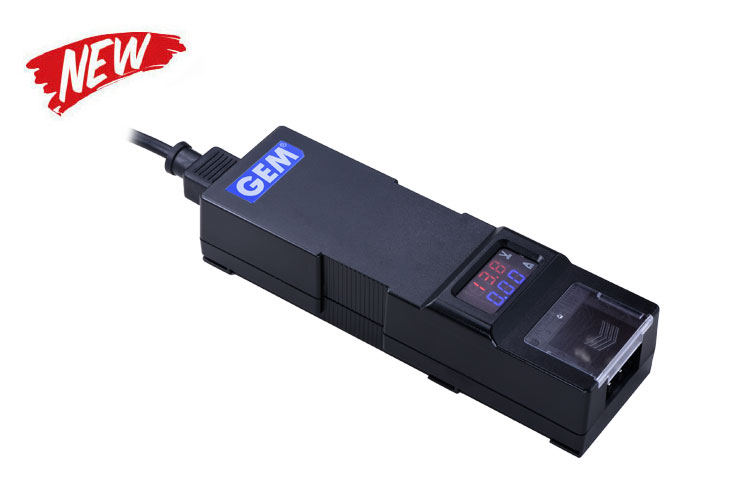

PSM3A-13.8-VM
Digital Display Switching Adapter

New Design Switching Adapter is ideal for use with access control devices, electric locks and power backup solutions. Integrated with battery enclosure, smartly adjust dual outputs externally. Provide a stable, safe, convenient all-in-one power solution.

Standard Features

◆ Auto Power Switching: Power supply switches to battery power in case of municipal power failures

◆ Real-time Digital Display: Displays output voltage, current loading, makes easy maintenance and monitoring

◆ Built-in Protection Mechanism:
    OVP (Over-Voltage Protection)
    OCP (Over-Current Protection)
    OLP (Over-Load Protection)
    ODP (Over-Discharge Protection)
    SCP (Short-Circuit Protection)
    Battery anti-reverse polarity

◆ Dual Terminal Outputs: For electric lock, controller, alarm connections

Applications

◆ Access control system

◆ Electric locks / Maglocks

◆ UPS / Security / Alarm Surveillance / Communications

◆ Low-voltage systems

Specifications

◆ Input Voltage: AC100-240 VAC, 50-60Hz,1.5A

◆ Output 1: DC13.8V / 3A, 41.4W Max. (35°C) DC13.8V / 1.5A (55°C) *both terminal outputs

◆ Output 2: Charger: DC13.8V / 0.3A Max.

◆ Battery Type: 12V/5Ah lead acid battery x 1

◆ Dimensions:190 x 60 x 43mm
