  3. GEM Locks

Standard Features

  • Low maintenance with high reliability

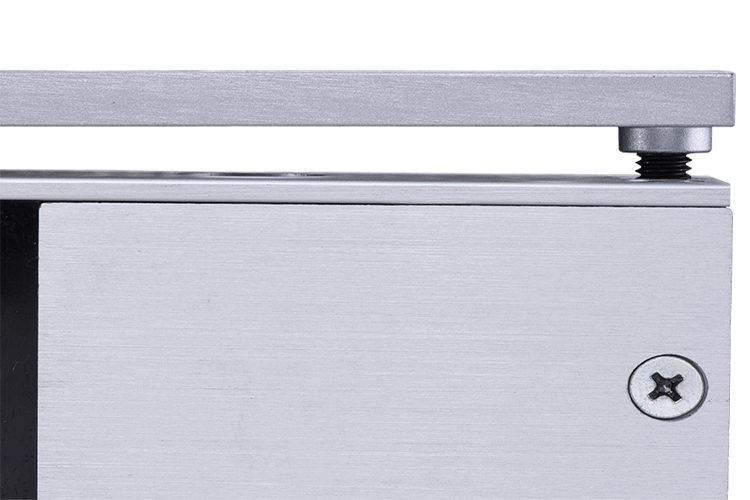

  • New style mounting plate with increased immobility (Patented)
  • LAluminum anodized casing
  • MOV prevents spike and surge current
  • Lual voltage 12/24VDC field selectable
  • No residual magnetism

Standard Options

  • Configurable large and visible red / green LED for better visibility
  • Bond sensor output
  • Bi-color status LED indicator
  • Relock time delay
  • Buzzer alarm
  • Door status output


Specifications


GEM-300

  • Holding Force: 300lbs
  • Voltage:12/24VDC
  • Standard Options:M
  • Optional Brackets:
    L-GEM-300
    (Narrow Frame/Outswing Door)

    LZ-GEM300
    (Inswing Door)

GEM-600

  • Holding Force: 600lbs
  • Voltage:12/24VDC
  • Standard Options:M,MTD,MDS,MDS-TD
  • Optional Brackets:
    L-GEM-600
    (Narrow Frame/Outswing Door)

    L-GEM-600AU
    (Narrow Frame/Outswing Door)

    LZ-GEM600
    (Inswing Door)

    LZ-GEM600AU
    (Inswing Door)

GEM-800

  • Holding Force:800lbs
  • Voltage:12/24VDC
  • Standard Options:M,MTD,MDS,MDS-TD,MTD-LD,MDS-TD-LD,MBZ
  • Optional Brackets:
    L-GEM-800
    (Narrow Frame/Outswing Door)

    L-GEM-800AU
    (Narrow Frame/Outswing Door)

    LZ-GEM800
    (Inswing Door)

    LZ-GEM800AU
    (Inswing Door)

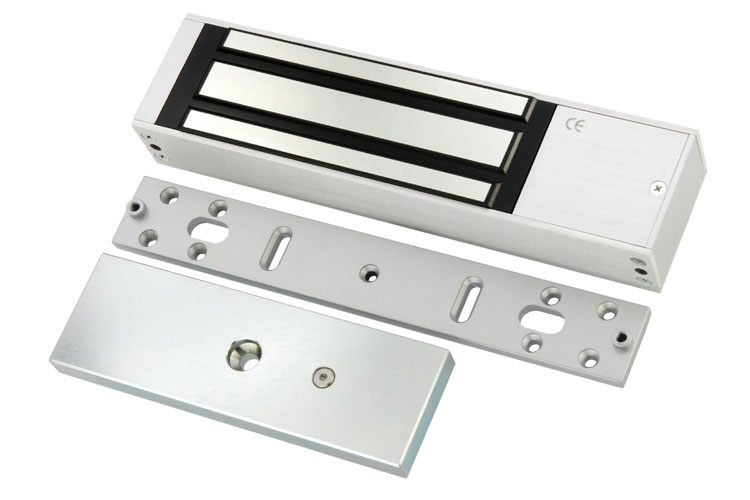

GEM-1200

  • Holding Force: 1200lbs
  • Voltage:12/24VDC
  • Standard Options:M,MTD,MDS,MDS-TD,MTD-LD,MDS-TD-LD,MBZ,MDS-BZ
  • Optional Brackets:
     L-GEM-1200
    (Narrow Frame/Outswing Door)

    L-GEM-1200AU
    (Narrow Frame/Outswing Door)

    LZ-GEM1200
    (Inswing Door)

    LZ-GEM-1200AU
    (Inswing Door)

Notes:

Standard models are all unmonitored

M:

Bond sensor output & Bi-color status LED indicator

DS:

Door status output

TD:

Relock time delay

BZ:

Buzzer alarm

LD:

Configurable large and visible red/green LED for better visibility
