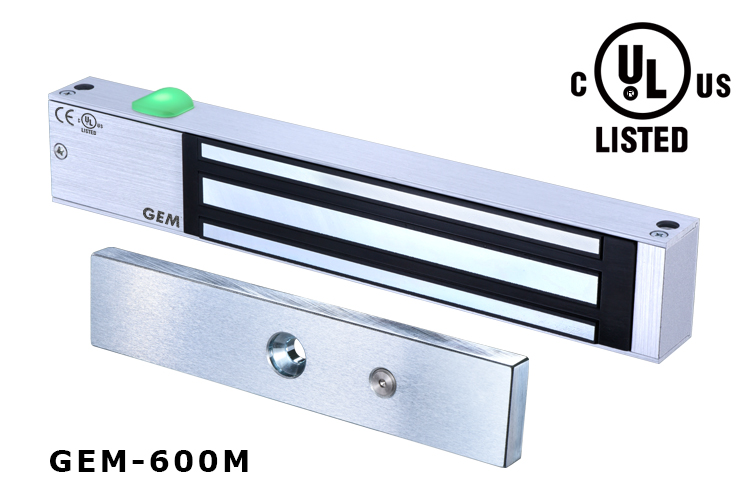

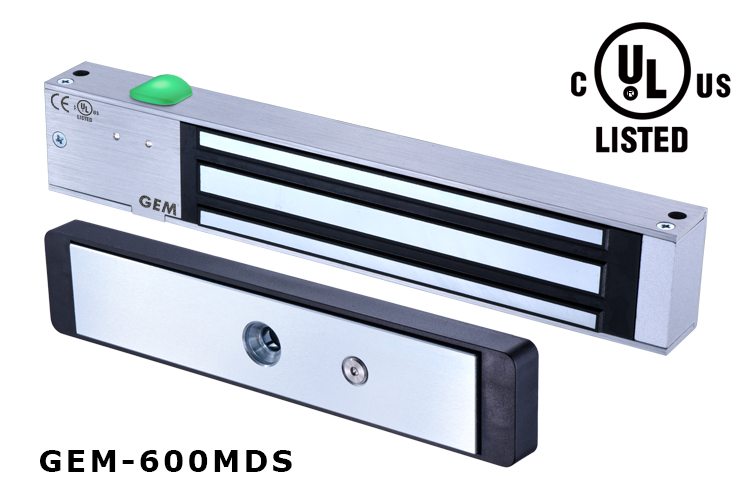

GEM-600 Electromagnetic Locks

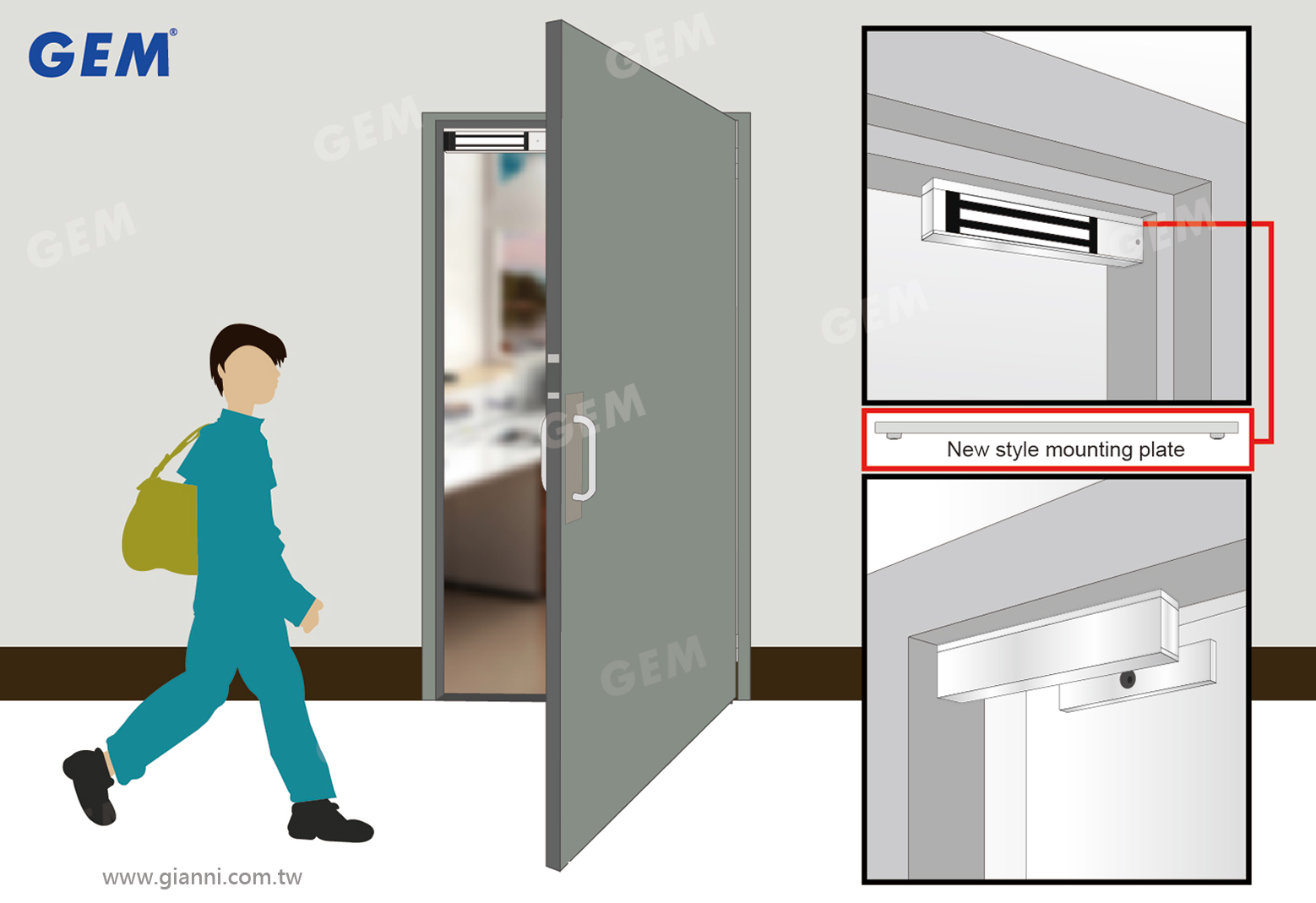

The GEM series electromagnetic locks use a new style mounting plate and patented. The mounting plate is designed with increased thickness for the screw hole at each end to secure the lock body with more stability and strength. The GEM series can be installed on various types of doors or door frames with optional auxiliary mounting brackets.

Specifications

◆ Holding Force: 600lbs

◆ Voltage: Auto selectable 12/24VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-GEM-600, L-GEM-600AU
- Inswing Door: LZ-GEM-600, LZ-GEM-600AU, Z-GEM-600
- Glass Door: UBK-013 Series, UBK-600G Series

Standard Features

◆ Reversible magent for left or right handed doors (For single magnet, unmonitored models)

◆ New style mounting plate with increased immobility (Patented)

◆ Aluminum anodized casing (US28)

◆ MOV prevents spike and surge current

◆ Automatic voltage selection 12/24 VDC

◆ No residual magnetism

Standard Options

◆ M (Bond sensor & Bi-color status LED indicator)

◆ TD (Relock time delay)

◆ DS (Door status sensor)

Patents, Approvals, and Listings

◆ UL 10B/10C Positive Pressure Fire Test of Door Assemblies

◆ NF S 61-937 Compliant (For unmonitored models)

◆ CE: EC651216

◆ Tested to 40 minutes (no failure) in accodrance with EN1634-1:2014

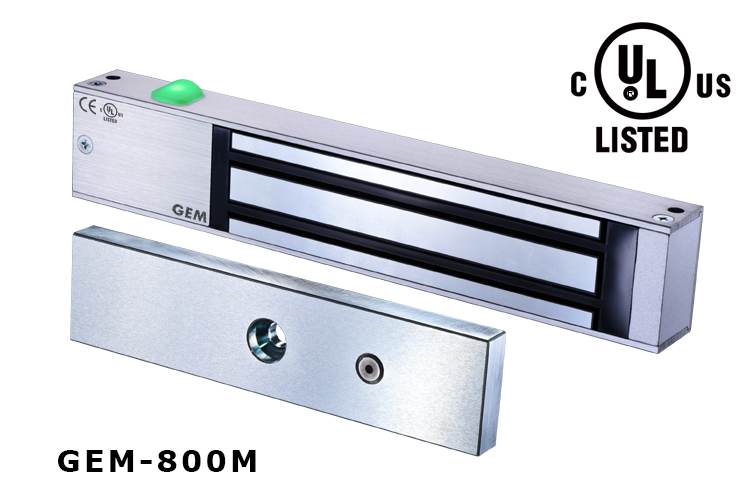

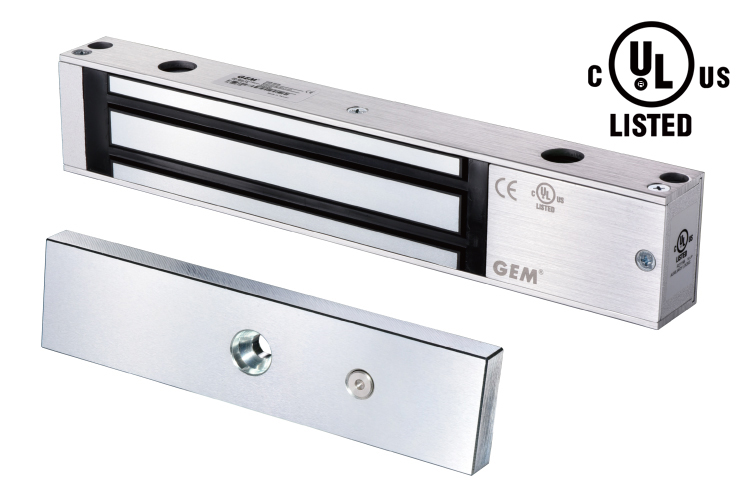

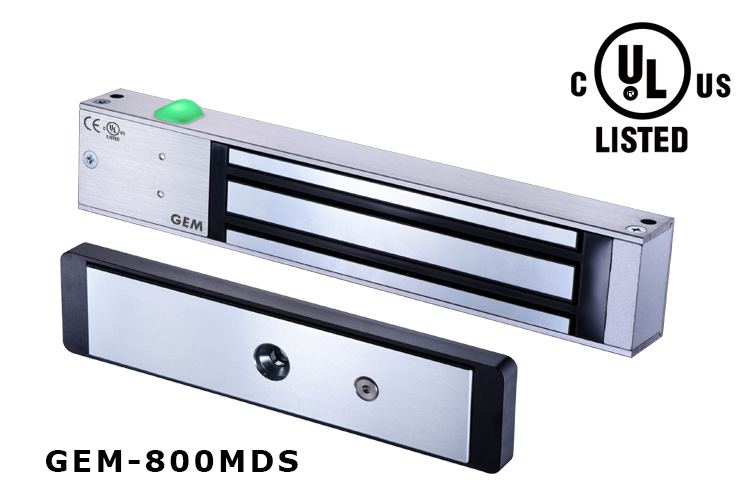

GEM-800 Electromagnetic Locks

The GEM series electromagnetic locks use a new style mounting plate and patented. The mounting plate is designed with increased thickness for the screw hole at each end to secure the lock body with more stability and strength. The GEM series can be installed on various types of doors or door frames with optional auxiliary mounting brackets.

Specifications

◆ Holding Force: 800lbs

◆ Voltage: Auto selectable 12/24VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-GEM-800, L-GEM-800AU
- Inswing Door: LZ-GEM-800, LZ-GEM-800AU, Z-GEM-800
- Glass Door: UBK-013

Standard Features

◆ Reversible magent for left or right handed doors (For single magnet, unmonitored models)

◆ New style mounting plate with increased immobility (Patented)

◆ Aluminum anodized casing (US28)

◆ MOV prevents spike and surge current

◆ Automatic voltage selection 12/24 VDC

◆ No residual magnetism

Standard Options

◆ M (Bond sensor & Bi-color status LED indicator)

◆ TD (Relock time delay)

◆ DS (Door status sensor)

◆ LD (Large LED & Reset input)

◆ BZ (Door held open alarm)

Patents, Approvals, and Listings

◆ UL 10B/10C Positive Pressure Fire Test of Door Assemblies

◆ NF S 61-937 Compliant (For unmonitored models)

◆ CE: EC651216

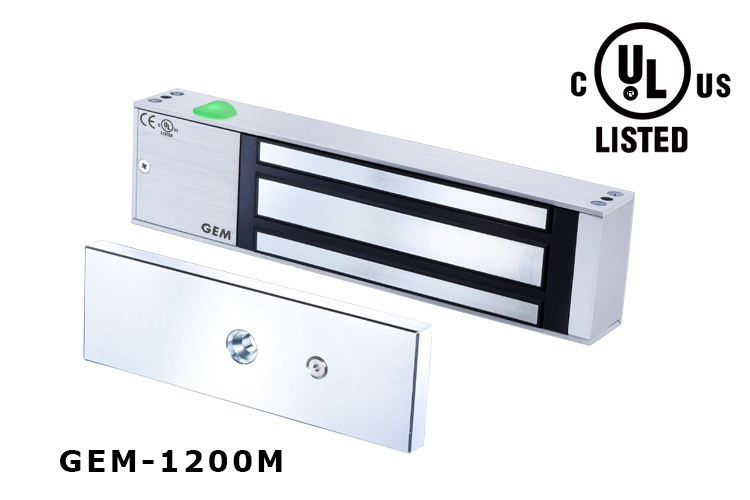

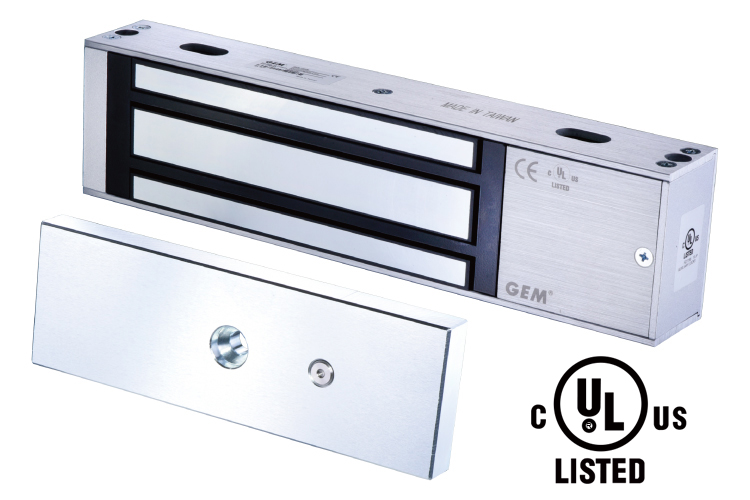

GEM-1200 Electromagnetic Locks

The GEM series electromagnetic locks use a new style mounting plate and patented. The mounting plate is designed with increased thickness for the screw hole at each end to secure the lock body with more stability and strength. The GEM series can be installed on various types of doors or door frames with optional auxiliary mounting brackets.

Specifications

◆ Holding Force: 1200lbs

◆ Voltage: Auto selectable 12/24VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-GEM-1200, L-GEM-1200AU
- Inswing Door: LZ-GEM-1200, LZ-GEM-1200AU, Z-GEM-1200

Standard Features

◆ Reversible magent for left or right handed doors (For single magnet, unmonitored models)

◆ New style mounting plate with increased immobility (Patented)

◆ Aluminum anodized casing (US28)

◆ MOV prevents spike and surge current

◆ Automatic voltage selection 12/24 VDC

◆ No residual magnetism

Standard Options

◆ M (Bond sensor & Bi-color status LED indicator)

◆ TD (Relock time delay)

◆ DS (Door status sensor)

◆ LD (Large LED & Reset input)

◆ BZ (Door held open alarm)

Patents, Approvals, and Listings

◆ UL 10B/10C Positive Pressure Fire Test of Door Assemblies

◆ NF S 61-937 Compliant (For unmonitored models)

◆ CE: EC651216

◆ Tested to 50 minutes (no failure) in accodrance with EN1634-1:2014

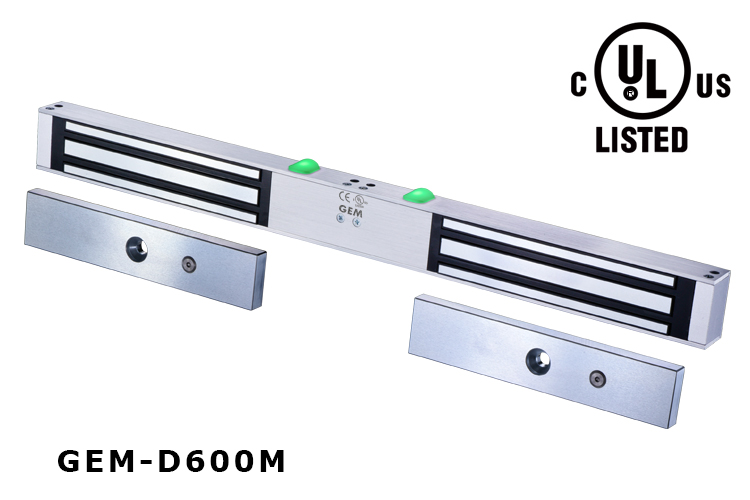

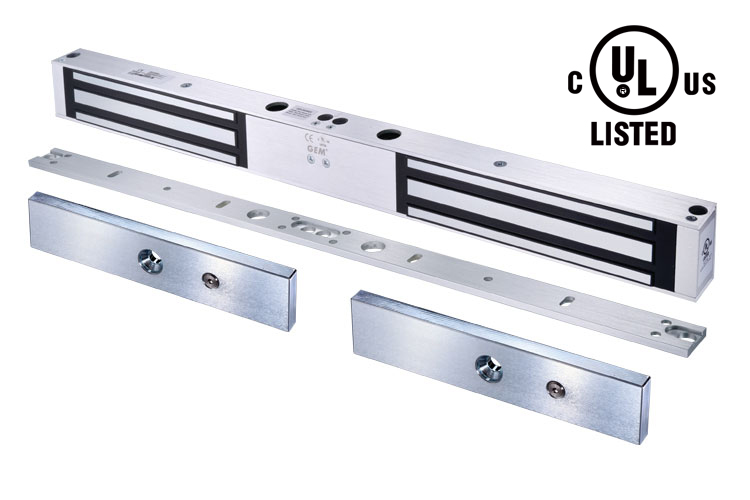

GEM-D600 Electromagnetic Locks

The GEM series electromagnetic locks use a new style mounting plate and patented. The mounting plate is designed with increased thickness for the screw hole at each end to secure the lock body with more stability and strength. The GEM series can be installed on various types of doors or door frames with optional auxiliary mounting brackets.

Specifications

◆ Holding Force: 600lbs x2

◆ Voltage: Auto selectable 12/24VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-GEM-D600, L-GEM-D600AU
- Inswing Door: LZ-GEM-D600, LZ-GEM-D600AU

Standard Features

◆ New style mounting plate with increased immobility (Patented)

◆ Aluminum anodized casing (US28)

◆ MOV prevents spike and surge current

◆ Automatic voltage selection 12/24 VDC

◆ No residual magnetism

Standard Options

◆ M (Bond sensor & Bi-color status LED indicator)

◆ TD (Relock time delay)

◆ DS (Door status sensor)

Patents, Approvals, and Listings

◆ NF S 61-937 Compliant (For unmonitored models)

◆ CE: EC651216

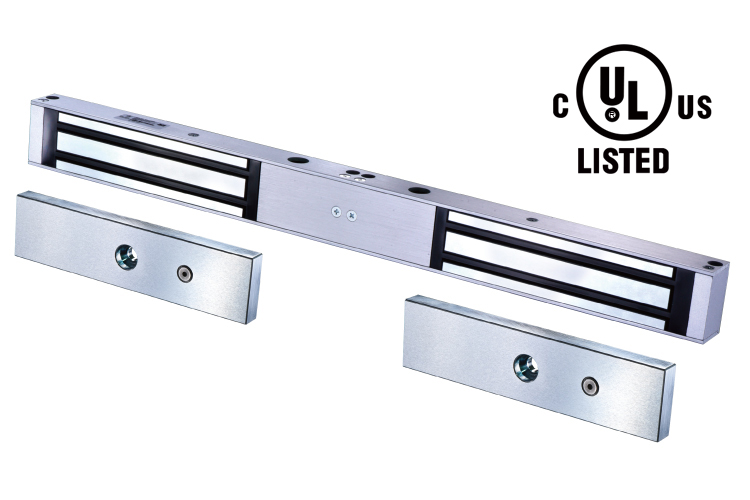

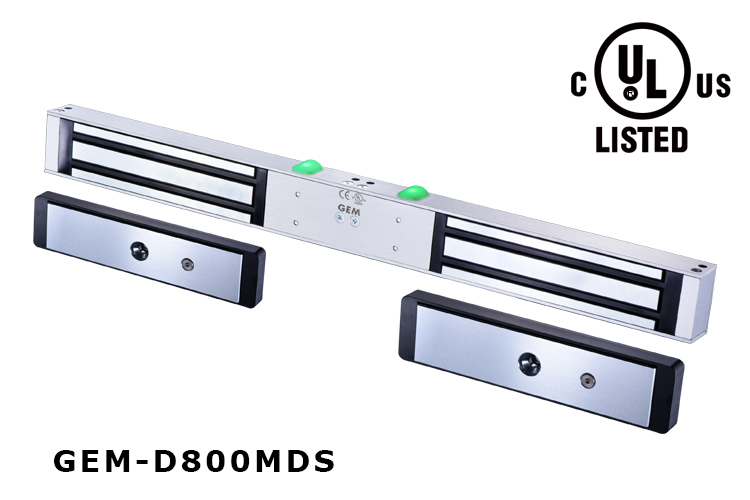

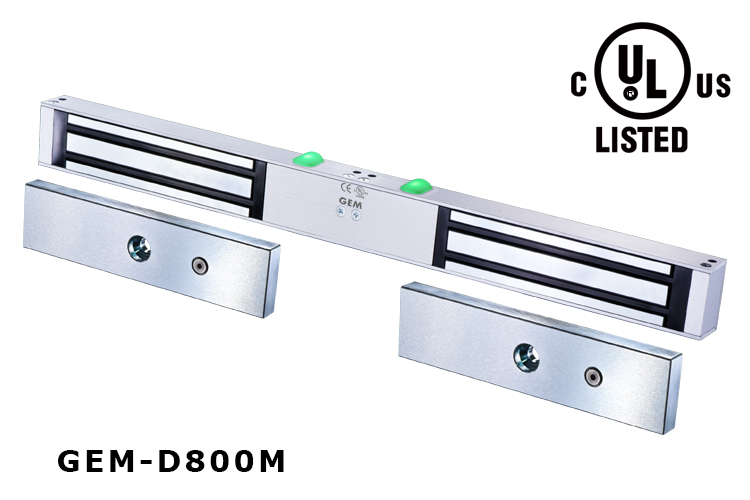

GEM-D800 Electromagnetic Locks

The GEM series electromagnetic locks use a new style mounting plate and patented. The mounting plate is designed with increased thickness for the screw hole at each end to secure the lock body with more stability and strength. The GEM series can be installed on various types of doors or door frames with optional auxiliary mounting brackets.

Specifications

◆ Holding Force: 800lbs x2

◆ Voltage: Auto selectable 12/24VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-GEM-D800, L-GEM-D800AU
- Inswing Door: LZ-GEM-D800, LZ-D800AU

Standard Features

◆ Reversible magent for left or right handed doors (For single magnet, unmonitored models)

◆ New style mounting plate with increased immobility (Patented)

◆ Aluminum anodized casing (US28)

◆ MOV prevents spike and surge current

◆ Automatic voltage selection 12/24 VDC

◆ No residual magnetism

Standard Options

◆M (Bond sensor & Bi-color status LED indicator)

◆TD (Relock time delay)

◆ BZ (Door held open alarm)

Patents, Approvals, and Listings

◆ NF S 61-937 Compliant (For unmonitored models)

◆ CE: EC651216

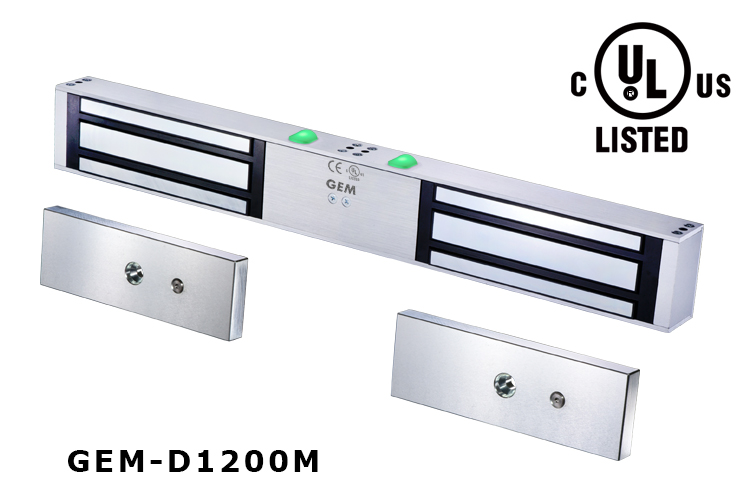

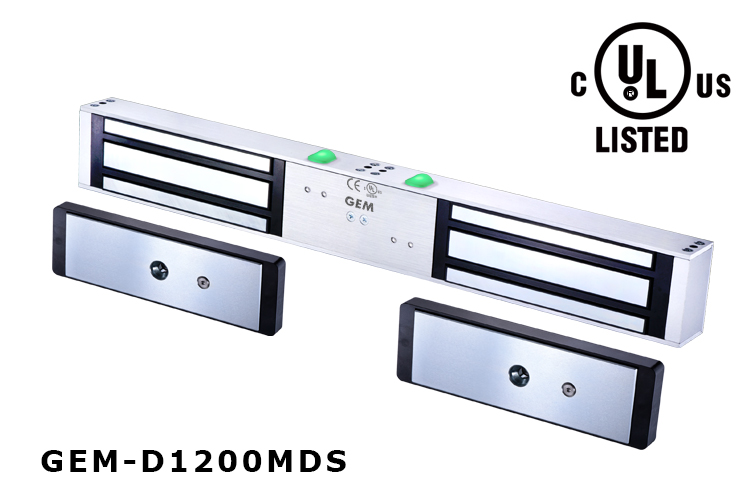

GEM-D1200 Electromagnetic Locks

The GEM series electromagnetic locks use a new style mounting plate and patented. The mounting plate is designed with increased thickness for the screw hole at each end to secure the lock body with more stability and strength. The GEM series can be installed on various types of doors or door frames with optional auxiliary mounting brackets.

Specifications

◆ Holding Force: 1200lbs x2

◆ Voltage: Auto selectable 12/24VDC

◆ Optional Brackets:
- Narrow Frame/Outswing Door: L-GEM-D1200, L-GEM-D1200AU
- Inswing Door: LZ-GEM-D1200, LZ-GEM-D1200AU

◆ New style mounting plate with increased immobility (Patented)

◆ Aluminum anodized casing (US28)

◆ MOV prevents spike and surge current

◆ Automatic voltage selection 12/24 VDC

◆ No residual magnetism

Standard Options

◆M (Bond sensor & Bi-color status LED indicator)

◆TD(Relock time delay)

◆DS(Door status sensor)

◆BZ(Door held open alarm)

Patents, Approvals, and Listings

◆ NF S 61-937 Compliant (For unmonitored models)

◆ CE: EC651216
