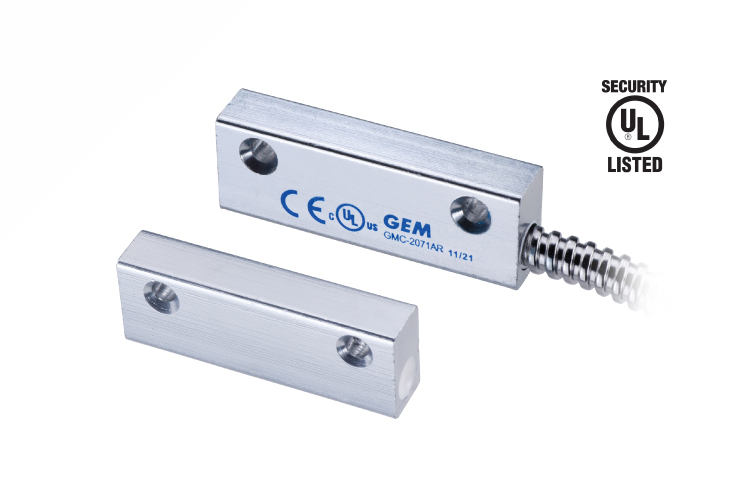

GMC-2071AR Magnetic Contacts

Specifications

◆ Loop Type: Closed
◆ Reed Form: N/O
◆ Closed Gap (mm): 1.5 (38)
◆ Depature Gap (mm): 1.65 (42)
◆ Maximun Initial Contact Resistance (Ohm): 0.150
◆ Maximun Contact Rating (W): 7.5
◆ Maximun Switching Voltage (VDC/VAC): 100
◆ Maximun Switching Current (A): 0.4

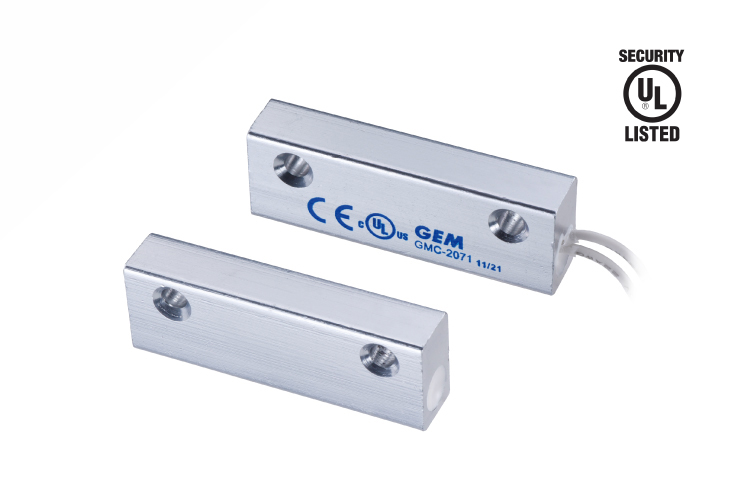

GMC-2071 Magnetic Contacts

Specifications

◆ Loop Type: Closed
◆ Reed Form: N/O
◆ Closed Gap (mm): 1.5 (38)
◆ Depature Gap (mm): 1.65 (42)
◆ Maximun Initial Contact Resistance (Ohm): 0.150
◆ Maximun Contact Rating (W): 7.5
◆ Maximun Switching Voltage (VDC/VAC): 100
◆ Maximun Switching Current (A): 0.4

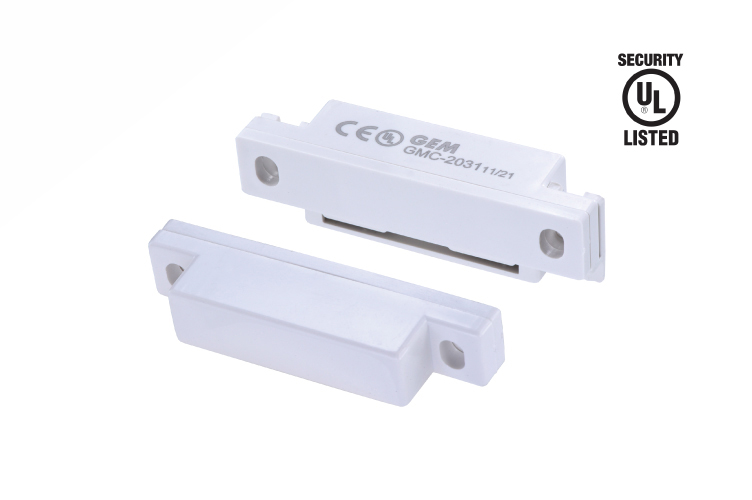

GMC-2031 Magnetic Contacts

Specifications

◆ Loop Type: Closed
◆ Reed Form: N/O
◆ Closed Gap (mm): 1.1 (28)
◆ Depature Gap (mm): 1.3 (33)
◆ Maximun Initial Contact Resistance (Ohm): 0.150
◆ Maximun Contact Rating (W): 10
◆ Maximun Switching Voltage (VDC/VAC): 100
◆ Maximun Switching Current (A): 0.5

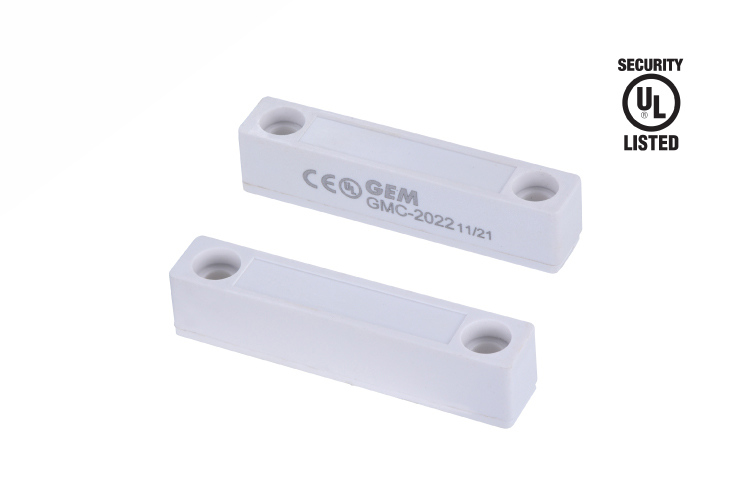

GMC-2022 Magnetic Contacts

Specifications

◆ Loop Type: Closed
◆ Reed Form: N/O
◆ Closed Gap (mm): 1.18 (30)
◆ Depature Gap (mm): 1.3 (33)
◆ Maximun Initial Contact Resistance (Ohm): 0.150
◆ Maximun Contact Rating (W): 10
◆ Maximun Switching Voltage (VDC/VAC): 100
◆ Maximun Switching Current (A): 0.5

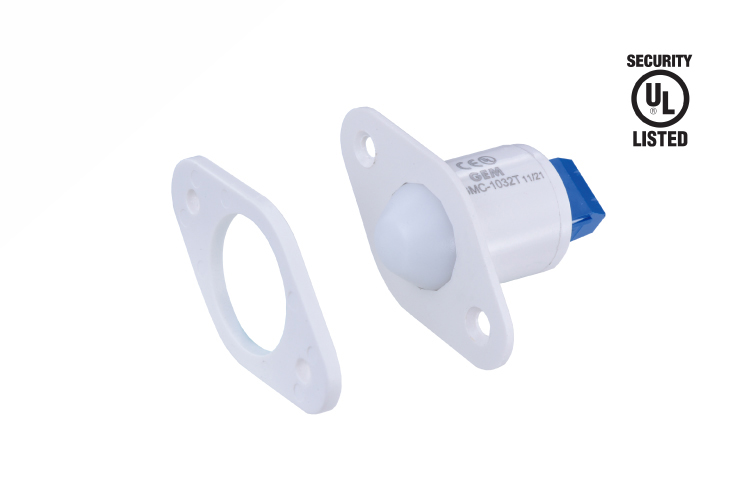

GMC-1032T Magnetic Contacts

Specifications

◆ Loop Type: Closed
◆ Reed Form: N/O
◆ Gap (total travel) (mm): 1/4 (6)
◆ Maximun Initial Contact Resistance (Ohm): 0.150
◆ Maximun Contact Rating (W): 10
◆ Maximun Switching Voltage (VDC/VAC): 100
◆ Maximun Switching Current (A): 0.5

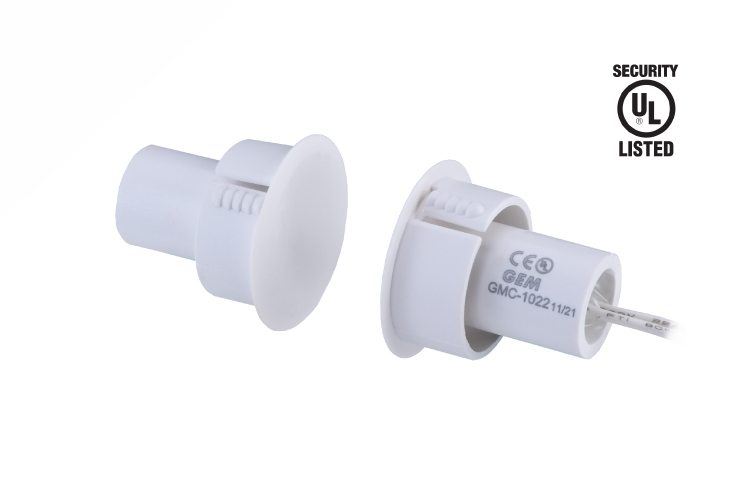

GMC-1021 / GMC-1022 Magnetic Contacts

Specifications

◆ Loop Type: Closed
◆ Reed Form: N/O
◆ Closed Gap (mm):
- GMC-1021: 3/4 (19)
- GMC-1022: 0.85 (22)
◆ Depature Gap (mm): 0.95 (24)
◆ Maximun Initial Contact Resistance (Ohm): 0.150
◆ Maximun Contact Rating (W): 7.5
◆ Maximun Switching Voltage (VDC/VAC): 100
◆ Maximun Switching Current (A): 0.4

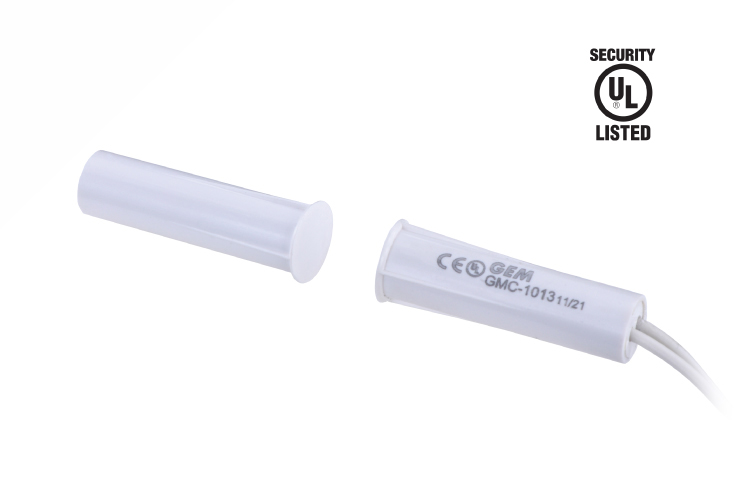

GMC-1013 Magnetic Contacts

Specifications

◆ Loop Type: Closed
◆ Reed Form: N/O
◆ Closed Gap (mm): 1 (25)
◆ Depature Gap (mm): 1.1 (28)
◆ Maximun Initial Contact Resistance (Ohm): 0.150
◆ Maximun Contact Rating (W): 10
◆ Maximun Switching Voltage (VDC/VAC): 100
◆ Maximun Switching Current (A): 0.5

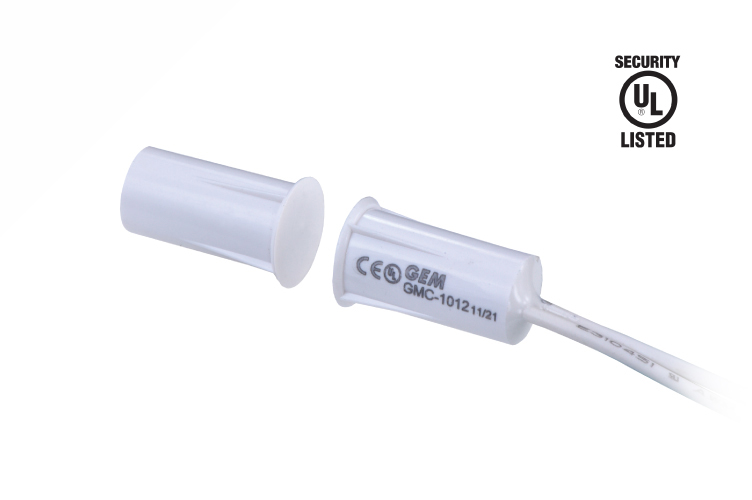

GMC-1012 Magnetic Contacts

Specifications

◆ Loop Type: Closed
◆ Reed Form: N/O
◆ Closed Gap (mm): 3/4 (19)
◆ Depature Gap (mm): 0.8 (20)
◆ Maximun Initial Contact Resistance (Ohm): 0.150
◆ Maximun Contact Rating (W): 10
◆ Maximun Switching Voltage (VDC/VAC): 100
◆ Maximun Switching Current (A): 0.5
