GK1276/96 Series
Accessory
P-LG-GK1296-3
Standard Features
◆ Add spacers in order to fit rim strike keepers with exit device latch bolt
◆ Spacer thickness : 3 mm

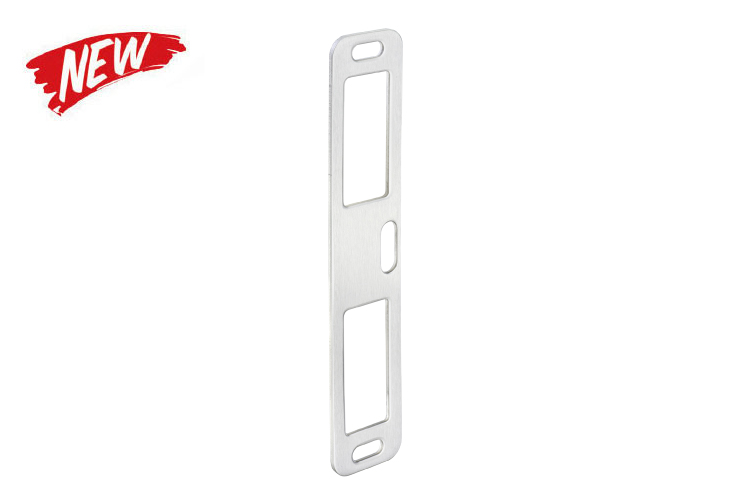

P-LG-GK1296-1
Standard Features
◆ Add spacers in order to fit rim strike keepers with exit device latch bolt
◆ Spacer thickness : 1 mm

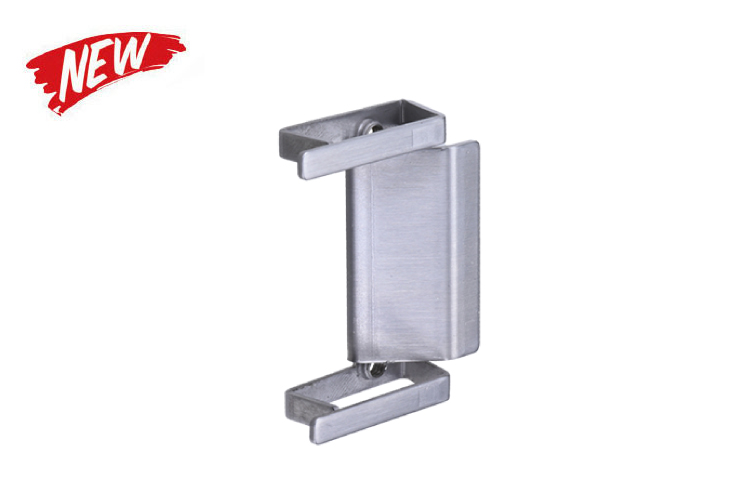

P-MS-LA-GK1296-1 Dead latch Ramp Adapter
Standard Features
◆ For use with ANSI standard panic exit device with a deadlatch above or below the bolt.
◆ Only compatible with non-latch-monitor GK1296

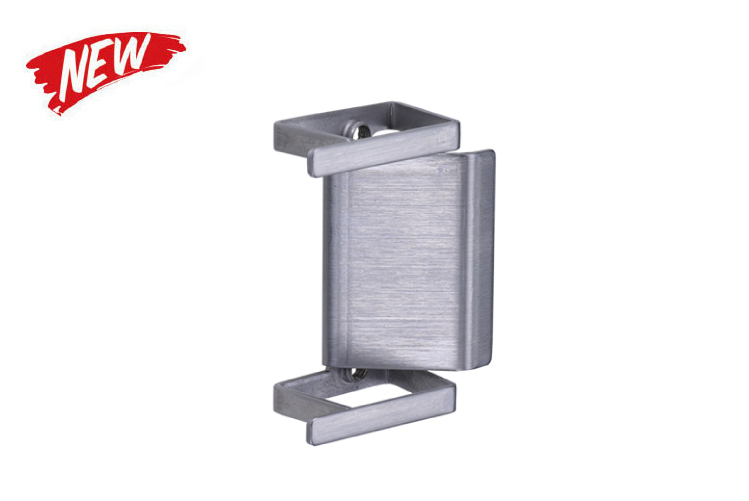

P-MS-LA-GK1276-1 Dead latch Ramp Adapter
Standard Features
◆ For use with ANSI standard panic exit device with a deadlatch above or below the bolt.
◆ Only compatible with non-latch-monitor GK1276

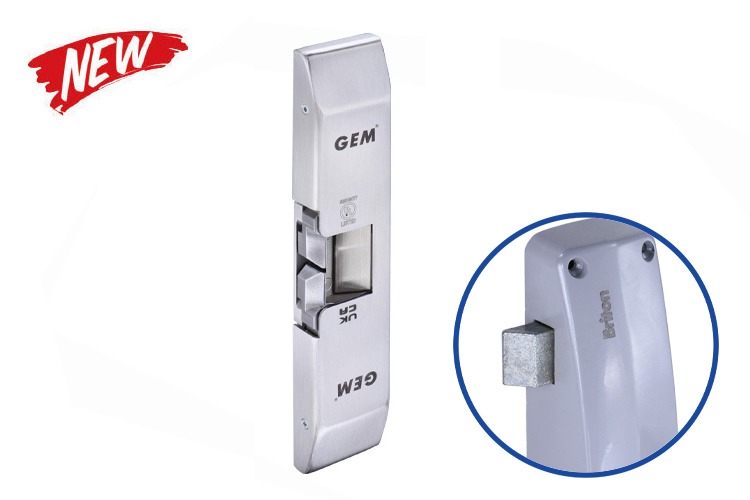

GK1279 Electric Rim Strikes
GK1279 series surface mount electric rim strikes are suitable for indoor applications and are designed specifically for emergency exit latch or push pad. The body construction is stainless steel and is field selectable for fail-safe or fail-secure operation.
Standard Features
◆ Static strength 1,500 lbs (680Kg)
◆ Dynamic strength 70 ft-lbs
◆ Field selectable 12/24VDC
◆ Field reversible fail-secure or fail-safe
◆ Endurance rating 250,000 cycles factory tested
◆ Brushed stainless steel finish (US32D)
◆ Latch monitor (For model with suffix M)
Specification
◆ Operating Voltage: 12/24VDC
◆ Current Draw: 540mA/12VDC, 270mA/24VDC
◆ Operating Temperature: 14°F to 120°F (-10°C~+49°C)
◆ Humidity: 0~85% non-condensing
◆ Housing Thickness: 3/4" (19mm)
◆ Field Reversible Fail-Safe or Fail-secure
◆ Current Draw: 540mA/12VDC, 270mA/24VDC
◆ Operating Temperature: 14°F to 120°F (-10°C~+49°C)
◆ Humidity: 0~85% non-condensing
◆ Housing Thickness: 3/4" (19mm)
◆ Field Reversible Fail-Safe or Fail-secure

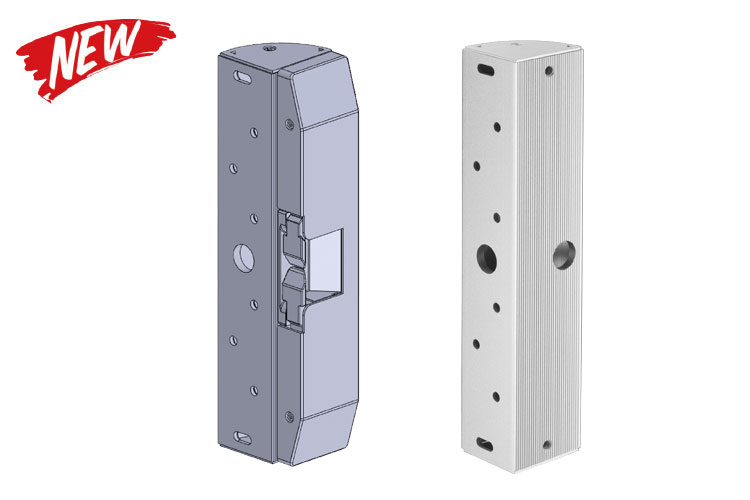

SMB-GK1276 Surface Mount Box
Standard Features
◆ For use with GK1276(M) / GK1296(M) on double leaf door
