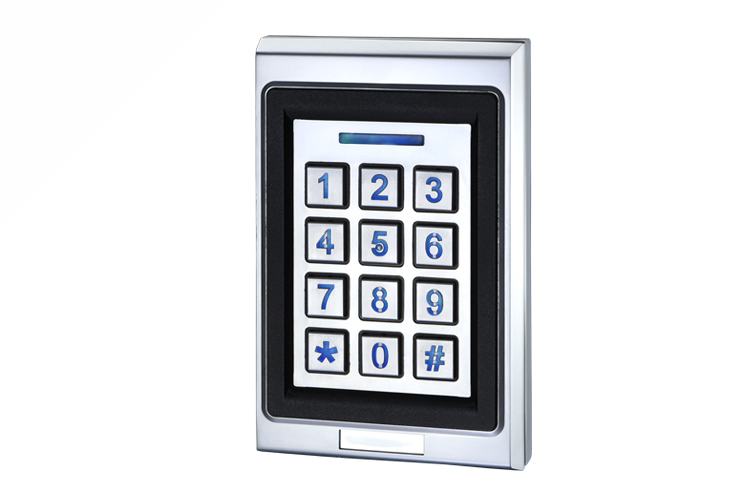

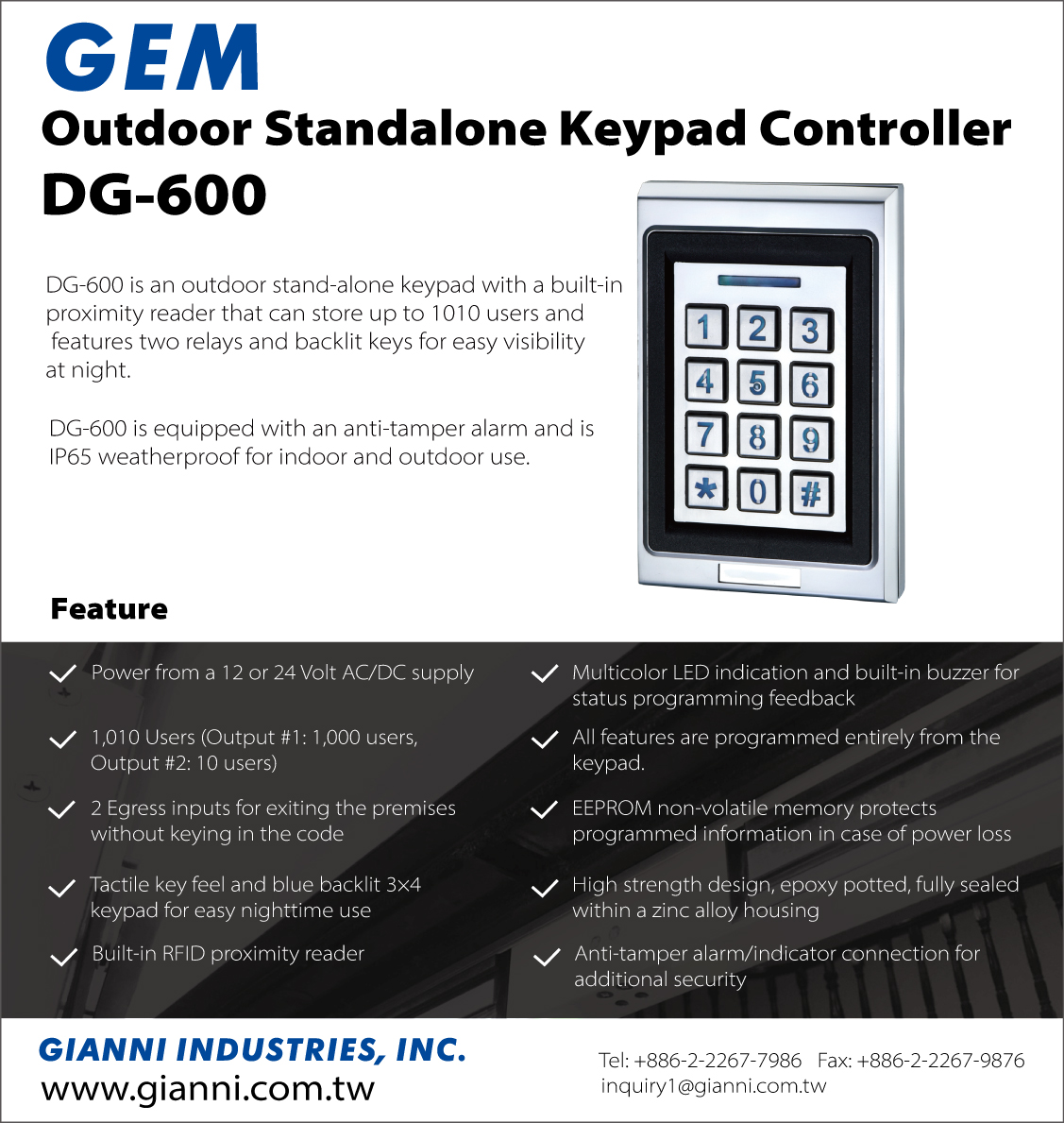

DG-600 Outdoor Stand-Alone Keypad Controller
Standard Features
◆ Accept power from a 12 or 24 Volt AC/DC supply
◆ Up to 1,000 user codes (000~999) programmable for Output #1 and 10 (00~09) for Output #2
◆ 2 Form C Relays, each rated 1A@30VDC
◆ Each relay has programmable output time from 1~99 seconds or toggle
◆ Output #2 can be programmed for use with a door bell
◆ 2 Egress inputs for exiting the premises without keying in the code
◆ All features are programmed entirely from the keypad.
◆ Non-volatile EEPROM protects codes and instructions in case of power loss
◆ High strength design, epoxy potted, fully sealed within a zinc alloy housing
◆ Built-in RFID proximity reader
Specifications
◆ Operating Voltage: 12~24 VAC/VDC, 12 or 24VDC
◆ Current draw:
- Holding: 17mA/12VDC, 12mA/24VDC
- Keypad light on: 45mA/12VDC, 27mA/24VDC
- 1 Relay active: 90mA/12VDC, 110mA/24VDC
◆ Proximity Reader Frequency: 125KHZ
◆ Product Dimension: 123 (L) x 79 (W) x 23 (D) mm
◆ Finish: Zinc Alloy
◆ IP Rating: IP65

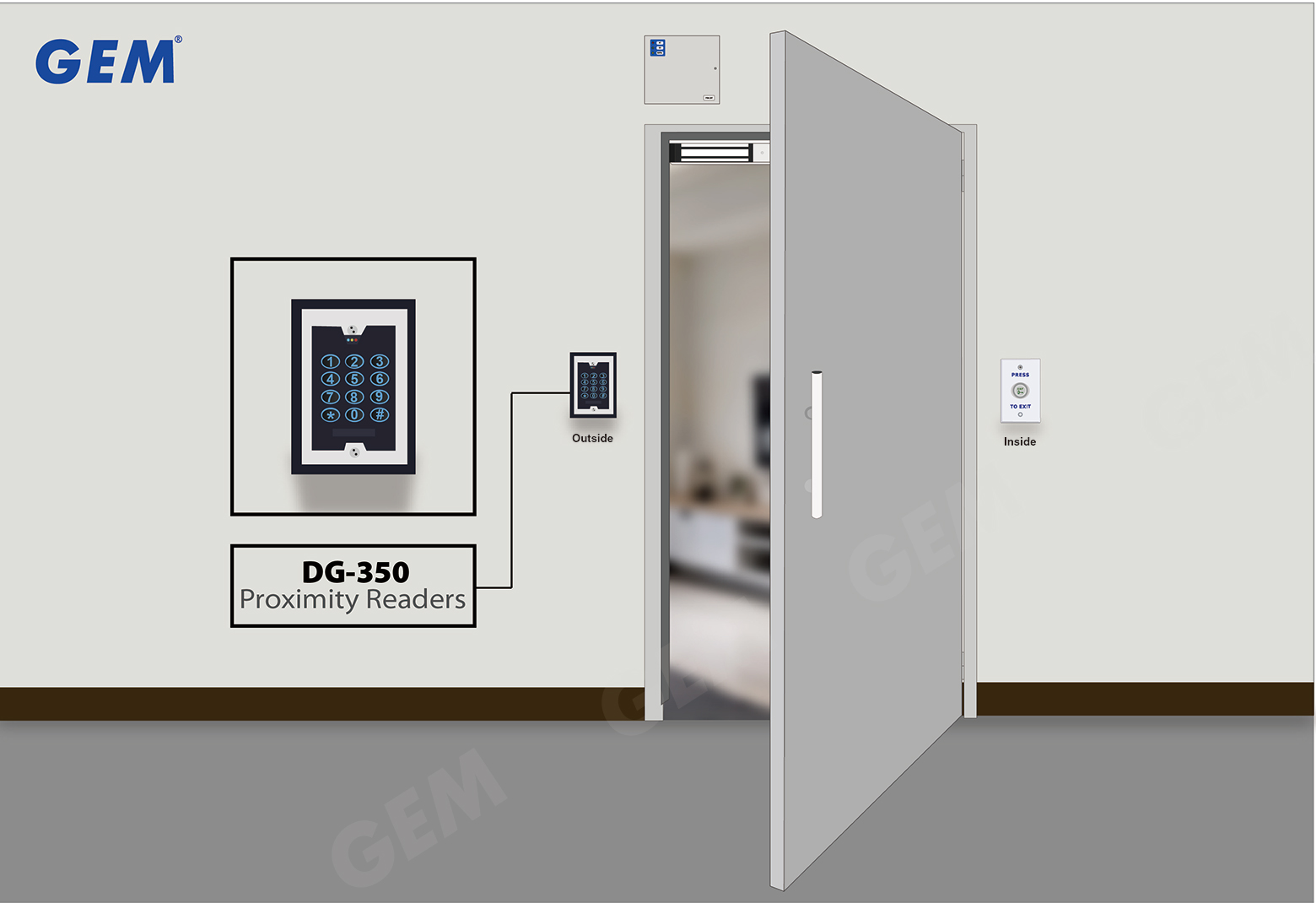

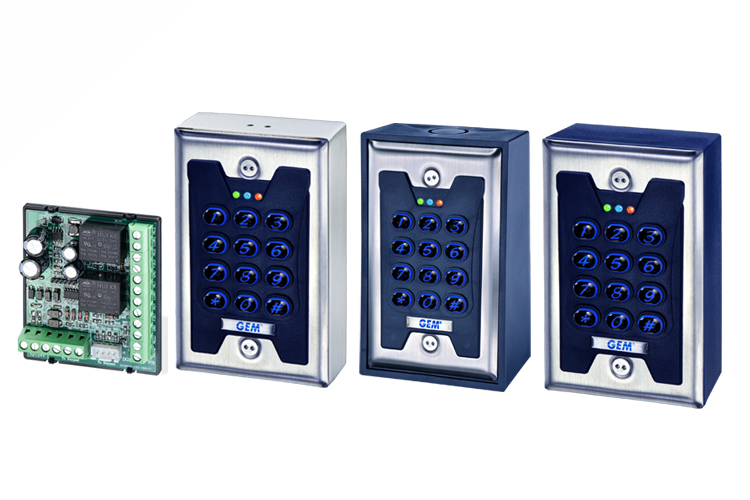

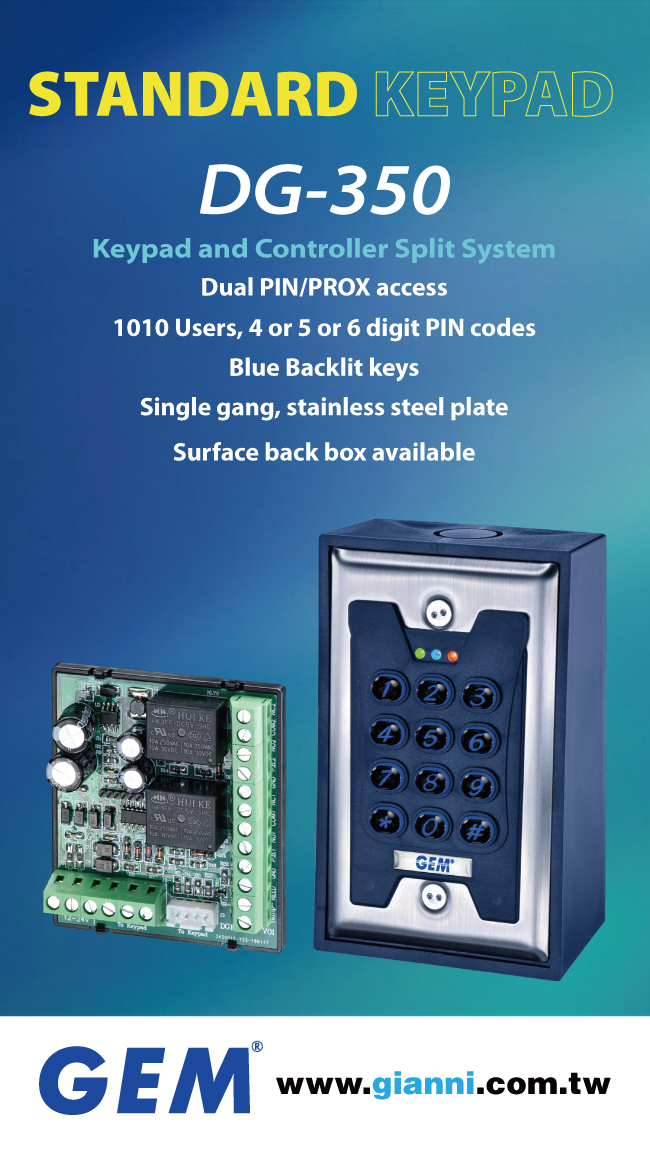

DG-350 Proximity Keypad
Standard Features
◆ Two piece configuration: Controller separated from keypad helps prevent unauthorized access to the electronics of keypad
◆ Backlit keypad for better visibility and operation in the dark
◆ Multicolor LED indication and built-in buzzer for status programming feedback
◆ EEPROM non-volatile memory protects programmed information in case of power loss
◆ Programmable doorbell output
◆ 3 Access Modes: Card only, Card or Code, Card with Code
◆ Door sensor input for anti-tailgating operation to ensure higher security access control
◆ Dual relays to control door lock and other security devices
◆ External tamper alarm/indicator connection for additional security
Specifications
◆ Voltage 12 to 24 VAC/DC
◆ Current draw:
- Pull In: 95mA/12VDC, 50mA/24VDC
- Holding: 39mA/12VDC, 25mA/24VDC
◆ PROX Cards/Tokens: 1000 + 10
◆ PIN Code Digits: 4 to 6
◆ Reader Frequency: 125 KHz
◆ Reader Range: 1.2"(3 cm)
◆ Inputs: 2 REX inputs, 1 Door sensor input, 1 Tamper input
◆ Outputs: 2 Relays(NC/COM/NO) 10A/30VDC
◆ Description: Surface back box, Stainless steel plate, Plastic keys

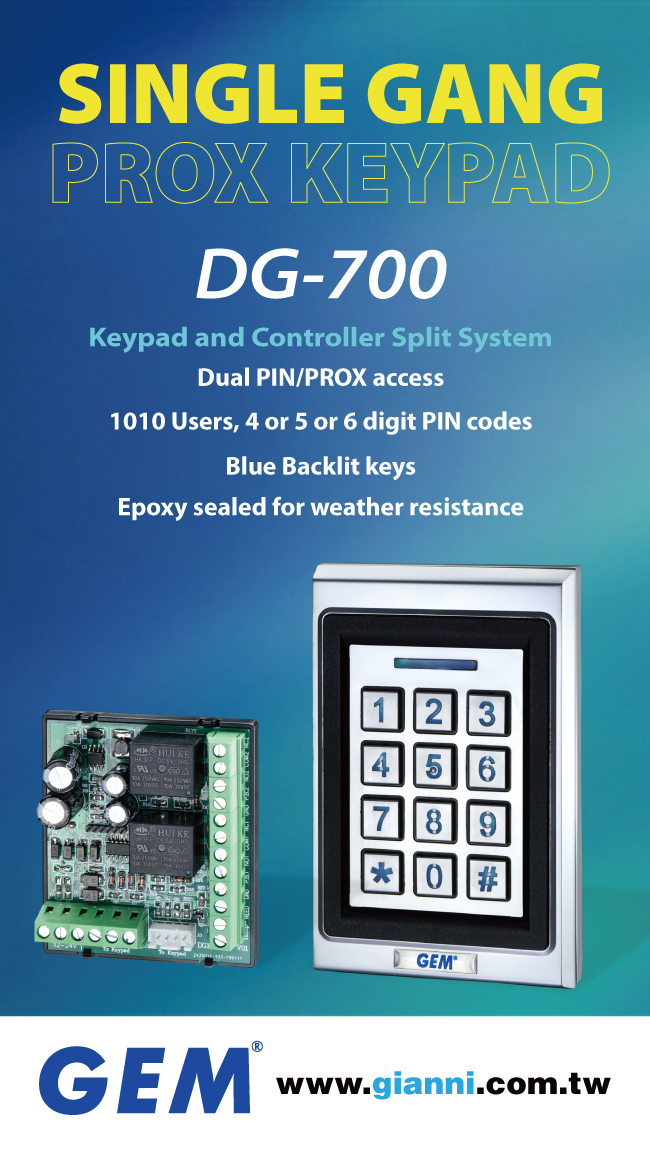

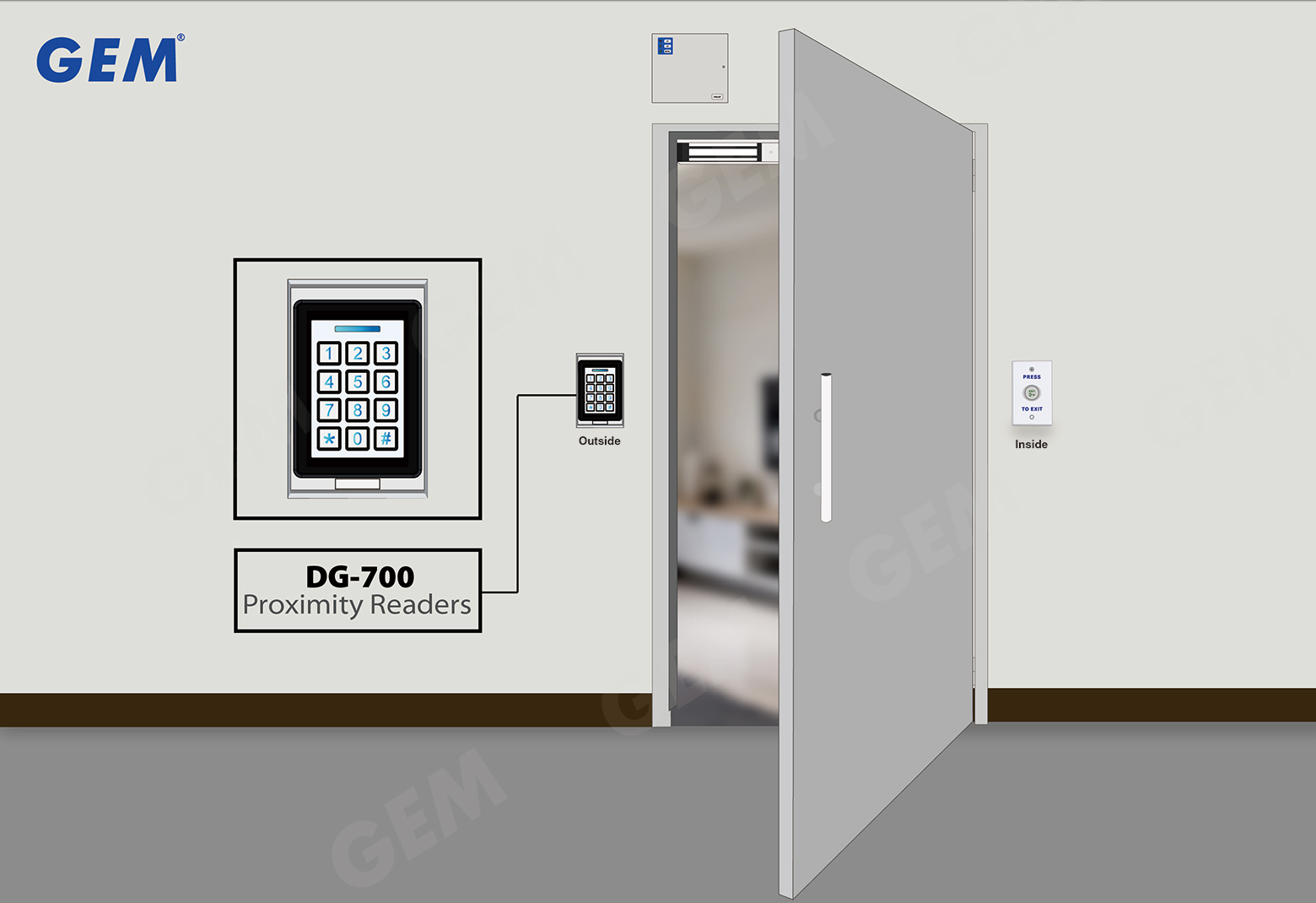

DG-700 Proximity Keypad
Standard Features
◆ Two piece configuration: Controller separated from keypad helps prevent unauthorized access to the electronics of keypad
◆ Backlit keypad for better visibility and operation in the dark
◆ Multicolor LED indication and built-in buzzer for status programming feedback
◆ EEPROM non-volatile memory protects programmed information in case of power loss
◆ Programmable doorbell output
◆ 3 Access Modes: Card only, Card or Code, Card with Code
◆ Door sensor input for anti-tailgating operation to ensure higher security access control
◆ Indoor/Outdoor application - Epoxy-sealed, weather-resistant housing
◆ Dual relays to control door lock and other security devices
◆ External tamper alarm/indicator connection for additional security
Specifications
◆ Voltage 12 to 24 VAC/DC
◆ Current draw:
- Pull In: 103mA/12VDC, 56mA/24VDC
- Holding: 50mA/12VDC, 30mA/24VDC
◆ PROX Cards/Tokens: 1000 + 10
◆ PIN Code Digits: 4 to 6
◆ Reader Frequency: 125 KHz
◆ Reader Range: 1.2"(3 cm)
◆ Inputs: 2 REX inputs, 1 Door sensor input, 1 Tamper input
◆ Outputs: 2 Relays(NC/COM/NO) 10A/30VDC
◆ Description: Chrome/Gold plated zinc alloy housing

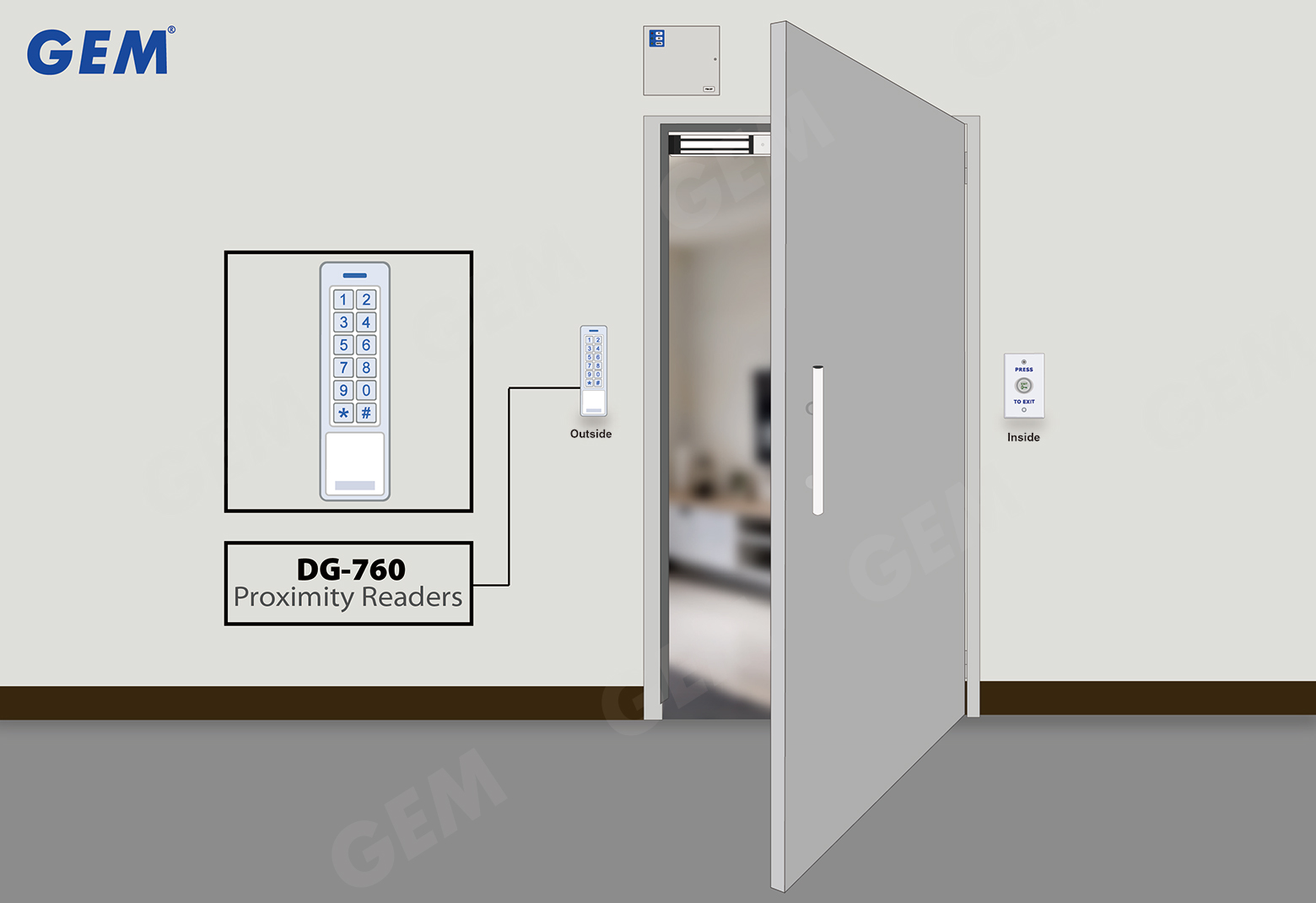

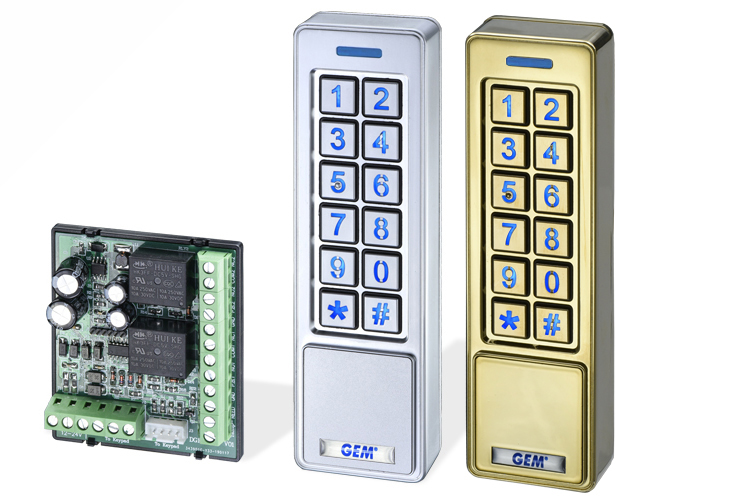

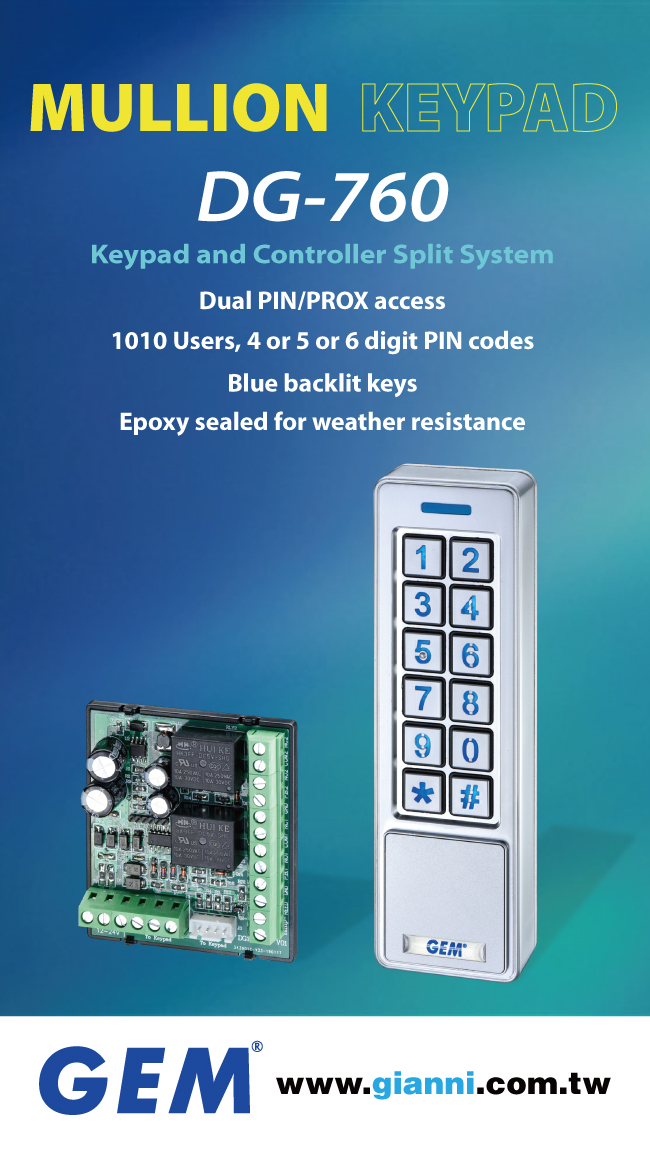

DG-760 Proximity Keypad
Standard Features
◆ Two piece configuration: Controller separated from keypad helps prevent unauthorized access to the electronics of keypad
◆ Backlit keypad for better visibility and operation in the dark
◆ Multicolor LED indication and built-in buzzer for status programming feedback
◆ EEPROM non-volatile memory protects programmed information in case of power loss
◆ Programmable doorbell output
◆ 3 Access Modes: Card only, Card or Code, Card with Code
◆ Door sensor input for anti-tailgating operation to ensure higher security access control
◆ Indoor/Outdoor application - Epoxy-sealed, weather-resistant housing
◆ Dual relays to control door lock and other security devices
◆ External tamper alarm/indicator connection for additional security
Specifications
◆ Voltage 12 to 24 VAC/DC
◆ Current draw:
- Pull In: 95mA/12VDC, 50mA/24VDC
- Holding: 50mA/12VDC, 30mA/24VDC
◆ PROX Cards/Tokens: 1000 + 10
◆ PIN Code Digits: 4 to 6
◆ Reader Frequency: 125 KHz
◆ Reader Range: 1.2"(3 cm)
◆ Inputs: 2 REX inputs, 1 Door sensor input, 1 Tamper input
◆ Outputs: 2 Relays(NC/COM/NO) 10A/30VDC
◆ Description: Chrome plated zinc alloy housing

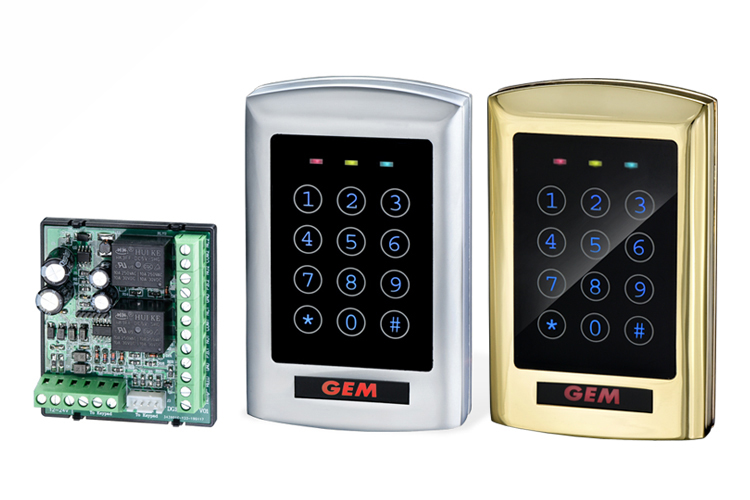

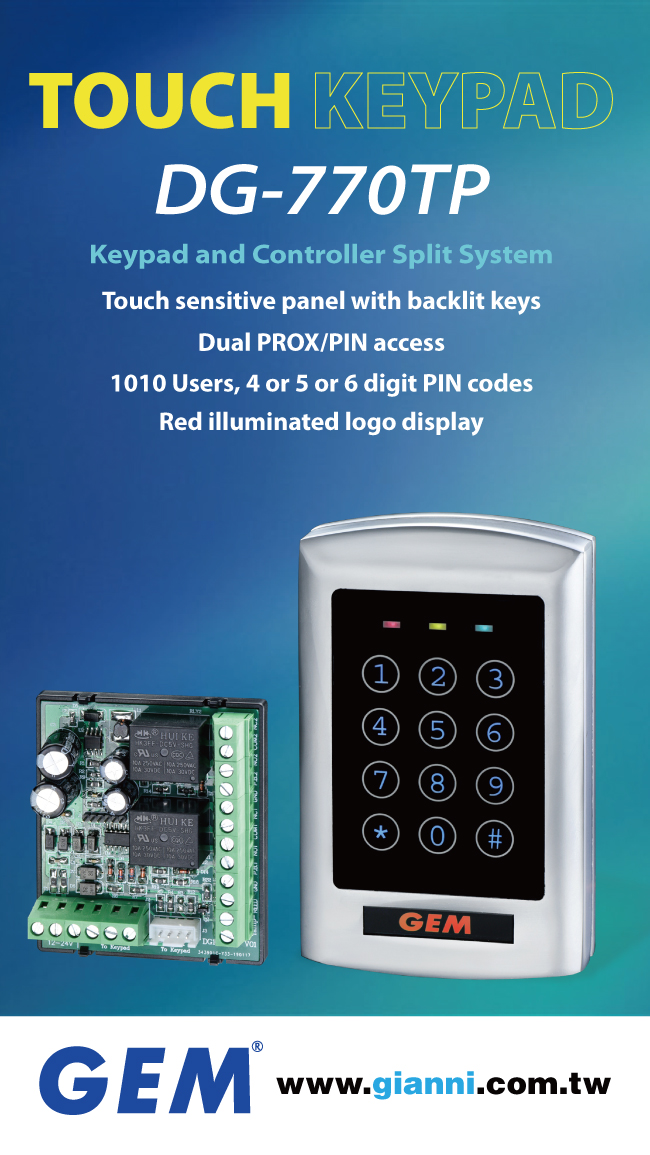

DG-770TP Proximity Keypad
Standard Features
◆ Two piece configuration: Controller separated from keypad helps prevent unauthorized access to the electronics of keypad
◆ Backlit keypad for better visibility and operation in the dark
◆ Multicolor LED indication and built-in buzzer for status programming feedback
◆ EEPROM non-volatile memory protects programmed information in case of power loss
◆ Programmable doorbell output
◆ 3 Access Modes: Card only, Card or Code, Card with Code
◆ Door sensor input for anti-tailgating operation to ensure higher security access control
◆ Indoor/Outdoor application - Epoxy-sealed, weather-resistant housing
◆ Dual relays to control door lock and other security devices
◆ External tamper alarm/indicator connection for additional security
Specifications
◆ Voltage 12 to 24 VAC/DC
◆ Current draw:
- Pull In: 95mA/12VDC, 50mA/24VDC
- Holding: 27mA/12VDC, 18mA/24VDC
◆ PROX Cards/Tokens: 1000 + 10
◆ PIN Code Digits: 4 to 6
◆ Reader Frequency: 125 KHz
◆ Reader Range: 1.2"(3 cm)
◆ Inputs: 2 REX inputs, 1 Door sensor input, 1 Tamper input
◆ Outputs: 2 Relays (NC/COM/NO) 10A/30VDC
◆ Description: Chrome plated zinc alloy front trim

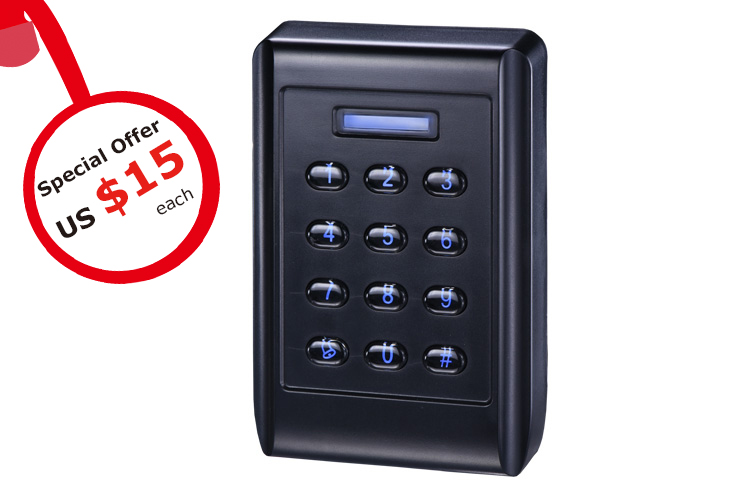

DG-300 Proximity Keypad
Standard Features
◆ Backlit keys for better visibility and operation in the dark
◆ 3 Access modes: Card only, Card or Card, and Card with Code
◆ Multi-colored LED and built-in buzzer for status programming feedback
◆ Door sensor input for anti-tailgating operation to ensure higher security access control
◆ Logical memory prevents duplicated card setting
◆ Dual relays to control door lock and other security devices
◆ Keypad tamper lockout
◆ Non-volatile memory protects programmed information in case of power loss
◆ Built-in tamper switch
Specifications
◆ Voltage 12 to 24VAC/DC
◆ Current draw: 90mA Pull-in, 70mA Holding at 12VDC; 60mA Pull-in, 50mA Holding at 24VDC
◆ PROX Cards/Tokens: 1000 + 10
◆ PIN Code Digits: 4 digits
◆ Inputs: 2 REX inputs 1 Door sensor input
◆ Outputs: 2 Relays (NC/COM/NO) 1A/30VDC,0.5A/125VAC
◆ Reader Frequency: 125KHz
◆ Reader Range: 10 cm
◆ Reader Housing: Plastic ABS
