10000 Electromagnetic Lock

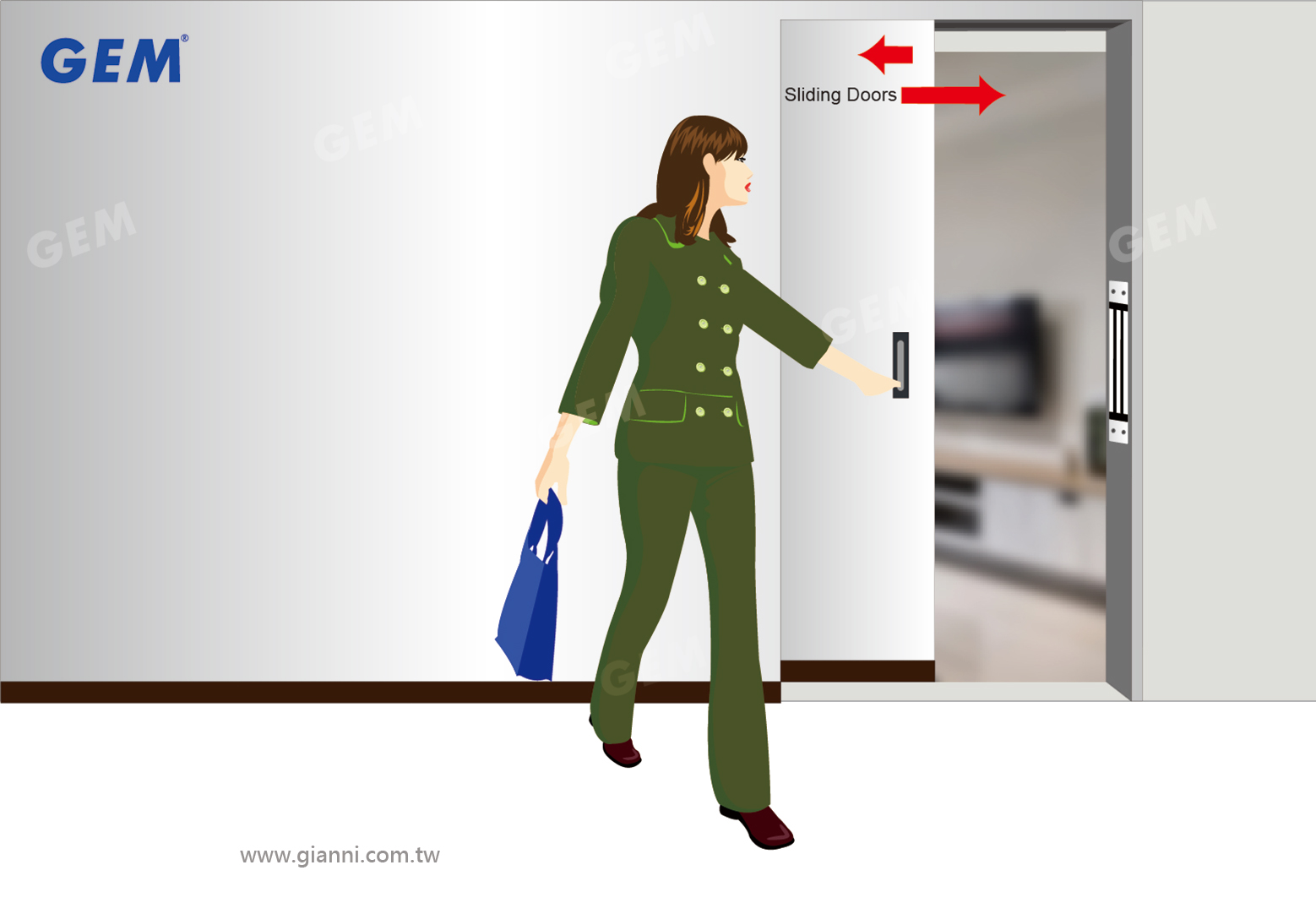

The Mortise series electromagnetic lock is mortise mounted and designed for securing

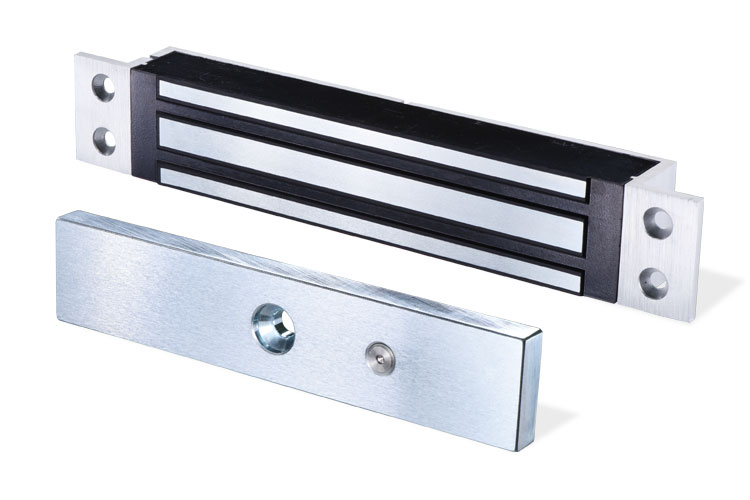

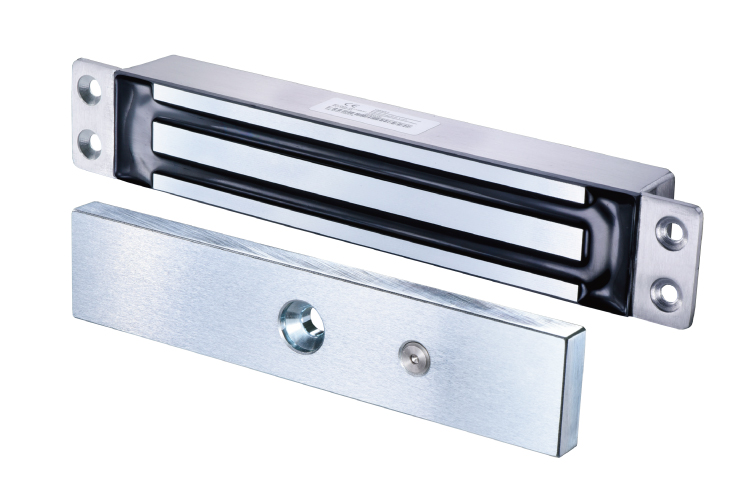

sliding doors. The 10000 and 10000ST mini locks are specially designed with up to 600
lbs holding force. The 10003M micro lock provides 300 lbs holding force and has a stainless
steel housing for weatherproof protection.
Specification
◆ Holding Force: 600lbs
◆ Voltage: Dual 12/24 VDC
◆ Housing Finish: Aluminum anodized (US28)
◆ Optional Bracket: AMB-300
Standard Features
◆ Mortise mounted, suitable for sliding doors
◆ Low energy consumption
◆ MOV prevents spike and surge current
◆ Armature kick-off device ensures no residual magnetism
Standard Options
◆ Built-in bond sensor
Patents, Approvals, and Listings
◆ CE: EC651213
