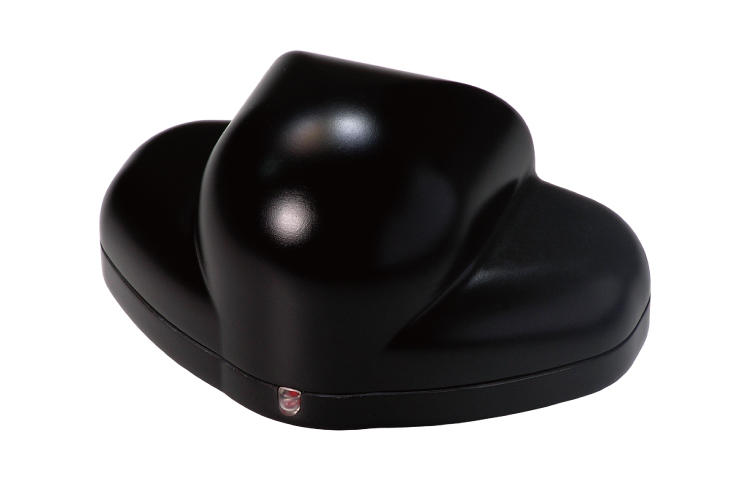

MCS-HR50
Microwave Sensor Switch

Features

◆ Wide detection area 4m (W) x 3m (D) x 2.2m (H)

◆ Easy installation

◆ Detection area and sensitivity adjustable

◆ External LED indicator

Specifications

◆ Detection Method: K-Band 24.125Ghz - Microwave Motion Detection

◆ Installation Height: Max 4.0m (13.1ft)

◆ Sensor Dimensions: 120mm x 70mm x 41.5mm (W x L x H)

◆ Pattern Adjustment:

Width Adjustment
Antenna Adjustment left/right 0°- 30° in each direction, Sensitivity Adjustment (Potentiometer)

Depth Adjustment
Antenna adjustment up/down 0°- 90° in 6° steps, Sensitivity Adjustment (Potentiometer)

◆ Protection Rating: IP54

◆ Operating Voltage: 12 to 30V DC, 12 to 24V AC

◆ Power Consumption: 40mA (DC24V)

◆ Relay Output: 1 C Type Relay (One Switching Contact)

◆ Relay Hold Time: 1.2 sec

◆ LED Indication:

Power On = Green
Detecting = Red
Initialization after power on = Green/Red Flashing

◆ Weight: 91g (net)

◆ Detecting Field 4m (W) x 3m (D) x 2.2m (H)
