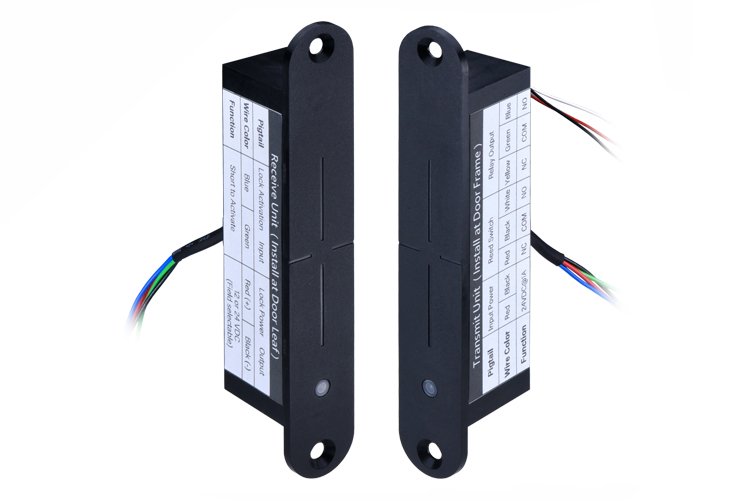

WLP-100 Wireless Power Transfer

The WLP-100 adopts inductive coupling through an advanced infrared technology to transfer power wirelessly across the door gap to power electrified locks. Installation is made simple and less time consuming.

Standard Features

◆ No need to core drill the door, no worries about broken wires

◆ Door status output

◆ Transfers lock status monitoring

◆ Field selectable 12/24 VDC output

◆ Use with fail-secure electrified locks/latches (Provides up to 30 seconds of sustained power for intermittent duty)

◆ Flexible mounting position

◆ Infrared signal light

◆ For wood and metal doors (extension mounting tabs included for metal door installation)

Specifications

◆ Input Power (Frame Side) 1A/27.6VDC

◆ Output Power (Door Side) 12VDC@800mA，24VDC@400mA (Field selectable)

◆ Maximum Door Gap 3/16”(4~5mm)

◆ Maximum Tolerance with 3/16" (4~5mm) Door Gap
- Horizontal : 1/16" (1mm), 1 mm for IR sensing
- Vertical : 1/16" (1mm), 1 mm for IR sensing
