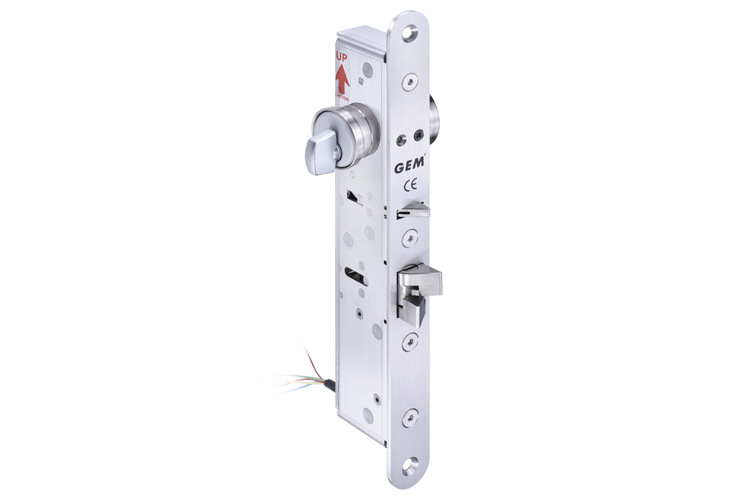

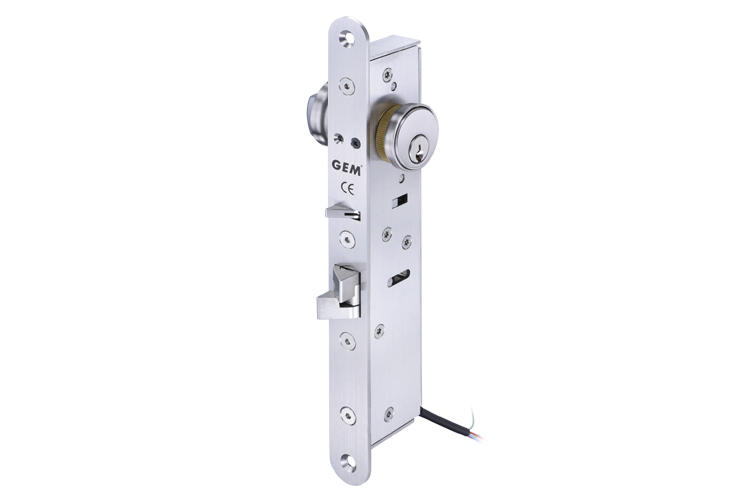

ML-805M Electro-Mechanical Lock

The ML-805M electric lock is a high performance lock designed for single action swing doors. Featuring a double action latchbolt and left/right side adjustable deadlatch tip, the ML-805M allows deadlocking automatically when the door is closed to be secured for ease of use and convenience. The ML-805M can be controlled by card readers/keypads and connected to automatic swing door operators for an integraed access control solution.

Specification

◆ Operating Voltage: 12~24VAC/DC

◆ Current Draw: 250mA/12VDC; 150mA/24VDC

◆ Lock Status Output: 3A/125VAC

◆ Endurance Rating: 250,000 cycles (Factory tested)

◆ Backset: 25 mm

Standard Features

◆ For single action swing doors (applicable to double action doors)

◆ For narrow frames

◆ Non-handed (Double action latchbolt and deadlatch direction auto changeable )

◆ Brushed stainless steel construction

◆ Fail-safe /Fail-secure reversible

◆ Lock monitor

◆ Cylinder included
