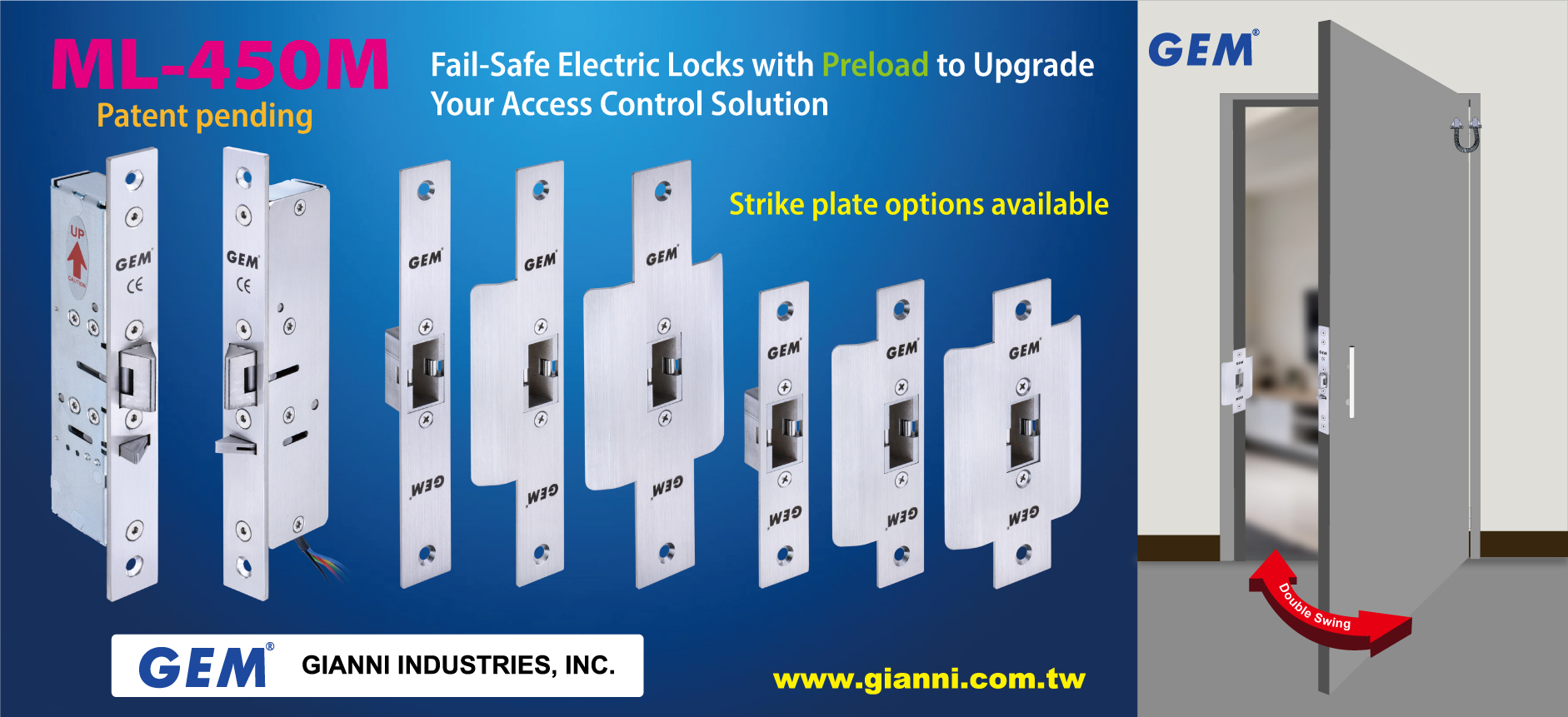

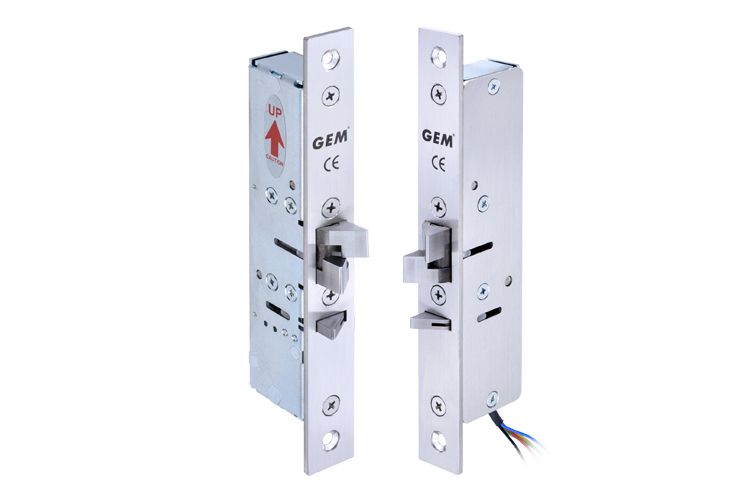

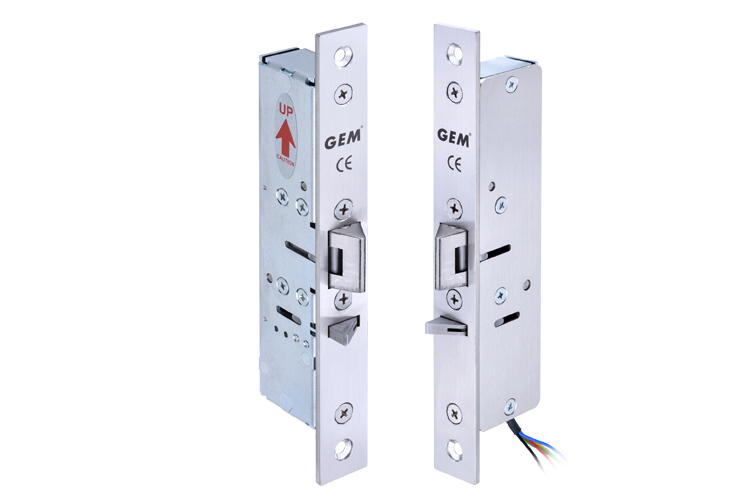

ML-450M Electric Lock

The ML-400/450 series electric locks are high performance locks for single/double action swing doors and designed for installation on any type of door and frame. They offer different types of double action latchbolts, allowing deadlocking automatically when the door is closed to be secured for ease of use and convenience.

Preload

The ML-450M series features stainless steel construction and is designed with a high preload release capability of up to 500 lbs of preload which allows smooth operation under varying loads on the doors and overcomes door preload problems, such as air-conditioning pressure, warped doors, or heavy weather stripping seals.

Specification

◆ Tested and rated 3Y500G101 for EN14846:2008

◆ Operating Voltage: 12~24VAC/DC

◆ Current Draw: 280mA/12VDC; 180mA/24VDC

◆ Latch Status Output Contact Rating: 1A/125VAC

◆ Endurance Rating: 250,000 cycles (Factory tested)

◆ Static Strength: 1,500 lbs

◆ Preload: 500 lbs of pressure strength

Standard Features

◆ For single/double action swing doors

◆ For narrow frames (25 mm wide faceplate)

◆ Brushed stainless steel construction

◆ Fail-safe operation

◆ Horizontal/Vertical installation

◆ Door/Latch monitor

◆ For mortise, surface, or glass mounting

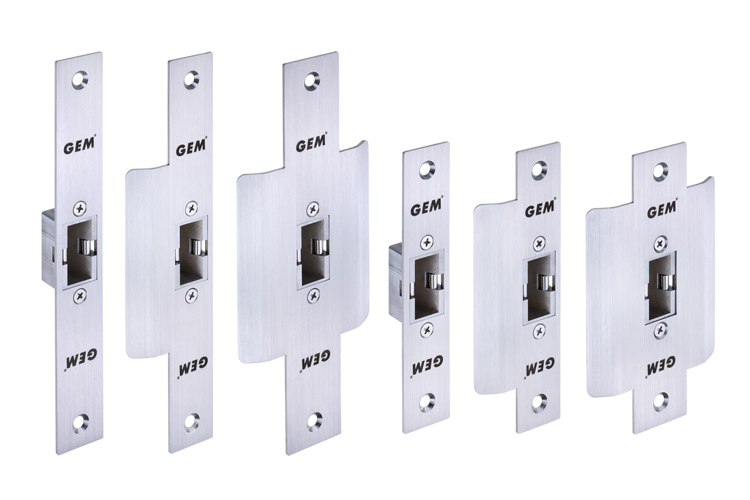

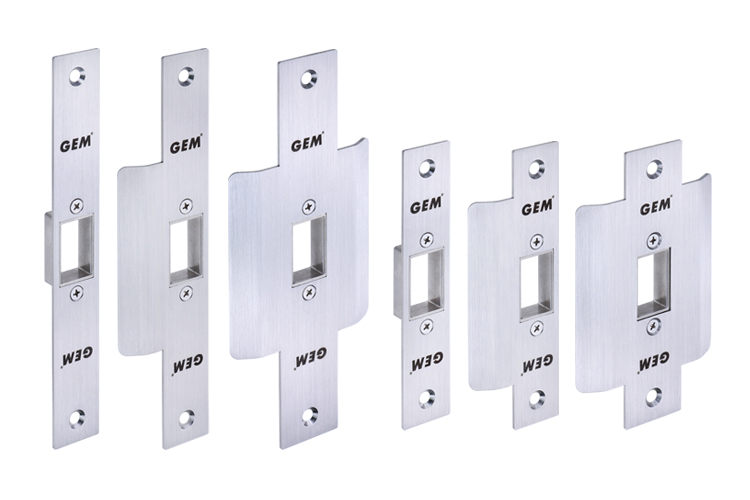

◆ 6 strike plate options available (For mortise mount models)

ML-400/450 Series Models

◆ ML-400M/450M: Mortise mount

◆ ML-400MSMB/450MSMB: Surface mount

◆ ML-400MVGL/450MVGL: Surface mount (for frameless glass doors & walls)

Patents, Approvals, and Listings

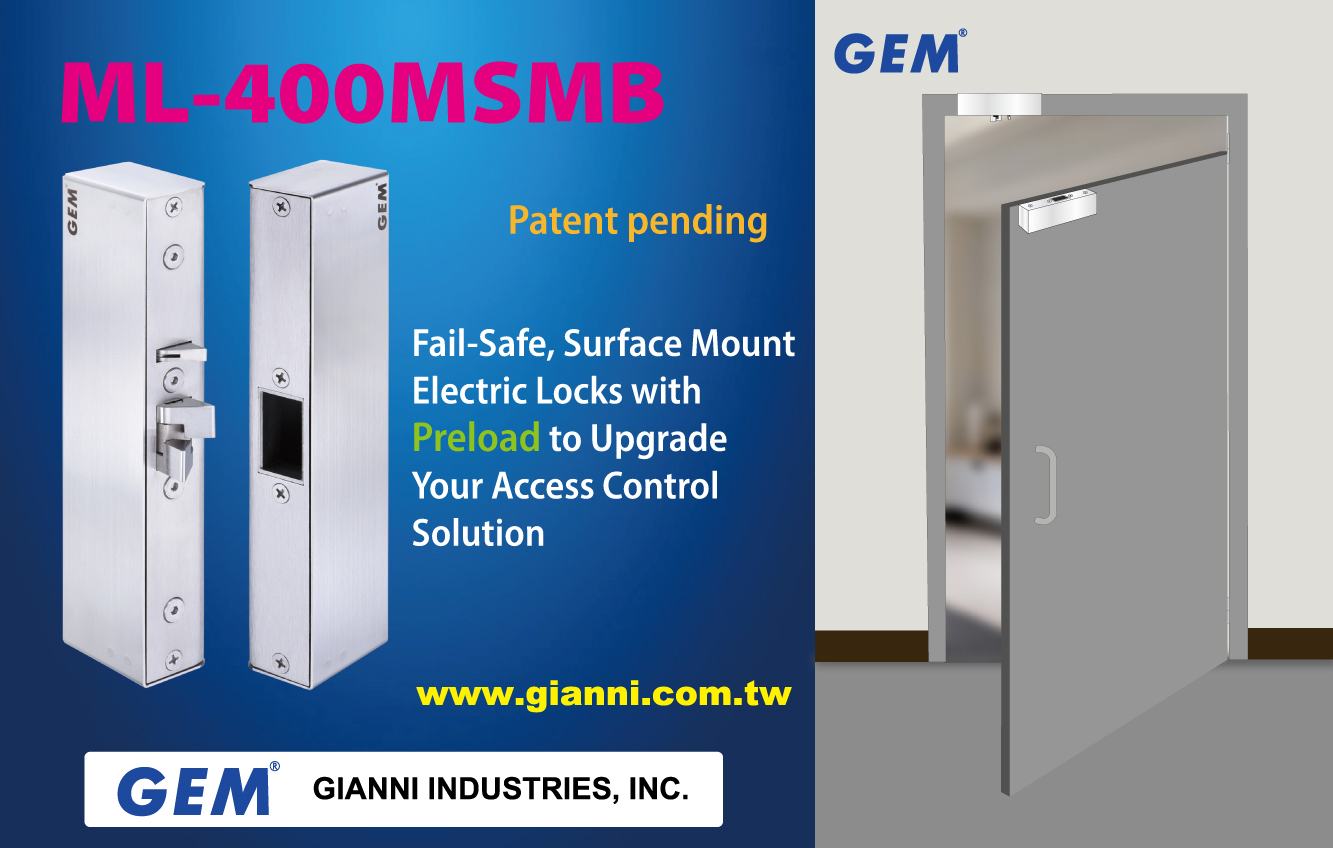

ML-400MSMB Surface Mount Electric Lock

The ML-400/450 series electric locks are high performance locks for single/double action swing doors and designed for installation on any type of door and frame. They offer different types of double action latchbolts, allowing deadlocking automatically when the door is closed to be secured for ease of use and convenience.

Preload

The ML-400M series features stainless steel construction and is designed with a high preload release capability of up to 500 lbs of preload which allows smooth operation under varying loads on the doors and overcomes door preload problems, such as air-conditioning pressure, warped doors, or heavy weather stripping seals.

Specification

◆ Tested and rated 3Y500G101 for EN14846:2008

◆ Operating Voltage: 12~24VAC/DC

◆ Current Draw: 280mA/12VDC; 180mA/24VDC

◆ Latch Status Output Contact Rating: 1A/125VAC

◆ Endurance Rating: 250,000 cycles (Factory tested)

◆ Static Strength: 1,500 lbs

◆ Preload: 500 lbs of pressure strength

Standard Features

◆ For single/double action swing doors

◆ For narrow frames (25 mm wide faceplate)

◆ Brushed stainless steel construction

◆ Fail-safe operation

◆ Horizontal/Vertical installation

◆ Door/Latch monitor

◆ For mortise, surface, or glass mounting

◆ 6 strike plate options available (For mortise mount models)

ML-400/450 Series Models

◆ ML-400M/450M: Mortise mount

◆ ML-400MSMB/450MSMB: Surface mount

◆ ML-400MVGL/450MVGL: Surface mount (for frameless glass doors & walls)

Patents, Approvals, and Listings

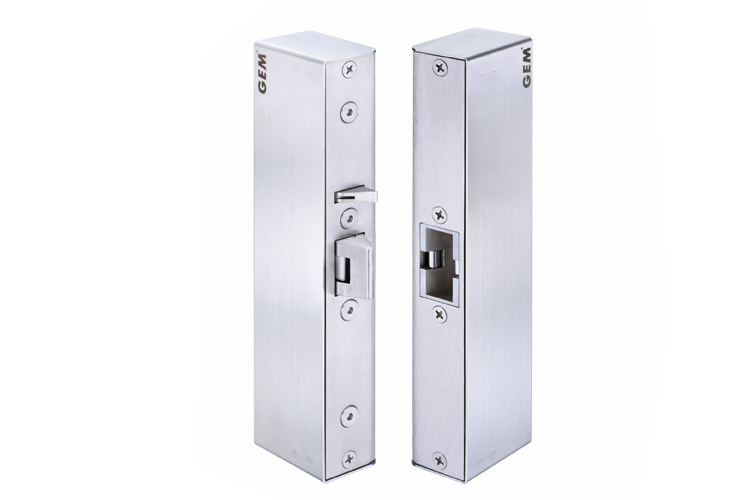

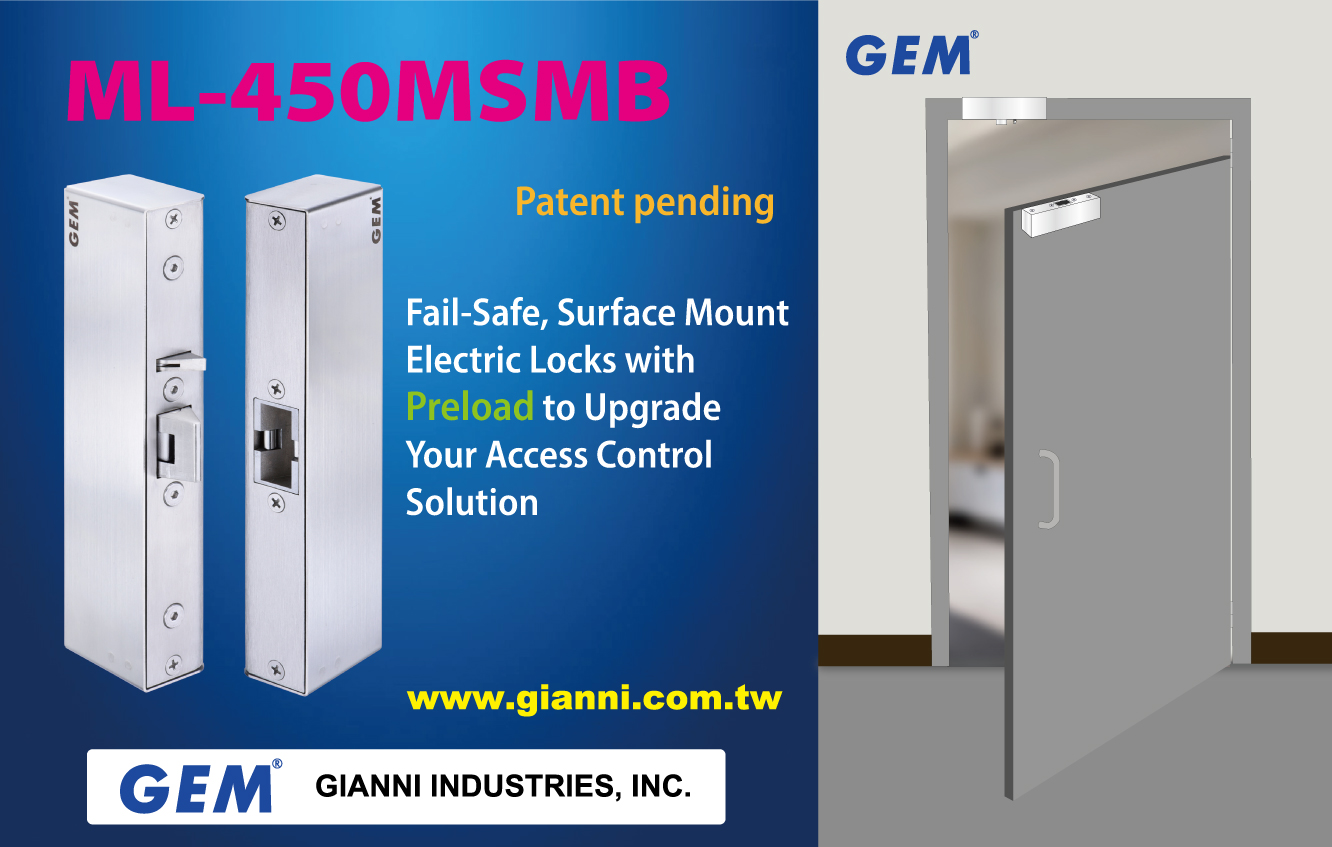

ML-450MSMB Surface Mount Electric Lock

The ML-400/450 series electric locks are high performance locks for single/double action swing doors and designed for installation on any type of door and frame. They offer different types of double action latchbolts, allowing deadlocking automatically when the door is closed to be secured for ease of use and convenience.

Preload

The ML-450M series features stainless steel construction and is designed with a high preload release capability of up to 500 lbs of preload which allows smooth operation under varying loads on the doors and overcomes door preload problems, such as air-conditioning pressure, warped doors, or heavy weather stripping seals.

Specification

◆ Tested and rated 3Y500G101 for EN14846:2008

◆ Operating Voltage: 12~24VAC/DC

◆ Current Draw: 280mA/12VDC; 180mA/24VDC

◆ Latch Status Output Contact Rating: 1A/125VAC

◆ Endurance Rating: 250,000 cycles (Factory tested)

◆ Static Strength: 1,500 lbs

◆ Preload: 500 lbs of pressure strength

Standard Features

◆ For single/double action swing doors

◆ For narrow frames (25 mm wide faceplate)

◆ Brushed stainless steel construction

◆ Fail-safe operation

◆ Horizontal/Vertical installation

◆ Door/Latch monitor

◆ For mortise, surface, or glass mounting

◆ 6 strike plate options available (For mortise mount models)

ML-400/450 Series Models

◆ ML-400M/450M: Mortise mount

◆ ML-400MSMB/450MSMB: Surface mount

◆ ML-400MVGL/450MVGL: Surface mount (for frameless glass doors & walls)

Patents, Approvals, and Listings

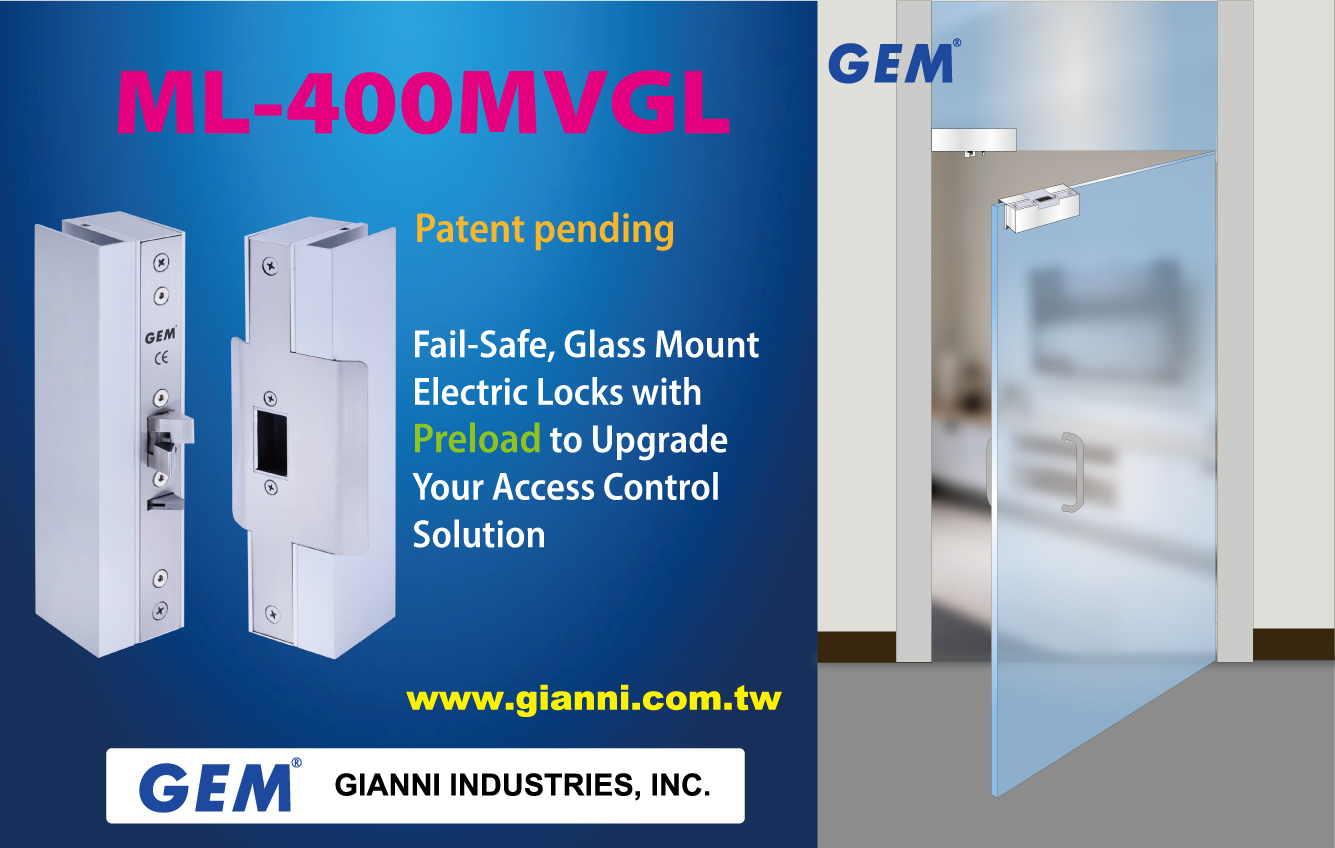

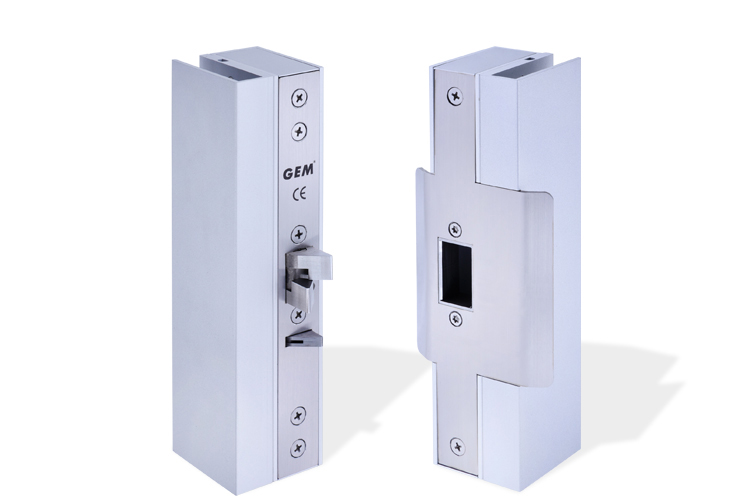

ML-400MVGL
Surface Mount Electric Lock
(for frameless glass doors & walls)

The ML-400/450 series electric locks are high performance locks for single/double action swing doors and designed for installation on any type of door and frame. They offer different types of double action latchbolts, allowing deadlocking automatically when the door is closed to be secured for ease of use and convenience.

Preload

The ML-400M series features stainless steel construction and is designed with a high preload release capability of up to 500 lbs of preload which allows smooth operation under varying loads on the doors and overcomes door preload problems, such as air-conditioning pressure, warped doors, or heavy weather stripping seals.

Specification

◆ Tested and rated 3Y500G101 for EN14846:2008

◆ Operating Voltage: 12~24VAC/DC

◆ Current Draw: 280mA/12VDC; 180mA/24VDC

◆ Latch Status Output Contact Rating: 1A/125VAC

◆ Endurance Rating: 250,000 cycles (Factory tested)

◆ Static Strength: 1,500 lbs

◆ Preload: 500 lbs of pressure strength

Standard Features

◆ For single/double action swing doors

◆ For narrow frames (25 mm wide faceplate)

◆ Brushed stainless steel construction

◆ Fail-safe operation

◆ Horizontal/Vertical installation

◆ Door/Latch monitor

◆ For mortise, surface, or glass mounting

◆ 6 strike plate options available (For mortise mount models)

ML-400/450 Series Models

◆ ML-400M/450M: Mortise mount

◆ ML-400MSMB/450MSMB: Surface mount

◆ ML-400MVGL/450MVGL: Surface mount (for frameless glass doors & walls)

Patents, Approvals, and Listings

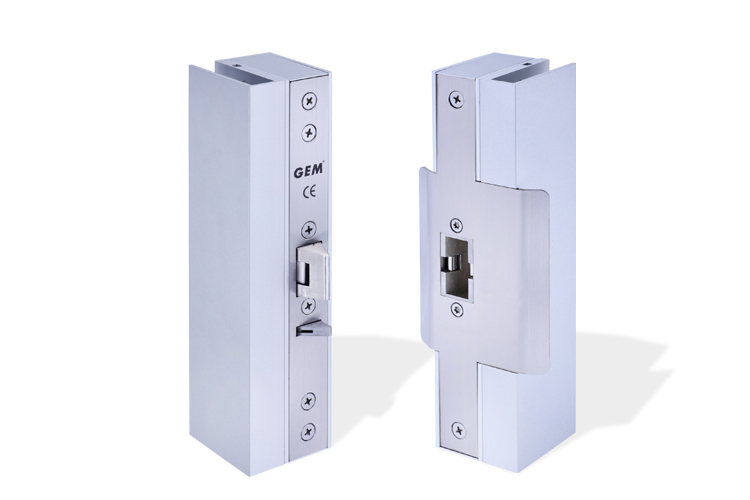

ML-450MVGL
Surface Mount Electric Lock
(for frameless glass doors & walls)

The ML-450M electric locks are high performance locks for single/double action swing doors and designed for installation on any type of door and frame. They offer different types of double action latchbolts, allowing deadlocking automatically when the door is closed to be secured for ease of use and convenience.

Preload

The ML-450M series features stainless steel construction and is designed with a high preload release capability of up to 500 lbs of preload which allows smooth operation under varying loads on the doors and overcomes door preload problems, such as air-conditioning pressure, warped doors, or heavy weather stripping seals.

Specification

◆ Tested and rated 3Y500G101 for EN14846:2008

◆ Operating Voltage: 12~24VAC/DC

◆ Current Draw: 280mA/12VDC; 180mA/24VDC

◆ Latch Status Output Contact Rating: 1A/125VAC

◆ Endurance Rating: 250,000 cycles (Factory tested)

◆ Static Strength: 1,500 lbs

◆ Preload: 500 lbs of pressure strength

Standard Features

◆ For single/double action swing doors

◆ For narrow frames (25 mm wide faceplate)

◆ Brushed stainless steel construction

◆ Fail-safe operation

◆ Horizontal/Vertical installation

◆ Door/Latch monitor

◆ For mortise, surface, or glass mounting

◆ 6 strike plate options available (For mortise mount models)

ML-400/450 Series Models

◆ ML-400M/450M: Mortise mount

◆ ML-400MSMB/450MSMB: Surface mount

◆ ML-400MVGL/450MVGL: Surface mount (for frameless glass doors & walls)

Patents, Approvals, and Listings
