EB195TGVGL Electric Dropbolts
The Fail-Safe series electric dropbolt can be mounted horizontally or vertically and provides various
functions. It is designed for use on double action doors (or single inswing/outswing doors) and ideal for applications where an electromganetic lock or electric strike is impractical. Surface mount models are also available for hollow metal door or frameless glass door applications.
Features
◆ Fail-safe (Power to lock)
◆ Vandal resistant - The lock cannot be defeated by slipping a metal object between lock and the srtike plate
◆ Built-in intelligent electronics allows the bolt to project several times if the door is not closed properly
◆ Built-in bolt status sensor and door position sensor
◆ Relock time delay
◆ Push button trigger input

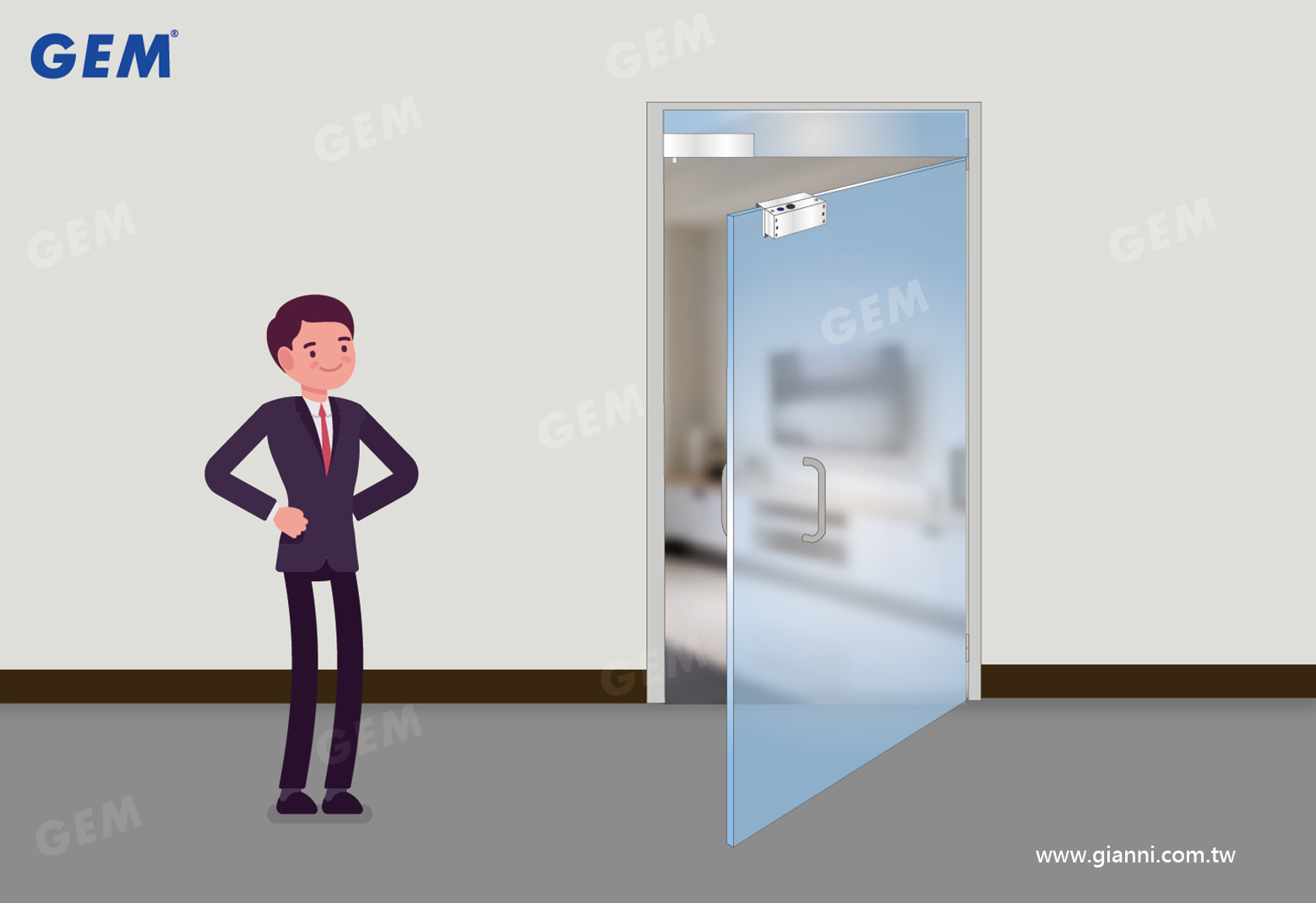

◆ Surface Mount (For Glass Doors & Walls)
Specification
◆ Voltage: Dual 12/24 VDC
◆ Current Draw:
- Pull in: 0.9A/12VDC, 0.45A/24VDC
- Holding: 0.15A/12VDC, 0.1A/24VDC
Patents, Approvals, and Listings
◆ CE: EC262504-01
