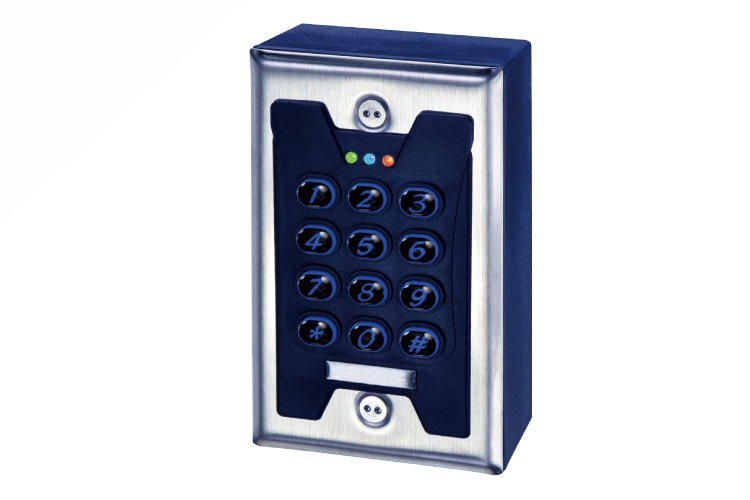

★ Current Draw:
Standby current 43mA@12VDC ; 23mA@24VDC
Working current (Relay active):63mA@12VDC ; 34mA@24VDC
★ Read Range:3.5cm
★ Frequency:EM 125KHz
★ Bluetooth Operating Distance:Up to 50 meters (164 ft) without blocking by metal or concrete wall/door frames
★ Smartphone Compatibility:Android 5.0 and up, iOS 9.0 and up
★ Working Temperature:-20 °C ~ +50 °C (-4 °F ~122 °F)
★ Dimension:120 x 74 x 46.2 mm
★ Material:ABS / Stainless Steel
Standard Features
★ Applicable card mode:EM Card / Key Fob
★ 1 Administrator and 200 Users
★ 200 Proximity Cards / Key fobs
★ Access Modes:Use Bluetooth smartphone, Card / Key fob or enter passcode to access
★ Built-in Tamper alarm and Buzzer (85dB)
★ User Management:Add / Delete / View user data, Grant user access for specific dates or time periods, Change user passcode
★ Audit Trail logs for last 1000 events
★ Alarm output to notify that Tamper alarm has been triggered
★ Overhead LEDs and Backlit keys for easy use in the dark
★ Wrong code lockout:If an incorrect passcode is entered 3 times in a row, the keypad will lock down for 60 seconds

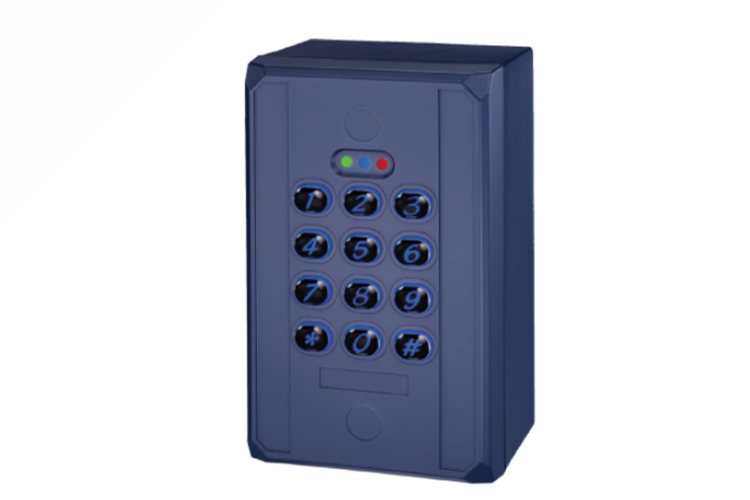

DG-320BLE Access Control Proximity Readers
Specifications
★ Operating Voltage:12VDC / 24 VDC
★ Bluetooth Module:BLE 4.2 Bluetooth Low Energy
★ Current Draw:
Standby current 43mA@12VDC ; 23mA@24VDC
Working current (Relay active):63mA@12VDC ; 34mA@24VDC
★ Read Range:3.5cm
★ Frequency:EM 125KHz
★ Bluetooth Operating Distance:
Up to 50 meters (164 ft) without blocking by metal
or concrete wall/door frames
★ Smartphone Compatibility:Android 5.0 and up,
iOS 9.0 and up
★ Working Temperature:
-20 °C ~ +50 °C (-4 °F ~122 °F)
★ Dimension:114 (L) x 70 (W) x 41 (D) mm
★ Material:ABS
Standard Features
★ Applicable card mode:EM Card / Key Fob
★ 1 Administrator and 200 Users
★ 200 Proximity Cards / Key fobs
★ Access Modes:Use Bluetooth smartphone, Card / Key fob or enter passcode to access
★ Built-in Tamper alarm and Buzzer (85dB)
★ User Management:Add / Delete / View user data, Grant user access for specific dates or time periods, Change user passcode
★ Audit Trail logs for last 1000 events
★ Alarm output to notify that Tamper alarm has been triggered
★ Overhead LEDs and Backlit keys for easy use in the dark
★ Wrong code lockout:If an incorrect passcode is entered 3 times in a row, the keypad will lock down for 60 seconds

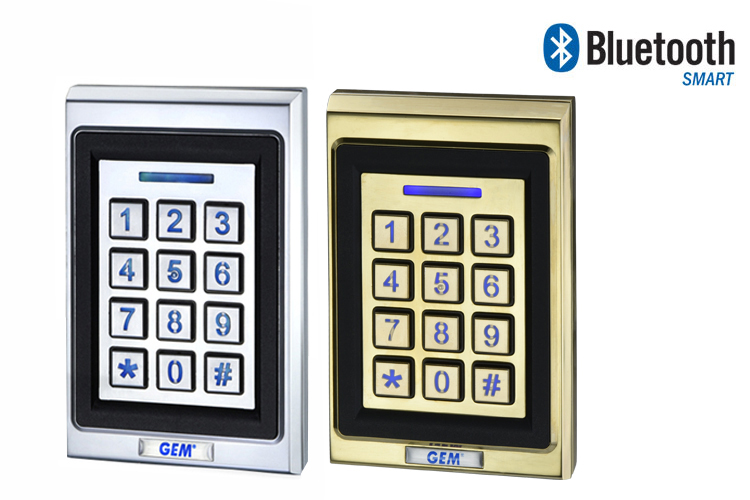

DG-800+ Bluetooth Proximity Keypad (Illuminated)
E-Access Bluetooth devices work together with magnetic locks, door strikes, exit buttons, door holders, and power supplies to make life more simple and secure. GEM provides all your need in Access Controls - your best choice to rely on for your home or office security control.
Specifications
★ Voltage: 12 VDC/24 VDC
★ Bluetooth Mode: BLE 4.2
★ Current Draw:
Standby current 56mA@12VDC ; 28mA@24VDC
Working current (Relay active):85mA@12VDC ; 43mA@24VDC
★ Administrator/Users: 1/200
★ Access Modes: Smartphone, RFID prox card, PIN code
Standard Features
★ Allows smartphone-operated access
★ Bluetooth operating range up to 50 meters
★ Adjustable Auto proximity range for convenient access
★ E-Access app available for easy access control and user management
★ LED and built-buzzer indicate status
★ 125KHz RFID technology- using EM or EM compatible cards (except model E1196)
★ Chrome/Gold finish
★ IP rated weatherproof
DG-170+ Bluetooth Proximity Keypad (Illuminated)
E-Access Bluetooth devices work together with magnetic locks, door strikes, exit buttons, door holders, and power supplies to make life more simple and secure. GEM provides all your need in Access Controls - your best choice to rely on for your home or office security control.
Specifications
★ Voltage: 12 VDC/24 VDC
★ Bluetooth Mode: BLE 4.2
★ Current Draw:
Standby current 56mA@12VDC ; 28mA@24VDC
Working current (Relay active):85mA@12VDC ; 43mA@24VDC
★ Administrator/Users: 1/200
★ Access Modes: Smartphone, RFID prox card, PIN code
Standard Features
★ Allows smartphone-operated access
★ Bluetooth operating range up to 50 meters
★ Adjustable Auto proximity range for convenient access
★ E-Access app available for easy access control and user management
★ LED and built-buzzer indicate status
★ 125KHz RFID technology- using EM or EM compatible cards (except model E1196)
★ Chrome/Gold finish

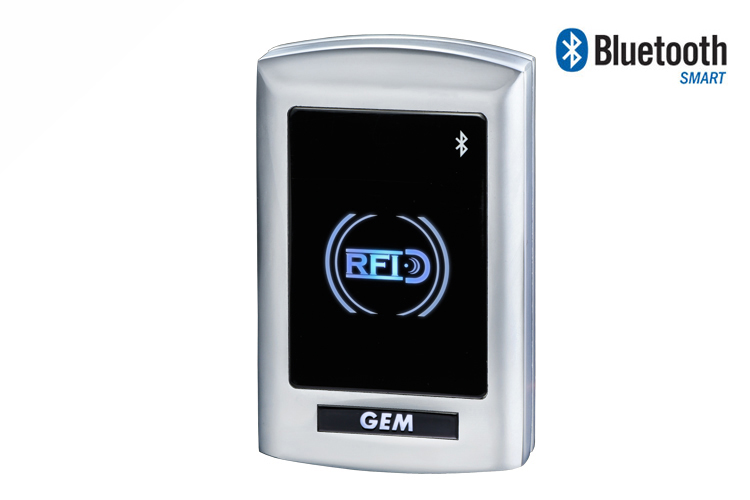

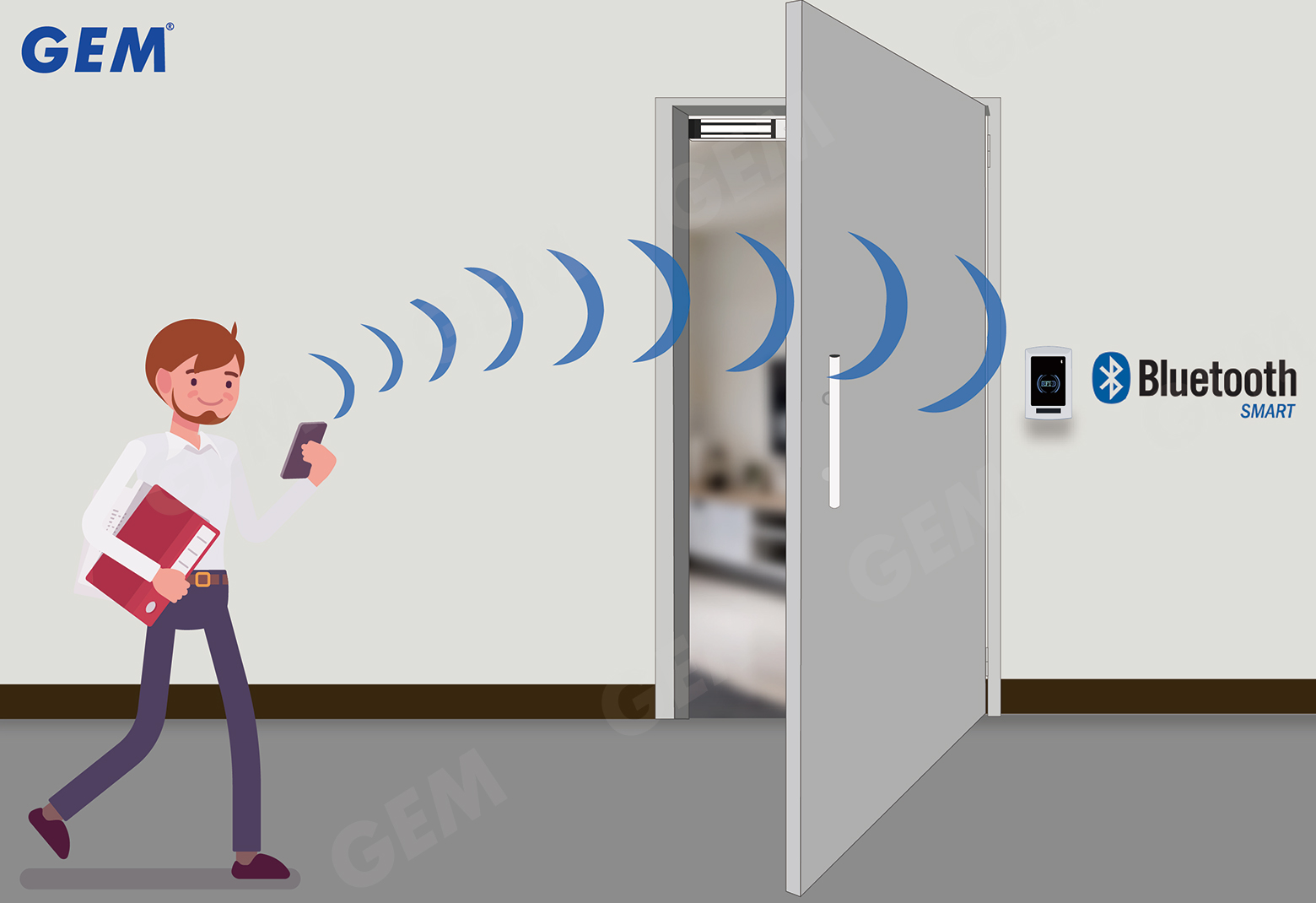

DG-365+ Bluetooth Proximity Reader
E-Access Bluetooth devices work together with magnetic locks, door strikes, exit buttons, door holders, and power supplies to make life more simple and secure. GEM provides all your need in Access Controls - your best choice to rely on for your home or office security control.
Specifications
★ Voltage: 12 VDC/24 VDC
★ Bluetooth Mode: BLE 4.2
★ Current Draw:
Standby current 65mA/12VDC, 35mA/24VDC
Working current (Relay active):80mA/12VDC, 40mA/24VDC
★ Administrator/Users: 1/200
★ Access Modes: Smartphone, RFID prox card
Standard Features
★ Allows smartphone-operated access
★ Bluetooth operating range up to 50 meters
★ Adjustable Auto proximity range for convenient access
★ E-Access app available for easy access control and user management
★ LED and built-buzzer indicate status
★ Chrome plated front trim
★ Logo LED indicator

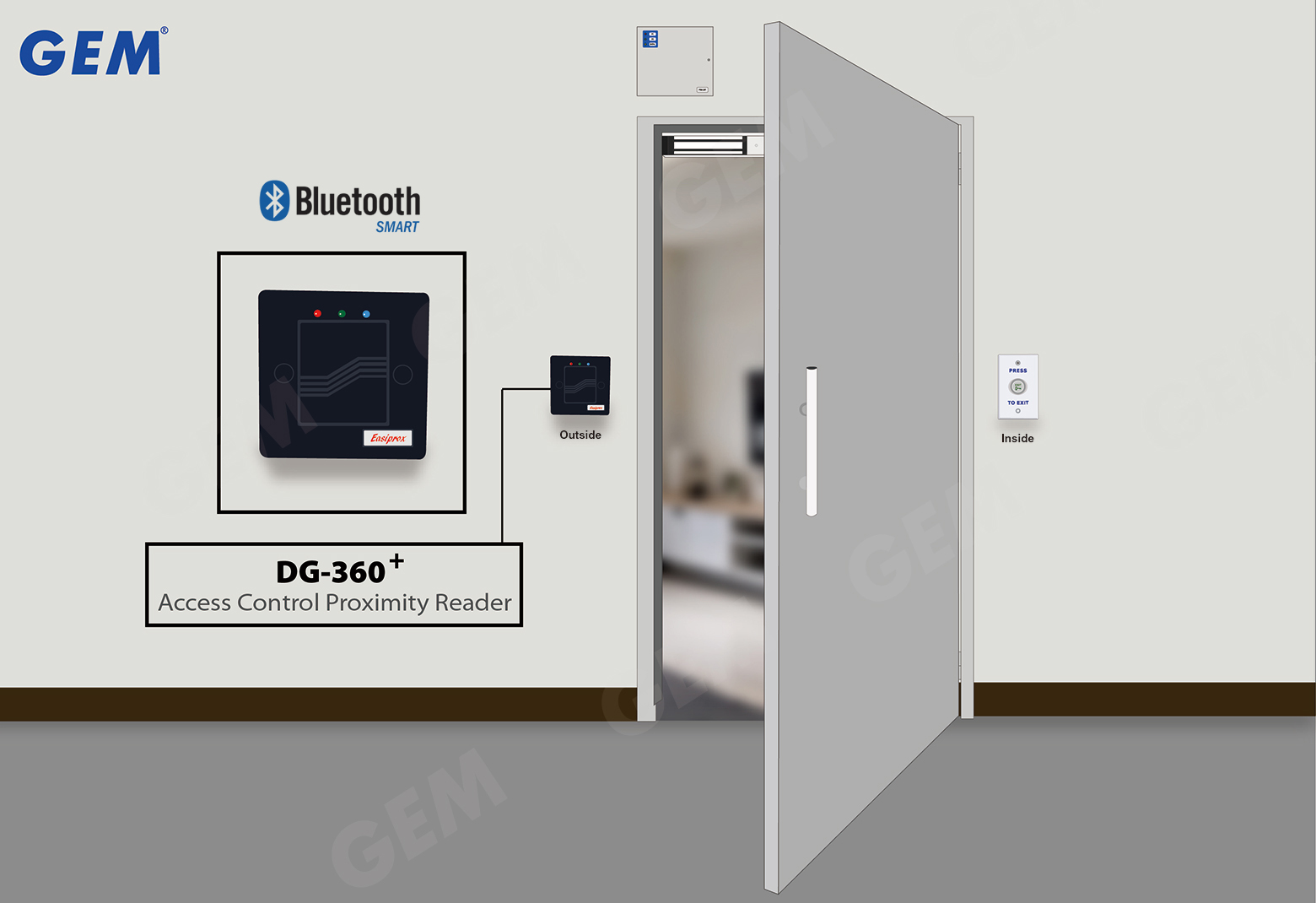

DG-360+ Bluetooth Proximity Reader
E-Access Bluetooth devices work together with magnetic locks, door strikes, exit buttons, door holders, and power supplies to make life more simple and secure. GEM provides all your need in Access Controls - your best choice to rely on for your home or office security control.
Specifications
★ Voltage: 12 VDC/24 VDC
★ Bluetooth Mode: BLE 4.2
★ Current Draw:
Standby current 90mA/12VDC, 46mA/24VDC
Working current (Relay active):101mA/12VDC, 51mA/24VDC
★ Administrator/Users: 1/200
★ Access Modes: Smartphone, RFID prox card
Standard Features
★ Allows smartphone-operated access
★ Bluetooth operating range up to 50 meters
★ Adjustable Auto proximity range for convenient access
★ E-Access app available for easy access control and user management
★ LED and built-buzzer indicate status
★ Black finish
★ European standard size

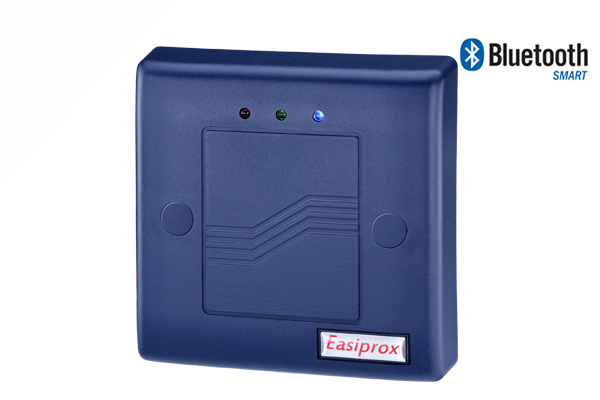

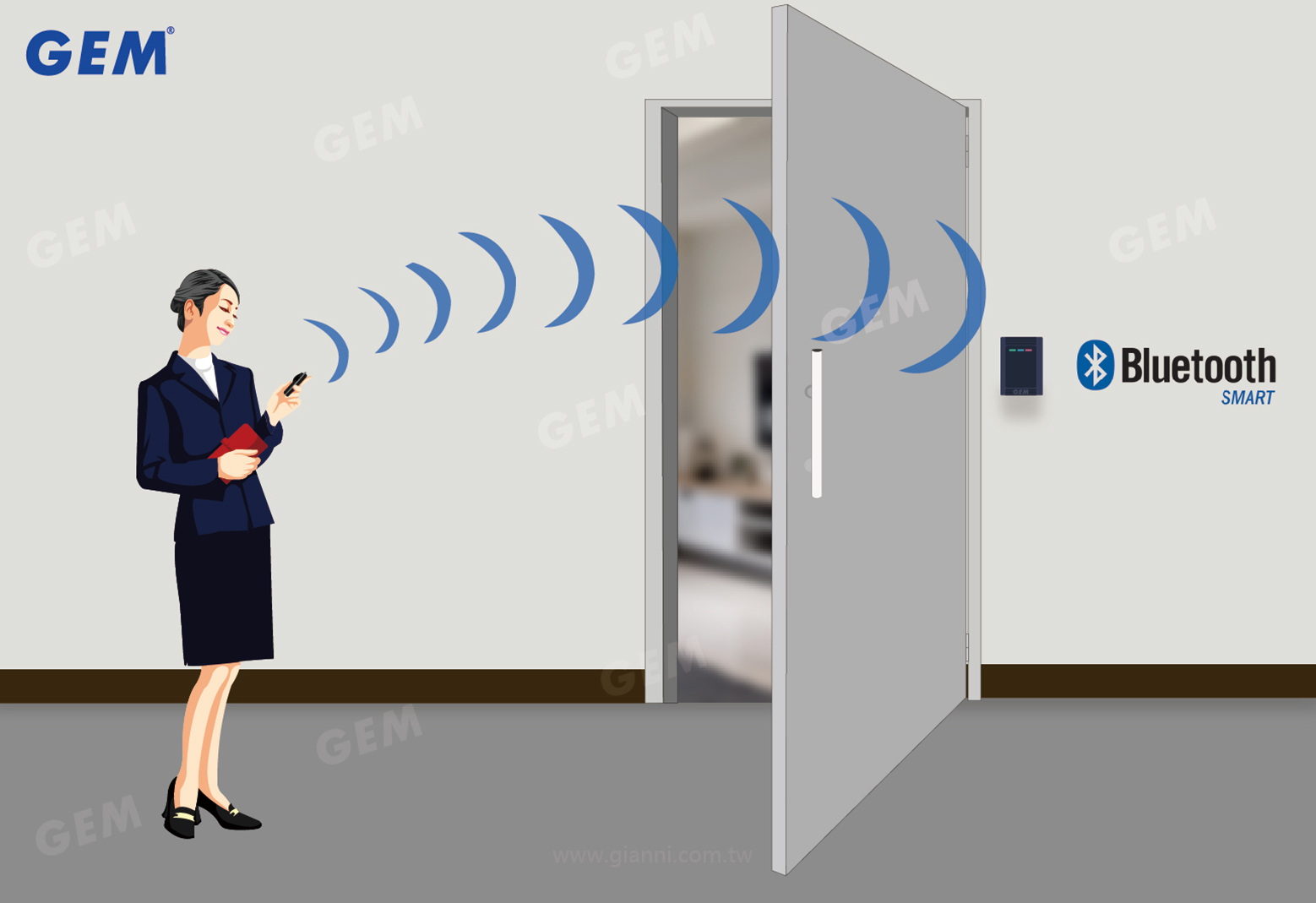

Easiprox+ Bluetooth Proximity Reader
E-Access Bluetooth devices work together with magnetic locks, door strikes, exit buttons, door holders, and power supplies to make life more simple and secure. GEM provides all your need in Access Controls - your best choice to rely on for your home or office security control.
Specifications
★ Voltage: 12 VDC/24 VDC
★ Bluetooth Mode: BLE 4.2
★ Current Draw:
Standby current 53mA/12VDC, 30mA/24VDC
Working current (Relay active):60mA/12VDC, 34mA/24VDC
★ Administrator/Users: 1/200
★ Access Modes: Smartphone, RFID prox card
Standard Features
★ Allows smartphone-operated access
★ Bluetooth operating range up to 50 meters
★ Adjustable Auto proximity range for convenient access
★ E-Access app available for easy access control and user management
★ LED and built-buzzer indicate status
★ Navy blue finish

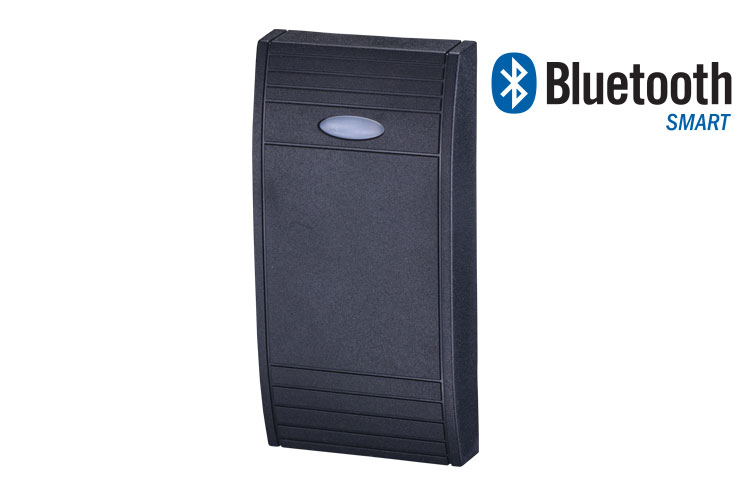

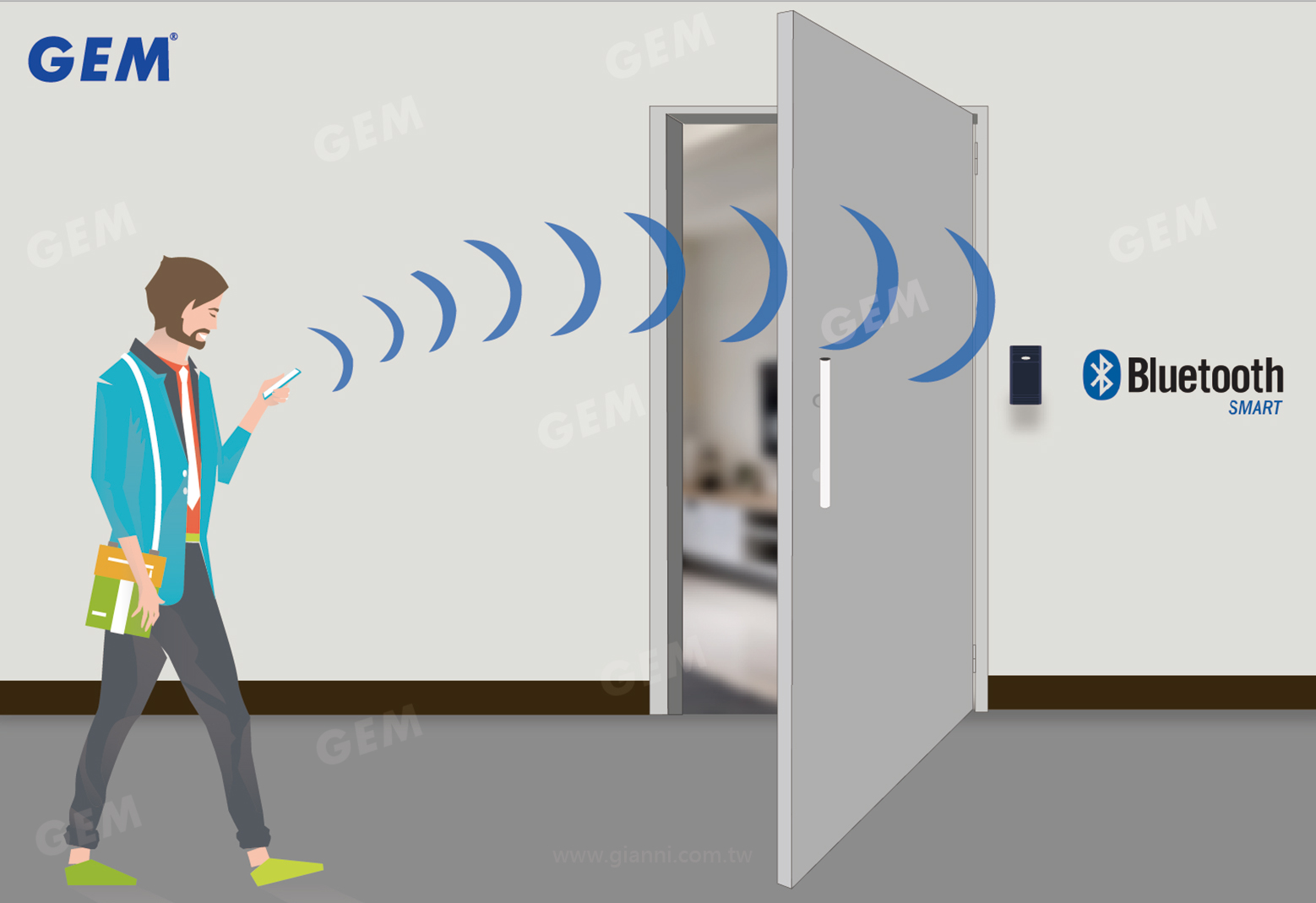

Easiprox+ Slim Bluetooth Proximity Reader
E-Access Bluetooth devices work together with magnetic locks, door strikes, exit buttons, door holders, and power supplies to make life more simple and secure. GEM provides all your need in Access Controls - your best choice to rely on for your home or office security control.
Specifications
★ Voltage: 12 VDC
★ Bluetooth Mode: BLE 4.2
★ Current Draw:
Standby current: 89mA/12VDC
Working current (Relay active):103mA/12VDC
★ Administrator/Users: 1/200
★ Access Modes: Smartphone, RFID prox card
Standard Features
★ Allows smartphone-operated access
★ Bluetooth operating range up to 50 meters
★ Adjustable Auto proximity range for convenient access
★ E-Access app available for easy access control and user management
